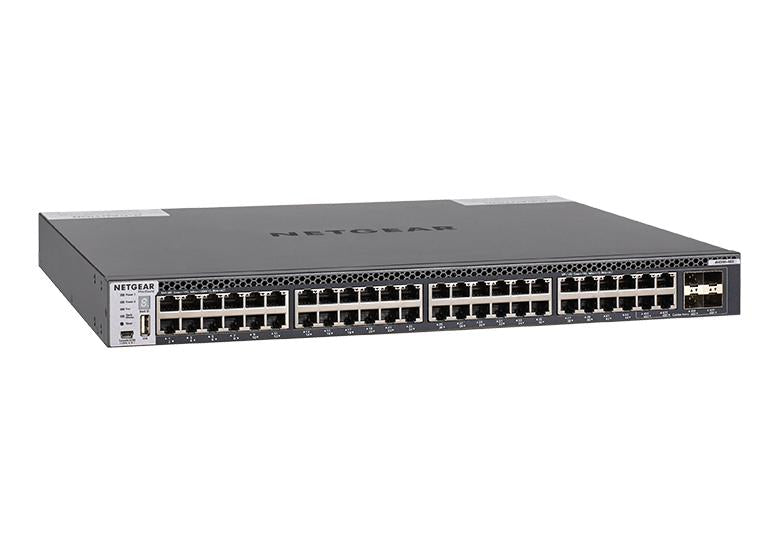

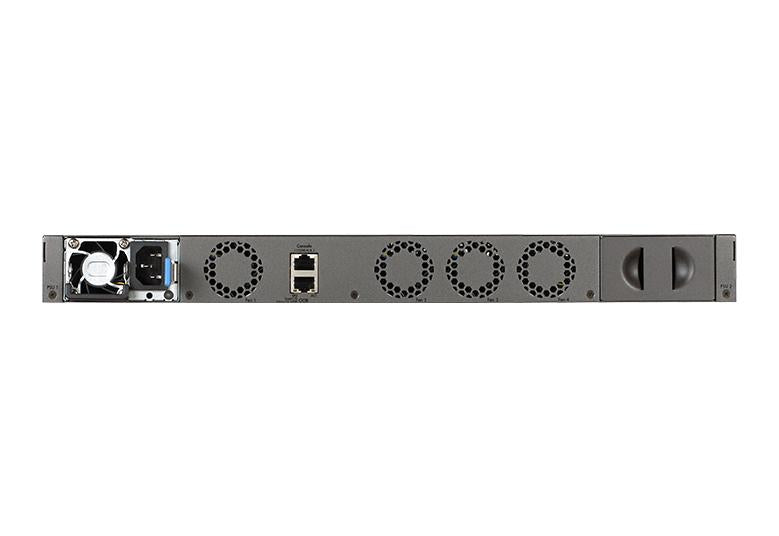

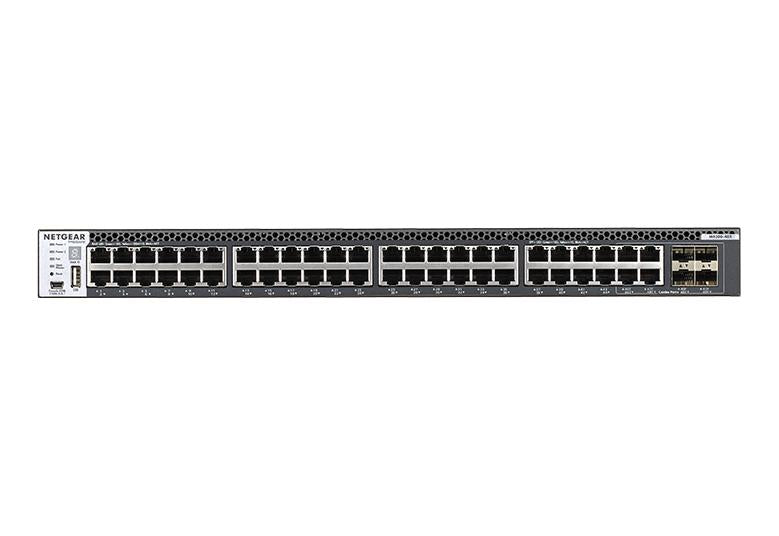

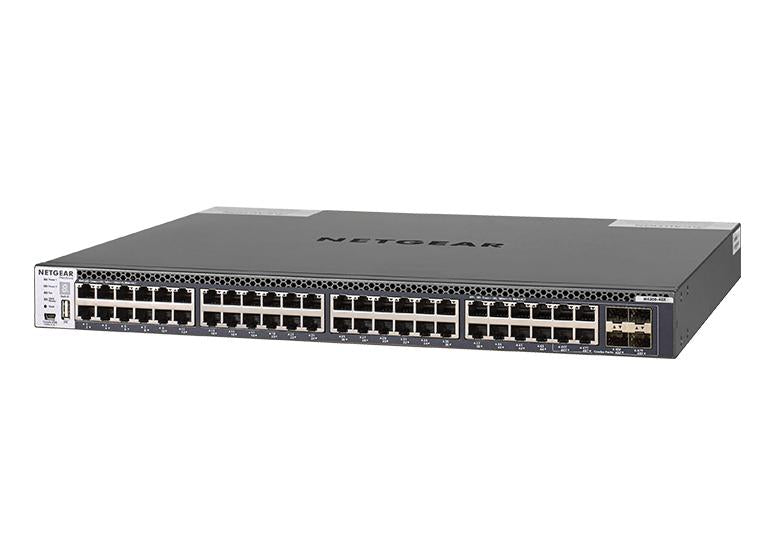

Netgear XSM4348CS-100NES 48-Port 10G and 4xSFP+ (shared) Managed Switch
SKU: XSM4348CS-100NES
£5,142.88 (Excl. VAT)
- Description
- Specifications
- Downloads
-
Netgear 48-Port 10G Managed Switch | 4x SFP+, 960Gbps Fabric, IGMP Plus
M4300-48X (XSM4348CS)
48x10G and 4xSFP+ (shared) Managed Switch
Stackable Managed Switch with 48X 10G Ports - IT Core & AV-over-IP
Business Continuity Management
Full-width switches offer dual redundant, modular power supplies (select m4300 models)
High Availability (HA)
Non-stop forwarding (NSF) virtual chassis architectures with hitless failover across the stack
Multi-Resiliency
Stacking and distributed link aggregation allow for zero downtime and load balancing capabilities
PVST+ Interoperability
Per VLAN Spanning Tree and Per VLAN Rapid Spanning Tree (PVSTP/PVRSTP)
Link Dependency
Enables or disables ports based on link state of different ports
Advanced IPv4/IPv6 security
Malicious code detection, DHCP Snooping, IP Source Guard protection and DoS attacks mitigation
Simple GUI
Full- functional Web console (GUI) for IT admins who prefer an intuitive graphical interface
Flexible & Efficient
Line-rate Spine and Leaf topologies offer many possibilities for server rooms, branch collapsed cores, or at the edge of growing networks.
Mix & Match Stacking
Stack between 10/40 Gigabit and 1 Gigabit models using any 10G/40G port, with any media type (RJ45, SFP+, DAC cables). Vertical, horizontal, manage as one unit
Room to Grow
With PoE+, plug and play ports, and hot swap, you're ready to grow whenever you need to.
Industry Standard
SNMP, RMON, MIB, LLDP, AAA, sFlow, RSPAN and PTPv2 1-step transparent clock implementation (select M4300 models)
Zero Touch AV-over-IP
Pre-configured for Out-of-Box L2 Multicast (SDVoE-ready)
No Delay
Non-Blocking Fabric for Near-Zero Switch Latency
NETGEAR IGMP Plus™
Prevent network flooding with effortless multicast implementation of Layer 2 Multicast
Dedicated Design
ProAV Engineering Services for AV Network Design and Install Support ProAVDesign@NETGEAR.com
Power Your Business
48-Ports of 10GbE and non-blocking fabric provide latency free connections
Business Continuity
Redundant Modular PSU for reliability
The M4300 Family
Mix and match M4300 series switches to maximize your deployment opportunities.
ProAV out of the Box
Enjoy instant 1G/10G RX/TX end-point deployments with IGMP Snooping and NETGEAR exclusive IGMP Plus. -
Feature Description Warranty NETGEAR ProSAFE® Limited Lifetime Hardware Warranty. Lifetime Next Business Day Hardware Replacement. Coverage, availability, and terms and conditions. Support ProSUPPORT 24x7 Advanced Technical Support via phone for 90 days (remote diagnostics). Coverage extendable by purchasing 1, 3, or 5-year contracts. Lifetime 24x7 Advanced Technical Support via chat. Model Number XSM4348CS Ports 48 x RJ45 (100M / 1G / 10G) Shared SFP+ Ports 4 x SFP+ (1G / 10G) Modular Bay 2 Bays with One (1) 250W Modular PSU included (APS250W) Switching Fabric 960 Gbps Fan Fixed Fan, Front-to-Back airflow, 40 dB Ethernet Out-of-band 1G port (Back) Console (RJ45 RS232) RJ45 RS232 (Back) Console (Mini-USB) Mini-USB (Front) Storage (USB) USB (Front) Management Platform Single-pane-of-glass NMS300 management platform with mass-configuration support Firmware & Configuration Updates Dual firmware image and configuration file for updates with minimal service interruption -
Description Downloads Netgear XSM4348CS-100NES 48-Port 10G and 4xSFP+ (shared) Managed Switch Datasheet Downloads
