NovaStar 6-Output Sender Box
MCTRL700 is a video controller developed by NovaStar. It supports 1x DVI input, 1× HDMI input, 1× audio input, and 6 Ethernet outputs. A single unit can load 1920×1200@60Hz.
MCTRL700 utilizes USB IN to connect with a PC, and serial UART to perform cascading. MCTRL700 is mainly suitable for applications in the rental and fixed installation sectors, such as concerts, live broadcasting, monitoring centers, Olympic events, sports arenas, and more.Supports 3 types of inputs:
1×SL-DVI（IN-OUT）
1×HDMI 1.3（IN-OUT）
1×AUDIO
8bit video source loading capacity of 1920×1200@60Hz.
12bit video source loading capacity of 1440×900@60Hz
Supports 6x 1G network port outputs.
Supports 1× USB control port
Supports 2× UART control ports for cascading up to a maximum of 20 units.Point to point brightness and color calibration provided by NovaLCT and NOVACLB software. This software performs brightness and color calibration on every LED lamp, reducing color discrepancies, and ensuring uniform brightness and color over the entire display, providing a higher quality image.
-

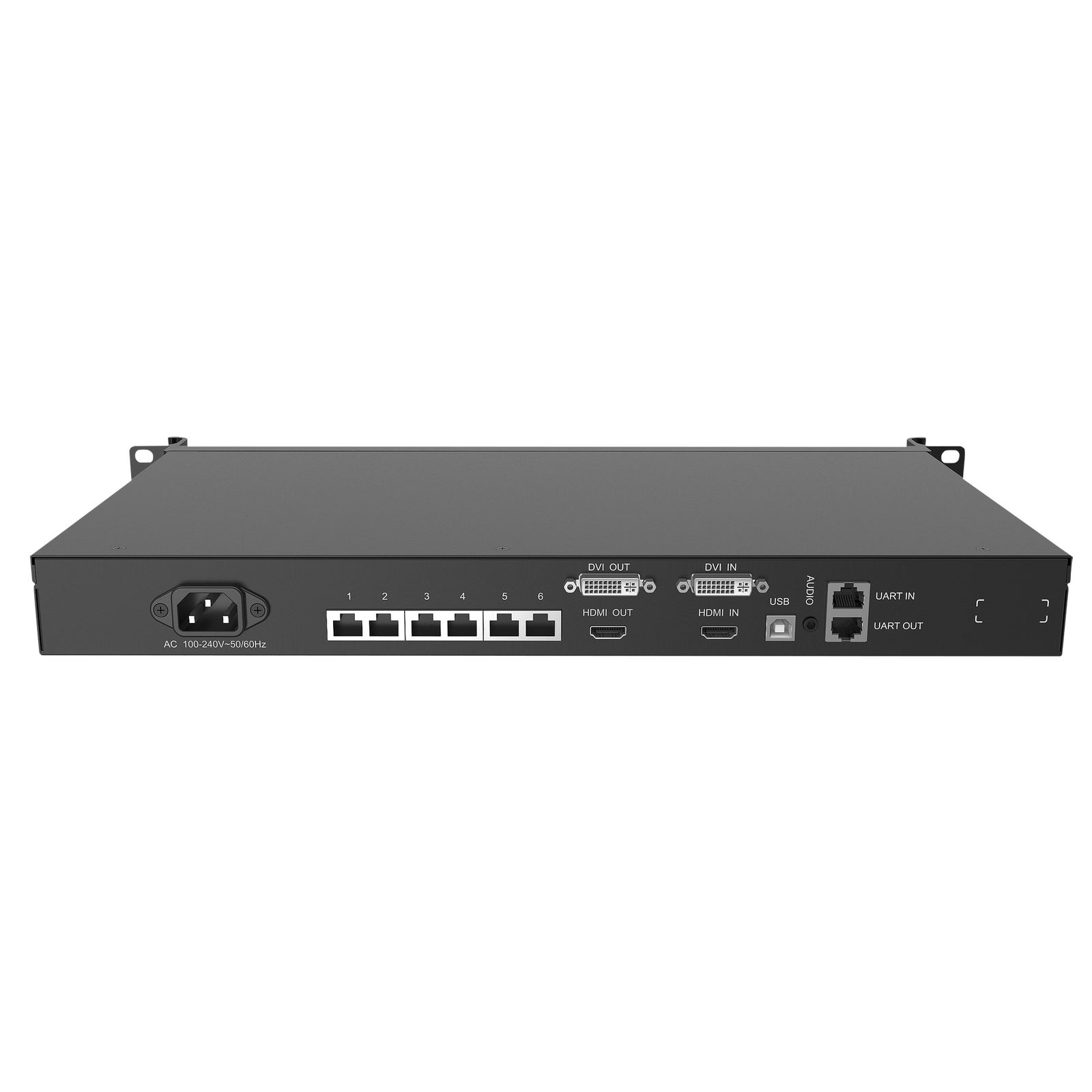

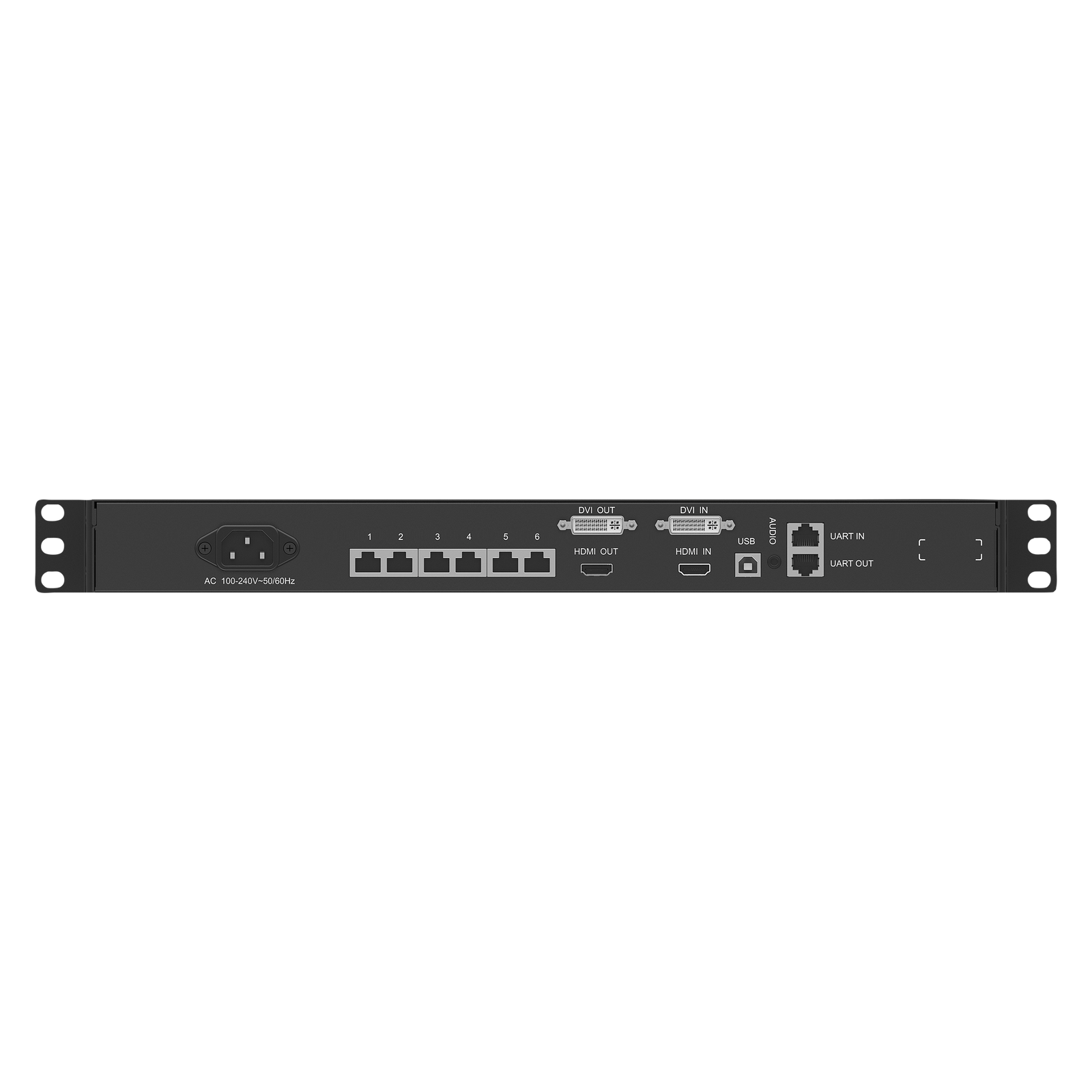

Connector Type Connector Name Description Input DVI IN 1x SL-DVI input, up to 1920×1200@60Hz, Custom resolutions supported: Max Width: 3840, Max Height: 3840. HDCP 1.4 compliant. No interlaced input support. HDMI IN 1x HDMI 1.3 input, up to 1920×1200@60Hz, Custom resolutions supported: Max Width: 3840, Max Height: 3840. HDCP 1.4 compliant. No interlaced input support. AUDIO IN Audio input connector for external audio sources. Output RJ45 Ports 6x RJ45 Gigabit Ethernet ports, up to 650,000 pixels per port. Redundancy supported between ports. HDMI OUT 1x HDMI 1.3 output for cascading. DVI OUT 1x SL-DVI output for cascading. Control USB Type-B USB 2.0 port for PC connectivity. UART IN/OUT Input and output ports for cascading up to 20 devices. Power Power Supply AC 100V-240V ~ 50/60Hz Key Features Calibration Pixel-level brightness and chroma calibration for enhanced image quality and color uniformity. Control Software Works with NovaLCT and NovaCLB for LED calibration and display optimization. Additional Features Redundancy Redundancy support for uninterrupted display in case of signal loss.
