NovaStar KU20 LED Display Controller
SKU: KU20
£1,227.60 (Excl. VAT)
- Description
- Specifications
-
NovaStar KU20 LED Display Controller

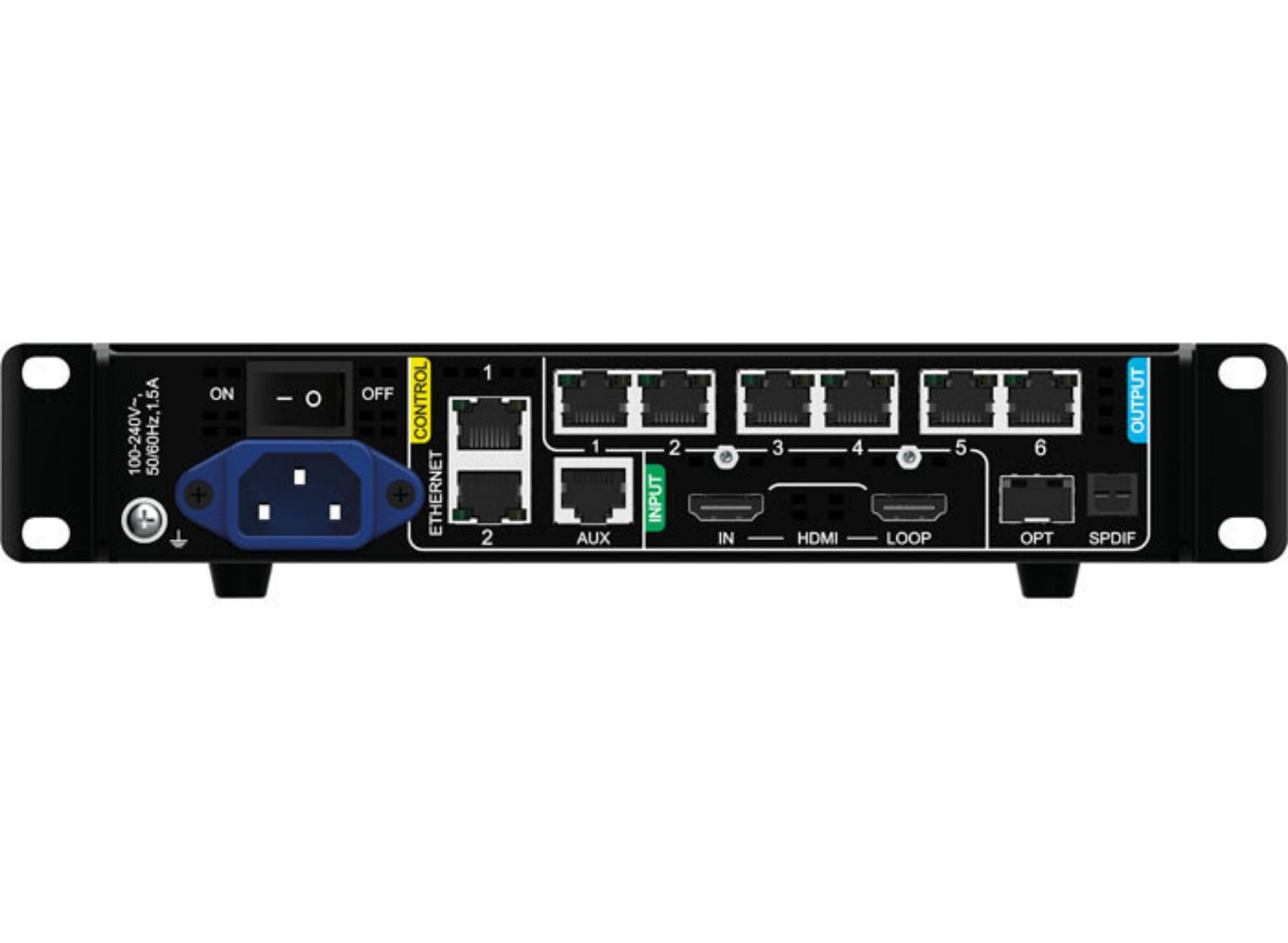

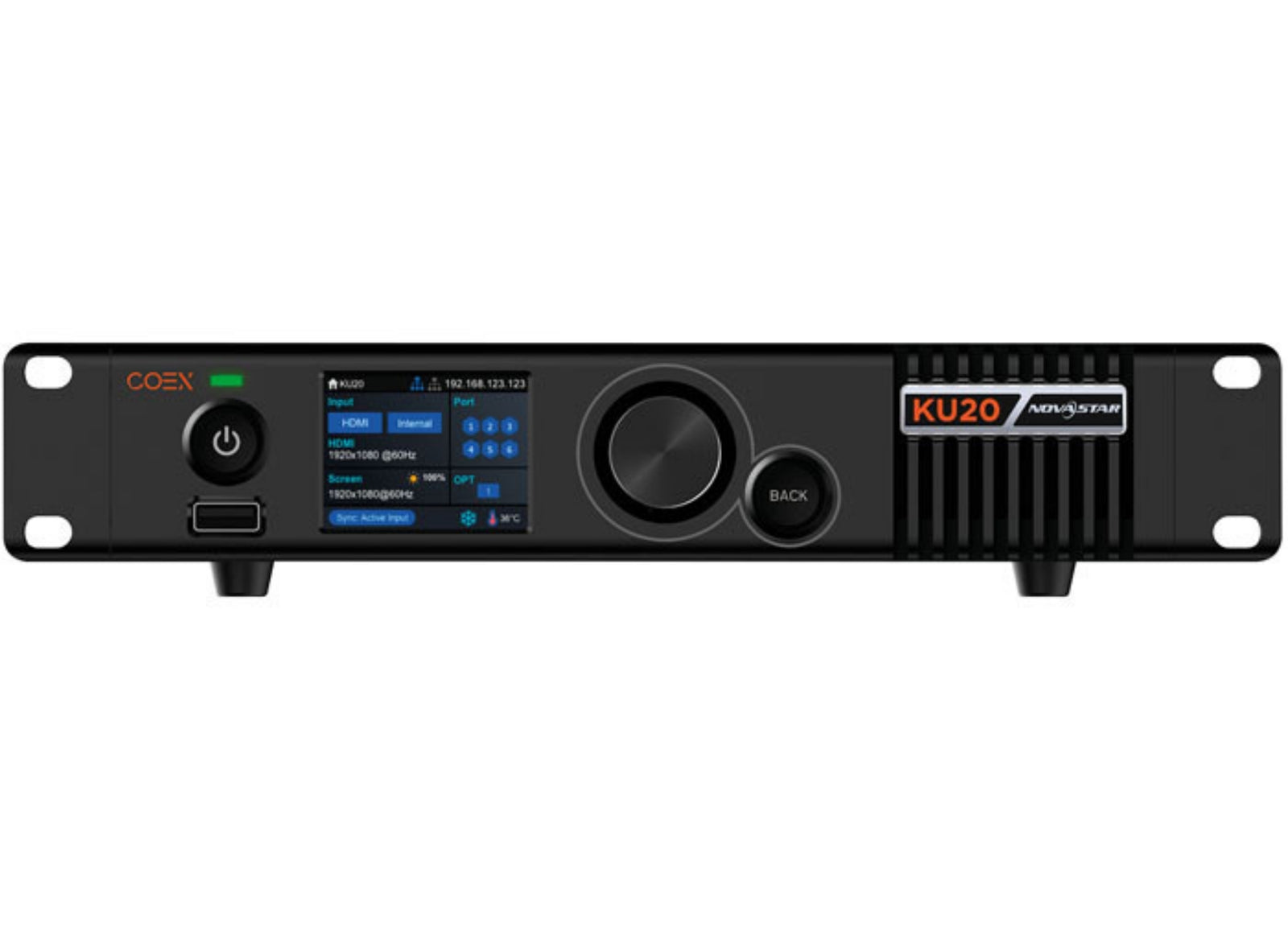

Novastar’s KU20 is an LED display controller with an HDMI 1.3 input and a loop. It has six Ethernet outputs as well as optical and S/PDIF outputs. There are also two network ports and one auxiliary port on board. A control knob and a back button, together with a 2-inch LCD screen, make it easy to control the device. The KU20 can also be controlled by the comprehensive, user-friendly VMP software, which ensures easy operation and control. Cascading control via Ethernet is also possible and both SNMP and Art-Net protocols are supported. Advanced features include image scaling, pixel level brightness and chroma calibration, low latency support and display system monitoring. The KU20 can be mounted in a 19-inch rack and comes complete with a mounting plate.
-
Category Specification Inputs HDMI 1.3: 1 port Outputs Main Outputs: 6 ports HDMI 1.3 (Loop): 1 port S/PDIF (Out): 1 port Ethernet Speed 1 Gbit/s Optical SFP Slot Type: 10G SFP Slot Quantity: 1 Software Specifications Control Software: VMP Extra Features Scaling Function: Yes DMX Control: Art-Net Control & Programming Display: LCD (2") Max Loading Capacity: 3.9 Mpx Max Input Resolution: 1920 x 1200 Control Options: Ethernet Electrical Specifications Power Supply: 100-240 V AC 50/60 Hz Power Consumption: 25W Power Connector: IEC Data Connections Data In: RJ45 Data Out: RJ45 Mechanical Specifications Width (w/ handles): 255 mm (10.039″) Width (w/o handles): 217 mm (8.543″) Height (w/ handles): 44 mm (1.732″) Depth (w/ handles): 290 mm (11.417″) Depth (w/o handles): 263 mm (10.354″) Weight: 2.1 kg (4.63 lb) Rack Units: 1U IP Rating: IP20 (Indoor Use Only) Colour Black Thermal Specifications Max Temp: 50°C (122°F) Min Temp: -20°C (-4°F) Operating Humidity: 0-80% rH Included Items CAT-5 Cable, HDMI Cable, IEC Cable Included Accessories Connection Plate, Screws
