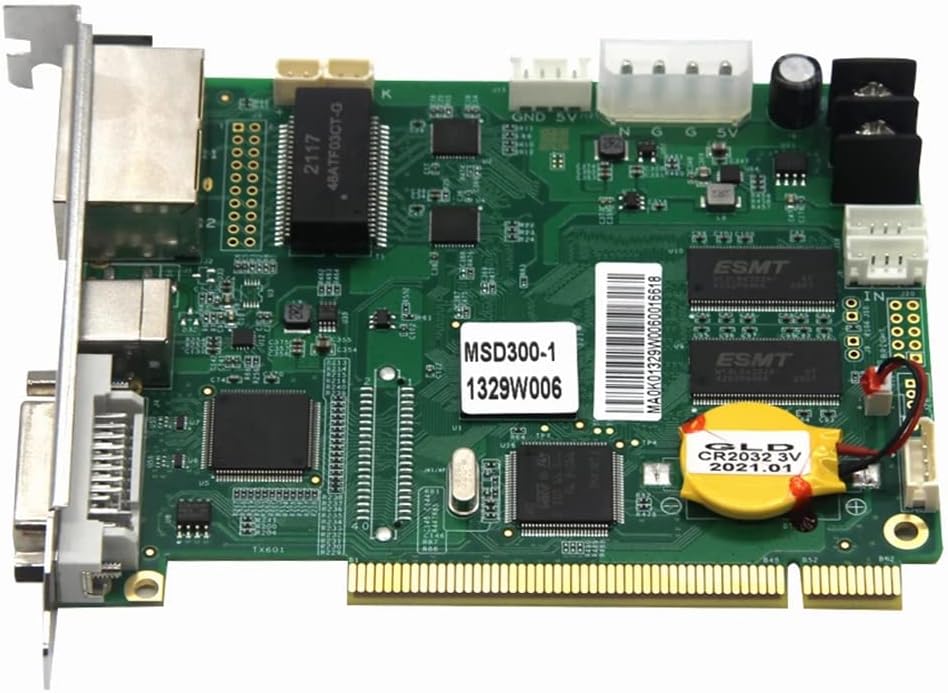

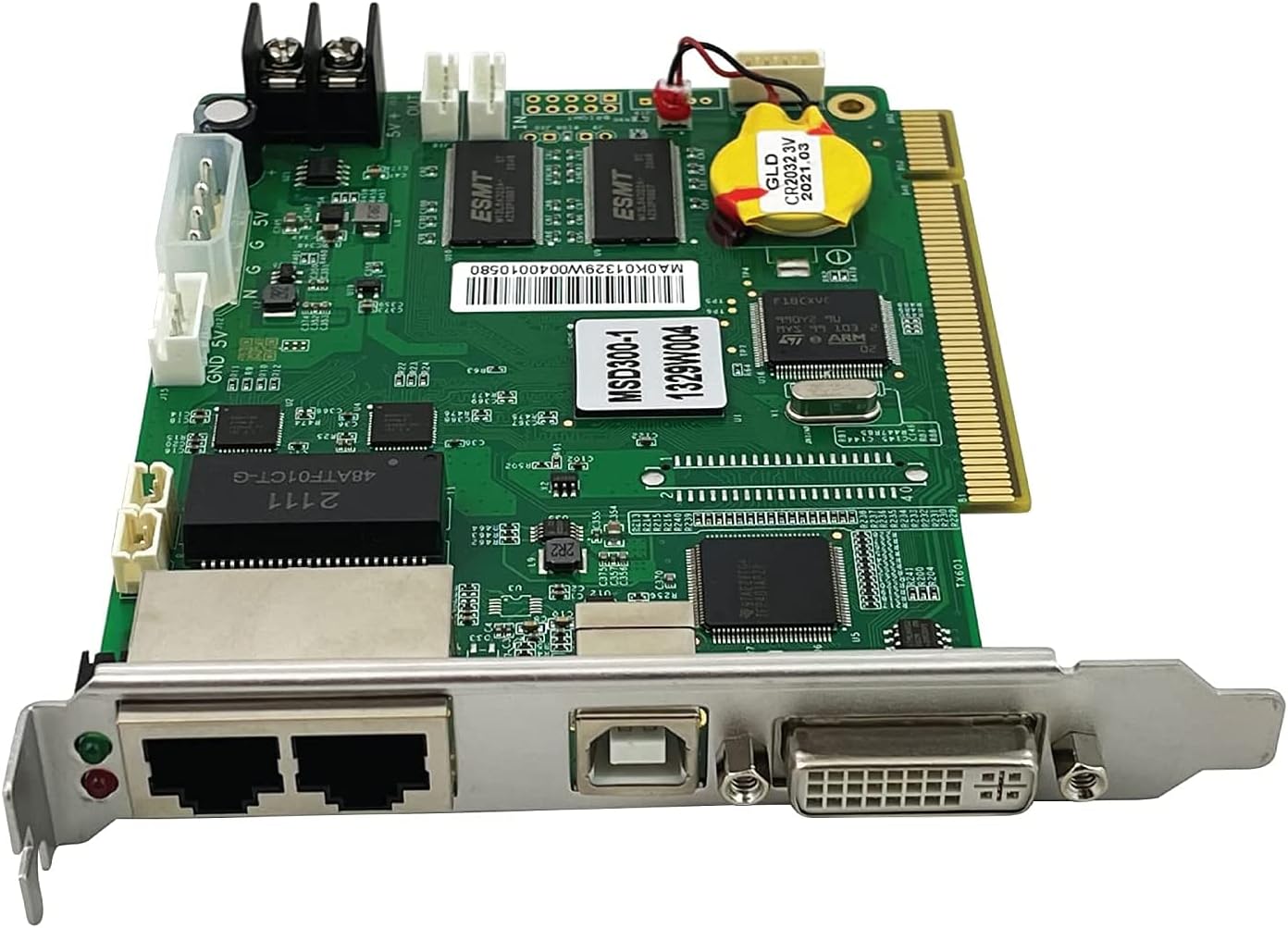

The NovaStar MSD-300-1 is a basic sending card for use in a PCI slot in a PC or for stand-alone use. It allows you to control LED screens of up to 1.3 megapixels with a NovaStar control system and display PC content directly on the LED screen. It has a DVI video input, a light sensor input and two outputs for LED screens. The light sensor input can be used with a Novastar Light Sensor for automatic brightness adjustment according to changes in ambient light.
| Category | Specifications |
|---|---|
| Inputs | Single Link DVI: 1, Light Sensor Port: 1 |
| Outputs | Main Outputs: 2 |
| Extra Features | Scaling Function: No |
| Control and Programming | Control System: Novastar |
| Max Loading Capacity | 1,300,000 Mpx |
| Max Input Resolution | Width & Height User-Defined |
| Electrical Specifications | Power Supply: 5V DC |
| Power Consumption | 3W |
| Data Connector (In) | USB B |
| Data Connector (Out) | RJ45, USB B |
| Mechanical Specifications | Weight: 0.1 kg (0.22 lb) |
| IP Rating | IP20 (Indoor Use Only) |
| Description | Downloads |
|---|---|
| NovaStar LED Screen Synchronous Sending Card | MSD300-1 User's Manual | Downloads |
