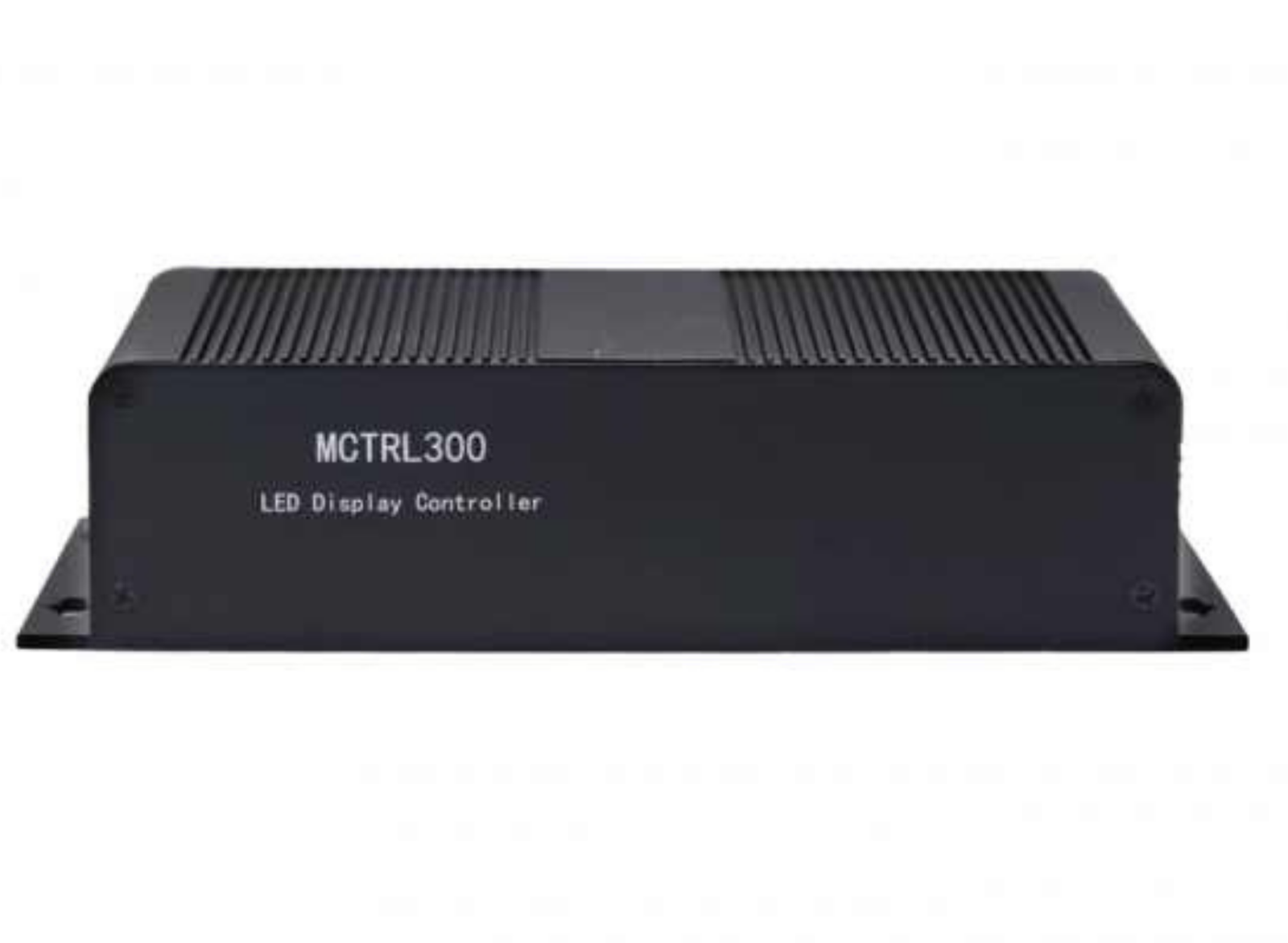

MCTRL300 is NovaStar’s independent control card from the M3 Series, and supports audio and video input. The M3 undertakes encoding and data processing, sending the audio and video to the display. A single card supports maximum loading capacity of 2048×668@60Hz. It communicates with PC via USB port for convenience.
● DVI video input
● Audio transmission
● Dual-Ethernet output, with dual-Ethernet cable hot backup and multiple controller hot backup
● USB port control, for cascading and control of multiple units
1.3 million pixel loading capacity, with resolutions of 1280×1024@60Hz, 1024×1200@60Hz, 1600×848@60Hz, 1920×712@69Hz, 2048×668@60Hz and Maximum height: 3840; Maximum height:3840
1 light sensor interface, adjust the screen brightness automatically
Independent power supply
Certifications: CE, RoHS, EAC, FCC, IC
Features
● 1 × DVI input
● 1 × audio input
● 1 × type-B USB control port
● UART control ports to cascade devices for uniform control.
● Dual Ethernet outputs.
● Supports the new generation of NovaStar calibration technology, which is fast and efficient.
● 1 × light sensor connector.
● Supports resolutions up to 2048×668@60Hz and downward compatibility.
● Supports a variety of video formats.
| Input - DVI IN | Single-link DVI connector Resolution up to 1920×1200@60Hz and downward compatible Custom resolutions supported: maximum width 3840×600@60Hz; maximum height 800×2560@60Hz |
Input - AUDIO | Audio input connector |
| Output - RJ45 × 2 | 2 Gigabit Ethernet outputs Maximum loading capacity of a single Ethernet port: 650,000 pixels Support redundancy between Ethernet ports |
Function - LIGHT SENSOR | Connect to light sensor to monitor ambient brightness to realize automatic screen brightness adjustment |
| Control - UART IN/OUT | Input and output ports for cascading devices | Control - USB | Type-B USB control port for connecting to PC |
| Power | AC 100V-240V~50/60Hz | Indicators - RUN | Device operating indicator. Working status: Flashing slowly: Video input unavailable Flashing normally: Video input available Flashing rapidly: The screen is displaying startup image Breathing: Ethernet port redundancy has taken effect |
| Indicators - STATUS | Device power indicator. Working status: On: The power supply is normal Off: The power is not supplied, or the power supply is abnormal |
| Description | Downloads |
|---|---|
| Datasheet | Download |
