Ultra Large Capacity
Resolution:
4K×2K@60Hz
Maximum width up to 8K
Multi Outputs
Neutrik EtherCON×16
OPT Ports×4
Multiple Video Inputs
1×DP1.2
1×HDMI2.0
2×Dual DVI
Webpage Control
Wireless remote control

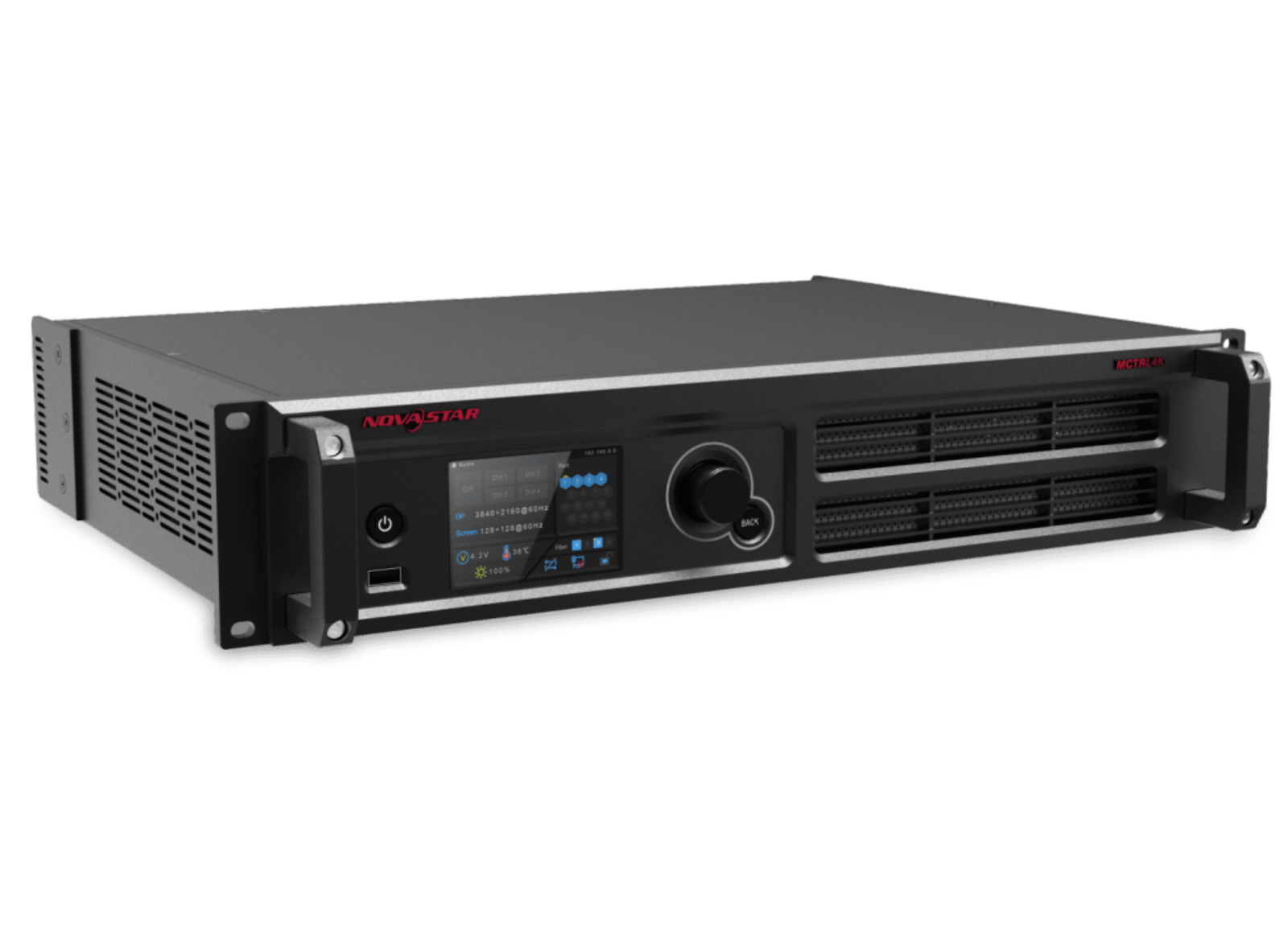

MCTRL4K utilizes HDR10-Optima&HLG to realize high dynamic range display. When paired with A8s/A10s Plus, the MCTRL4K can dramatically improve image quality through the optimization of every pixel.
HDR10-Optima
High dynamic
Dynamic range is the difference between the brightest and darkest parts of the image.
In conditions with backlight, high dynamic works like the human eye, showing details in both light and dark areas of the image.
10bit color depth
Higher color depth means more shades of color.
During scenes with dynamic lighting changes, light, shadow, and color are all expressed in beautiful detail, making the image more real, accurate, and layered.
Wide color gamut
Going from BT.709 to BT.2020 allows for a greater amount of colors with more richness, bringing the image closer to what we see in the real world.
HLG
Simplify the post-production process and improve the live broadcast effect
HLG can be easily integrated into broadcasting world. What’s more convenient is that there is no need to adjust the highlights and shadows in the later stage, and we can directly get the high dynamic range image when shooting. HLG has helped us achieve the need for fast shooting and production of high-quality and high-dynamic-range images, allowing us to easily improve our image quality.
4K UHD
A single unit features a loading capacity of up to 4096×2160@60Hz. It supports any custom resolutions with the maximum width or height up to 7680 pixels, meeting the on-site configuration requirements of ultra-long or ultra-wide LED displays.
3D
Supports 3D function when working with the 3D emitter EMT200 and 3D glasses, allowing you to experience 3D display effects.
Low latency
Image latency can be a very common issue with video transmission, but the latency of MCTRL 4K is less than 1ms, providing a smooth viewing experience.
High latency
Low latency (<1ms)
Optical transmission for long distance
10G bandwidth optical fiber, Up to 10km long-distance transmission
| Input | DP 1.2 | Max Resolution (DP) | 4096×2160@60Hz |
| Min Resolution (DP) | 640×480@24Hz | Pixel Capacity (DP) | 8,800,000 pixels |
| Custom Resolution Width (DP) | 7680×1080@60Hz | Custom Resolution Height (DP) | 1080×7680@60Hz |
| HDCP Support (DP) | HDCP 1.3 | Input | HDMI 2.0 |
| Max Resolution (HDMI) | 4096×2160@60Hz | Min Resolution (HDMI) | 800×600@30Hz |
| Pixel Capacity (HDMI) | 8,800,000 pixels | Custom Resolution Width (HDMI) | 7680×1080@60Hz |
| Custom Resolution Height (HDMI) | 1080×7680@60Hz | HDCP Support (HDMI) | HDCP 1.4, HDCP 2.2 |
| Input | Dual DVI-D (×2) | Max Resolution (DVI) | 3840×1080@60Hz |
| Min Resolution (DVI) | 800×600@30Hz | Pixel Capacity (DVI) | 8,300,000 pixels |
| Custom Resolution Width (DVI) | 3840×2160@60Hz | Custom Resolution Height (DVI) | 2160×3840@60Hz |
| Output Ports | 16 × Neutrik EtherCON | Max Load per Port (8-bit) | 650,000 pixels |
| Max Load per Port (10/12-bit) | 320,000 pixels | Optical Ports | 4 × 10G OPT |
| Single-Mode Fiber | LC, 1310 nm, up to 10 km | Dual-Mode Fiber | LC, 850 nm, up to 300 m |
| OPT1/OPT2 | Main I/O (Ethernet 1–16) | OPT3/OPT4 | Backup Channels |
| Control Port | Ethernet (PC Connection) | USB IN | Cascade / PC Input |
| USB OUT | Cascade Output | Genlock In | Blackburst, Sync Input |
| Genlock Loop Out | Up to 10 Units Cascaded | Power | AC 100–240V, 50/60Hz |
