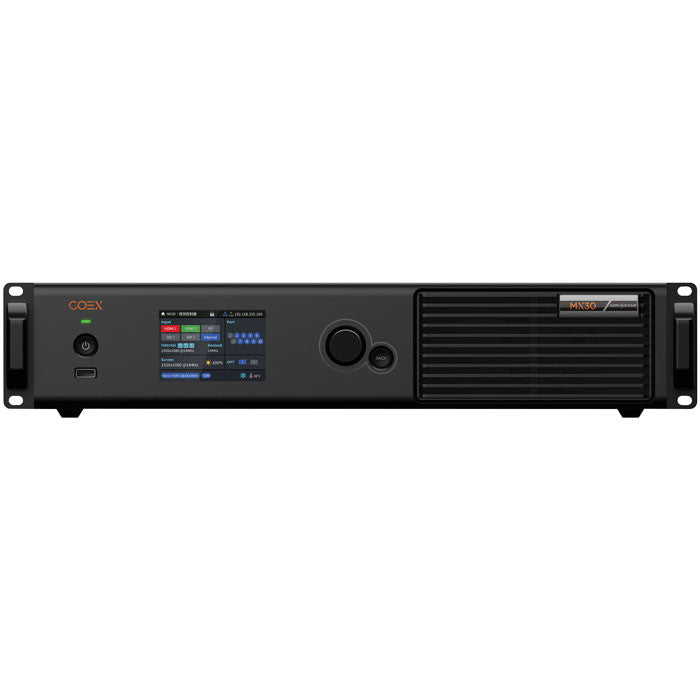

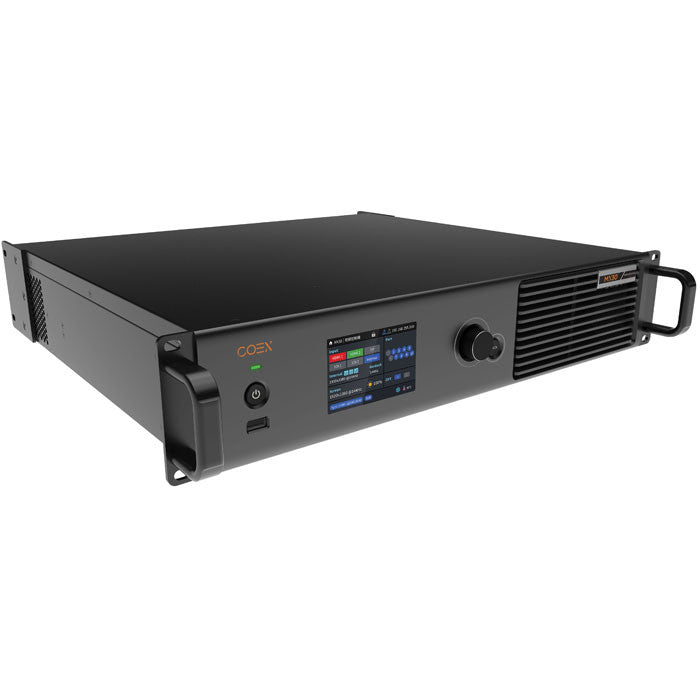

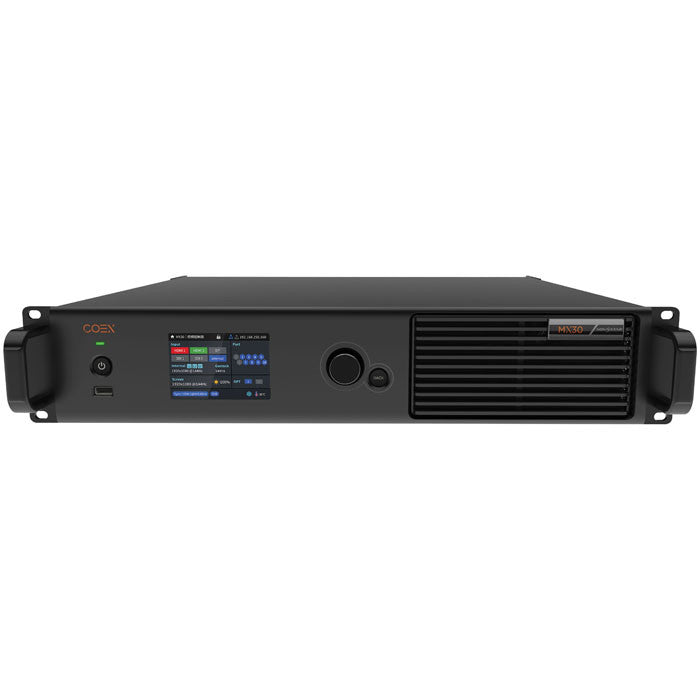

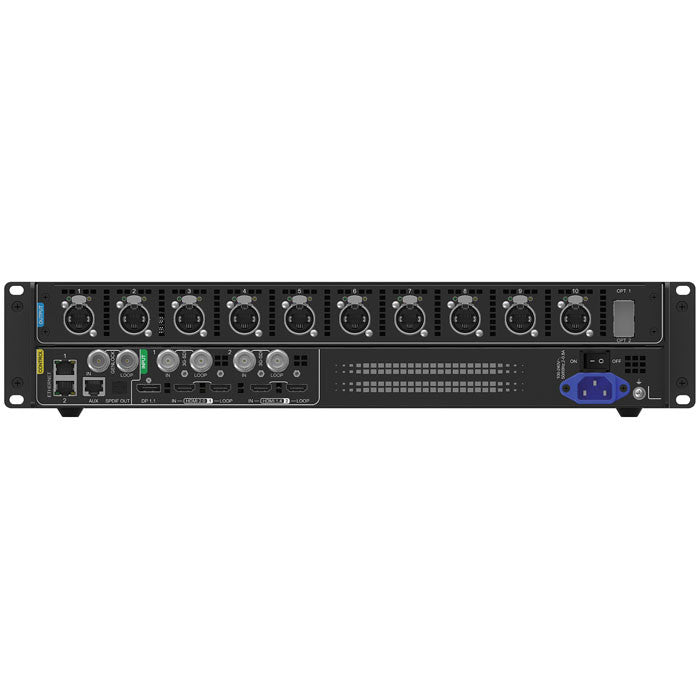

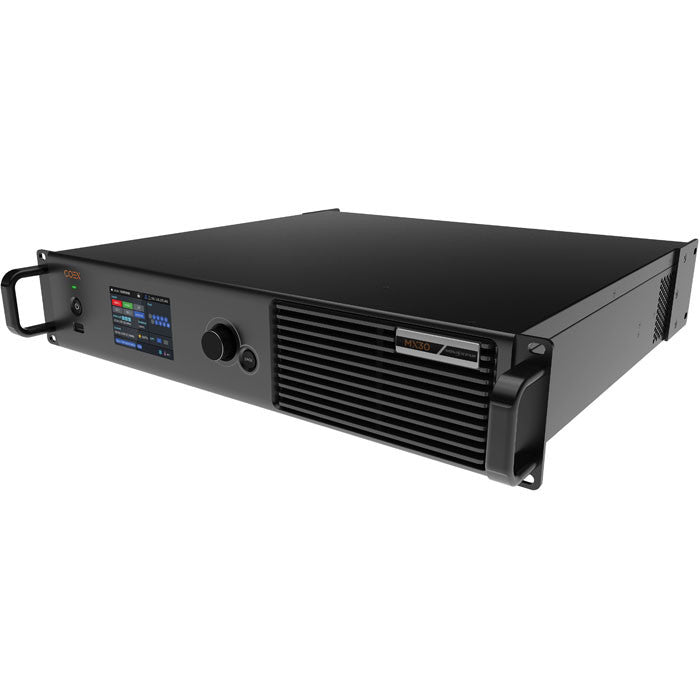

Novastar’s MX30 is an all-in-one LED display controller that integrates video processing and LED system control. With multiple inputs and outputs on board, the MX30 offers several setup possibilities. It’s equipped with one HDMI 2.0 + loop, one HDMI 1.4 + loop, one DP 1.1 and two 3G-SDI inputs + loop. Its outputs include ten Gigabit Ethernet ports, two 10G optical ports and one S/PDIF optical port. There are also two network ports and one auxiliary port on board as well as a Genlock input and loop. A control knob and a back button, together with a 3.5-inch TFT screen, make it easy to control the device. The MX30 can also be controlled by the comprehensive, user-friendly VMP software, which ensures easy operation and control. Cascading control via Ethernet is also possible and both SNMP and Art-Net protocols are supported. Advanced features include three independent layers, image scaling, 14Ch colour correction, low latency support and display system monitoring. The MX30 can be mounted in a 19-inch rack.
| Category | Specification |
|---|---|
| Inputs | |
| DP 1.1 | 1 |
| HDMI 1.4a | 1 |
| HDMI 2.0 | 1 |
| 3G-SDI | 2 |
| Outputs | |
| Main Outputs | 10 |
| HDMI 1.4a (Loop) | 1 |
| HDMI 2.0 (Loop) | 1 |
| 3G-SDI (Loop) | 2 |
| S/PDIF (Out) | 1 |
| Ethernet Speed | 1 Gbit/s |
| Optical | |
| SFP Slot Type | 10G |
| SFP Slot Quantity | 2 |
| Software Specifications | |
| Control Software | VMP |
| Scaling Function | Yes |
| Layers | 3 |
| GenLock | In & Out |
| DMX Control | Art-Net |
| Control and Programming | |
| Display | TFT |
| Display Size | 3.5″ |
| Maximum Loading Capacity | 6.5 Mpx |
| Maximum Input Resolution | 4096 x 2160 |
| Control Options | Ethernet |
| Electrical Specifications | |
| Power Supply | 100-240 V AC 50/60 Hz |
| Power Consumption | 55 W |
| Power Connector In | IEC |
| Data Connector In | RJ45 |
| Data Connector Out | etherCON, RJ45 |
| Mechanical Specifications | |
| Width (Including Handles) | 483 mm (19.016″) |
| Width (Without Handles) | 446 mm (17.559″) |
| Height (Including Handles) | 881 mm (34.685″) |
| Depth (Including Handles) | 467 mm (18.386″) |
| Depth (Without Handles) | 394 mm (15.512″) |
| Weight | 7.2 kg (15.873 lb) |
| Rack Units | 2 U |
| IP Rating | IP20 (indoor use only) |
| Colour | Black |
| Thermal Specifications | |
| Maximum Ambient Temperature | 50 °C (122 °F) |
| Minimum Ambient Temperature | -20 °C (-4 °F) |
| Operating Humidity | 0-80 %rH |
| Included Items | |
| Included Cables | CAT-5 Cable, DP-DP cable, HDMI-HDMI cable, IEC cable |
