NovaStar NovaPro UHD Jr All-in-One Controller
SKU: NOVAPROUHDJR
£4,931.57 (Excl. VAT)
- Description
- Specifications
- Downloads
-

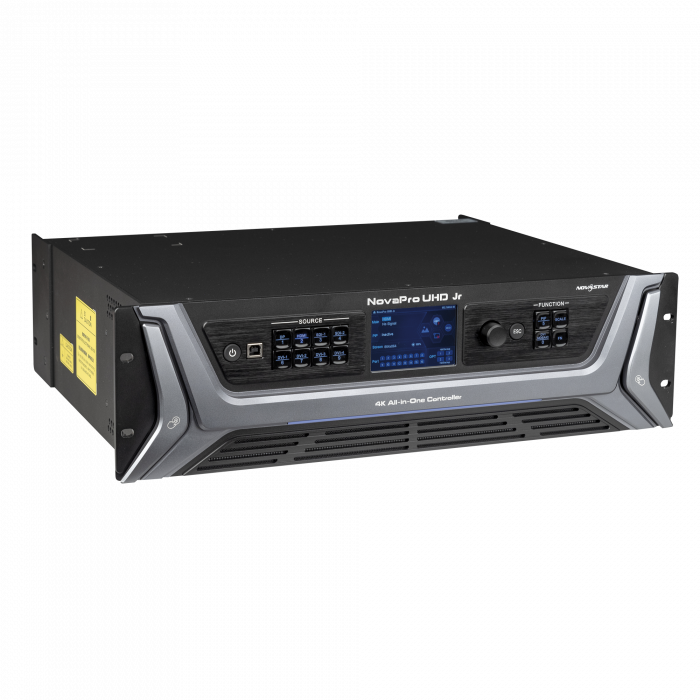

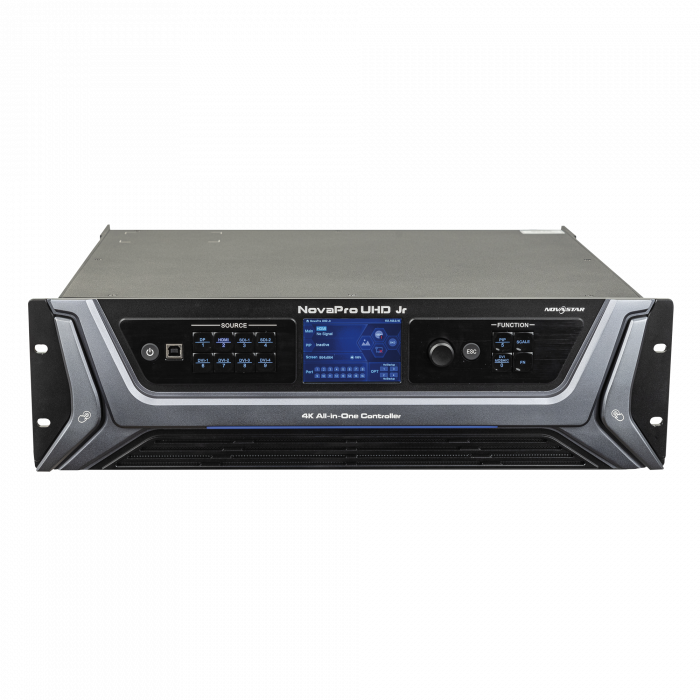

NovaStar NovaPro UHD Jr All-in-One Controller
The NovaPro UHD Jr is a NovaStar’s new all-in-one controller that features excellent video processing capabilities, sending card functions and LED screen configurations.
The NovaPro UHD Jr provides a variety of video input connectors, supporting 4K×2K@60Hz image processing and sending capabilities.
With the help of smart control software V-Can from Novastar, the NovaPro UHD Jr can enable richer image mosaic effects and faster and easier operations.
The NovaPro UHD Jr can send the processed video to the LED screen via Neutrik Ethernet ports and optical fiber ports. Thanks to its powerful video processing capabilities and sending functions, the NovaPro UHD Jr is well suited for stage control systems, conference sites, activities, exhibition sites and other high-end rental applications as well as fine-pitch LED displays.
-

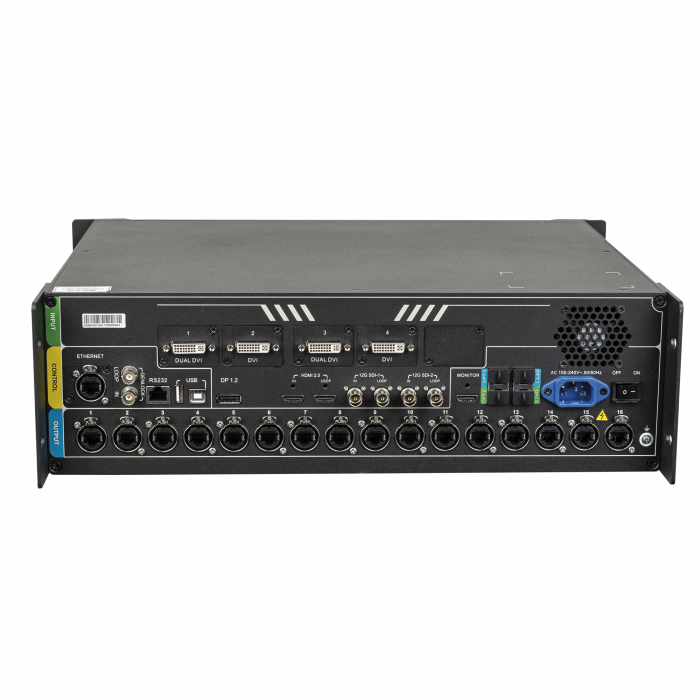

Category Specification Inputs DVI 4x Single-link DVI (Max Res: 2048x1152@60Hz) 12G-SDI 2x 12G-SDI (Max Res: 4096x2160@60Hz) DP 1.2 1x DP 1.2 (Max Res: 3840x2160@60Hz) HDMI 2.0 1x HDMI 2.0 (Max Res: 3840x2160@60Hz) Outputs Ethernet Ports 16x Neutrik Gigabit (Max: 10,400,000 pixels) OPT Ports (10G) 4x Optical (Copy & Hot Backup Modes) HDMI 2.0 Loop 1x HDMI Loop Output 12G-SDI Loop 2x SDI Loop Outputs Monitor 1x HDMI (1920x1080@60Hz) Control Ports Ethernet 1x RJ45 (PC/Web Communication) USB Type-B 1x for PC Control USB Type-A 1x for Image Mosaic Genlock In/Loop 1x Genlock Sync Input RS232 1x for Central Control Special Features DVI Mosaic 4 DVI Inputs can form a single input source HDR Output Enhanced image clarity and vividness Decimal Frame Rates Supports 23.98, 29.97, 59.94 fps Low Latency Output Reduces latency with NovaStar Armor Receivers Custom BKG Settings Pure Color and Image Backgrounds Image Scaling Full Screen, Pixel-to-Pixel, Custom Scaling Capture Function Captures input image for BKG use Image Mosaic Connect up to 4 units for large screens V-Can Software Compatible for Smart Control User Presets Supports up to 10 User Presets EDID Management Custom and Standard EDID Support Electrical Specs Power Supply AC 100-240V, 50/60Hz Max Power Consumption 60W Mechanical Specs Dimensions (W x H x D) 440 x 50 x 320 mm Weight 4.5 kg (9.92 lbs) Cooling Active Rack Units 1U Standard Rack Size IP Rating IP20 (Indoor Use Only) Max Ambient Temp 60°C (140°F) Min Ambient Temp -10°C (14°F) Operating Humidity 20-90% RH Included Items DVI Cable, HDMI Cable, USB Cable, IEC Power Cable -
Description Downloads NovaStar NovaPro UHD Jr All-in-One Controller User Manual Downloads
