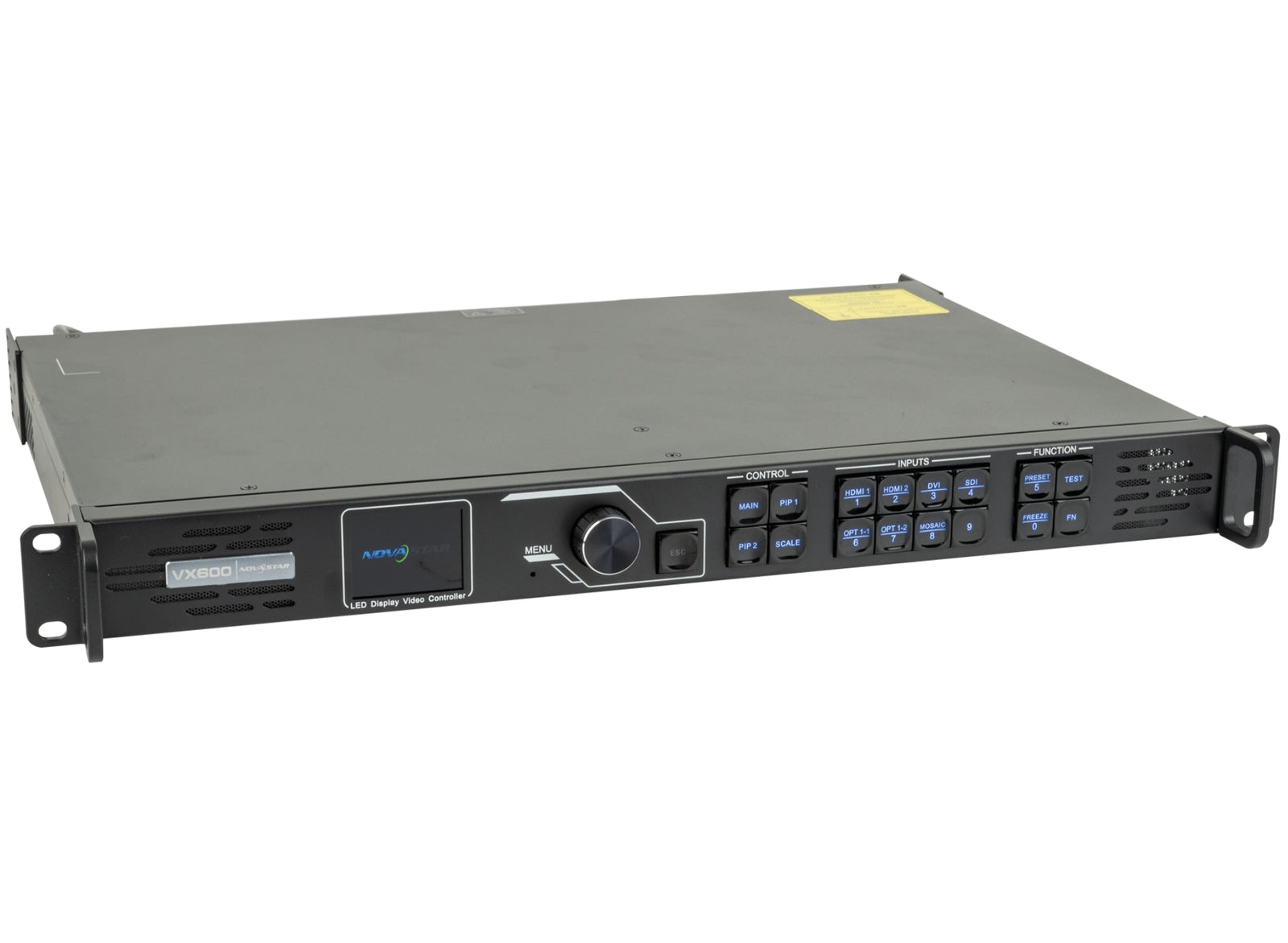

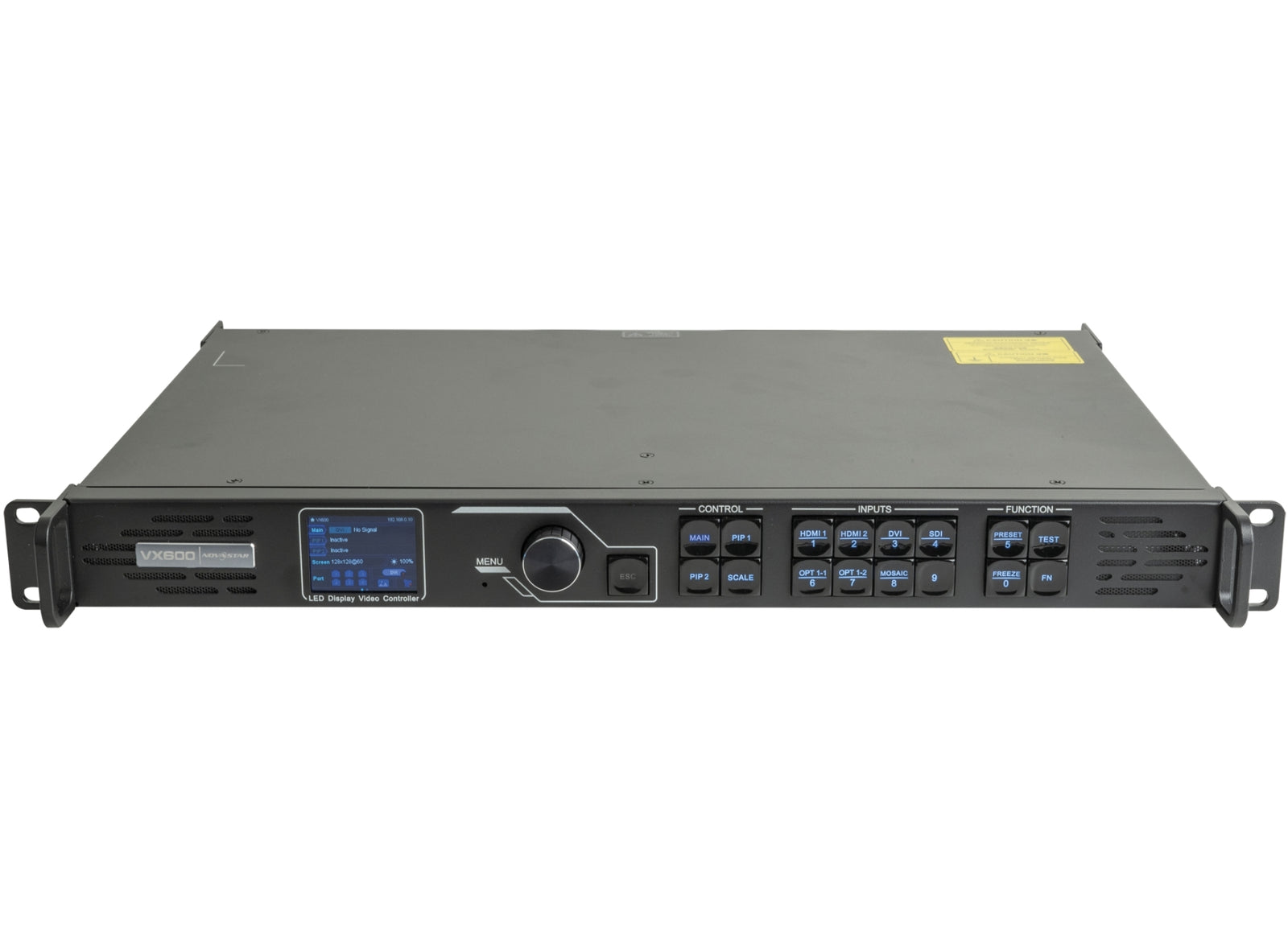

NovaStar VX600 All-In-One Video Processor
The Novastar VX-600 is an all-in-one video processor suitable for small to medium size LED screen installations. It can drive up to 3,900,000 pixels in total, at up to 10,240 pixels wide or up to 8,192 pixels in height, which is ideal for ultra-wide and ultra-high LED screen applications.
The VX-600 offers a variety of video inputs and it allows you to switch seamlessly between several input sources. Furthermore, it supports up to three layers (1x main / 2x PIP), scaling function, low latency and Gen-Lock function.
Besides the built-in sending card with 6 Ethernet ports, the VX-600 also offers the option to install an SFP module. With this module you can cover bigger distances than the 100 metre limit of Ethernet cables and drive another VX-600 (fibre mode) or CVT10 fibre connector, which then drives your LED screens. The second fibre output serves as a backup and will automatically take over in case something happens to the main output ("Output 1").
For controlling even bigger LED screen installations, Image Mosaic function is available. This enables you to combine up to four VX-600 units.
Screen configuration can be done by USB and Ethernet connection. The modern 1U box fits nicely in a 19" rack or case, making it most suitable for rental companies and fixed installations.
-

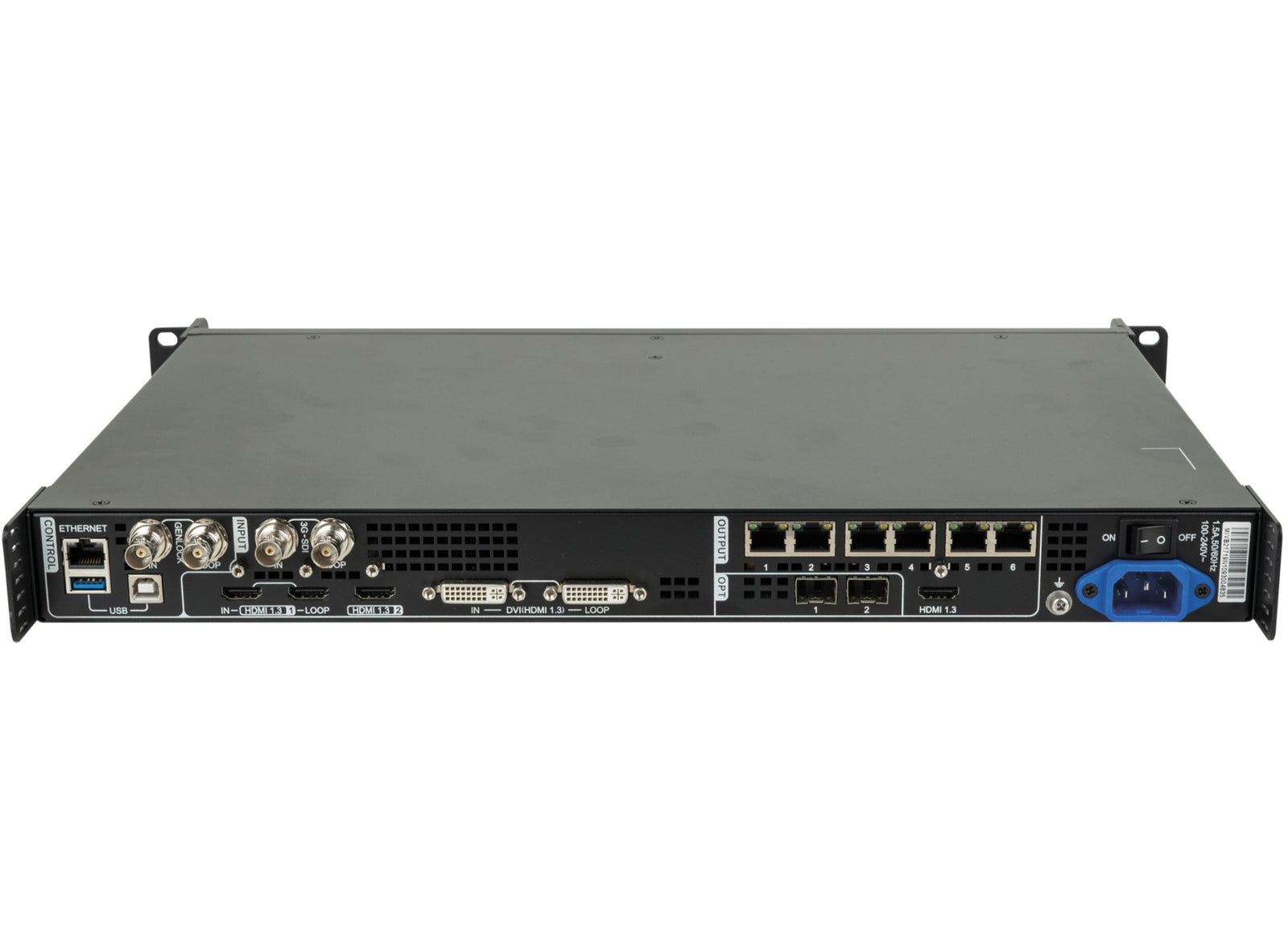

Category Specifications Inputs HDMI 1.3: 2 ports Single Link DVI: 1 port 3G-SDI: 1 port Outputs Main Outputs: 6 HDMI 1.3 (Loop): 1 port HDMI (PVW/MVR): 1 port Single Link DVI (Loop): 1 port 3G-SDI (Loop): 1 port Optical Outputs SFP Slot Type: 10G SFP Slot Quantity: 2 Software Specifications Control Software: NovaStar LCT, Smart LCT, Vcan Scaling Function: Yes Image Mosaic: Yes PIP (Picture in Picture): Yes Layers: 3 GenLock: In & Out Control and Programming Display: LCD Maximum Loading Capacity: 3.9 Mpx Max Input Resolution: 1920 x 1200, user-defined Control Options: Ethernet, USB Electrical Specifications Power Supply: 100-240 V AC, 50/60 Hz Power Consumption: 28 W Power Connector: IEC Data Connections Data Connector In: RJ45, USB Data Connector Out: RJ45, USB Mechanical Specifications Width (w/ handles): 484 mm (19.055″) Width (w/o handles): 440 mm (17.323″) Height (w/ handles): 45 mm (1.772″) Depth (w/ handles): 351 mm (13.819″) Depth (w/o handles): 321 mm (12.638″) Weight: 4 kg (8.818 lb) Rack Units: 1U IP Rating: IP20 (Indoor use only) Colour: Black Product Properties Cooling: Active Cooling Thermal Specifications Max Ambient Temperature: 60°C (140°F) Min Ambient Temperature: -10°C (14°F) Operating Humidity: 20-90% rH Included Items CAT-5 Cable, DVI-HDMI Cable, HDMI-HDMI Cable, IEC Cable, USB-A to USB-B Cable -
Description Downloads NovaStar VX600 All-In-One Video Processor User Manual Downloads
