Optoma DE-1123EGA Electric Projector Screen

16:10 Ratio 265.6 x 166cm

• Description
• Specifications
• Downloads

•

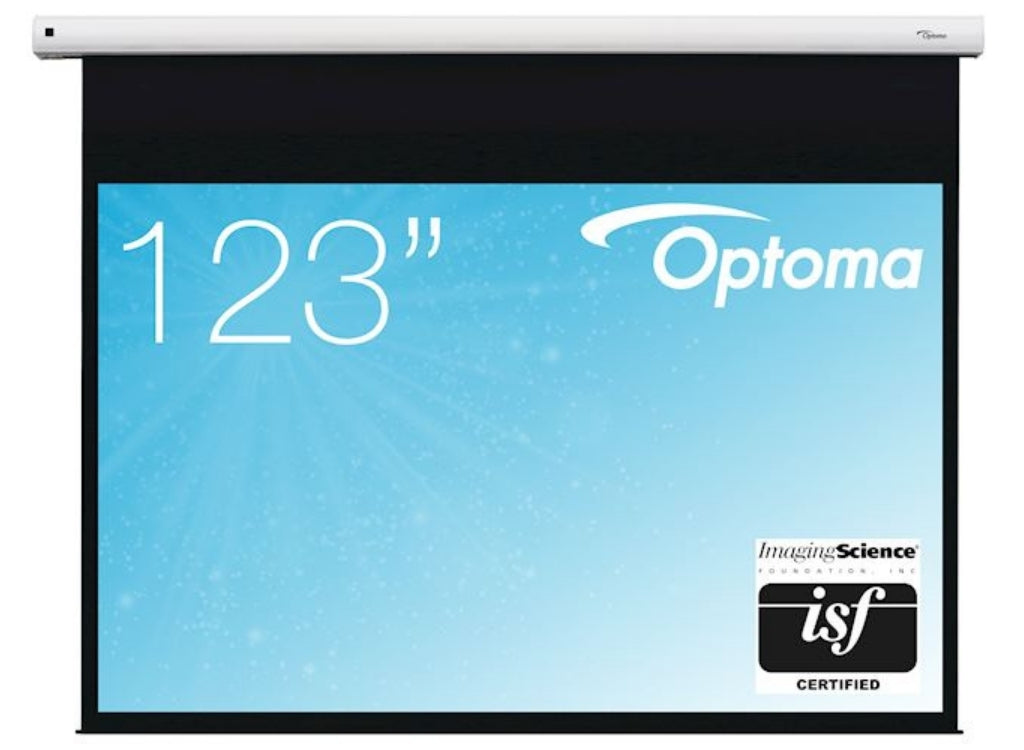

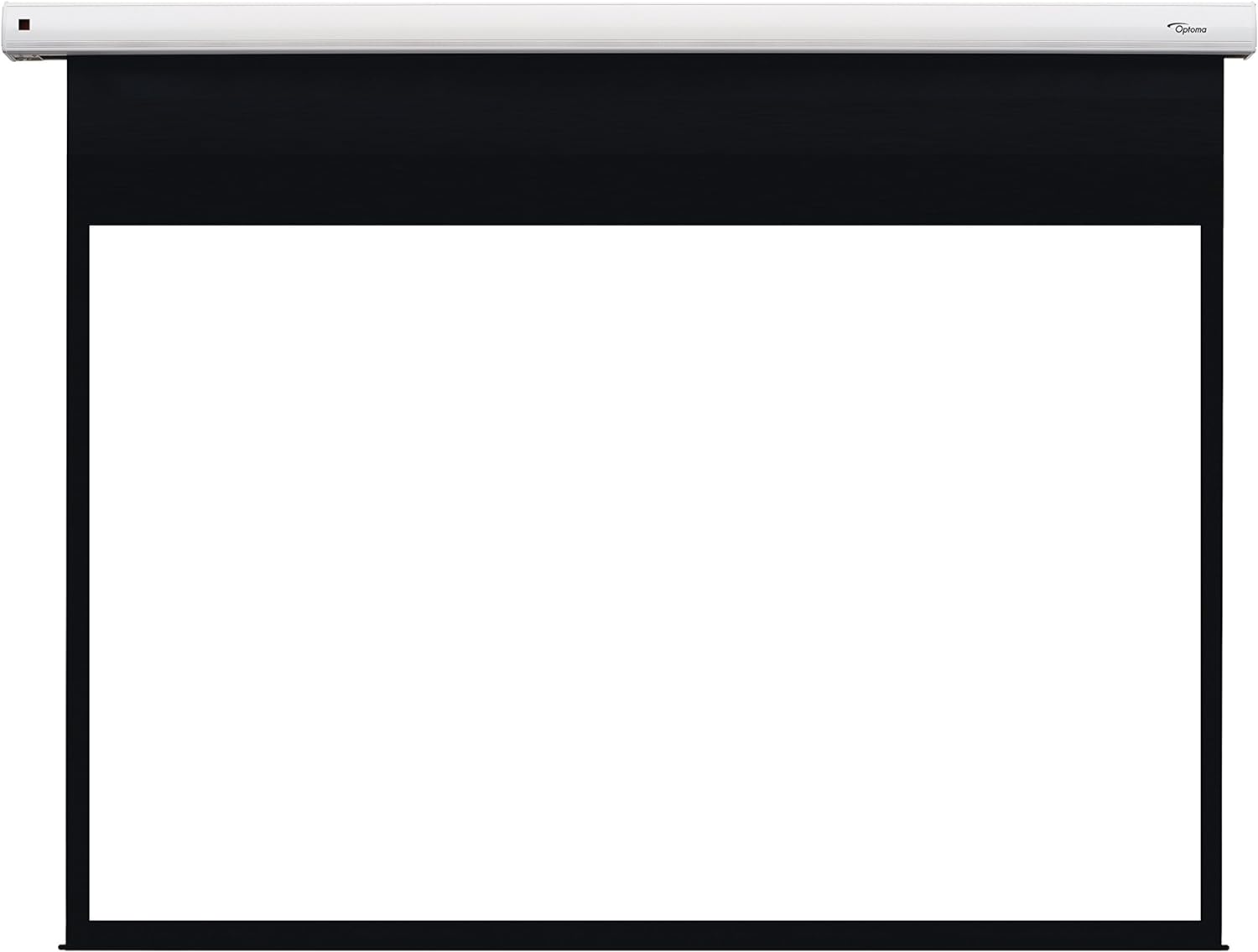

  123" diagonal 16:10 electric screen
  A premium easy-to-operate electric motorized screen that can be controlled via the IR remote or automatically by the 12V trigger or RS232. That comes in an elegant white curved aluminum casing.

  Supplied with floating "L" brackets, it can be easily mounted directly to a wall or ceiling. Great for business and education use where a blank wall is unavailable or not flat.

  It also can be suspended from the ceiling. Great for rooms with high ceilings such as churches.

  123" diagonal 16:10 electric screen
  Aluminium casing
  Wall and ceiling mountable with sliding brackets
  Integrated control system

  Fiberglass matte white fabric
  A high-quality quality durable lasting screen material comprised of four layers and incorporates top-grade fiberglass as its main support layer. It features high resistance to temperature, fire, moisture, deformation, and stretching. The overall material is also mildew-resistant and free from curving. The outer surface is infused with PVC microdots that help produce and reflect the best possible images with a wide and uniform 160-degree viewing angle.

  The fabric is certified by the world-renowned Image Science Foundation for its superb performance.

  Aluminium frame
  Built from a single extruded aluminum alloy construction, The rigid, sturdy design greatly increases the structural integrity which in turn makes the screen sturdier and provides smoother operation.

  A sturdy design keeps the internal roller perfectly straight and greatly reduces any motor noise to a minimum.

  Electric Motorised
  Automatically raise and lower your projector screen at the touch of a button. Incorporating a built-in tubular motor ensures quiet, smooth, and stable operation hands-free operation. It also has built-in overheating protection.

  Screen drop adjustment
  Ensure your screen always drops to the correct height. Easily set the drop of your screen to the desired position using the included limit adjustment tool.

  Integrated control system

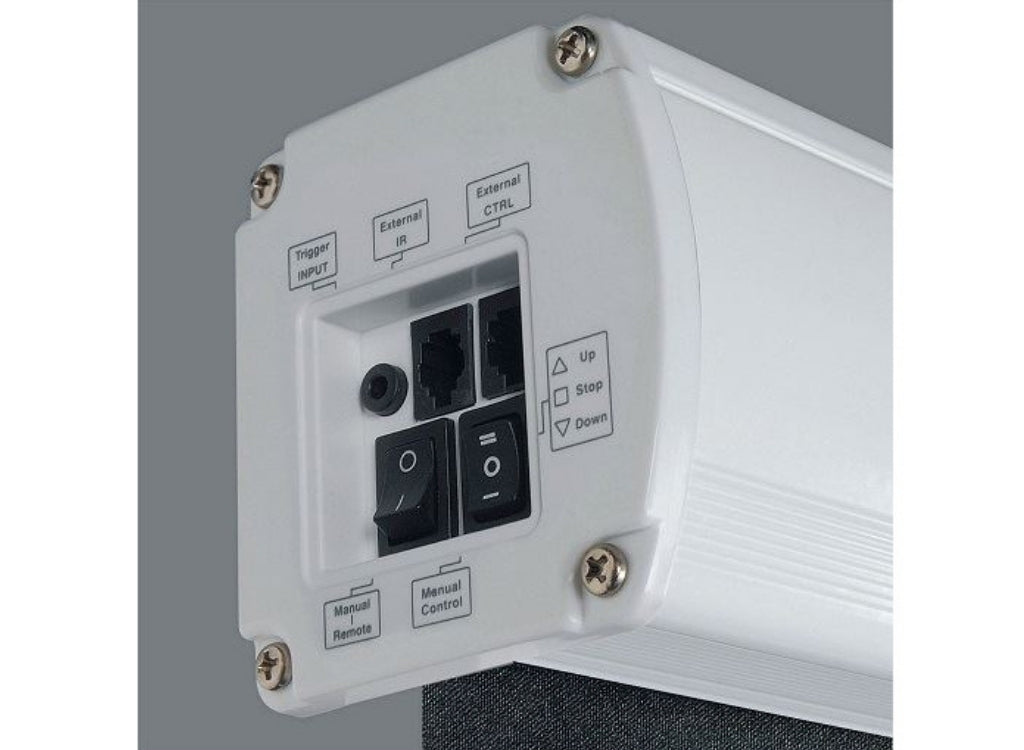

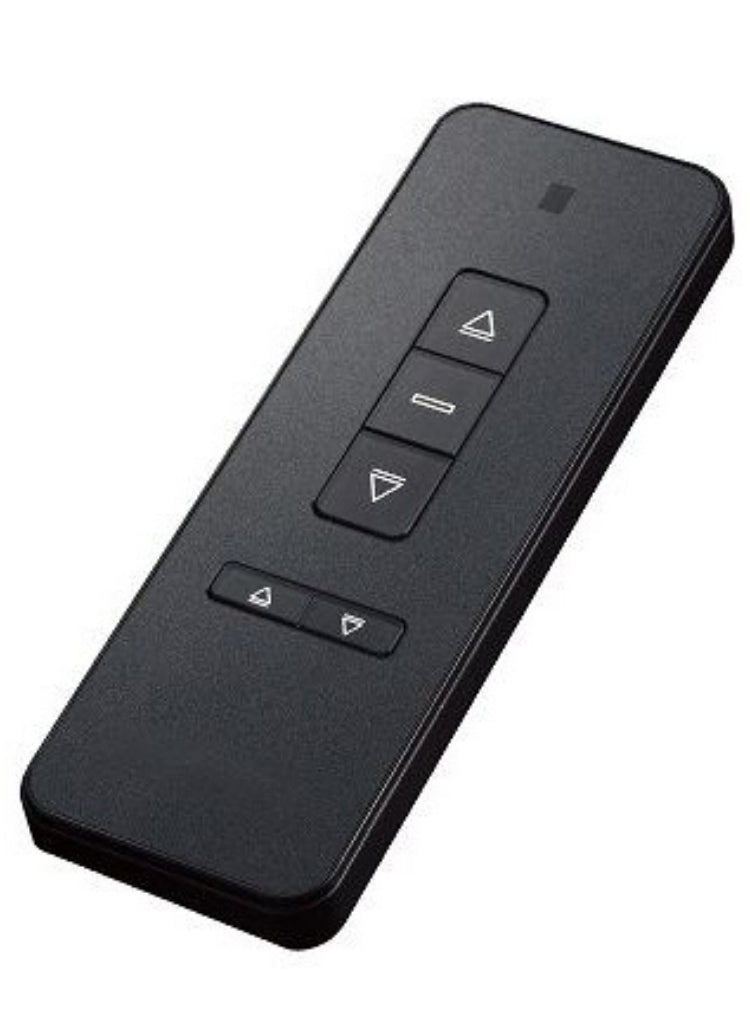

  The integrated control system includes an in-line switch, built-in remote control, 12v trigger, RS232, and an external infrared (IR) receiver. This all-in-one integrated system guarantees a screen that is suitable for the most demanding applications.

  Easy installation

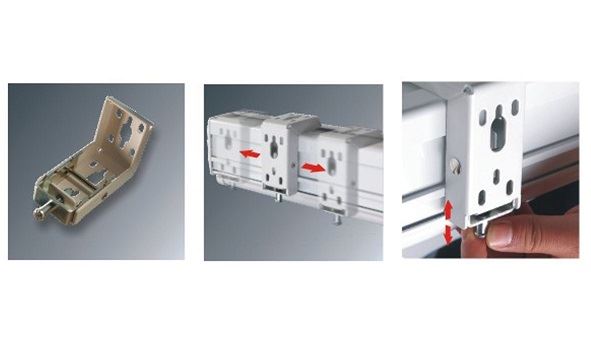

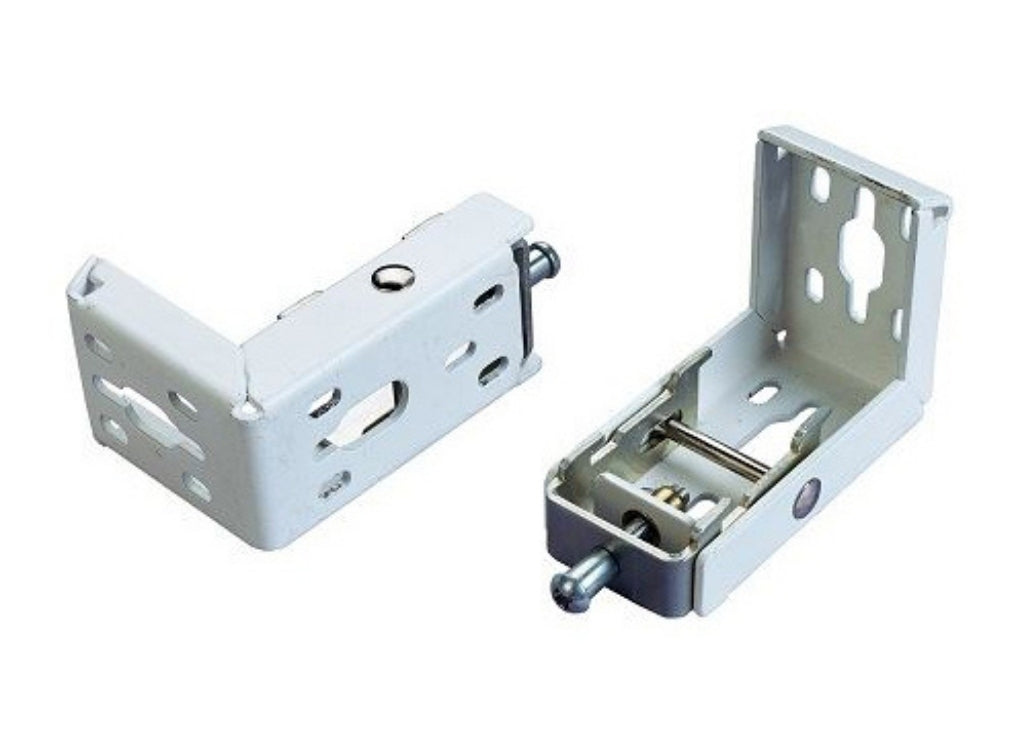

  Supplied with two small L-shaped brackets that can be placed anywhere along the length of the case. Perfect for stud walls. It also allows for horizontal adjustment which means you can shift the screen left and right.

  The brackets also have screw adjustments to help level the screen.

  Easy installation - Suspended mounts
  Supplied with two hanging brackets you can easily suspend the screen from the ceiling.

  ISF-certified screen material
  ISF certified to provide top-tier performance which provides you with accurate* color and contrast. This means the screen material will maintain the same RGB (Red-Green-Blue) color balance that comes from the projector with minimal distortion. Allowing you to enjoy your movies just as the director intended.

  *For best results, your projector will need to be ISF-calibrated to enjoy the most accurate color reproduction based on your environment.



• Specification	Details
  Screen size	123 In
  Screen type	Electric
  Native aspect ratio	16:10
  Gain	1
  Material	Glassfiber Matte White
  Viewing size (WxH) (mm)	2656 x 1660
  Black border left and right	50mm
  Black border-bottom	50mm
  Black border top	300mm
  Dimensions (W x D x H) mm	2906 x 108 x 113
  Net weight	16 kg
  Gross weight	20.32 kg

• Document Type	Download Link
  Manuals	Download
  Datasheets	Download
  Diagrams	Download
  RS232	Download
