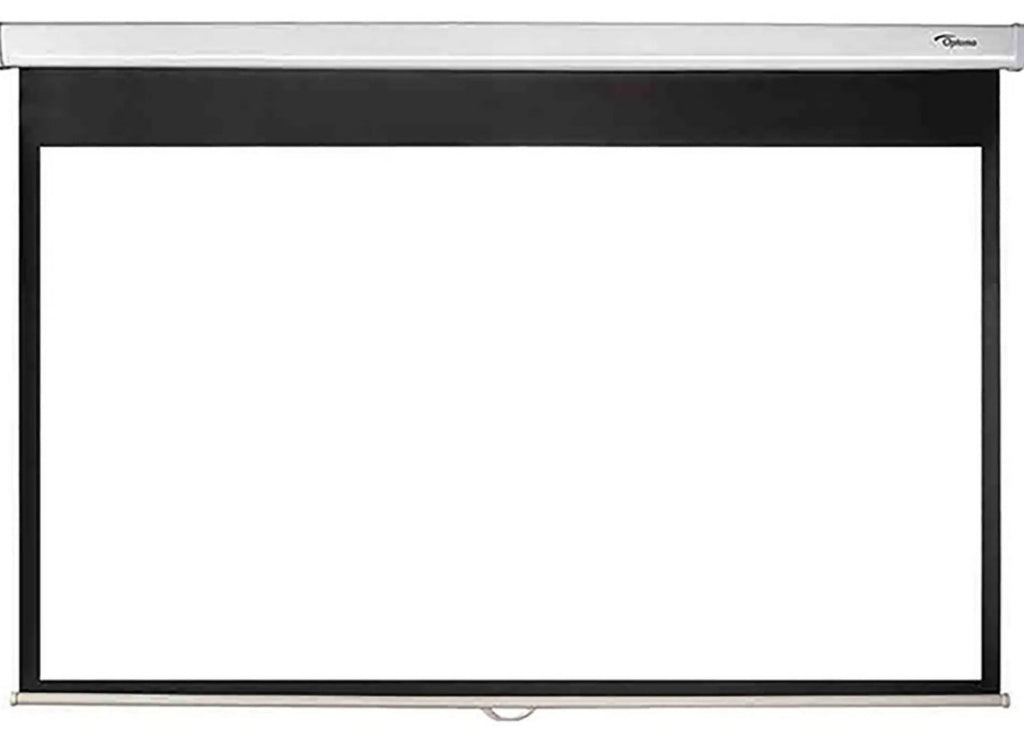

Optoma DS-9092PWC

92" 16:9 Projector Screen

• Description
• Specifications
• Downloads

• 92" diagonal 16:9 pull down screen
  A great addition to creating your own home cinema with this inexpensive and easy to operate manual screen.

  It comes in a sleek white square-shaped aluminium casing that can be easily mounted to a wall or ceiling and can be hidden behind a custom enclosure.

  It can also be used in meeting rooms, classrooms or other spaces where a blank wall is unavailable or walls are not flat.

  92" diagonal 16:9 pull down screen

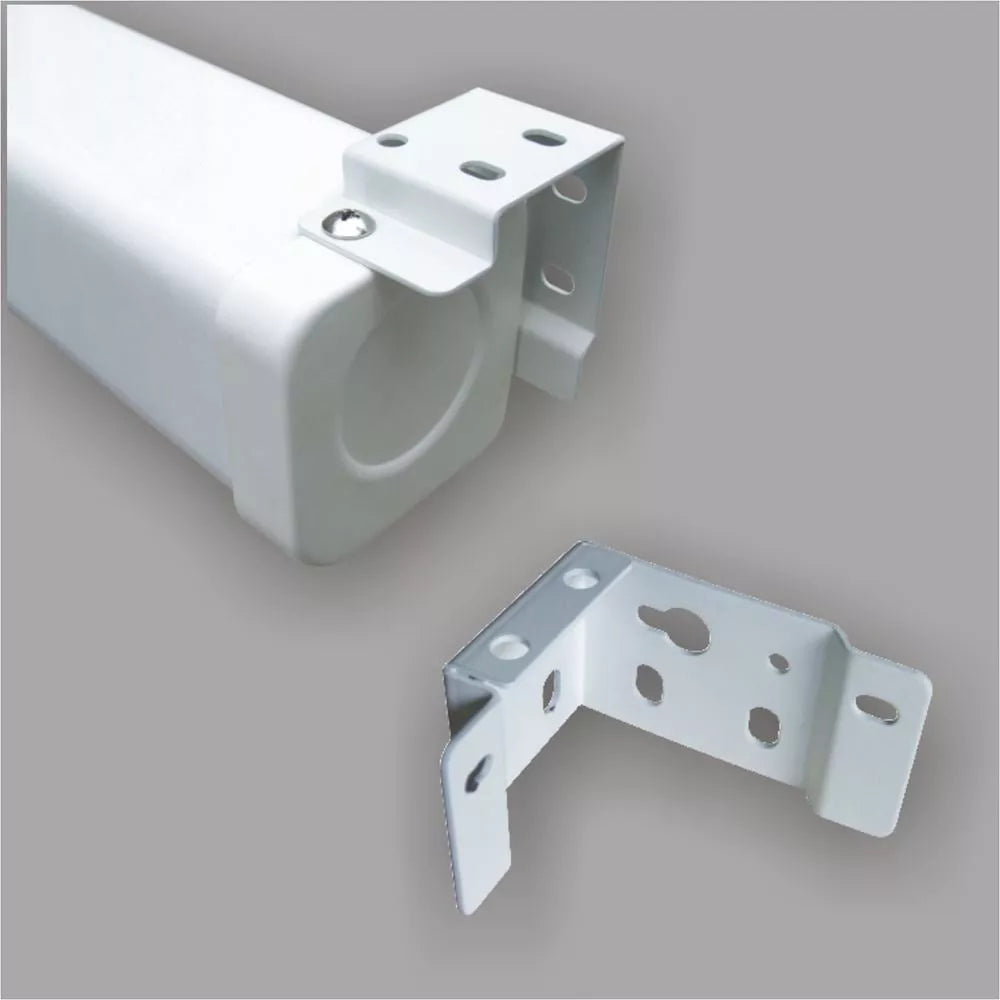

  Wall and ceiling mountable
  Limitless screen positioning
  Aluminium casing

  Fiberglass matte white fabric
  A high quality durable long lasting screen material comprised of four layers and incorporates top grade fiberglass as its main support layer. It features high resistance to temperature, fire, moisture, deformation and stretching. The overall material is also mildew resistant and free from curving. The outer surface is infused with PVC microdots that help produce and reflect the best possible images with a wide and uniform 160 degree viewing angle.

  The fabric is certified by the world renowned Image Science Foundation for its superb performance.

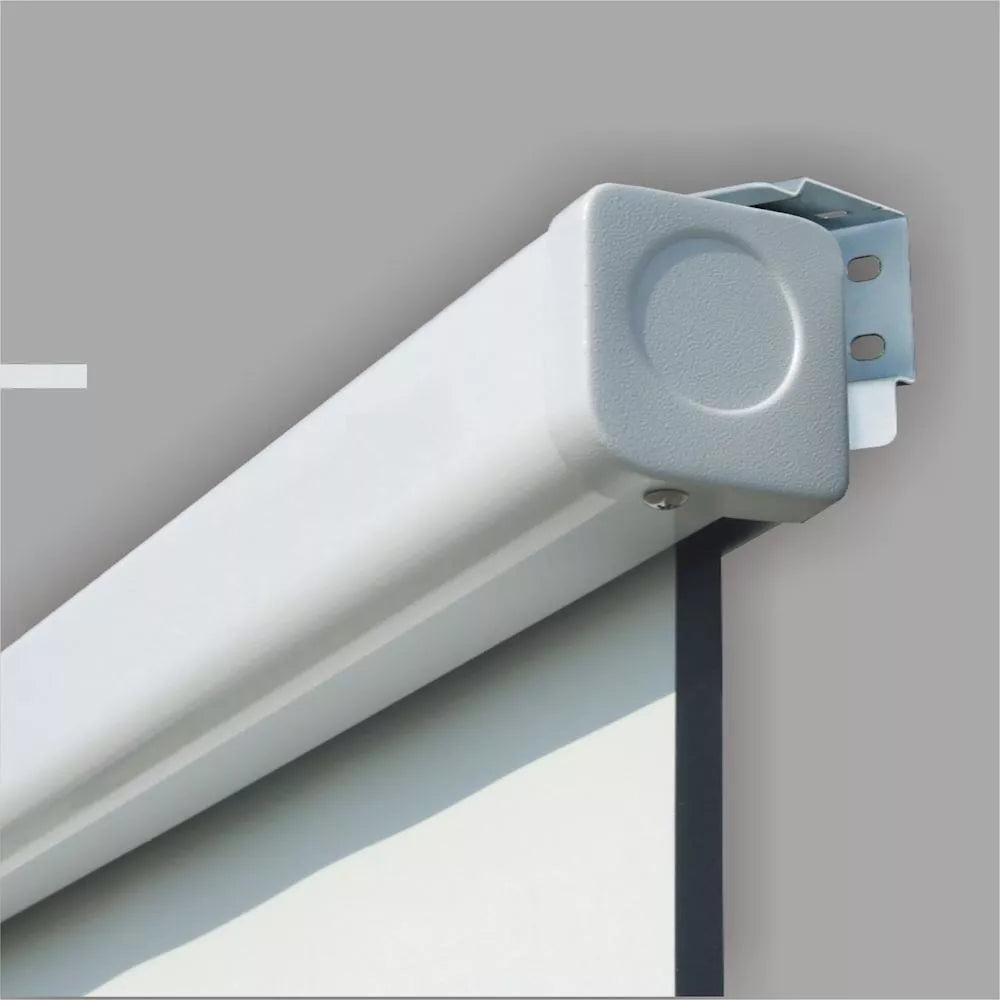

  Aluminium frame
  Built from a single extruded aluminium alloy construction, The rigid, sturdy design greatly increases the structural integrity which in turn makes the screen sturdier and provides smoother operation.

  Limitless positioning
  Easily lock the screen at any desired position. Simply pull the screen down and hold for three seconds and the self locking mechanism will engage.

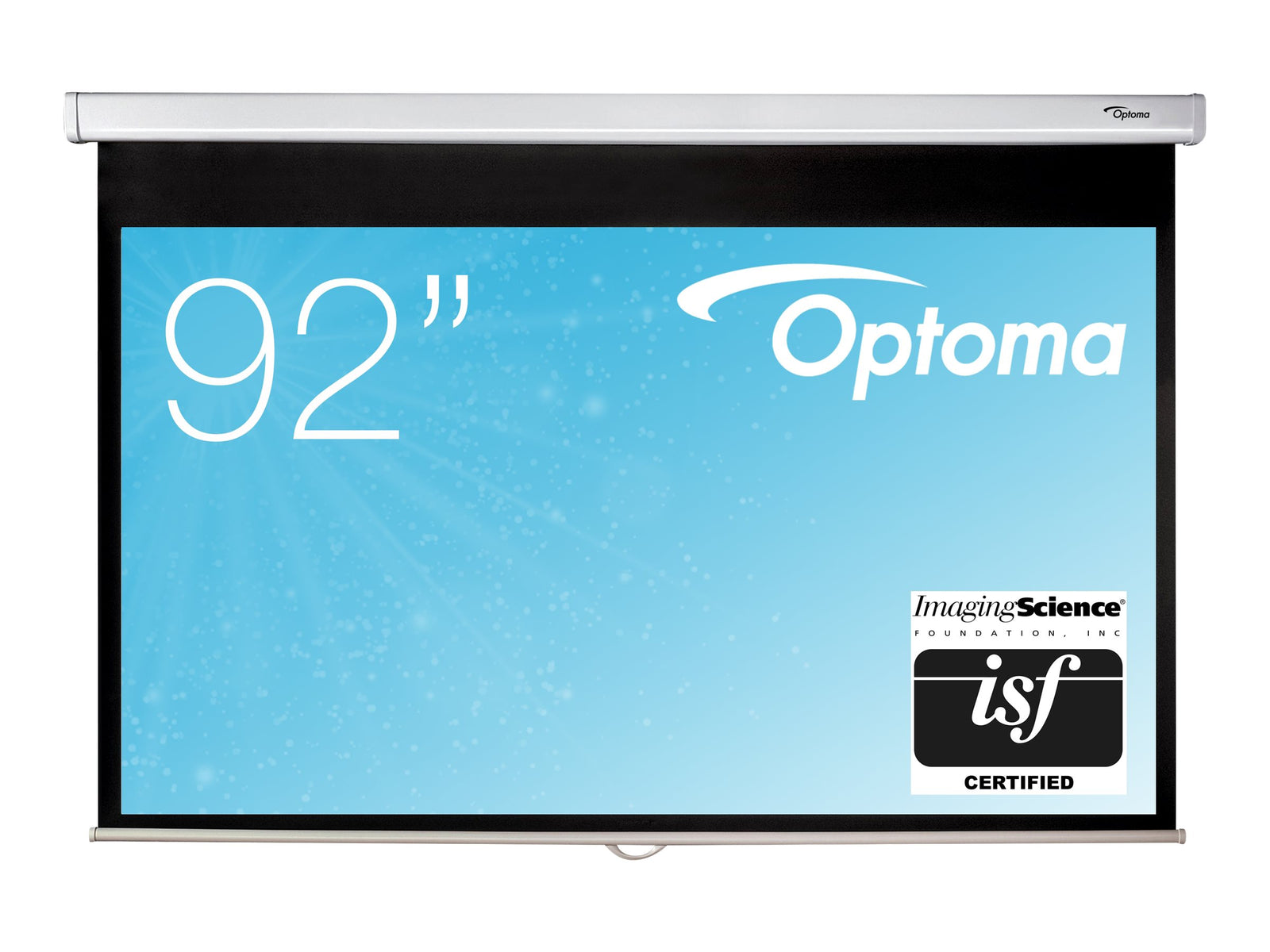

  ISF certified screen material
  ISF certified to provide top-tier performance which provides you with accurate* colour and contrast. This means the screen material will maintain the same RGB (Red-Green-Blue) color balance that comes from the projector with minimal distortion. Allowing you to enjoy your movies just as the director intended.

  *For best results, your projector will need to be ISF calibrated to enjoy the most accurate colour reproduction based on your environment.

• Specification	Details
  Screen size	92 In
  Screen type	Pull Up
  Native aspect ratio	16:9
  Gain	1
  Material	Glassfiber Matte White
  Viewing size (WxH) (mm)	2030 x 1145
  Black border left and right (mm)	50
  Black border bottom (mm)	60
  Black border top (mm)	300
  Dimensions (W x D x H) mm	2250 x 112 x 86
  Net weight	11.13 kg
  Gross weight	13.8 kg
