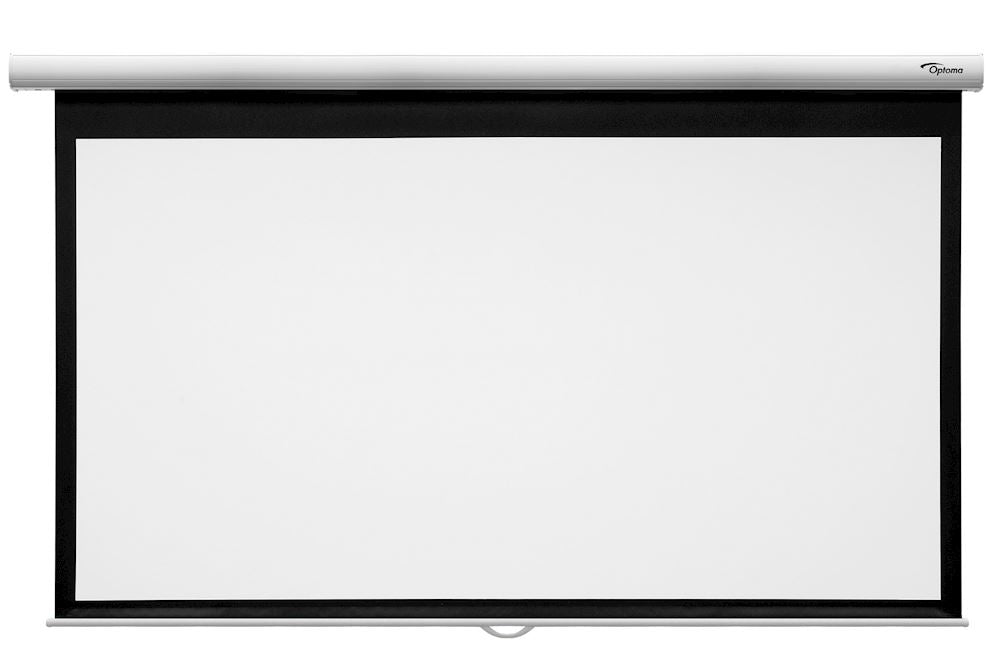

Optoma DS-9120MGA Manual Pull-Down Projector Screen

16:9 Ratio 265.6 x 149.4cm

• Description
• Specifications
• Downloads

• 120" diagonal 16:9 manual pull-down screen
  A premium, easy-to-operate manual screen that comes in an elegant white curved aluminum casing. A perfect addition to creating your home cinema.

  Supplied with floating "L" brackets, it can be easily mounted directly to a wall or ceiling. It even can be suspended from the ceiling. Great for rooms with high ceilings such as churches.

  Ideal for use in meeting rooms, classrooms, or other spaces where a blank wall is unavailable or not flat.

  120" diagonal 16:9 manual pull-down screen
  Wall and ceiling mountable with sliding brackets
  Limitless screen positioning
  Slow retraction mechanism

  Fiberglass matte white fabric
  A high-quality quality durable lasting screen material comprised of four layers and incorporates top-grade fiberglass as its main support layer. It features high resistance to temperature, fire, moisture, deformation, and stretching. The overall material is also mildew-resistant and free from curving. The outer surface is infused with PVC microdots that help produce and reflect the best possible images with a wide and uniform 160-degree viewing angle.

  The fabric is certified by the world-renowned Image Science Foundation for its superb performance.


  Aluminium frame
  Built from a single extruded aluminum alloy construction, The rigid, sturdy design greatly increases the structural integrity which in turn makes the screen sturdier and provides smoother operation.

  Limitless positioning
  Easily lock the screen at any desired position. Simply pull the screen down and hold for three seconds and the self-locking mechanism will engage.

  Controlled screen return
  A self-guided and controlled retraction system. Simply pull down the screen lightly to release the locking mechanism, let go, and the screen will glide back into the casing in around eight seconds. The slow and steady retraction avoids accidents or damages

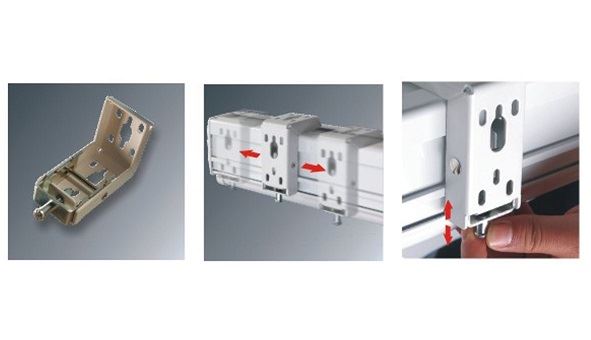

  Easy installation

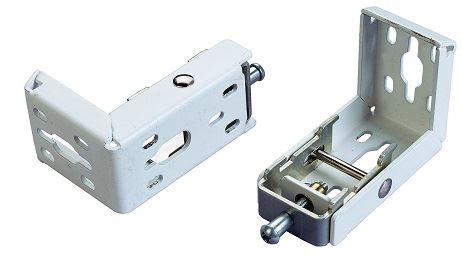

  Supplied with two small L-shaped brackets which can be placed anywhere along the length of the case. Perfect for stud walls. It also allows for horizontal adjustment which means you can shift the screen left and right.

  The brackets also have screw adjustments to help level the screen.

  Easy installation - Suspended mounts
  Supplied with two hanging brackets you can easily suspend the screen from the ceiling.

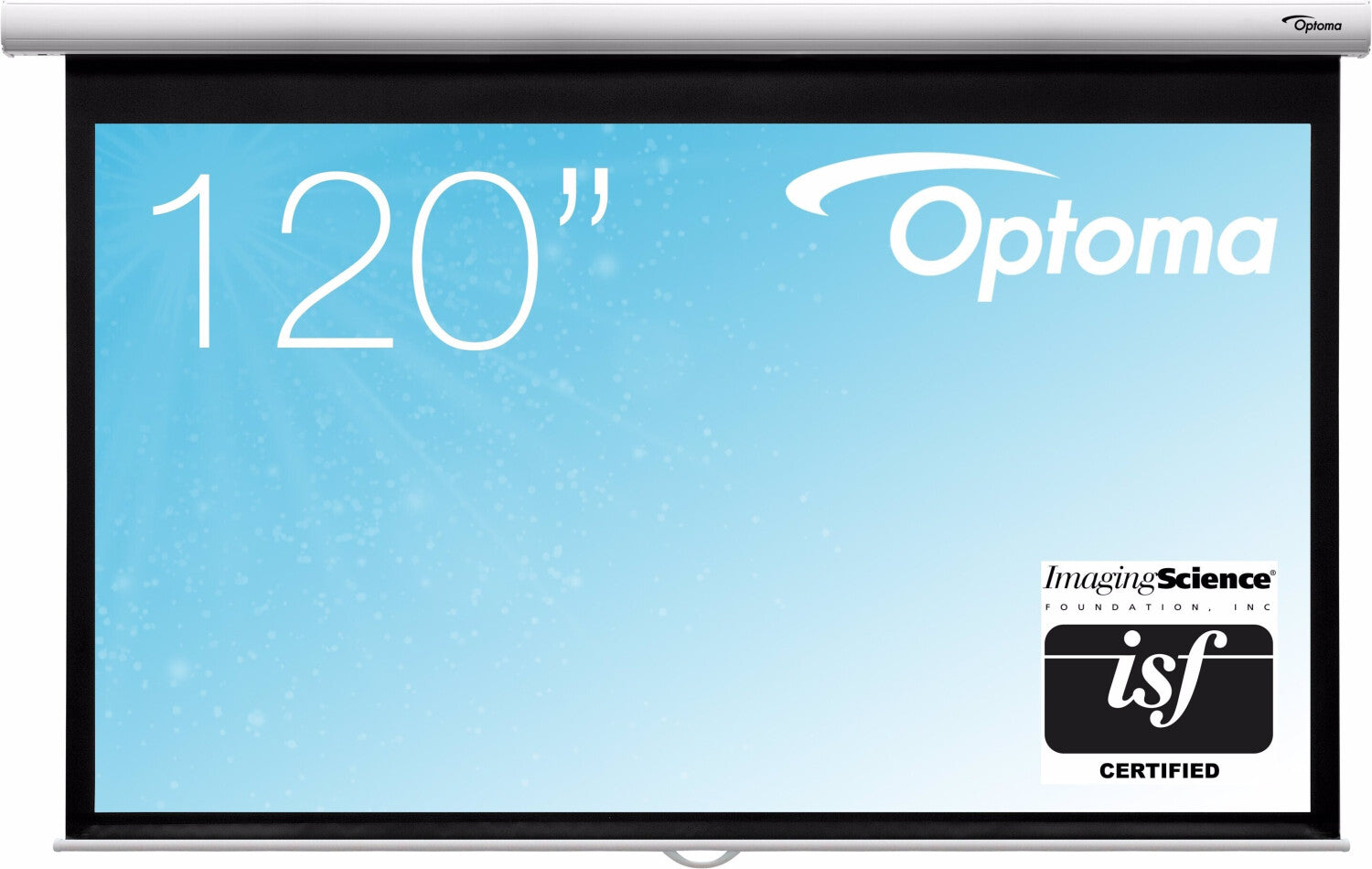

  ISF-certified screen material
  ISF certified to provide top-tier performance which provides you with accurate* color and contrast. This means the screen material will maintain the same RGB (Red-Green-Blue) color balance that comes from the projector with minimal distortion. Allowing you to enjoy your movies just as the director intended.

  *For best results, your projector will need to be ISF-calibrated to enjoy the most accurate color reproduction based on your environment.





• Specification	Details
  Screen size	120 In
  Screen type	Pull Down
  Gain	1
  Material	Matte White
  Viewing size (WxH) (mm)	2656 x 1494
  Black border left and right	47mm
  Black border-bottom	40mm
  Black border top	300mm
  Dimensions (W x D x H) mm	2832 x 98 x 93
  Net weight	15.8 kg
  Gross weight	19.2 kg
