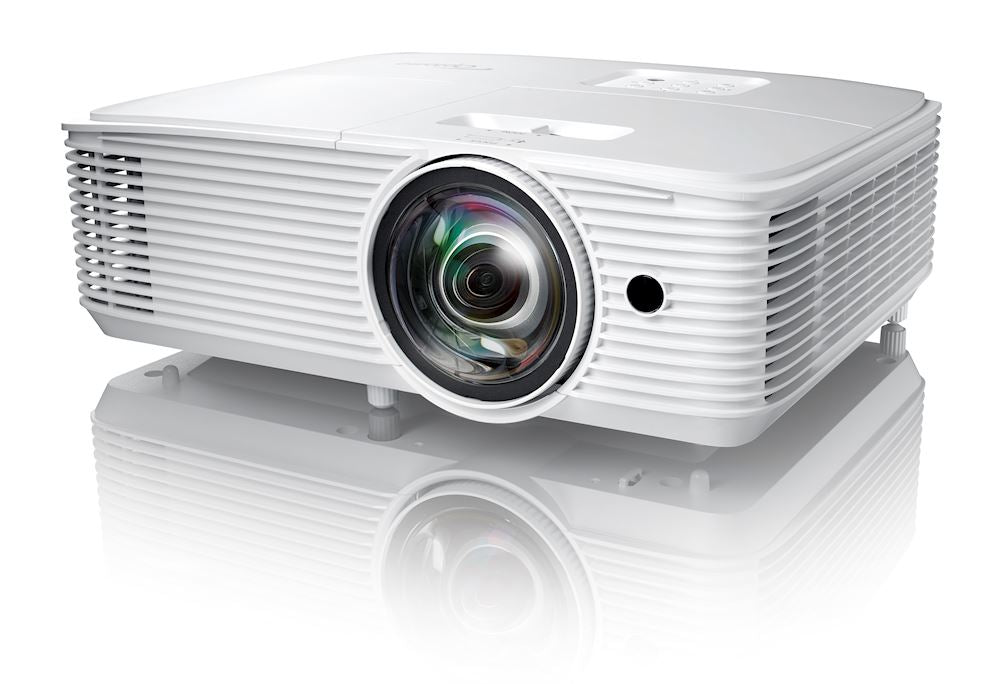

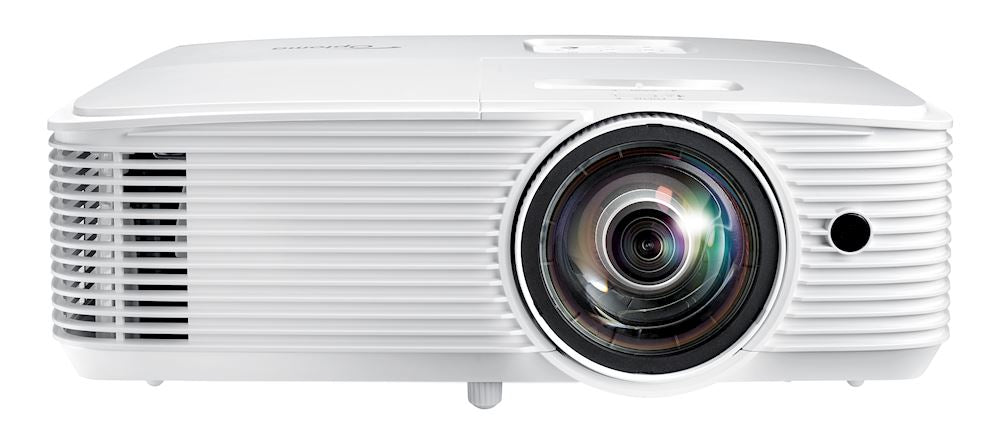

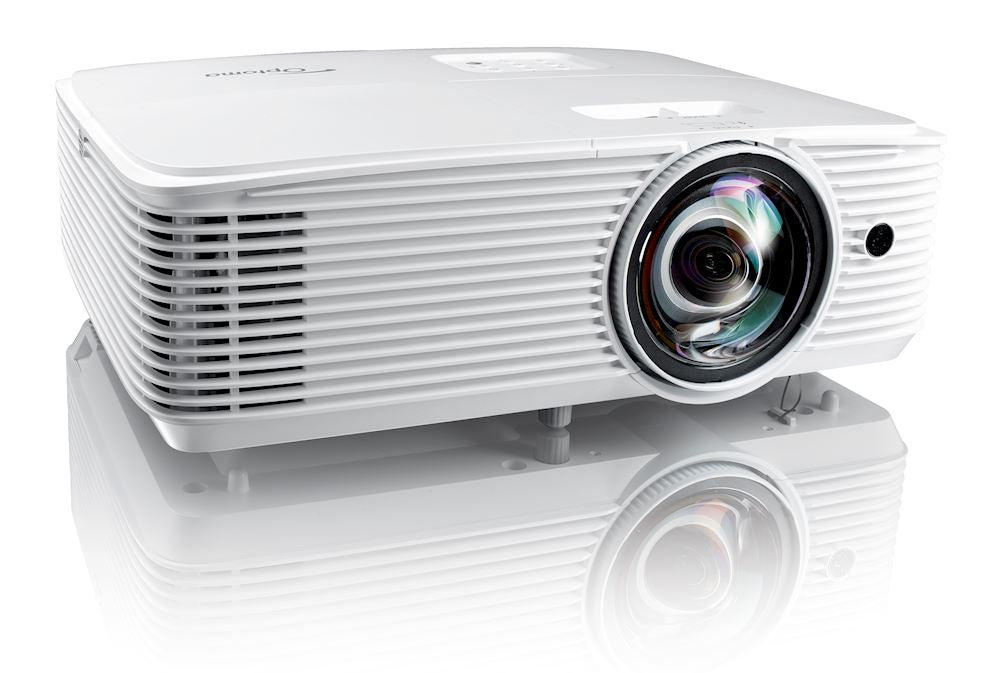

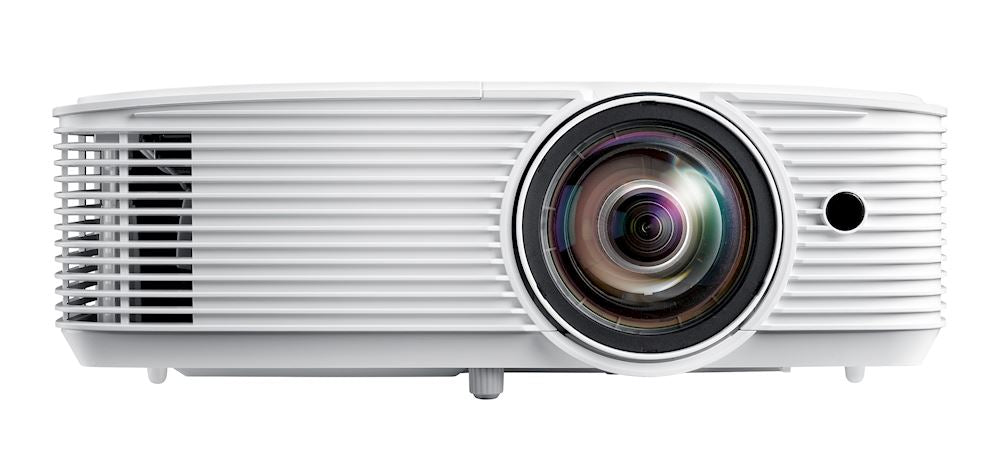

Optoma W319ST Projector

4000 Lumens, 16:10 WXGA

Description
Specifications
Downloads

Bright and compact short throw projector
Project bright vibrant presentations effortlessly at any time of day. Designed for small meeting rooms and classrooms, this short throw projector boasts Amazing colour, long lamp life and energy-saving features to provide you with a low overall cost of ownership.

Multiple inputs, USB power and a built-in speaker provide an easy set-up - perfect for connecting to a laptop, PC or Blu-ray player for clear projected images with sound. You can even connect a HDMI dongle for wireless presentations.

For ultimate control, the projector comes with RJ45, allowing you to monitor and control your network in multiple rooms.

Bright WXGA projector – 4000 ANSI lumens
Short throw lens - 100" image from just over a metre away
Ultimate control - Crestron, Extron, AMX, PJ-link and telnet LAN commands
Easy connectivity – HDMI, VGA, USB power and 10W speaker

Short Throw
With a short throw lens, you can project an impressive 100” image from just over a metre away. This allows you to place the projector closer to the wall, reducing shadows so you can present with ease.

Amazing colours
Give powerful presentations and educational lessons with stunning colours. Optoma projectors provide reliable colour performance suitable for any content and environment, from accurate sRGB colours for lifelike images to vibrant punchy presentations. We have a display mode to specifically meet your needs. Perfect for a range of graphic and video presentations.

Superior contrast
Add more depth to your image with a high-contrast projector. Compared to competing technology, Optoma DLP projectors provide you with brighter whites and ultra-rich blacks, images come alive and text appears crisp and clear - ideal for business and education applications.

Full 3D
Display true 3D content from almost any 3D source, including 3D Blu-ray players, 3D broadcasting and the latest generation game consoles.

Control
Featuring a wide range of options you can control and monitor the projector remotely.

RS232
Optoma projectors come with an extensive set of RS232 commands making it simple and easy to manage using any control system.

AMX compatible
Dynamic discovery protocol is incorporated into the projector allowing for easy installation with AMX control systems.

Crestron RoomView
Using the compatible RoomView® software you can power on/off, monitor, manage and control up to 250 projectors at the same time from any computer

Extron IPLink compatible
Allows for easy installation with Extron control systems

Integrated speaker
A powerful built-in speaker provides exceptional sound quality and an easy setup without the need for costly external speakers.

Eco+
Eco+ technology brings together high contrast, improved lamp life and energy-saving features that are easy to use while reducing power consumption.

Energy saving
Using the specially designed lamp modes, you can reduce power consumption by up to 70%. Each mode also has a positive effect on the lamp life, while reducing maintenance and helping to save on both energy and running costs.

Quick resume
This feature allows the projector to be instantly powered on again if it is accidentally switched off.

Eco AV mute
Stay in control of your presentation with Eco AV mute. Direct your audience's attention away from the screen by blanking the image when no longer needed. This also reduces power consumption by up to 70%, further prolonging the life of your lamp.

Direct power on
The projector will start up instantly when power is supplied to the unit. This eliminates the need to manually turn on the projector via the remote control or the keypad, which is ideal for use in rooms with a “master” power switch.

Direct power off
Power off your projector immediately or directly at the mains. This means you don’t have to wait for the projector to cool down before turning it off.

Auto power off
There may be instances when the projector is left running when not in use. To help save energy, the "auto power off" feature automatically turns off the projector after a set period of time if it is not being used

24/7 operation
Optoma projectors have been designed to operate 24 hours a day in standard orientation. Perfect for applications where prolonged periods of use are required. Subject to 24-hour terms and conditions.

24/7 Operation - standard lamp warranty applies. The projector warranty is based on standard business usage hours. For optimum performance, Optoma recommends that your projector is turned off or placed in standby mode for 30 minutes every 24 hours to prolong the life of your lamp.

Specification	Details
Display technology	DLP™
Resolution	WXGA (1280x800)
Brightness	4,000 lumens
Contrast ratio	25,000:1
Native aspect ratio	16:10
Aspect ratio - compatible	4:3, 16:9
Keystone correction - vertical	+/-40°
Horizontal scan rate	15.38 ~ 91.15Khz
Vertical scan rate	50 ~ 85(120 for 3D)Hz
Uniformity	75%
Screen size	0.91m ~ 7.7m (35.64" ~ 302.98") diagonal
Light source type	Lamp
Lamp watts	203
Lamp life hours (up to)	6000 (Bright), 12000 (Dynamic), 10000 (Eco), 15000 (Eco+)
Throw ratio	0.52:1
Projection distance (m)	0.4m - 3.4m
Focal length (mm)	7.51mm/0.296"
Native offset	112%

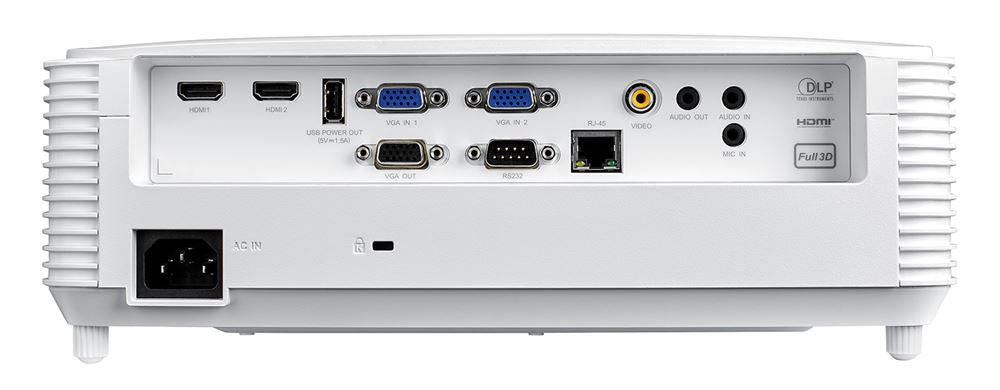

Connections	Inputs: 2 x HDMI 1.4a 3D support, 2 x VGA (YPbPr/RGB), 1 x Composite video, 1 x Audio 3.5mm, 1 x Mic 3.5mm Outputs: 1 x VGA (YPbPr/RGB), 1 x Audio 3.5mm Control: 1 x USB-A power 1A, 1 x RS232, 1 x RJ45
Noise level (typical)	26dB
Noise level (max)	28dB
PC compatibility	FHD, UXGA, SXGA, WXGA, HD, XGA, SVGA, VGA, Mac
2D compatibility	NTSC M/J, 3.58MHz, 4.43MHz PAL B/D/G/H/I/M/N, 4,43MHz SECAM B/D/G/K/K1/L, 4.25/4.4MHz 480i/p, 576i/p, 720p(50/60Hz), 1080i(50/60Hz), 1080p(50/60Hz)
3D compatibility	Side-by-Side:1080i50 / 60, 720p50 / 60 Frame-pack: 1080p24, 720p50 / 60 Over-Under: 1080p24, 720p50 / 60
3D	Full 3D
Security	Security bar, Kensington Lock, Password protected interface
OSD / display languages	25 languages: Arabic, Czech, Danish, Dutch, English, Farsi, Finnish, French, German, Greek, Hungarian, Indonesian, Italian, Japanese, Norwegian, Polish, Portuguese, Romanian, Russian, Chinese (simplified), Spanish, Swedish, Chinese (traditional), Turkish, Vietnamese
Operating conditions	5°C~~40°C/41°F~~104°F, max altitude 3000M/9843ft, max humidity 85%

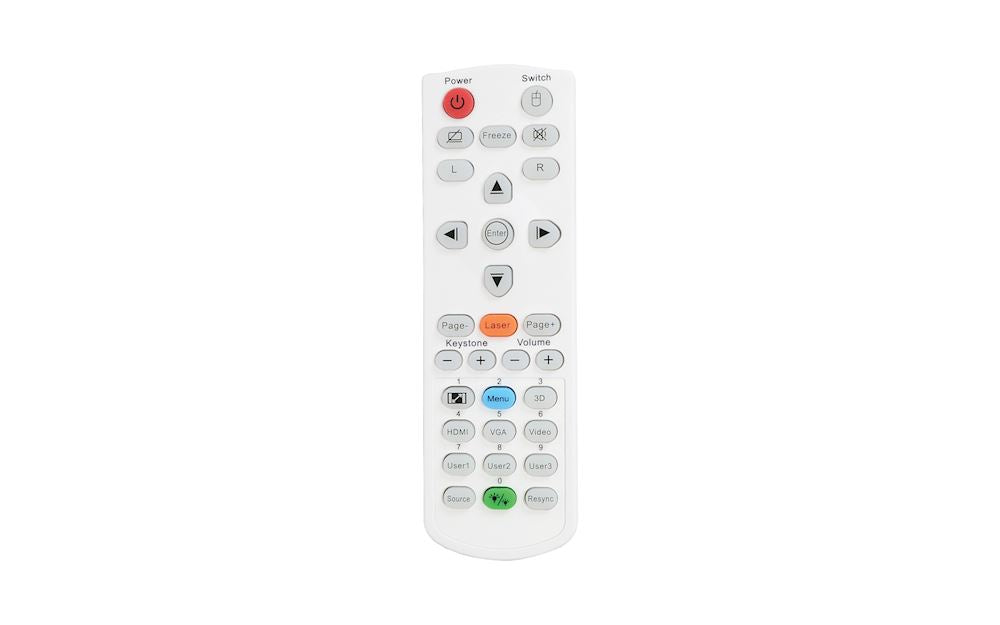

Remote control	Data remote with laser and mouse function
Speaker count	1
Watts per speaker	10W
In the box	AC power cord, Remote control, 2x AA batteries, Basic user manual
Optional wireless models	HDCast Pro, QuickCast Bundle, QuickCast starter kit, WHD200
LAN - control	Yes
Power supply	100 ~ 240V, 50 ~ 60Hz
Power consumption (standby)	0.5W
Power consumption (min)	187W
Power consumption (max)	225W
Dimensions (W x D x H) mm	316 x 244 x 108
Gross weight	3.93 kg
Net weight	3.34 kg
