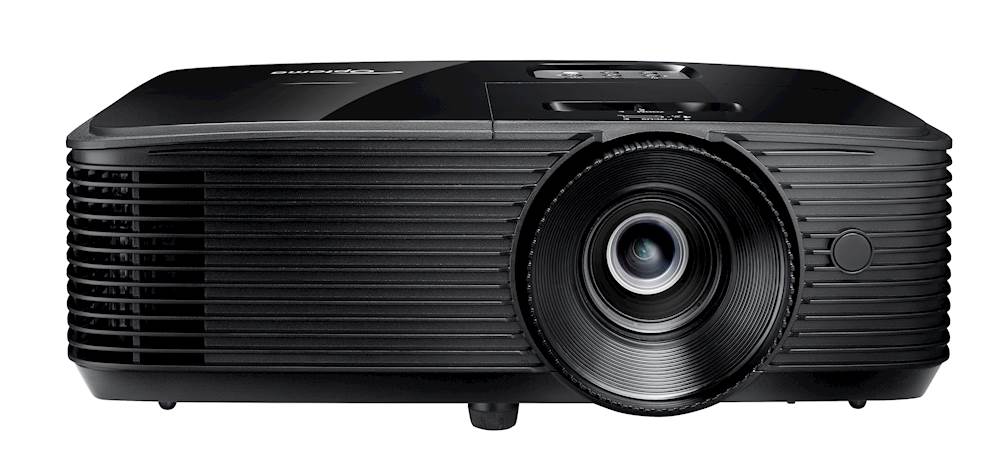

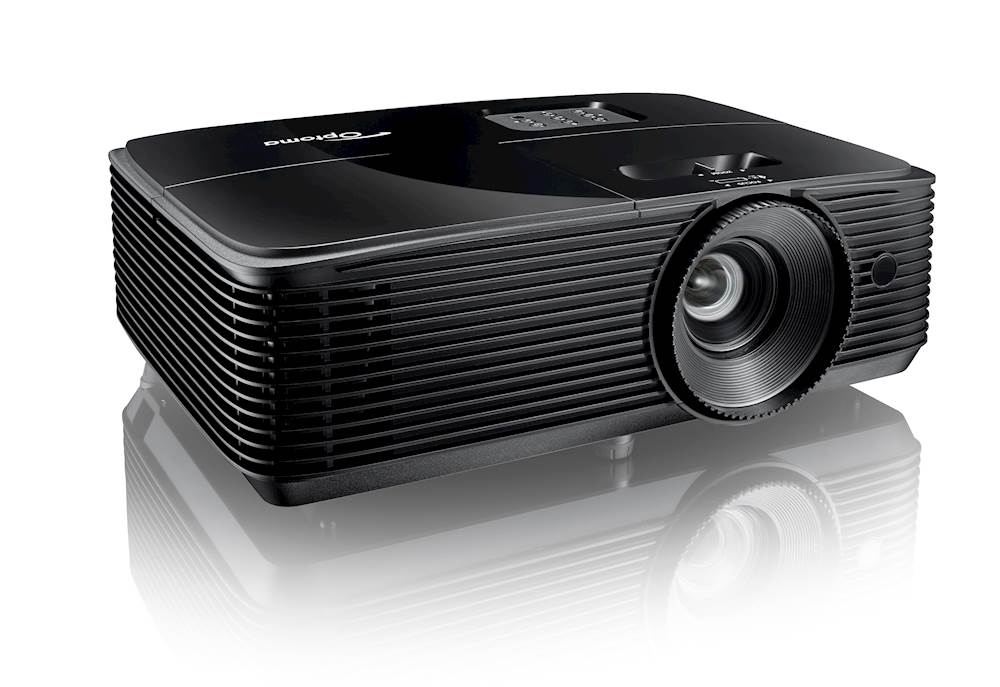

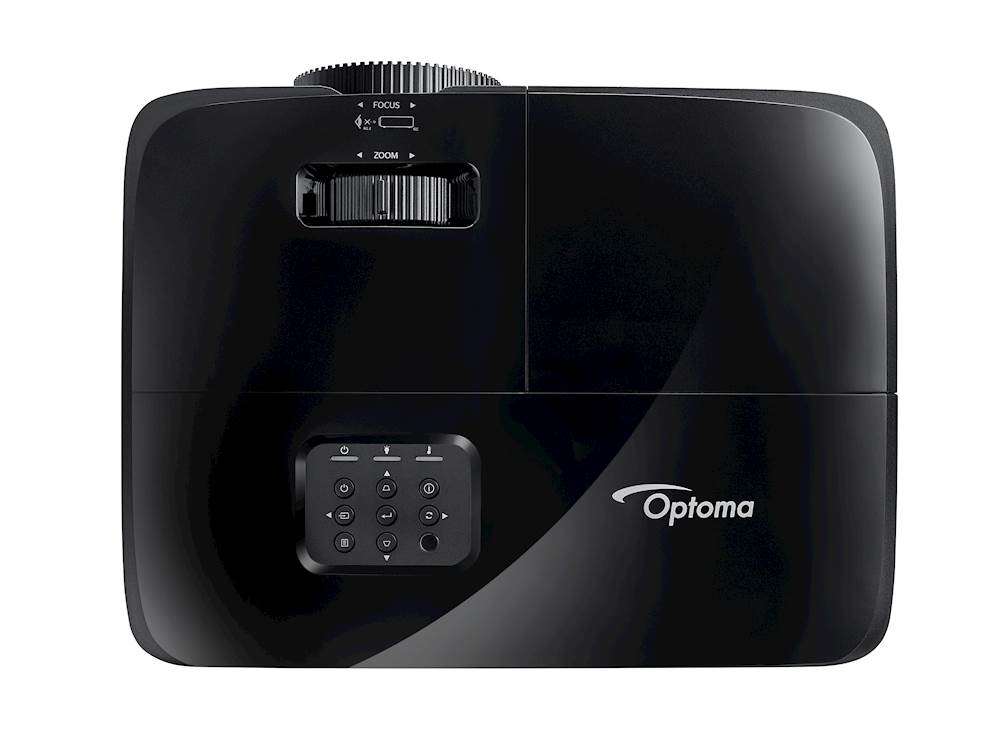

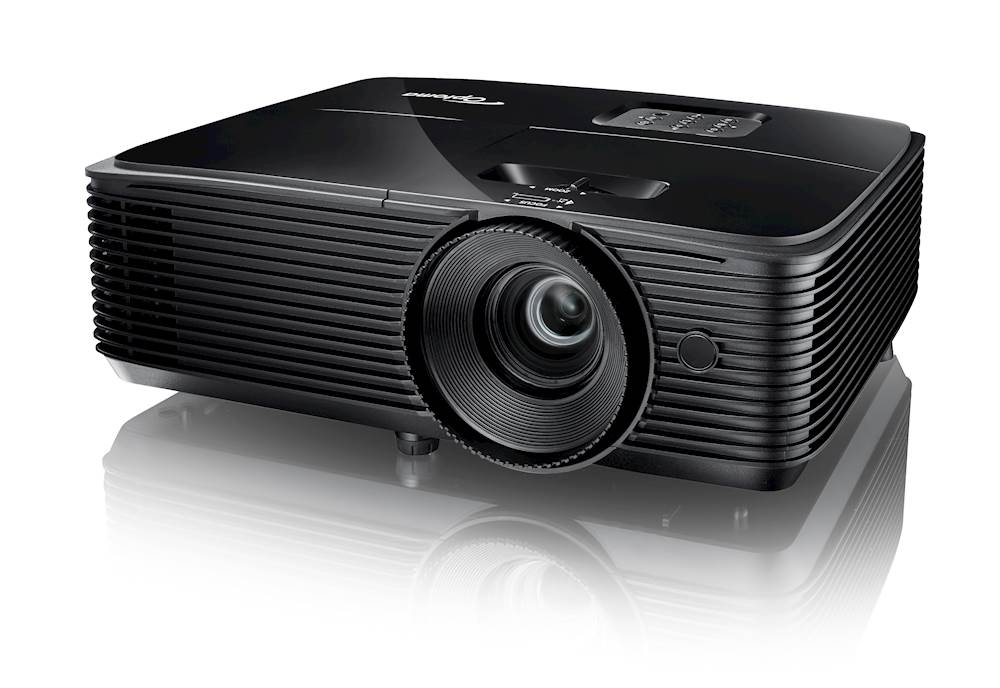

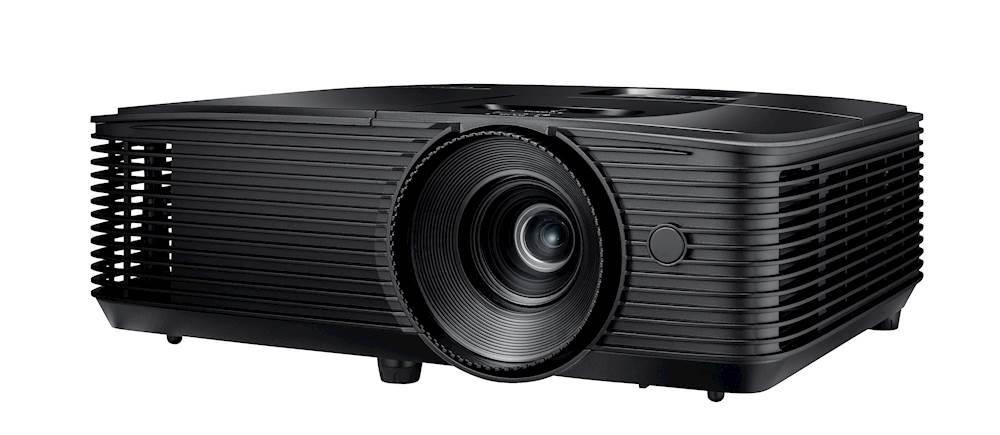

Optoma W400LVE Projector

4000 Lumens, 16:10 WXGA

• Description
• Specifications
• Downloads

•
  Bright projection
  Project bright and vibrant presentations effortlessly at any time of day in HD. Designed for meeting rooms and classrooms, the W400LVe boasts amazing colour, long lamp life and energy-saving features for a lower overall cost of ownership.

  This projector is easy to connect to with multiple inputs, a built-in speaker and USB Power. Perfect for connecting HDMI dongles such as Google Chromecast or a laptop, PC or Blu-ray player for clear projected images with sound. The portable and lightweight projector can be installed or taken on the move for off-site meetings with the optional carry bag (sold separately).

  Bright WXGA projector – 4000 ANSI lumens
  Easy connectivity – HDMI, VGA, USB power
  Clear, powerful audio - 10W speaker
  Lightweight and portable





  Amazing colours
  Give powerful presentations and educational lessons with stunning colours. Optoma projectors provide reliable colour performance suitable for any content and environment, from accurate sRGB colours for lifelike images to vibrant punchy presentations. We have a display mode to specifically meet your needs. Perfect for a range of graphic and video presentations.

  Superior contrast
  Add more depth to your image with a high-contrast projector. Compared to competing technology, Optoma DLP projectors provide you with brighter whites and ultra-rich blacks, images come alive and text appears crisp and clear - ideal for business and education applications.


  Full 3D
  Display true 3D content from almost any 3D source, including 3D Blu-ray players, 3D broadcasting and the latest generation game consoles.

  Integrated speaker
  A powerful built-in speaker provides exceptional sound quality and an easy setup without the need for costly external speakers.

  Eco+
  Eco+ technology brings together high contrast, improved lamp life and energy-saving features that are easy to use while reducing power consumption.

  Energy saving
  Using the specially designed lamp modes, you can reduce power consumption by up to 70%. Each mode also has a positive effect on the lamp life, while reducing maintenance and helping to save on both energy and running costs.

  Quick resume
  This feature allows the projector to be instantly powered on again if it is accidentally switched off.

  Eco AV mute
  Stay in control of your presentation with Eco AV mute. Direct your audience's attention away from the screen by blanking the image when no longer needed. This also reduces power consumption by up to 70%, further prolonging the life of your lamp.

  Direct power on
  The projector will start up instantly when power is supplied to the unit. This eliminates the need to manually turn on the projector via the remote control or the keypad, which is ideal for use in rooms with a “master” power switch.

  Direct power off
  Power off your projector immediately or directly at the mains. This means you don’t have to wait for the projector to cool down before turning it off.

  Auto power off
  There may be instances when the projector is left running when not in use. To help save energy, the "auto power off" feature automatically turns off the projector after a set period of time if it is not being used

  24/7 operation
  Optoma projectors have been designed to operate 24 hours a day in standard orientation. Perfect for applications where prolonged periods of use is required. Subject to 24-hour terms and conditions.

  24/7 Operation - standard lamp warranty applies. The projector warranty is based on standard business usage hours. For optimum performance, Optoma recommends that your projector is turned off or placed in standby mode for 30 minutes every 24 hours to prolong the life of your lamp.


• Parameter	Details
  Display technology	DLP™
  Resolution	WXGA (1280x800)
  Brightness	4,000 lumens
  Contrast ratio	25,000:1
  Native aspect ratio	16:10
  Aspect ratio - compatible	4:3, 16:9
  Keystone correction - vertical	+/-40°
  Horizontal scan rate	15.38 ~ 91.15Khz
  Vertical scan rate	50 ~ 85(120 for 3D)Hz
  Uniformity	75%
  Screen size	0.82m ~ 7.61m (32.24" ~ 299.53") diagonal
  Light source type	Lamp
  Lamp watts	203
  Lamp life hours (up to)	6000 (Bright), 12000 (Dynamic), 10000 (Eco), 15000 (Eco+)
  Throw ratio	1.55:1 ~ 1.73:1
  Projection distance (m)	1m - 12m
  Zoom	1.1
  Zoom type	Manual
  Focal length (mm)	21.85 mm ~ 24mm / 0.86" ~ 0.945"
  Native offset	112%

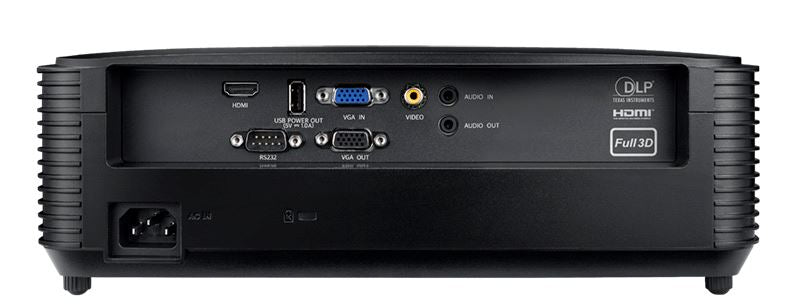

  Connections	Inputs: 1 x HDMI 1.4a (3D support), 1 x VGA (YPbPr/RGB), 1 x Composite video, 1 x Audio 3.5mm
  	Outputs: 1 x VGA, 1 x Audio 3.5mm, 1 x USB-A power 1A
  	Control: 1 x RS232
  Noise level (typical)	27dB
  Noise level (max)	29dB
  PC compatibility	FHD, UXGA, SXGA, WXGA, HD, XGA, SVGA, VGA, Mac
  2D compatibility	NTSC M/J, 3.58MHz, 4.43MHz PAL B/D/G/H/I/M/N, 4.43MHz SECAM B/D/G/K/K1/L, 4.25/4.4MHz 480i/p, 576i/p, 720p(50/60Hz), 1080i(50/60Hz), 1080p(50/60Hz)
  3D compatibility	Side-by-Side: 1080i50/60, 720p50/60 Frame-pack: 1080p24, 720p50/60 Over-Under: 1080p24, 720p50/60
  3D	Full 3D
  Security	Security bar, Kensington Lock, Password protected interface
  OSD/display languages	25 languages: Arabic, Czech, Danish, Dutch, English, Farsi, Finnish, French, German, Greek, Hungarian, Indonesian, Italian, Japanese, Norwegian, Polish, Portuguese, Romanian, Russian, Chinese (simplified), Spanish, Swedish, Chinese (traditional), Turkish, Vietnamese
  Operating conditions	5°C ~ 40°C / 41°F ~ 104°F, max altitude 3000M / 9843ft, max humidity 85%

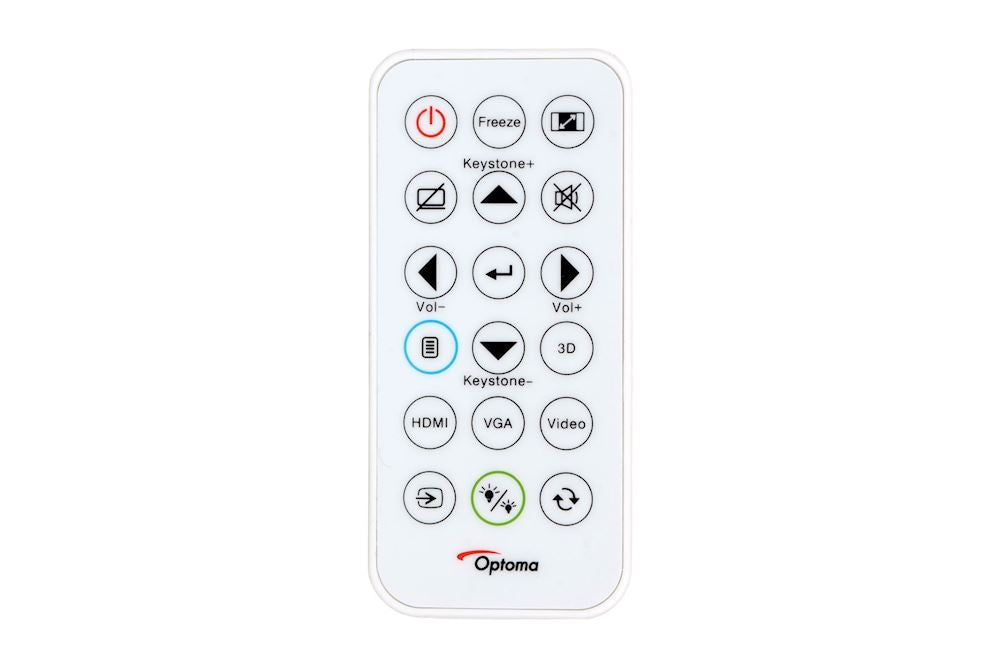

  Remote control	Card style
  Speaker count	1
  Watts per speaker	10W
  In the box	AC power cord, Remote control, Battery, Basic user manual
  Optional wireless models	HDCast Pro, QuickCast Bundle, QuickCast starter kit, WHD200
  Power supply	100 ~ 240V, 50 ~ 60Hz
  Power consumption (standby)	0.5W
  Power consumption (min)	187W
  Power consumption (max)	225W
  Dimensions (W x D x H) mm	316 x 244 x 108
  Gross weight	3.58 kg
  Net weight	3.04 kg
