Display technology |
DLP™ |
Resolution |
XGA (1024x768) |
Brightness |
4,000 lumens |
Contrast ratio |
25,000:1 |
Native aspect ratio |
4:3 |
Aspect ratio - compatible |
16:9 |
Keystone correction - vertical |
+/-40° |
Horizontal scan rate |
15.38 ~ 91.15Khz |
Vertical scan rate |
50 ~ 85(120 for 3D)Hz |
Uniformity |
75% |
Screen size |
0.71m ~ 7.73m (27.78" ~ 304.4") diagonal |
Light source type |
Lamp |
Lamp watts |
203 |
Lamp life hours (up to) |
6000 (Bright), 12000 (Dynamic), 10000 (Eco), 15000 (Eco+) |
Throw ratio |
1.94:1 ~ 2.16:1 |
Projection distance (m) |
1m - 12m |
Zoom |
1.1 |
Zoom type |
Manual |
Focal length (mm) |
21.85 mm~24mm/0.86"~0.945" |
Native offset |
115% |

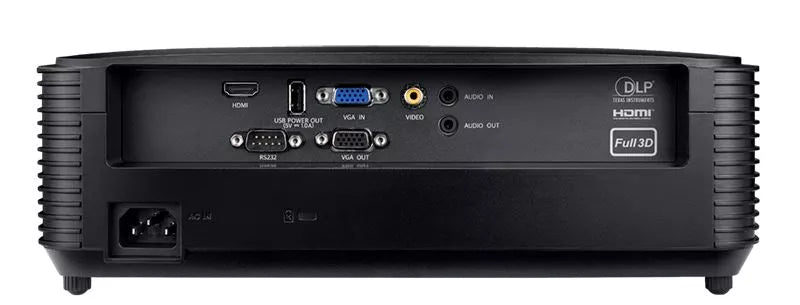

Connections |
Inputs |
|
1 x HDMI 1.4a 3D support |
|
1 x VGA (YPbPr/RGB) |
|
1 x Composite video |
|
1 x Audio 3.5mm |
|
Outputs |
|
1 x VGA |
|
1 x Audio 3.5mm |
|
1 x USB-A power 1A |
Control |
1 x RS232 |
Noise level |
(Typical) 27dB |
|
(Max) 29dB |
PC compatibility |
FHD, UXGA, SXGA, WXGA, HD, XGA, SVGA, VGA, Mac |
2D compatibility |
NTSC M/J, 3.58MHz, 4.43MHz PAL B/D/G/H/I/M/N, 4,43MHz SECAM B/D/G/K/K1/L, 4.25/4.4MHz 480i/p, 576i/p, 720p(50/60Hz), 1080i(50/60Hz), 1080p(50/60Hz) |
3D compatibility |
Side-by-Side:1080i50 / 60, 720p50 / 60 Frame-pack: 1080p24, 720p50 / 60 Over-Under: 1080p24, 720p50 / 60 |
3D |
Full 3D |
Security |
Security bar, Kensington Lock, Password protected interface |
OSD / display languages |
25 languages: Arabic, Czech, Danish, Dutch, English, Farsi, Finnish, French, German, Greek, Hungarian, Indonesian, Italian, Japanese, Norwegian, Polish, Portuguese, Romanian, Russian, Chinese (simplified), Spanish, Swedish, Chinese (traditional), Turkish, Vietnamese |
Operating conditions |
5°C40°C/41°F104°F, max altitude 3000M/9843ft, max humidity 85% |

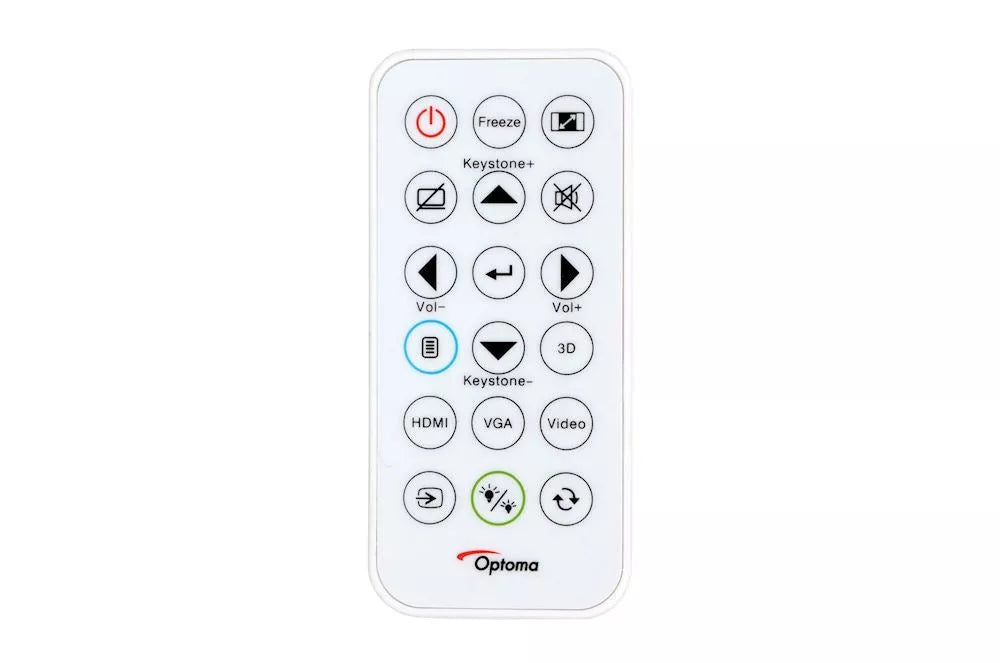

Remote control |
Card style |
Speaker count |
1 |
Watts per speaker |
10W |
In the box |
AC power cord |
|
Remote control |
|
Battery |
|
Basic user manual |
Optional wireless models |
HDCast Pro, QuickCast Bundle, QuickCast starter kit, WHD200 |
Power supply |
100 ~ 240V, 50 ~ 60Hz |
Power consumption (standby) |
0.5W |
Power consumption (min) |
187W |
Power consumption (max) |
225W |
Dimensions (W x D x H) mm |
316 x 244 x 108 |
Gross weight |
3.58 kg |
Net weight |
3.05 kg |
