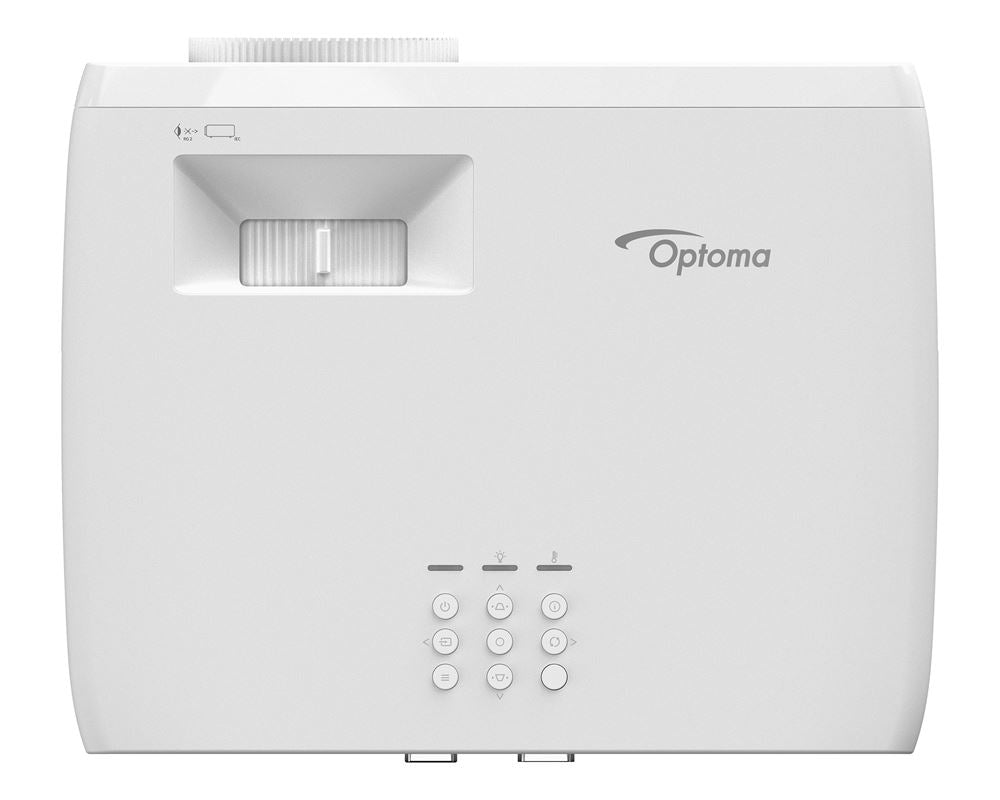

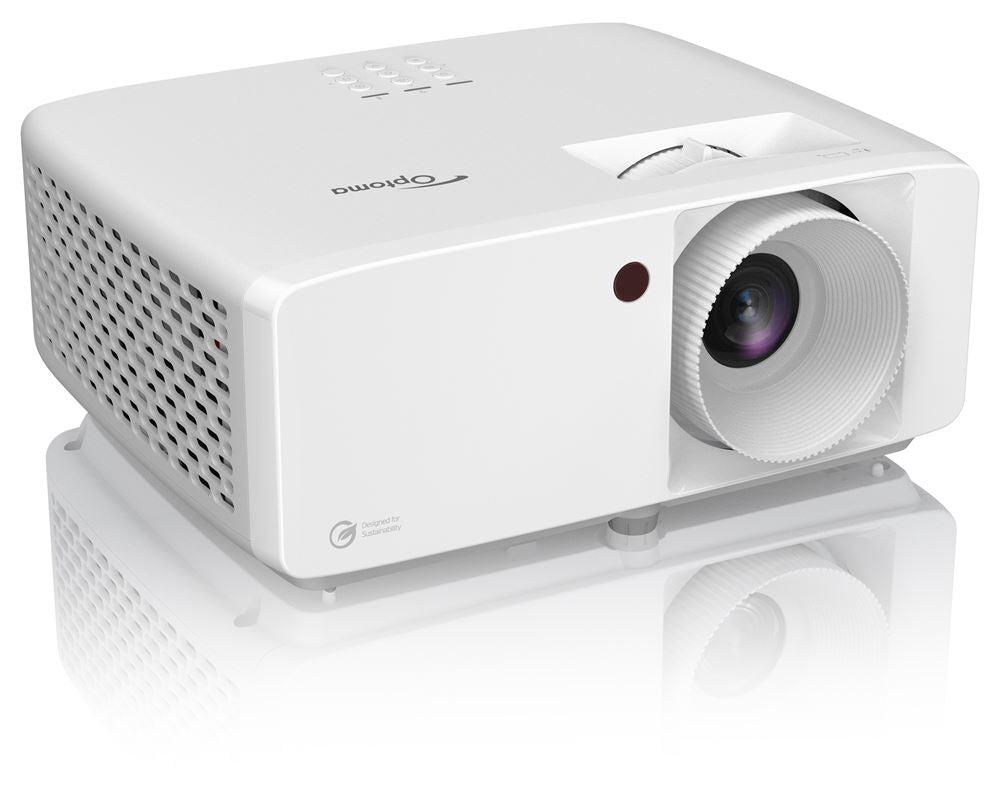

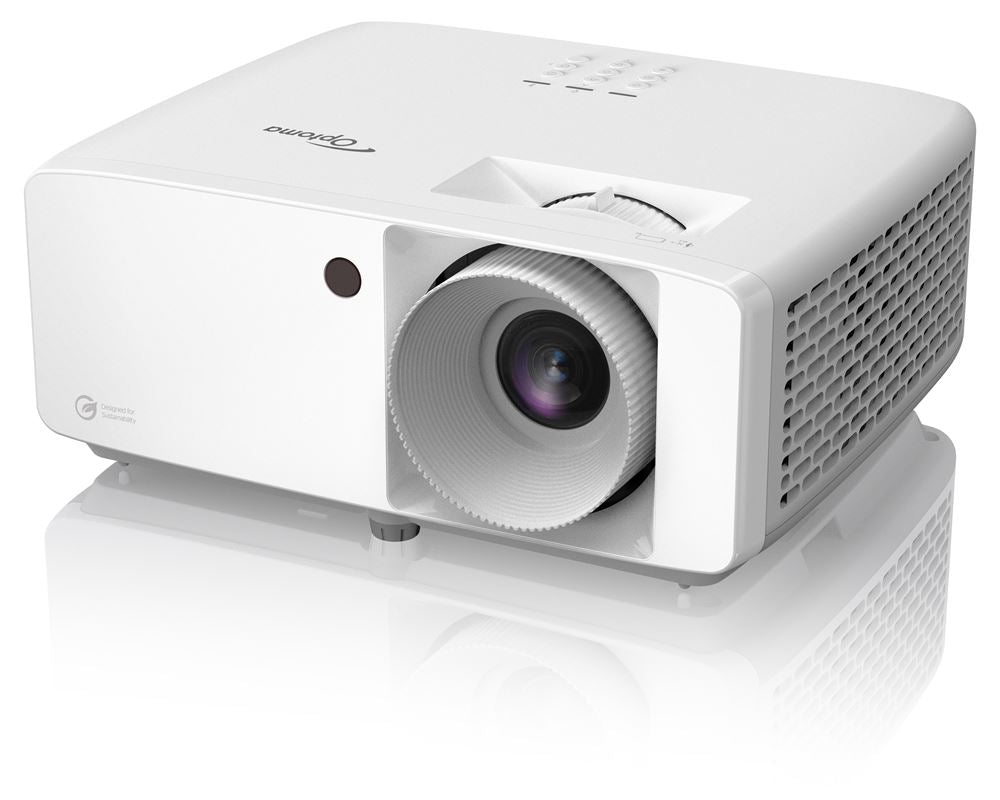

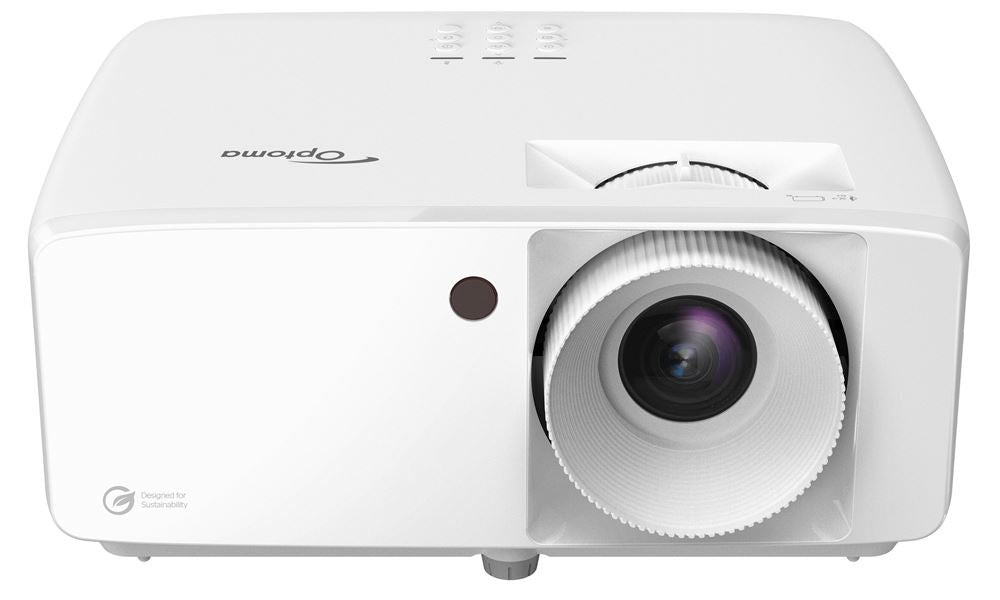

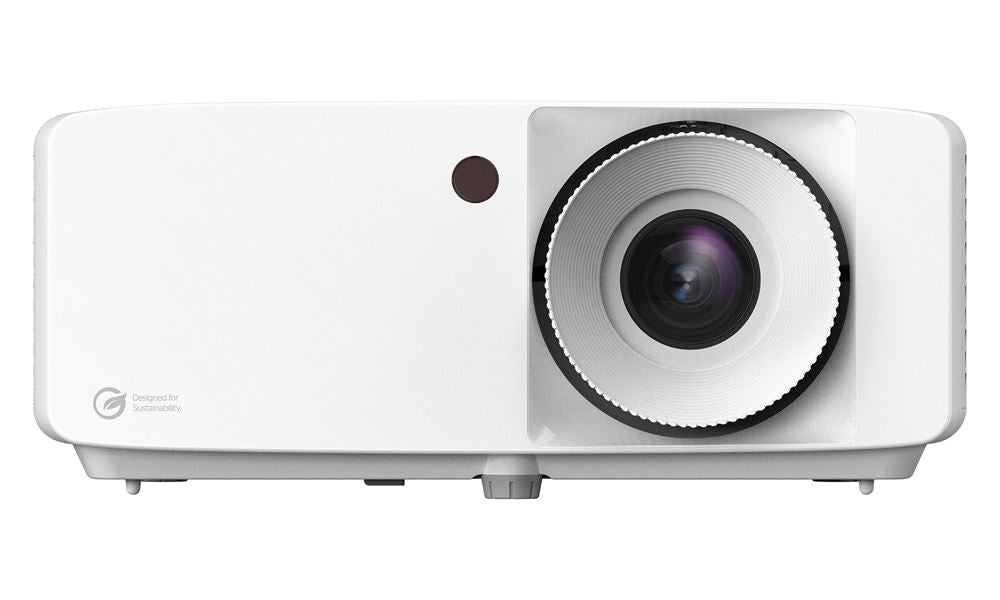

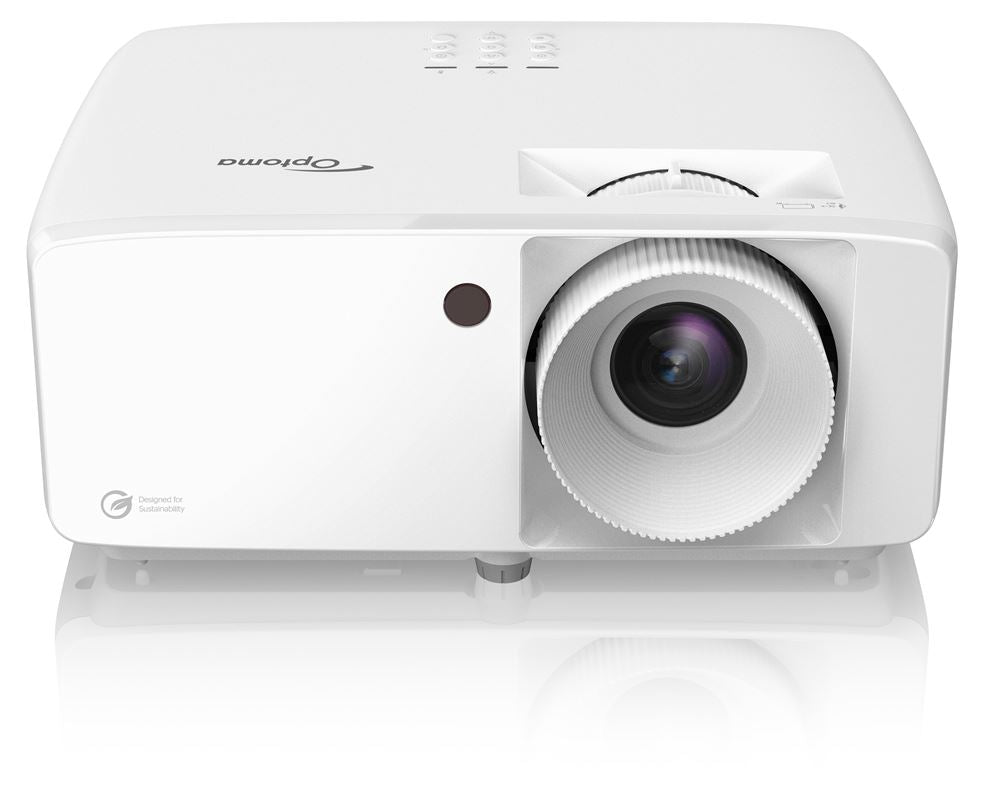

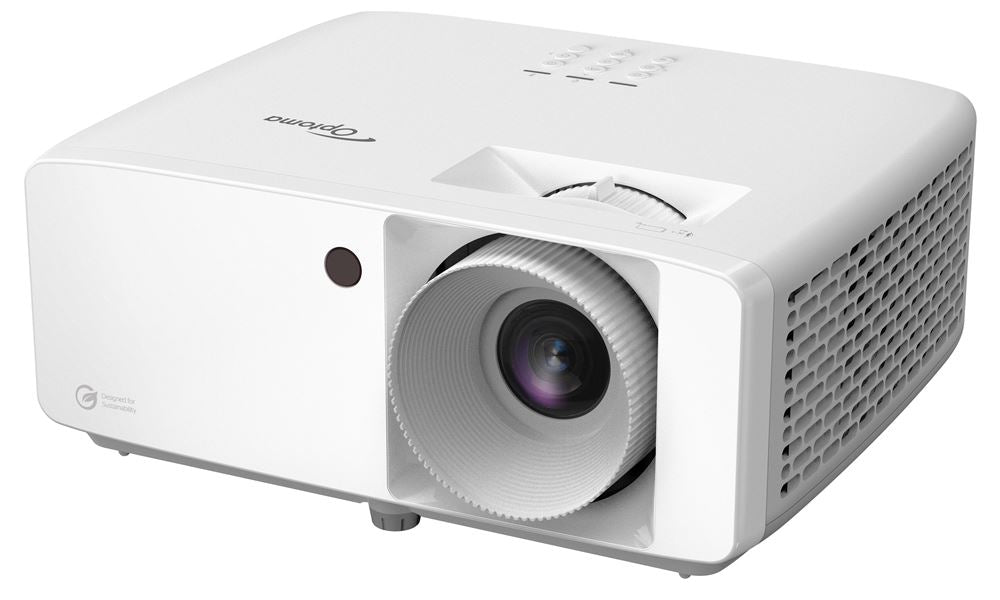

Optoma ZH420 Projector

4300 Lumens, 16:9 Full HD 1080p

• Description
• Specifications
• Downloads

•
  Eco-friendly ultra-compact high brightness Full HD laser projector
  The ZH420 is one of Optoma's most compact and hassle-free Full HD 1080p DuraCore laser projectors to date. Designed for maintenance-free continuous operation, it delivers powerful image performance with flexible installation features and extensive connectivity options in a sleek, compact form factor, up to 34% smaller than previous Optoma models.¹

  To support Optoma’s commitment to sustainability, the ZH420 cuts power consumption by up to 45% compared to Optoma’s lamp-based projectors.² Energy-saving DuraCore laser technology ensures a long product lifespan of up to 30,000 hours without the need for additional lamps, requires minimal maintenance, and is mercury-free, further lowering its carbon footprint.

  An added benefit, the ZH420 features an external power supply offering more reliability, portability and energy efficiency.

  Designed with the environment in mind, the eco-friendly chassis design is made with up to 50% PCR (Post-Consumer Recycled) plastics and the packaging contains up to 97% recyclable materials.³ In addition, the compact product and packaging size of the Optoma ZH420 projector allows 2x more products carried per container, resulting in more efficient logistics to help further reduce carbon emissions.¹

  Geared for conference rooms, boardrooms, and other corporate spaces, the ZH420 features a 1.3x zoom for a flexible setup. For ultimate convenience it comes with an RS232 connection for monitoring and controlling and a built-in speaker.

  Bright Full HD 1080p DuraCore laser projector
  4300 lumens and IP6X certified

  Small form factor for easy installation
  1.3x zoom, 360-degree and portrait projection

  Reduced power consumption for a long life span
  DuraCore laser technology delivers 30,000 hours maintenance free laser light source

  External power supply
  More reliability, portability and energy efficiency

  Designed for the future
  We are committed to reducing the overall environmental footprint of our products so we can do right by the planet.

  Designing innovative products with sustainability in mind considers every phase of a product's lifecycle, from design, manufacturing, packaging, and logistics, to usage.


  Energy-saving technology
  Reduce power consumption by up to 45% compared to Optoma's lamp-based solutions.

  Reduced carbon footprint
  Compact product and packaging size allows 2x more products carried per container, resulting in more efficient logistics to help further reduce carbon emissions.

  Eco-friendly packaging
  Packaging contains up to 97% recyclable materials.

  Sustainable materials
  Chassis design made with up to 50% PCR (Post-Consumer Recycled) plastics.

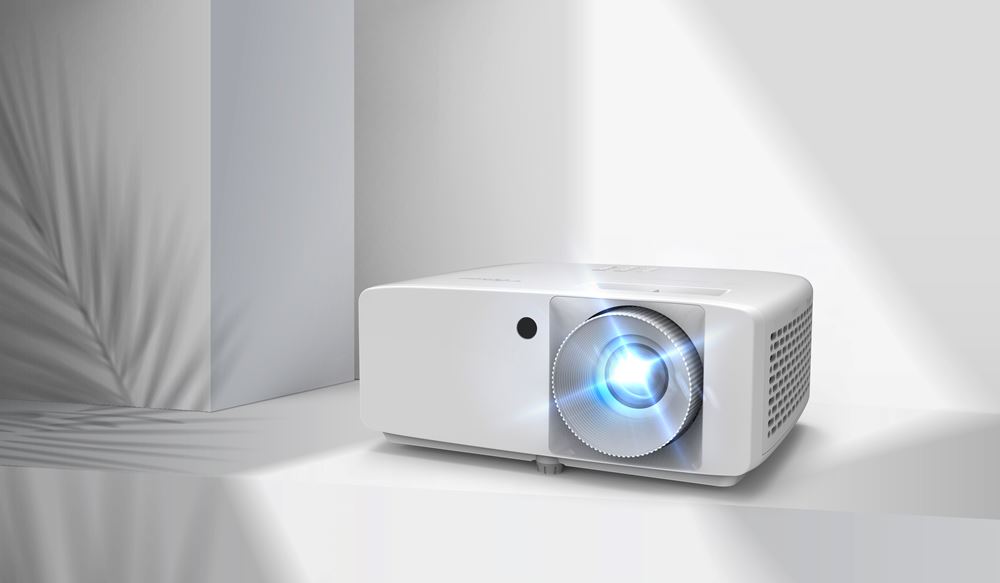

  Lights on viewing
  This versatile projector combines high brightness and vivid colours for vibrant, true-to-life visuals in any environment*. Make a lasting impression with bigger and bolder presentations any time of day.

  *With no direct sunlight or lights directed on screen.

  Four corner correction
  Adjust the keystone in both the vertical and horizontal plane. You can individually warp each corner of the image to create a perfectly square image. Ideal for image stacking, uneven walls or where projector placement is awkward and needs to be installed at an angle.


  Laser technology
  Optoma laser projectors use high-quality lasers to create the projected image. In many situations the perceived brightness from laser illumination projectors can be twice that of an equivalent lamp-based model. They also deliver increased efficiency to maintain consistent brightness, superior colour performance, instant on/off and an extraordinary life span of up to 30,000 hours.

  Full HD 1080p
  1080p resolution gives you sharp and detailed images from HD content without downscaling or compression; perfect for watching Blu-ray movies, HD broadcasting and playing video games.

  HDR and HLG compatible
  Capable of receiving and displaying both HDR10 and Hybrid Log Gamma (HLG) HDR content. This Optoma projector allows you to see far more detail and texture. Objects look more solid and lifelike and the extra detail creates a greater sense of depth.

  Amazing colours
  Give powerful presentations and educational lessons with stunning colours. Optoma projectors provide reliable colour performance suitable for any content and environment. From accurate sRGB colours for lifelike images to vibrant punchy presentations. We have a display mode to specific meet your needs. Perfect for a range of graphic and video presentations.

  Control
  Featuring a wide range of options you can control and monitor the projector remotely.

  RS232
  Optoma projector’s come with an extensive set of RS232 commands making it simple and easy to manage using any control system.

  AMX compatible
  Dynamic discovery protocol is incorporated into the projector allowing for easy installation with AMX control systems.

  Crestron RoomView
  Using the compatible RoomView® software you can power on/off, monitor, manage and control up to 250 projectors at the same time from any computer

  Extron IPLink compatible
  Allows for easy installation with Extron control systems






  360 projection*
  With 360° projection,* images can be displayed in any orientation, giving you the freedom and versatility to install this projector in the desired location.

  *For more information please refer to the user manual

  Full 3D
  Display true 3D content from almost any 3D source, including 3D Blu-ray players, 3D broadcasting and the latest generation games consoles.

  24/7 operation
  Optoma projectors have been designed to operate 24 hours a day in standard orientation. Perfect for applications where prolonged periods of use is required. Subject to 24 hour terms and conditions.

  24/7 Operation - standard lamp warranty applies. Projector warranty is based on standard business usage hours. For optimum performance Optoma recommends that your projector is turned off or placed in standby mode for 30 minutes every 24 hours to prolonging the life of your lamp.

  Auto power off
  There may be instances when the projector is left running when not in use. To help save energy, the "auto power off" feature automatically turns off the projector after a set period of time if it is not being used

  Integrated speaker
  Complete your home entertainment experience with the convenience of a powerful built-in speaker for exceptional sound quality and an easy set up without the need for costly external speakers.

  USB-Power
  Use the USB-A port to power external devices (5V/1.5A)

• Feature	Specification
  Display Technology	DLP™
  Resolution	1080p Full HD (1920x1080)
  Brightness	4,300 lumens
  Contrast Ratio	300,000:1
  Contrast Ratio - Dynamic	2,000,000:1
  Native Aspect Ratio	16:9
  Aspect Ratio - Compatible	4:3, 16:9, 16:10
  Keystone Correction - Horizontal	+/-30°
  Keystone Correction - Vertical	+/-30°
  Displayable Colors (Millions)	1073.4
  Horizontal Scan Rate	15 ~ 140Khz
  Vertical Scan Rate	24 ~ 120Hz
  Uniformity	75%
  Screen Size	0.79m ~ 8.18m (31" ~ 322") diagonal
  Light Source Type	Laser
  LASER Life	30,000 hours
  Throw Ratio	1.12:1 ~ 1.47:1
  Projection Distance (m)	1m - 8m
  Zoom	1.3
  Zoom Type	Manual
  Focal Length (mm)	16.9 ~ 21.61
  Native Offset	116%

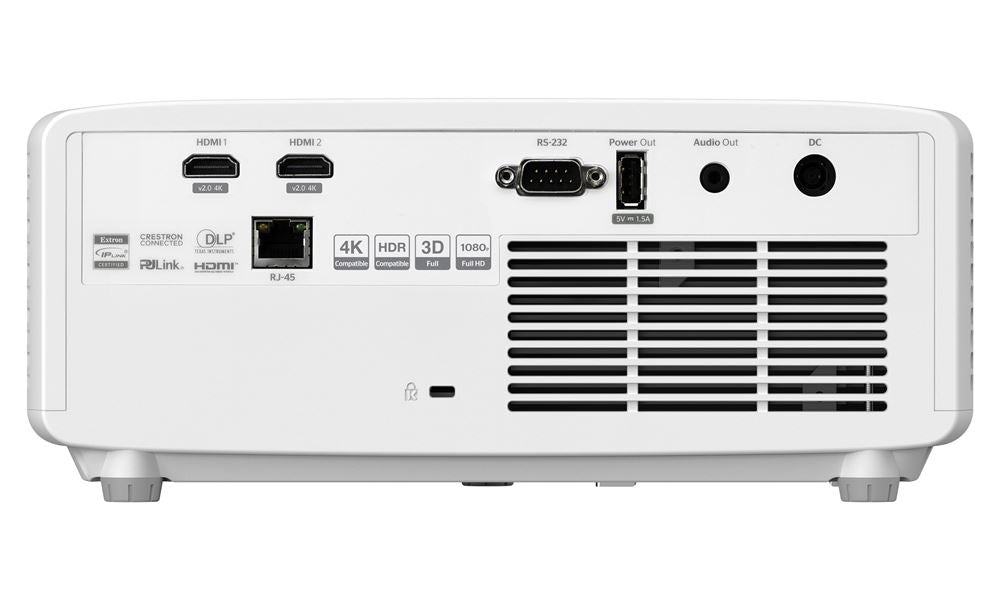

  Connections
  Inputs	2 x HDMI 2.0
  Outputs	1 x Audio 3.5mm, 1 x USB-A power 1.5A
  Control	1 x RS232, 1 x RJ45
  Noise Level (Typical)	29dB
  Noise Level (Max)	31dB
  PC Compatibility	FHD, UXGA, SXGA, WXGA, HD, XGA, SVGA, VGA, Mac
  2D Compatibility	NTSC M/J, 3.58MHz, 4.43MHz PAL B/D/G/H/I/M/N, 4,43MHz SECAM B/D/G/K/K1/L, 4.25/4.4MHz 480i/p, 576i/p, 720p(50/60Hz), 1080i(50/60Hz), 1080p(50/60Hz)
  3D Compatibility	Yes (DLP 3D; PC frame sequential 120Hz 3D, Blu-ray DVD 3D)
  3D	Full 3D
  Security	Security bar, Kensington Lock, Password protected interface
  IP Rating	IP6X
  OSD / Display Languages	25 languages: Arabic, Czech, Danish, Dutch, English, Farsi, Finnish, French, German, Greek, Hungarian, Indonesian, Italian, Japanese, Norwegian, Polish, Portuguese, Romanian, Russian, Chinese (simplified), Spanish, Swedish, Chinese (traditional), Turkish, Vietnamese
  24/7 Operation	Yes
  360° Operation	Yes
  Operating Conditions	0°C ~ 40°C, Max. Humidity 80%, Max. Altitude 2500m
  Remote Control	Card style
  Speaker Count	1
  Watts per Speaker	15W
  In the Box	AC power cord, Remote control, 1x CR2025 battery, Basic user manual
  Optional Wireless Models	UHDCast Pro
  Power Supply	External power supply, 100V ~ 240V, 50-60Hz
  Power Consumption (Standby)	<0.5W
  Power Consumption (Min)	119W
  Power Consumption (Max)	173W
  Dimensions (W x D x H) mm	274 x 216 x 114
  Gross Weight	4.2 kg
  Net Weight	3 kg
