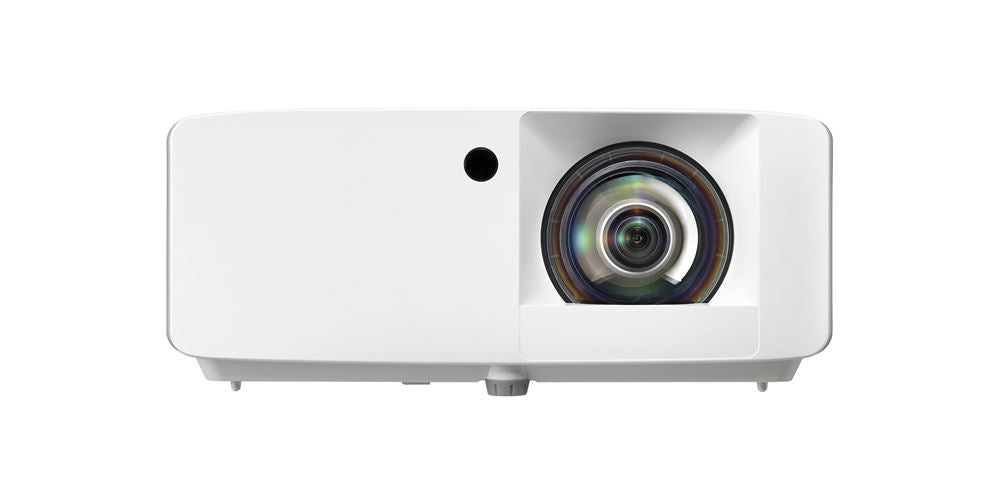

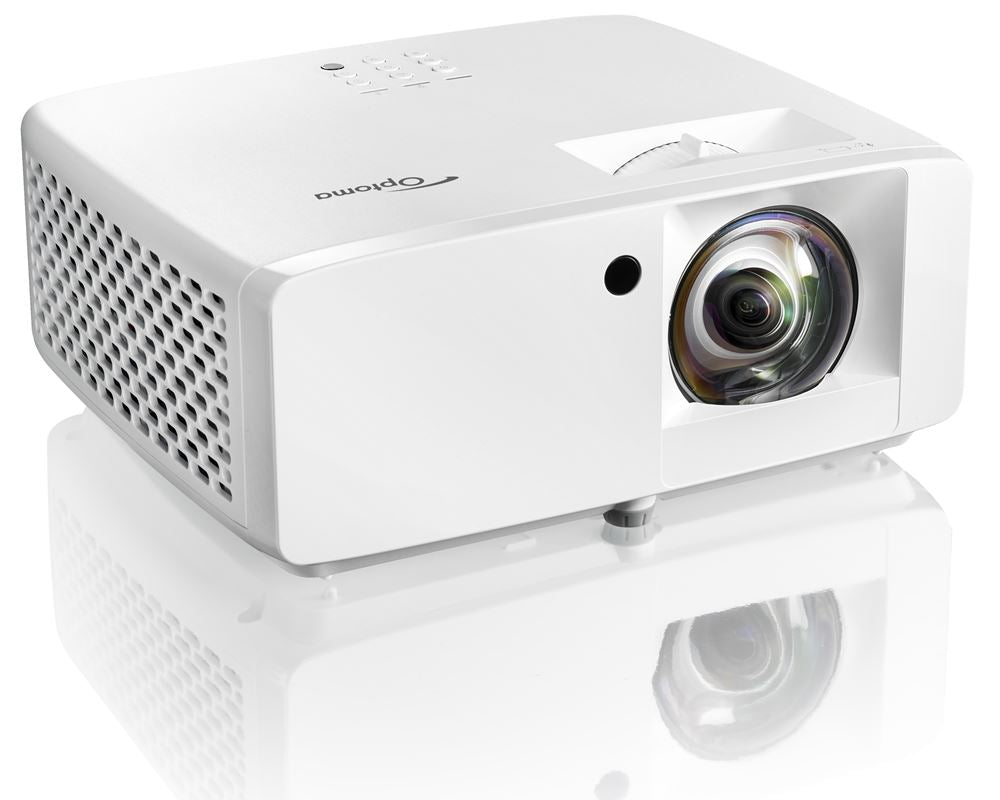

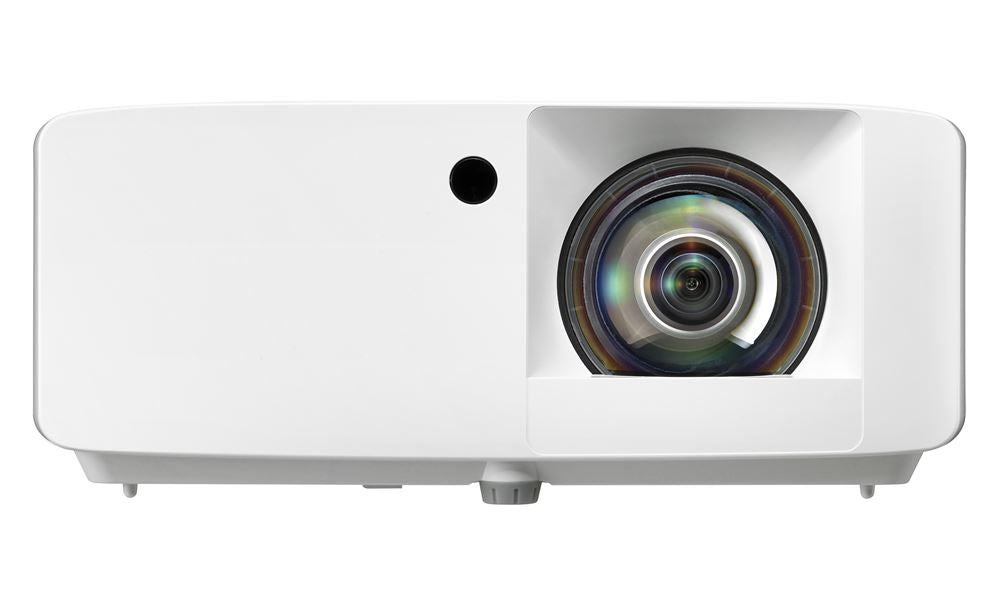

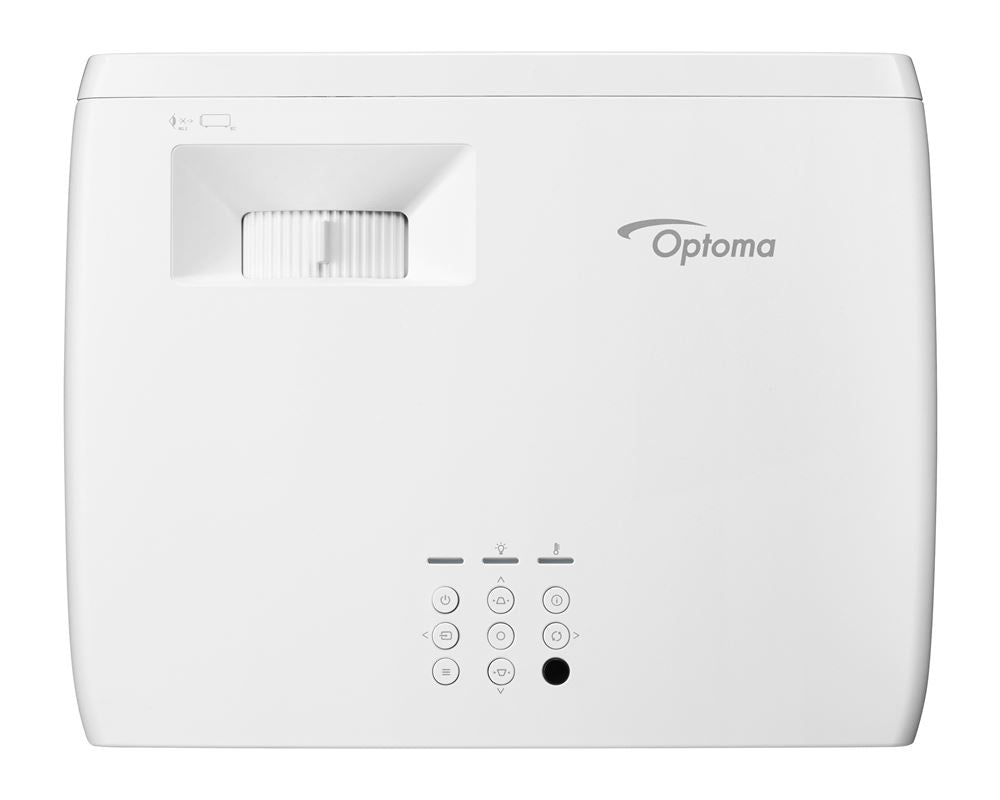

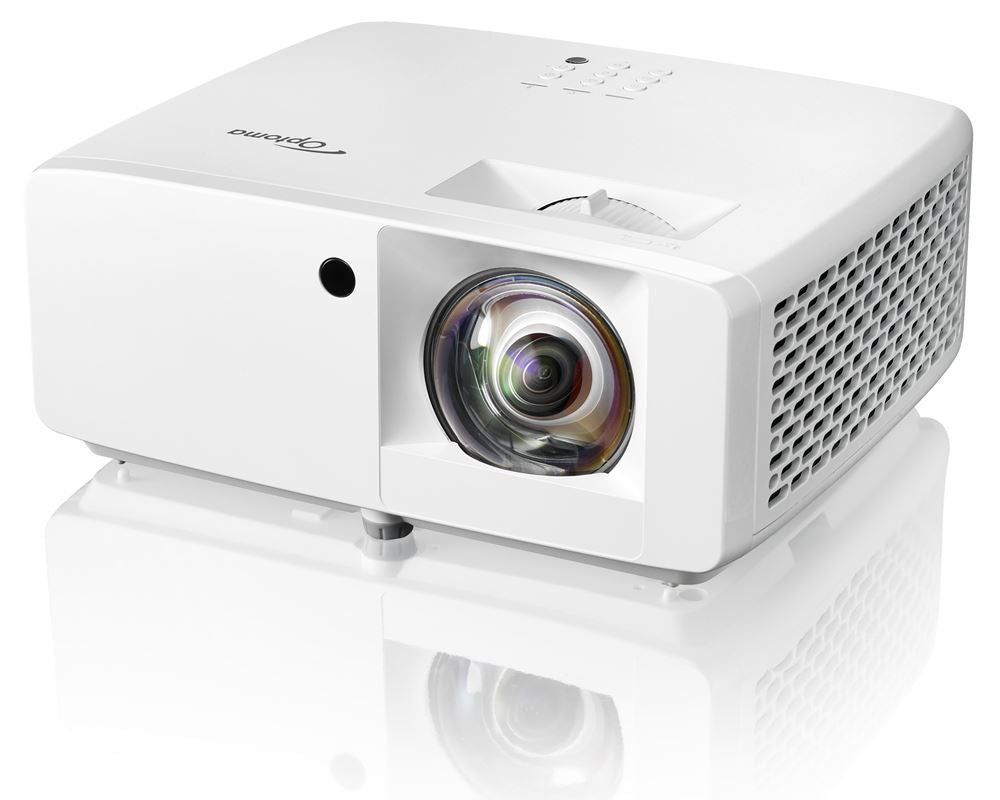

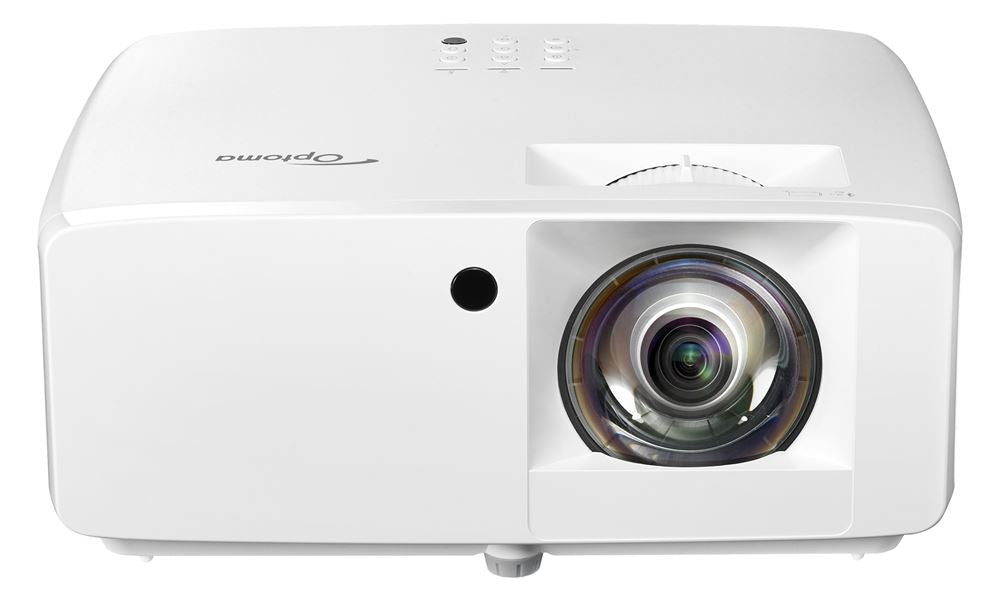

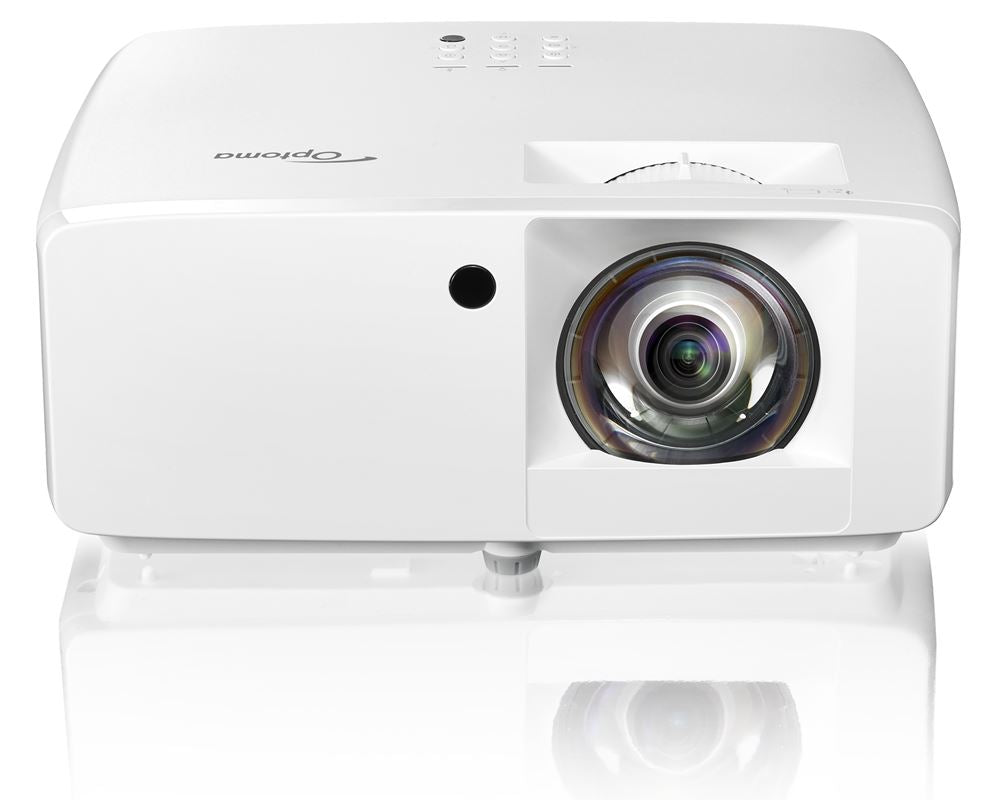

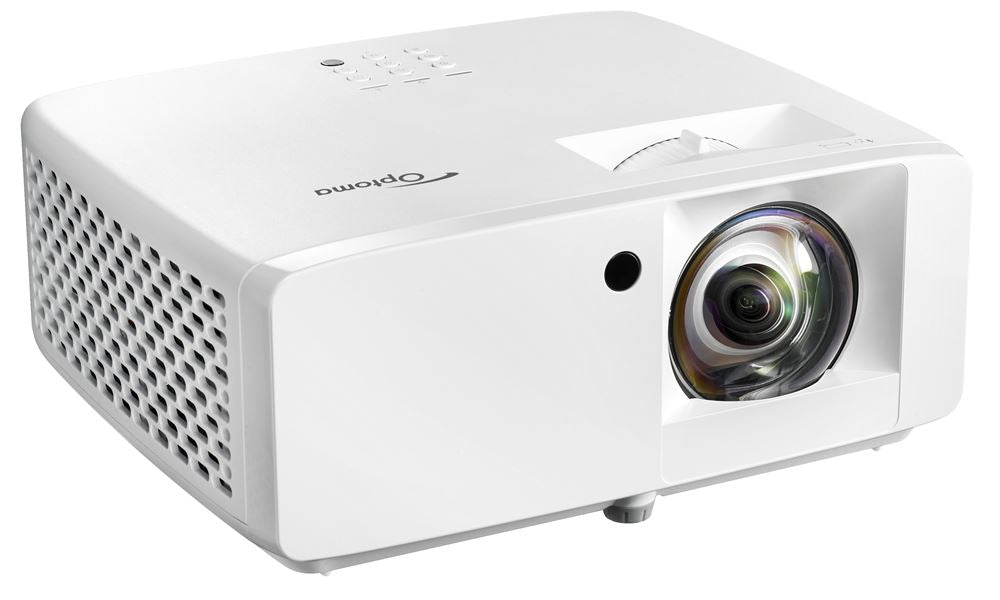

Optoma ZW350ST Projector

3600 Lumens, 16:10 WXGA

Description
Specifications
Downloads

Compact high brightness short throw laser projector
The ZW350ST is one of Optoma's most compact and hassle-free WXGA DuraCore laser projectors to date. Designed for maintenance-free continuous operation, this 3600-lumen projector delivers powerful image performance with flexible installation features and extensive connectivity options in a sleek, compact form factor, up to 34% smaller than previous Optoma models.¹

To support Optoma’s commitment to sustainability, the ZW350ST cuts power consumption by up to 45% compared to Optoma’s lamp-based projectors.² Energy-saving DuraCore laser technology ensures a long product lifespan of up to 30,000 hours without the need for additional lamps, requires minimal maintenance, and is mercury-free, further lowering its carbon footprint.

An added benefit, the ZW350ST features an external power supply offering more reliability, portability and energy efficiency.

Designed with the environment in mind, the eco-friendly packaging contains up to 97% recyclable materials.³ In addition, the compact product and packaging size of the Optoma ZW350ST projector allows 2x more products carried per container, resulting in more efficient logistics to help further reduce carbon emissions.¹

Geared for conference rooms, boardrooms, and other corporate spaces, the ZW350ST has a short throw lens meaning it can be positioned less than half a metre from any wall. For ultimate convenience it comes with an RS232 connection for monitoring and controlling and a built-in speaker.

Bright WXGA DuraCore laser projector
3600 lumens and IP6X certified

Compact and short throw lens for easy installation
360-degree and portrait projection

Reduced power consumption for a long life span
DuraCore laser technology delivers 30,000 hours maintenance free laser light source

External power supply
More reliability, portability and energy efficiency

Designed for the future
We are committed to reducing the overall environmental footprint of our products so we can do right by the planet.

Designing innovative products with sustainability in mind considers every phase of a product's lifecycle, from design, manufacturing, packaging, and logistics, to usage.

Energy-saving technology
Reduce power consumption by up to 45% compared to Optoma's lamp-based solutions.

Reduced carbon footprint
Compact product and packaging size allows 2x more products carried per container, resulting in more efficient logistics to help further reduce carbon emissions.

Eco-friendly packaging
Packaging contains up to 97% recyclable materials.

Lights on viewing
This versatile projector combines high brightness and vivid colours for vibrant, true-to-life visuals in any environment*. Make a lasting impression with bigger and bolder presentations any time of day.

*With no direct sunlight or lights directed on screen.

Laser technology
Optoma laser projectors use high-quality lasers to create the projected image. In many situations the perceived brightness from laser illumination projectors can be twice that of an equivalent lamp-based model. They also deliver increased efficiency to maintain consistent brightness, superior colour performance, instant on/off and an extraordinary life span of up to 30,000 hours.

DuraCore
Industry leading lifetime is achieved using Optoma’s DuraCore technology. Implementing advanced laser diode cooling techniques and an innovative dust resistant design.

Short Throw
With a short throw lens, you can project an impressive 100” image from just over a metre away. This allows you to place the projector closer to the wall, reducing shadows so you can present with ease.

Full HD 1080p
1080p resolution gives you sharp and detailed images from HD content without downscaling or compression; perfect for watching Blu-ray movies, HD broadcasting and playing video games.

HDR and HLG compatible
Capable of receiving and displaying both HDR10 and Hybrid Log Gamma (HLG) HDR content. This Optoma projector allows you to see far more detail and texture. Objects look more solid and lifelike and the extra detail creates a greater sense of depth.

Amazing colours
Give powerful presentations and educational lessons with stunning colours. Optoma projectors provide reliable colour performance suitable for any content and environment. From accurate sRGB colours for lifelike images to vibrant punchy presentations. We have a display mode to specific meet your needs. Perfect for a range of graphic and video presentations.

Control
Featuring a wide range of options you can control and monitor the projector remotely.

RS232
Optoma projector’s come with an extensive set of RS232 commands making it simple and easy to manage using any control system.

AMX compatible
Dynamic discovery protocol is incorporated into the projector allowing for easy installation with AMX control systems.

Crestron RoomView
Using the compatible RoomView® software you can power on/off, monitor, manage and control up to 250 projectors at the same time from any computer

Extron IPLink compatible
Allows for easy installation with Extron control systems

360 projection*
With 360° projection,* images can be displayed in any orientation, giving you the freedom and versatility to install this projector in the desired location.

*For more information please refer to the user manual

Full 3D
Display true 3D content from almost any 3D source, including 3D Blu-ray players, 3D broadcasting and the latest generation games consoles.

24/7 operation
Optoma projectors have been designed to operate 24 hours a day in standard orientation. Perfect for applications where prolonged periods of use is required. Subject to 24 hour terms and conditions.

24/7 Operation - standard lamp warranty applies. Projector warranty is based on standard business usage hours. For optimum performance Optoma recommends that your projector is turned off or placed in standby mode for 30 minutes every 24 hours to prolonging the life of your lamp.

Auto power off
There may be instances when the projector is left running when not in use. To help save energy, the "auto power off" feature automatically turns off the projector after a set period of time if it is not being used

Integrated speaker
Complete your home entertainment experience with the convenience of a powerful built-in speaker for exceptional sound quality and an easy set up without the need for costly external speakers.

USB-Power
Use the USB-A port to power external devices (5V/1.5A)

Specification	Details
Display technology	DLP™
Resolution	WXGA (1280x800)
Brightness	3,600 lumens
Contrast ratio	300,000:1
Contrast ratio - dynamic	2,000,000:1
Native aspect ratio	16:10
Aspect ratio - compatible	4:3,16:9
Keystone correction - vertical	+/-40°
Displayable colours (millions)	1073.4
Horizontal scan rate	15 ~ 140Khz
Vertical scan rate	24 ~ 120Hz
Uniformity	75%
Screen size	0.76m ~ 7.62m (30" ~ 300") diagonal
Light source type	Laser
LASER life	30,000 hours
Throw ratio	0.521:1
Projection distance (m)	0.3m - 3.4m
Zoom type	Fixed
Focal length (mm)	7.51
Native offset	115%

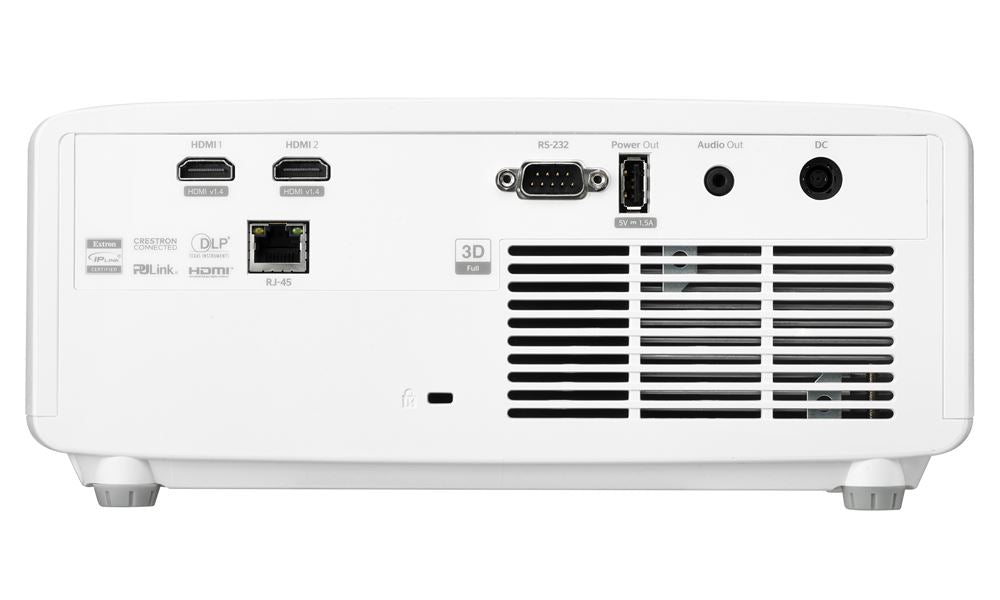

Connections	Inputs 2 x HDMI 1.4a 3D support
Outputs	1 x Audio 3.5mm, 1 x USB-A power 1.5A
Control	1 x RS232, 1 x RJ45
Noise level (typical)	32dB
Noise level (max)	34dB
PC compatibility	FHD, UXGA, SXGA, WXGA, HD, XGA, SVGA, VGA, Mac
2D compatibility	NTSC M/J, 3.58MHz, 4.43MHz PAL B/D/G/H/I/M/N, 4,43MHz SECAM B/D/G/K/K1/L, 4.25/4.4MHz 480i/p, 576i/p, 720p(50/60Hz), 1080i(50/60Hz), 1080p(50/60Hz)
3D compatibility	Yes (DLP 3D; PC frame sequential 120Hz 3D, Blu-ray DVD 3D) 720p50 / 60
3D	Full 3D
Security	Security bar, Kensington Lock, Password protected interface
IP rating	IP6X
OSD / display languages	25 languages: Arabic, Czech, Danish, Dutch, English, Farsi, Finnish, French, German, Greek, Hungarian, Indonesian, Italian, Japanese, Norwegian, Polish, Portuguese, Romanian, Russian, Chinese (simplified), Spanish, Swedish, Chinese (traditional), Turkish, Vietnamese
24/7 operation	Yes
360° operation	Yes
Operating conditions	0°C ~ 40°C, Max. Humidity 80%, Max. Altitude 2,500m

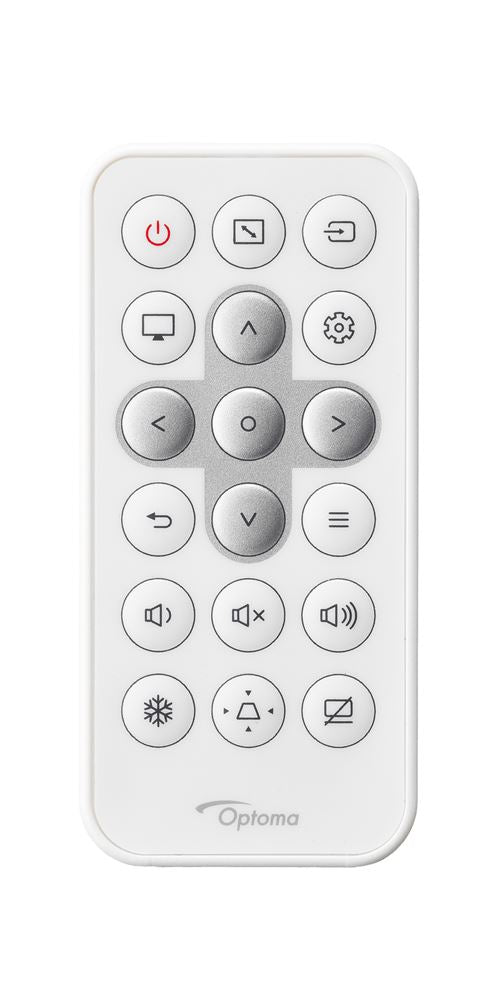

Remote control	Card style
Speaker count	1
Watts per speaker	15W
In the box	AC power cord, Remote control, 1x CR2025 battery, Basic user manual
Optional wireless models	UHDCast Pro
Power supply	External power supply, 100V ~ 240V, 50-60Hz
Power consumption (standby)	<0.5W
Power consumption (min)	98W
Power consumption (max)	139W
Dimensions (W x D x H) mm	274 x 216 x 114
Gross weight	4.2 kg
Net weight	3 kg
