P2.5 LED Screen - Indoor Direct View LED Screen

2.5m optimum viewing distance, 550 cd/m² brightness, receiving card/controller, mounting bracket and protective edge included, modular design, lightweight design and easy front maintenance.

• Description
• Specifications
• Warranty
• Downloads

• Elevate the Traditional Digital Signage Experience with Next-Generation Audience Engagement
  INDOOR DIRECT
  VIEW LED SOLUTIONS
  Available in P1.8 and P2.5 pixel pitches (other models available on request)


  Captivating Image Quality
  State-of-the-art SMD Direct View LED technology and an ultra-high 6,500:1 contrast ratio guarantee that these video walls deliver stunning image quality. Experience vivid colours, true black and crystal clarity across the seamless display. Plus, advanced video processing technology ensures colours are accurate and lifelike without any distortion.

  Complete Package Solution
  This all-in-one package contains everything needed to get your display up and running, including the LED modules and mounting bracket. For larger DV-LED video walls an aluminium screen edge can also be made to order at no additional cost, protecting the display and improving the overall aesthetic.

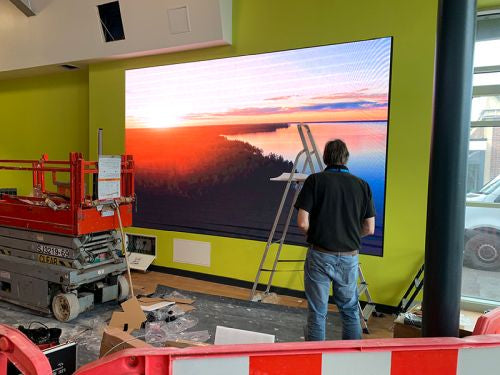

  Easy Installation and Maintenance
  Due to their lightweight design, magnetic modules, positioning pins and simple cabinet structure, these displays are incredibly easy to install. After installation, they can be serviced from the front of the display by quickly and efficiently removing the DV-LED modules for ultimate ease of maintenance.

  End-to-End Project Management
  As every Direct View LED project is unique, they each come with their own challenges. We are here to advise and support you every step of the way. From designing bespoke displays to ensuring hassle-free installation and even providing maintenance, we can deliver full end-to-end project management where required.

  Complete Quality Control
  From production through to installation, our video walls undergo multiple rounds of strict quality control to ensure long-lasting reliability. In addition, quality calibration guarantees consistent image quality across the whole display.

  Modular Video Walls
  Thanks to their modular design, these versatile displays are not constrained by standard aspect ratios. Stand out from the crowd by sculpting seamless large-scale video walls to fill spaces of any shape and size in any location. The unique cabinet size gives ultimate flexibility by ensuring a 16:9 aspect ratio is also possible.

  UK Stock Held
  Our fully-stocked UK warehouse means we can fulfil projects with a rapid turnaround time if required. From initial enquiry to finished installation, by holding extensive stock in the UK we can deliver results without long delays.





• Feature	Specification
  Pixel Pitch (mm)	2.5
  LED Type	SMD2121
  Module Resolution (px)	128x64
  Cabinet Resolution (px)	256x192
  Refresh rate	3840Hz
  Cabinet Current	≤0.45A
  Average Power Consumption (Per Cabinet)	33W
  Max Power Consumption (Per Cabinet)	95W
  Standby Power Consumption (Per Cabinet)	15W
  LED Brightness (Calibrated)	550 cd/m²
  Contrast Ratio	6,500:1
  Viewing angle	170°
  Processing	12 bit
  Frame Rate	60 FPS
  Maintenance	Front service
  Module Size (mm)	320x160x14.5
  Cabinet Size (mm)	640x480x54.3
  Net weight (Kg)	6.8
  Power	Input Voltage
  Environmental	Operating Temperature
  Operating Humidity	10% to 65%
  Lifetime	100,000 hours



• 3-year warranty.
  All standard product ranges come with a 3 year warranty starting from date of invoice. This excludes Electronic Shelf Label (ESL) products which come with a 2 year warranty. This also excludes all bespoke hardware which is manufactured under OEM.

  Any warranty extension needs to be completed at point of order and should be clearly noted on the sales invoice.

  Covers hardware failure but excludes accidental damage or user error.

  All screen sizes up to and including 55”, as well as media players, are covered by a swap-out warranty. There may be some situations (such as not having a particular model in stock) where an advanced replacement product cannot be supplied, in these cases a collection, repair and return service will be implemented. Screens larger than 55” and freestanding models (“L” and “OT” ranges only, excluding “LUHB”, “LHDS”, “TAO”, “AB” and “OAB” ranges) are covered by an on-site service.

  Free lifetime telephone and email technical support.

• Document	Downloads
  Spec Sheet	Download
  Installation Guide	Download
  Installation Guide	Download
  Resources	Download
