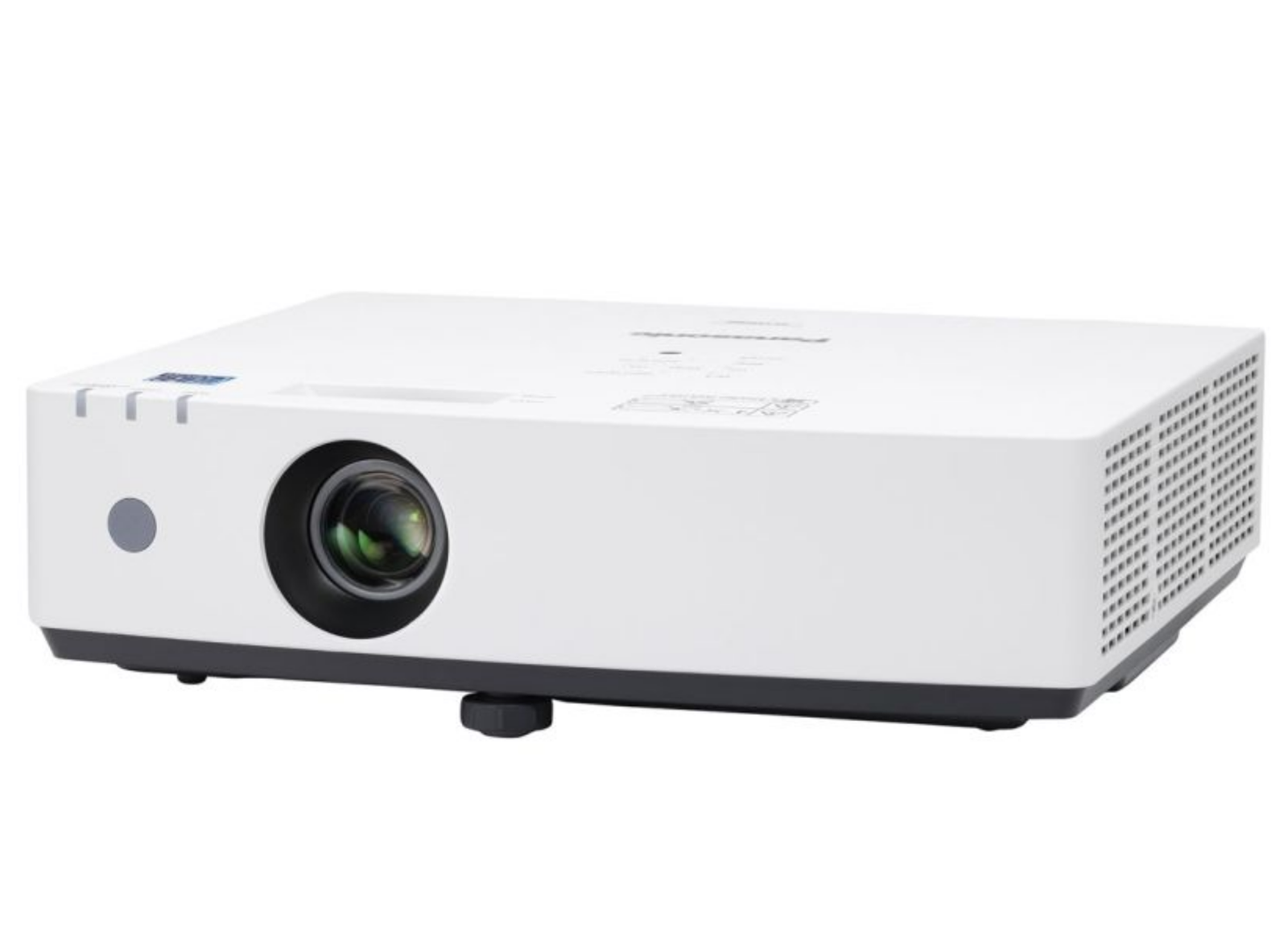

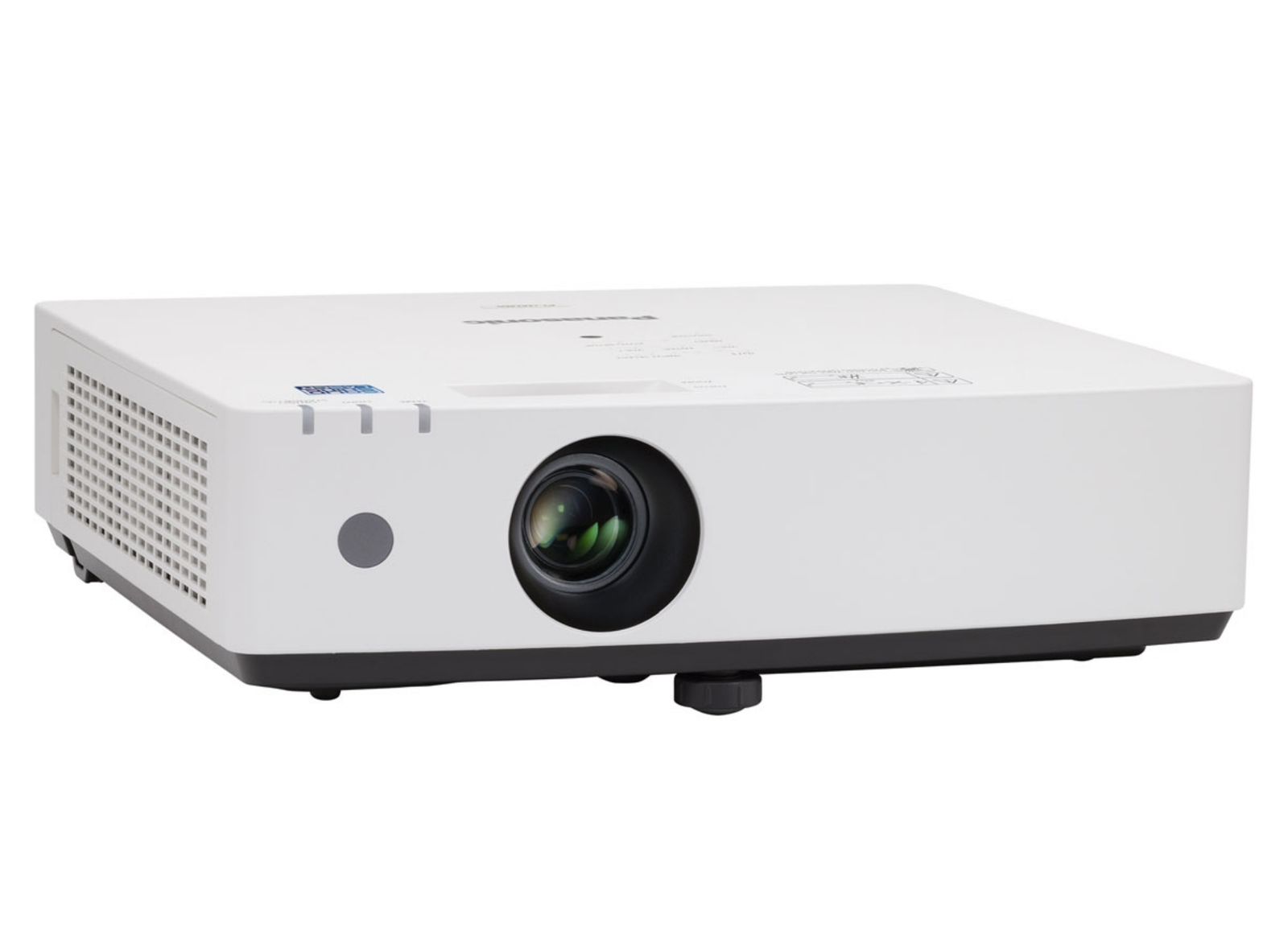

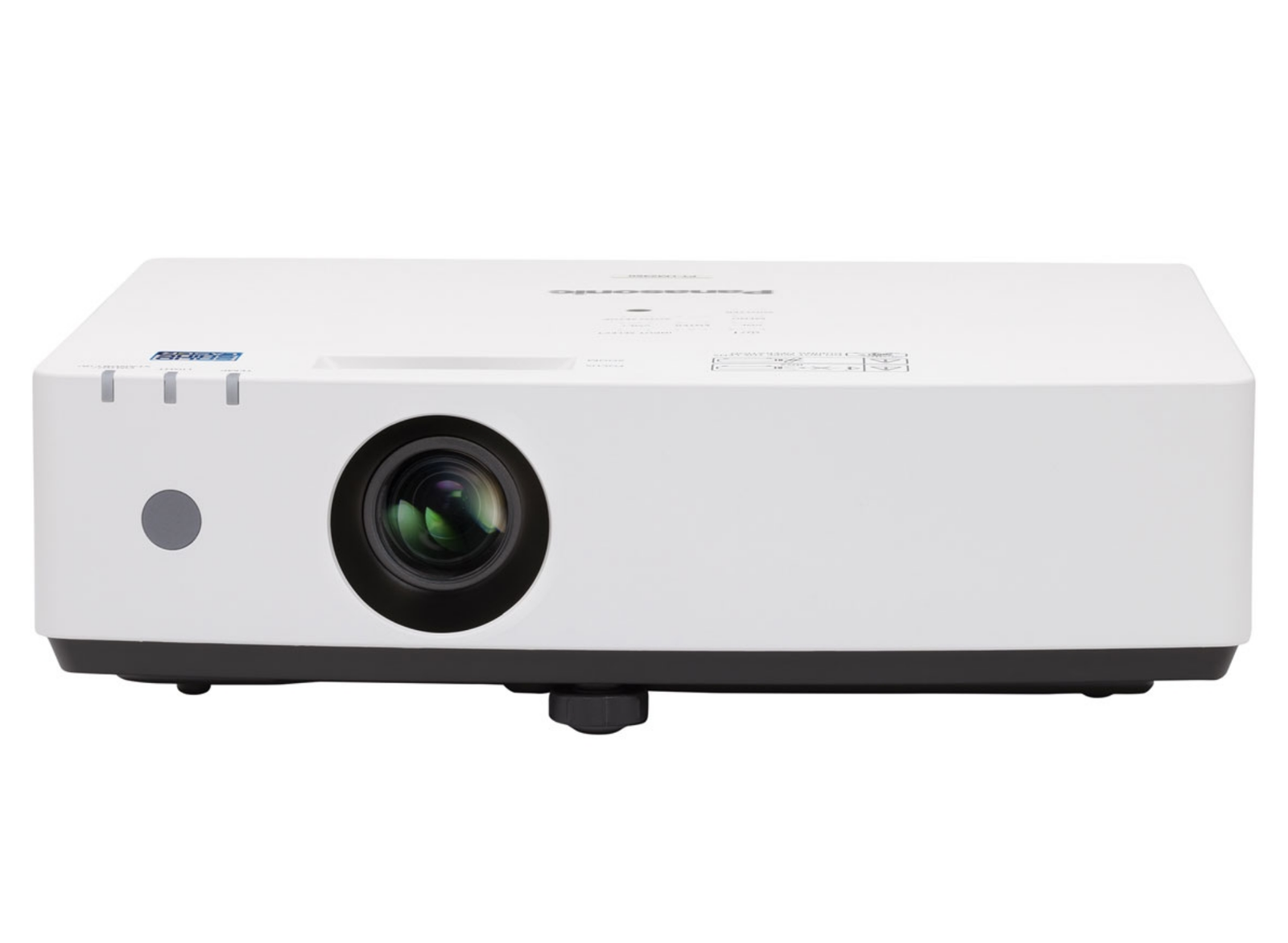

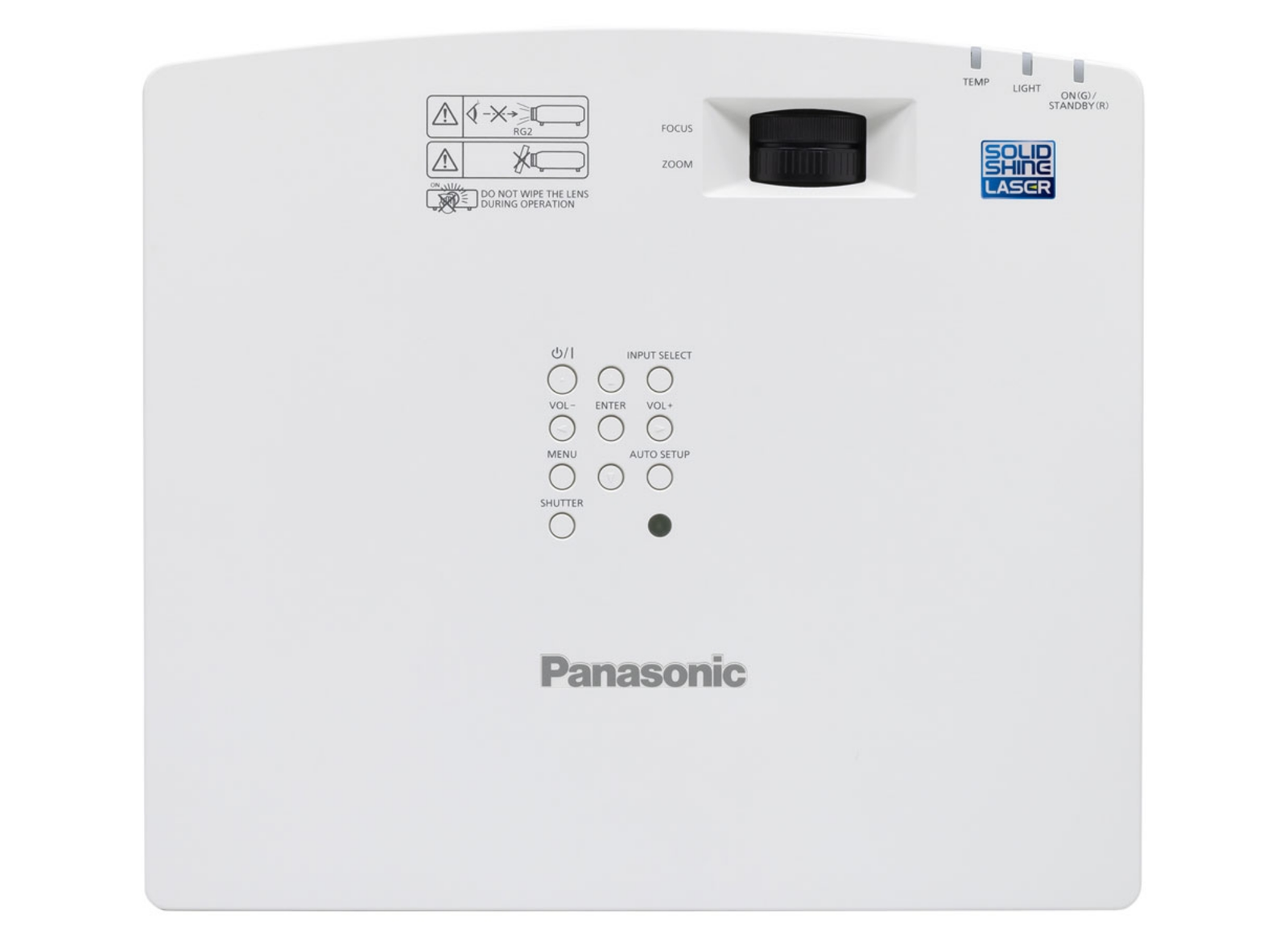

Panasonic PT-LMX420 Portable Laser Projector - 4000 Lumens

SKU: PT-LMX420

Product description

  • Description
  • Specifications
  • Downloads
  • Compact Design, Flexible Installation & Long-Life Laser Performance


    Take It Anywhere

    LMZ460 Series has width and depth not much larger than a laptop computer and weighs just 4.2 kg (9.26 lbs). It’s light enough to carry wherever you need to go, and is easy to install on the ceiling. Setup is simple: just set on a desktop, connect your source, switch on, and start presenting.


    Digital Zoom Extender Adds Digital Image Shift Function

    Digital Zoom Extender evolves with a new Digital Image Shift function. Digital Image Shift provides a convenient workaround when it’s not possible to install the projector at the center of the screen due to light fittings or air-conditioning vents on the ceiling, or in cases where the ceiling is too high. You can use the remote control to digitally shift the image 10% up or down and 10% left or right so it fits on your screen.

    Digital Zoom Extender function allows you to keep the same mount position as your old projector even if it’s too far from the screen, saving construction work. It extends throw-distance past the range of optical zoom so the image is projected at the desired size on your screen. Furthermore, LMZ460 Series uses the same mount and attachment bracket as the conventional lamp-based PT-LB426 Series, so if you’re updating, you can bolt the new projector straight in.



    Designed for Stress-free Life

    Excellent picture quality is just one benefit of laser projection. Both the light source and ECO Filter don’t need to be replaced until about 20,000 hours*. Comparable lamp projectors would need between one and four lamp changes plus filter maintenance if operated for the same amount of time. You also don’t need to worry about disposing of expired lamps, and the ECO Filter can be washed and reused, saving waste. It’s easy to see how laser projection reduces cost and maintenance hassle. And thanks to the light-source’s controlled brightness ramp and consistently uniform color reproduction, images stay clear and vivid for much longer.


    Dynamic Contrast Adds Depth and Realism

    Dynamic Contrast analyzes the video signal frame-by-frame and digitally adjusts light output according to the contrast requirements of each scene. It features scene-linking technology for greater realism when dark and light scenes frequently interchange. As well as accurate reproduction of images that contain a mix of dark and bright shades, Dynamic Contrast is more energy-efficient than other technologies. The high 3,000,000:1* contrast ratio delivers impressive detail definition in shadows and improves text legibility for more comfortable viewing.

  • Projector type LCD projectors Display method Transparent LCD panel (x3, R/G/B)
    Panel size 16.0 mm (0.63 in) Drive method Active matrix
    Pixels 786,432 (1024x768) Light source Laser diodes
    Light output 4,200 lm ANSI output 4,200 lm
    Lamp life Normal 20,000 h Lamp life Eco 24,000 h
    Lamp life Quiet 20,000 h Resolution XGA 1024x768
    Contrast ratio 3,000,000:1 Screen size 30-300 inch
    Uniformity 85% Lens 1.2x manual zoom
    Throw ratio 1.47-1.77:1 Keystone ±35° H/V

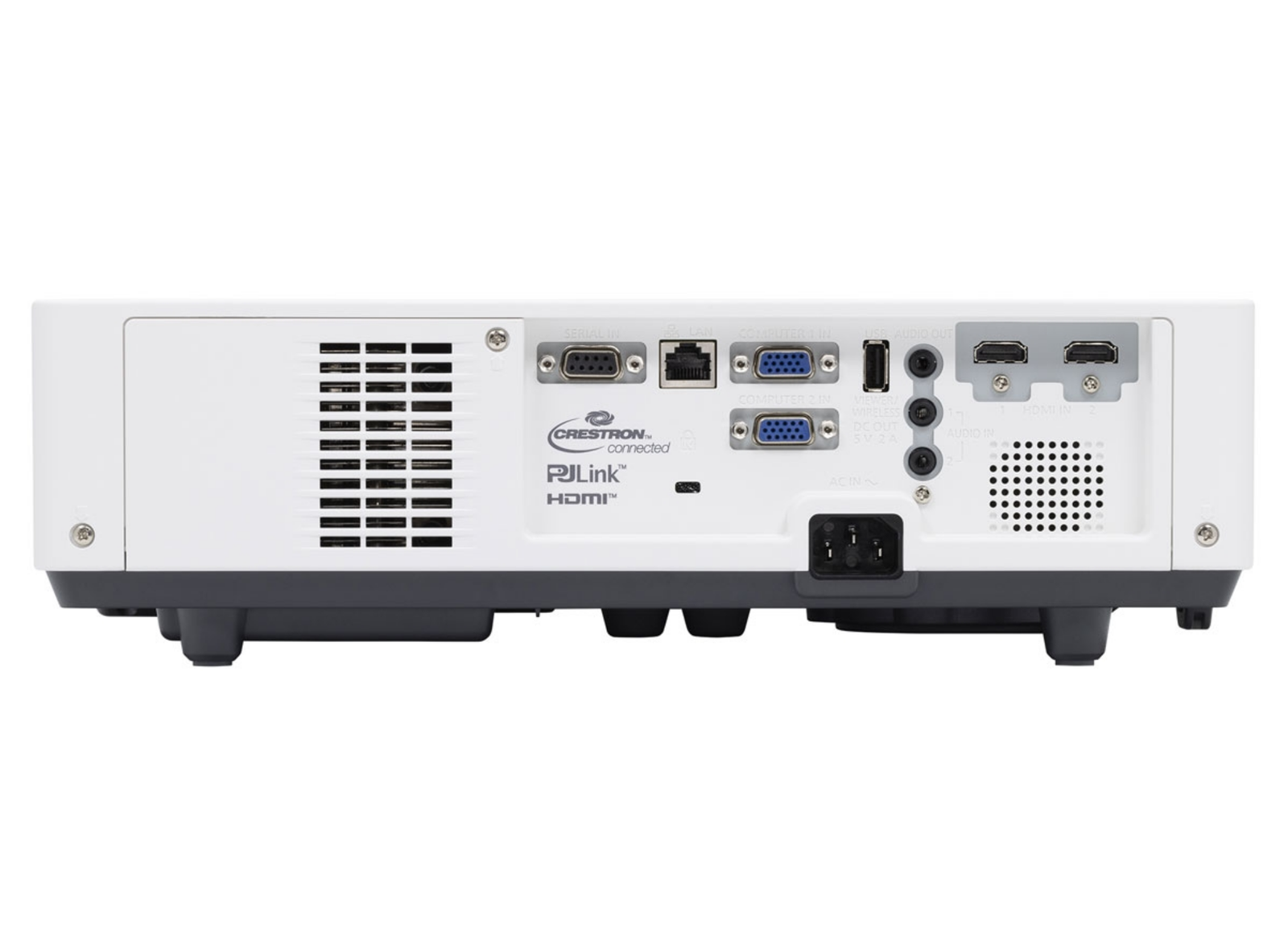

    Installation 360° flexible HDMI 2x HDMI
    LAN RJ-45 USB Type-A
    Power supply 100-240V Max power 230W
    Speaker 10W Noise 23-33 dB
    Dimensions 349x105x309 mm Weight 4.2 kg
    Temperature 0-45°C Humidity 20-80%
    Software Monitoring & Control Network control PJLink, Crestron
    Colour White EAN 5025232931620
  • Description Downloads
    Datasheet Download
