Peerless 46" - 65" Signage Display Wall Mount Bracket | DS-VW765-LQR
SKU: DS-VW765-LQR
£271.32 (Excl. VAT)
- Warranty5 Year Warranty
- Mount ConfigurationMax 1 Screen
- Max Load (kg)50 kg per screen
- Mounting TypeWall Mounts
- Screen Sizes43" – 65"
- VESA Patterns600x400
- Description
- Specifications
- Warranty
-

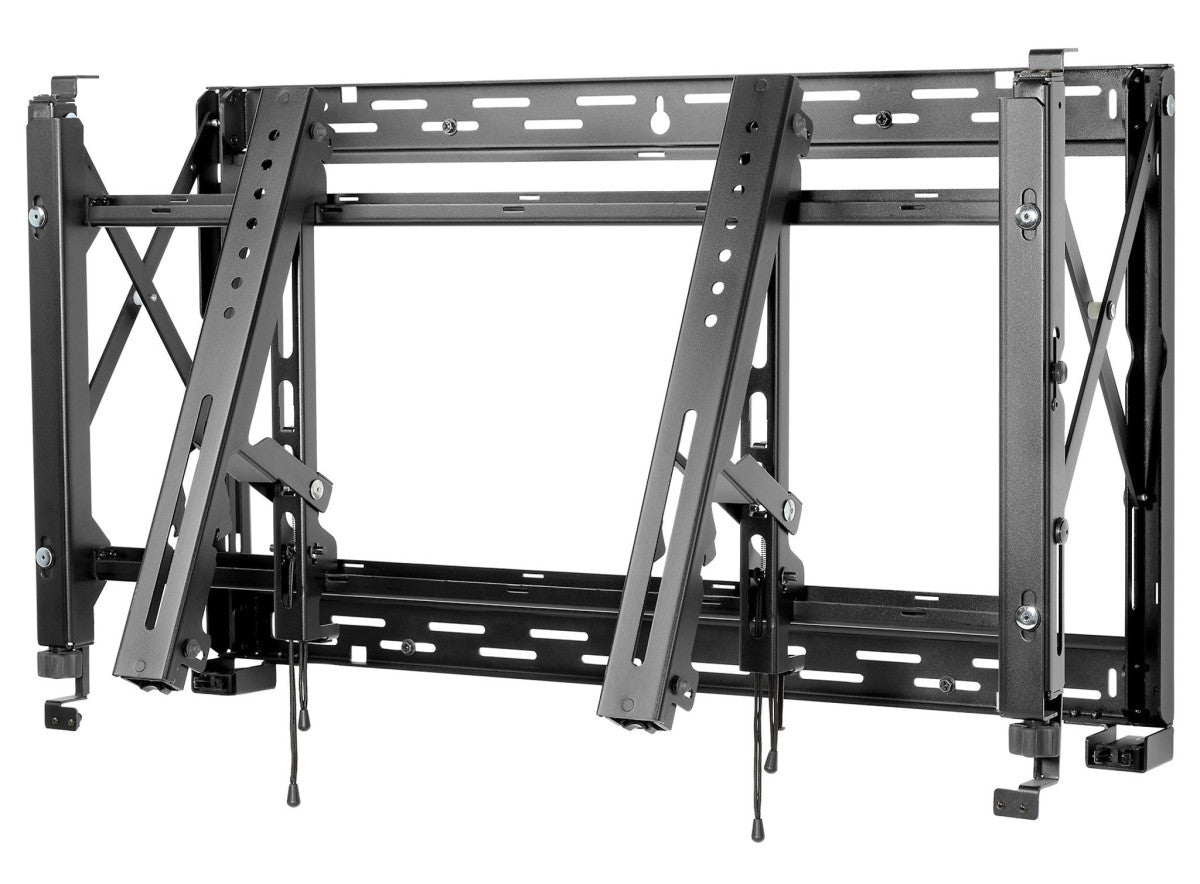

Peerless 46"- 65" Signage Display Wall Mount Bracket | DS-VW765-LQR
Video walls should be easy to configure, quick to install, and a snap to maintain. The DS-VW765-LQR Full-Service Video Wall Mount with a Quick Release from Peerless-AV is designed for quick service access in recessed video wall applications. It provides versatility demanded by installers. With the quick-release functionality, users have the ability to articulate the display from the wall by gently pressing on the front of the display. The DS-VW765-LQR has a no-tool-required micro-adjustment feature and provides easy-access to any display, creating the ideal video wall. The custom wall plate spacers eliminate guesswork and on-site installation calculations and measurements, reducing installation time and cost. This innovative design, combined with a ready-to-install mount, makes this the fastest video wall installation. Loaded with time saving features, this Full-Service Video Mount is the ultimate video wall mounting solution.
Compatible up to VESA 600 x 400mm
Integrated cable management allow cables to move in and out with the display
Modular mount for unlimited video wall display configurations
Security hardware option deters tapering and theft
1.5" of fine tune adjustment on each of the X, Y and Z axis
Easy hang wall plate is compatible with the Peerless-AV install app for a simplified install
Gentle, press-to-release quick release mechanism provides convenient display access -
Product Specifications Minimum to Maximum Screen Size 46" to 65" Mounting Pattern 200 x 200 up to 700 x 400mm Weight Capacity 125lb (56.8kg) Color Black Finish Textured Product Dimensions 35.59" x 21.37" x 3.08"-3.83" (904 x 543 x 78-97mm) Product Weight 32.6lb (14.8kg) Package Specifications Shipping Weight 39lb (17.6kg) Ship Dimensions 23.375 x 4.25 x 37.125" (593.7 x 108.0 x 943.0mm) UPC Code 735029300847 - Peerless Industries, Inc. (“Peerless-AV®”) warrants to the original purchaser of Peerless-AV products that Peerless-AV products will be free from defects in material and workmanship, under normal use, for the applicable warranty periods set forth in the table below, from the date of purchase by the original purchaser. At its option, Peerless-AV will repair or replace with new or refurbished products or parts, or refund the purchase price of, any Peerless-AV product which fails to conform with this warranty.
Any implied warranty of merchantability or fitness for a particular purpose shall be limited to the period of the express warranty set forth below.
In no event shall Peerless-AV be liable for incidental or consequential damages, whether or not secured by a security device which may be included with the product.
Some jurisdictions do not allow limitations on how long an implied warranty lasts, or the exclusion of incidental or consequential damages, so the above limitation and/or the above exclusion may not apply to you.
This warranty does not cover damage caused by (a) service or repairs by the customer or a person who is not authorized for such service or repairs by Peerless-AV, (b) the failure to utilize proper packing when returning the product, (c) incorrect selection, installation or the failure to follow Peerless-AV’s instructions or warnings when installing, using or storing the product, or (d) misuse or accident, in transit or otherwise, including in cases of third-party actions and force majeure. This warranty also does not cover corrosion or rust resulting from damaged, scratched or chipped paint or other surfaces.
This warranty is in lieu of all other warranties, express or implied, and is the sole remedy with respect to product defects. No dealer, distributor, installer or other person is authorized to modify or extend this Limited Warranty or impose any obligation on Peerless-AV in connection with the sale of any Peerless-AV product.
This warranty gives specific legal rights, and you may also have other rights which vary from jurisdiction to jurisdiction. To make a warranty claim, contact Peerless-AV customer care at +44(0)1923 200100 or sales@peerless-av.eu.com. All warranty returns require proof of purchase from an Authorized Peerless-AV reseller.
Product Warranty Period DesignerSeries™, Paramount™, SmartMount® Branded Indoor Wall Mounts (Flat, Tilt, and Full Motion Models) Lifetime All Other Indoor Mounts 5 years Outdoor Mounts 5 years Carts and Stands 5 years Projector Mounts 5 years Kiosk Enclosures 5 years Xtreme™ Displays, UltraView™ TVs 2 years Interactive Products 2 years Cables 25 years Screen Cleaners 1 year Electronic Products and Components 1 year
