Enter your screen SKU and we will instantly check whether this mount is suitable for your display based on VESA pattern compatibility.

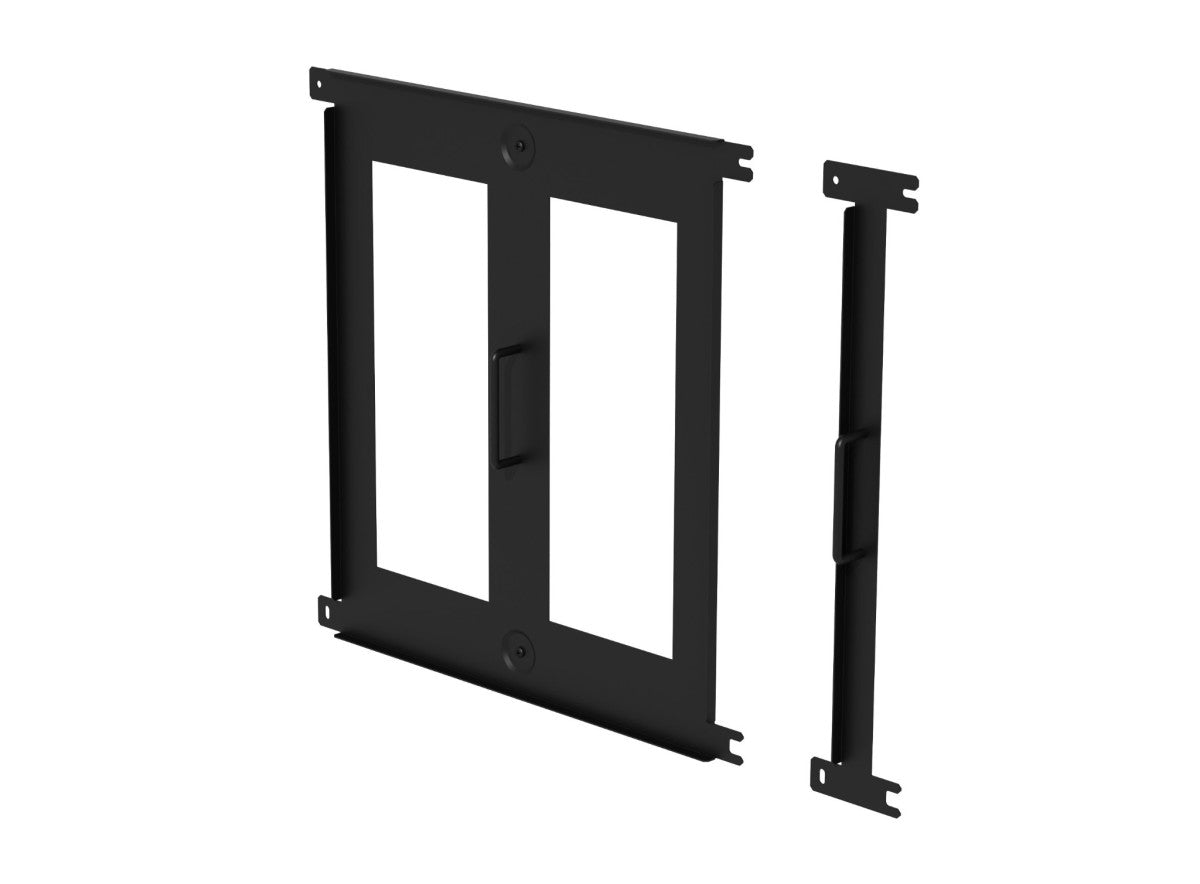

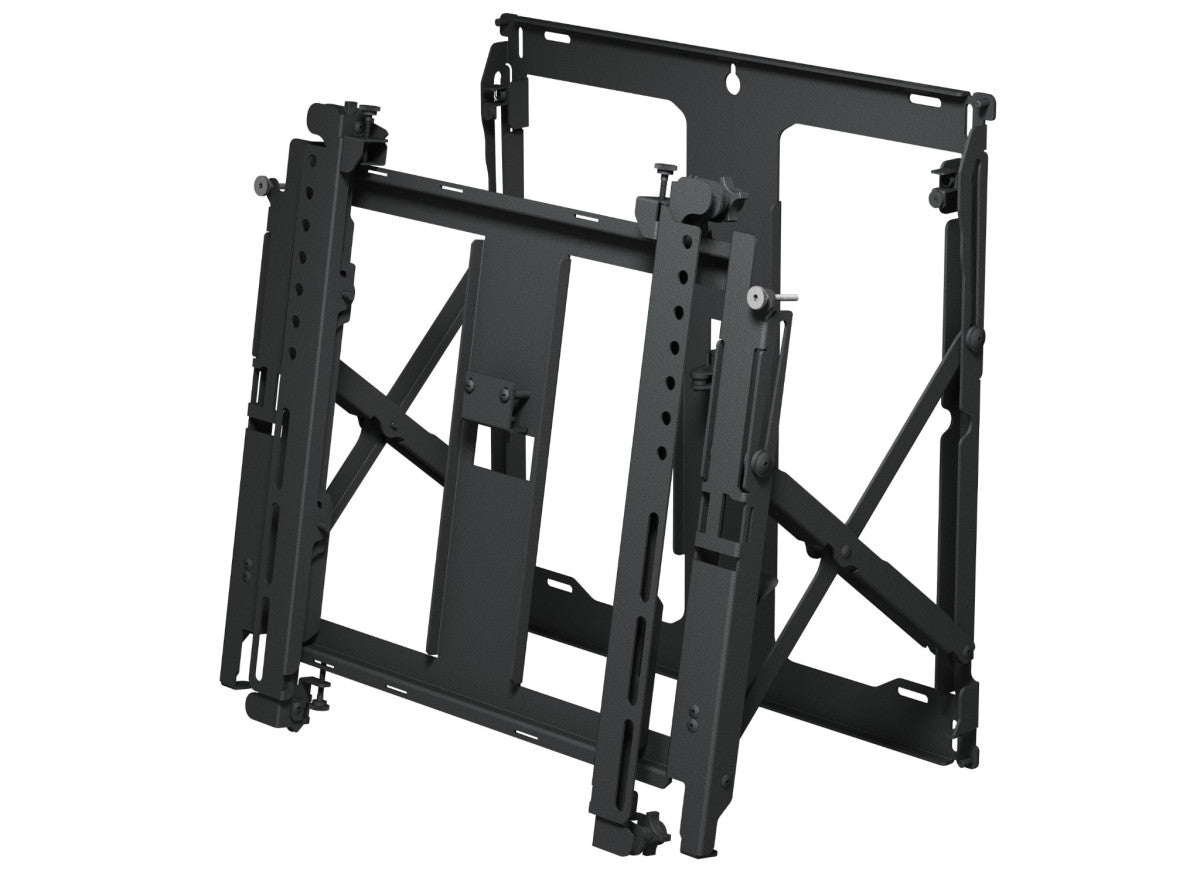

Peerless 46" - 65" TV Wall Mount Bracket | DS-VW755S
The DS-VW755S Slim Full Service Video Wall Mount with quick release offers an easy to install solution for landscape and portrait applications. When overall video wall depth is a concern, the DS-VW755S provides ADA compliance when mounting displays measuring 2" deep or less. Designed for quick service access in recessed video wall applications, the DS-VW755S provides versatility demanded by today’s integrator. Tool-less micro adjustment at eight points allows the mount to overcome uneven walls, creating a seamless video wall display. Easy display access and quick serviceability make this mount the ultimate video wall mounting solution.
Integrated cable management tie-backs make display-to-display cabling simple
VESA® 200 × 200 up to 400 × 400mm compliant
Modular mount for unlimited video wall display configurations
Reusable custom wall plate spacers eliminate the guesswork and on-site installation calculations
Quick release pop out mechanism provides convenient display access in recessed applications
Quick release can be eliminated with a locking screw to prevent unintentional pop-outs
Display extends into a negative tilt position for ease of service
Tool-less micro-adjustments at 8 points allows the mount to overcome uneven walls to create a seamless video wall display
Accommodates displays in landscape and portrait orientation
Offers ADA compliance when mounting displays measuring 2.0" deep
| Product Specifications | |
|---|---|
| Minimum to Maximum Screen Size | 46" to 65" |
| VESA Pattern | 400 X 650 |
| Mounting Pattern | 400 x 400mm (15.748" x 15.748") |
| Weight Capacity | 80lb (36.4kg) |
| Color | Black |
| Finish | Textured |
| Security Features | Security Hardware |
| Distance from Wall | 1.88 - 2.63" (48 - 67mm) |
| Product Dimensions | 21.44" x 20.50" x 1.88"-2.63" (545 x 521 x 48 - 67mm) |
| Product Weight | 20.9lb (9.5kg) |
| Package Specifications | |
|---|---|
| Shipping Weight | 24lb (11.5kg) |
| Ship Dimensions | 21.5 x 2.5 x 30" (546.1 x 63.5 x 762.0mm) |
| UPC Code | 735029302438 |
Any implied warranty of merchantability or fitness for a particular purpose shall be limited to the period of the express warranty set forth below.
In no event shall Peerless-AV be liable for incidental or consequential damages, whether or not secured by a security device which may be included with the product.
Some jurisdictions do not allow limitations on how long an implied warranty lasts, or the exclusion of incidental or consequential damages, so the above limitation and/or the above exclusion may not apply to you.
This warranty does not cover damage caused by (a) service or repairs by the customer or a person who is not authorized for such service or repairs by Peerless-AV, (b) the failure to utilize proper packing when returning the product, (c) incorrect selection, installation or the failure to follow Peerless-AV’s instructions or warnings when installing, using or storing the product, or (d) misuse or accident, in transit or otherwise, including in cases of third-party actions and force majeure. This warranty also does not cover corrosion or rust resulting from damaged, scratched or chipped paint or other surfaces.
This warranty is in lieu of all other warranties, express or implied, and is the sole remedy with respect to product defects. No dealer, distributor, installer or other person is authorized to modify or extend this Limited Warranty or impose any obligation on Peerless-AV in connection with the sale of any Peerless-AV product.
This warranty gives specific legal rights, and you may also have other rights which vary from jurisdiction to jurisdiction. To make a warranty claim, contact Peerless-AV customer care at +44(0)1923 200100 or sales@peerless-av.eu.com. All warranty returns require proof of purchase from an Authorized Peerless-AV reseller.
| Product | Warranty Period |
| DesignerSeries™, Paramount™, SmartMount® Branded Indoor Wall Mounts (Flat, Tilt, and Full Motion Models) | Lifetime |
| All Other Indoor Mounts | 5 years |
| Outdoor Mounts | 5 years |
| Carts and Stands | 5 years |
| Projector Mounts | 5 years |
| Kiosk Enclosures | 5 years |
| Xtreme™ Displays, UltraView™ TVs | 2 years |
| Interactive Products | 2 years |
| Cables | 25 years |
| Screen Cleaners | 1 year |
| Electronic Products and Components | 1 year |
