Enter your screen SKU and we will instantly check whether this mount is suitable for your display based on VESA pattern compatibility.

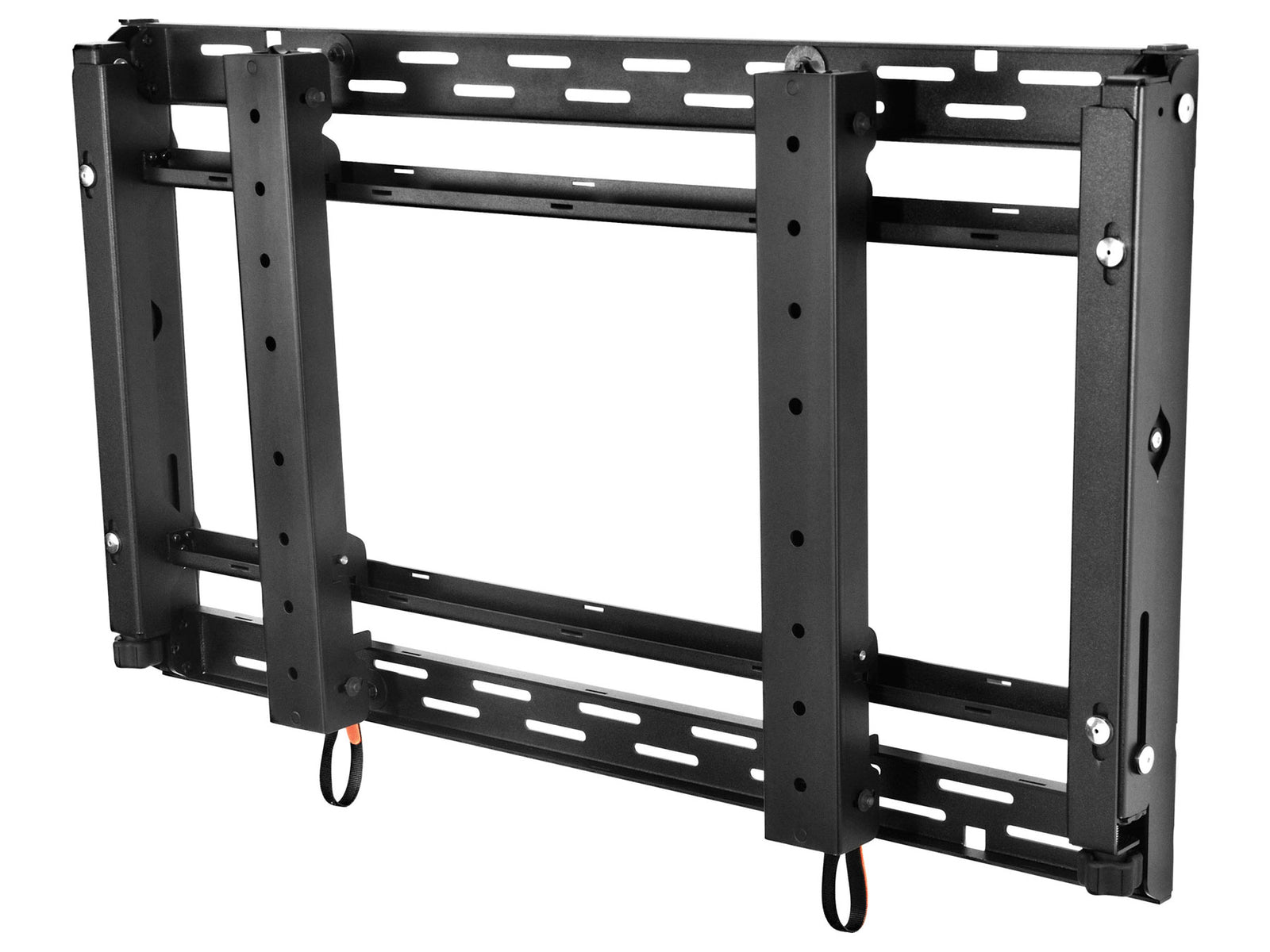

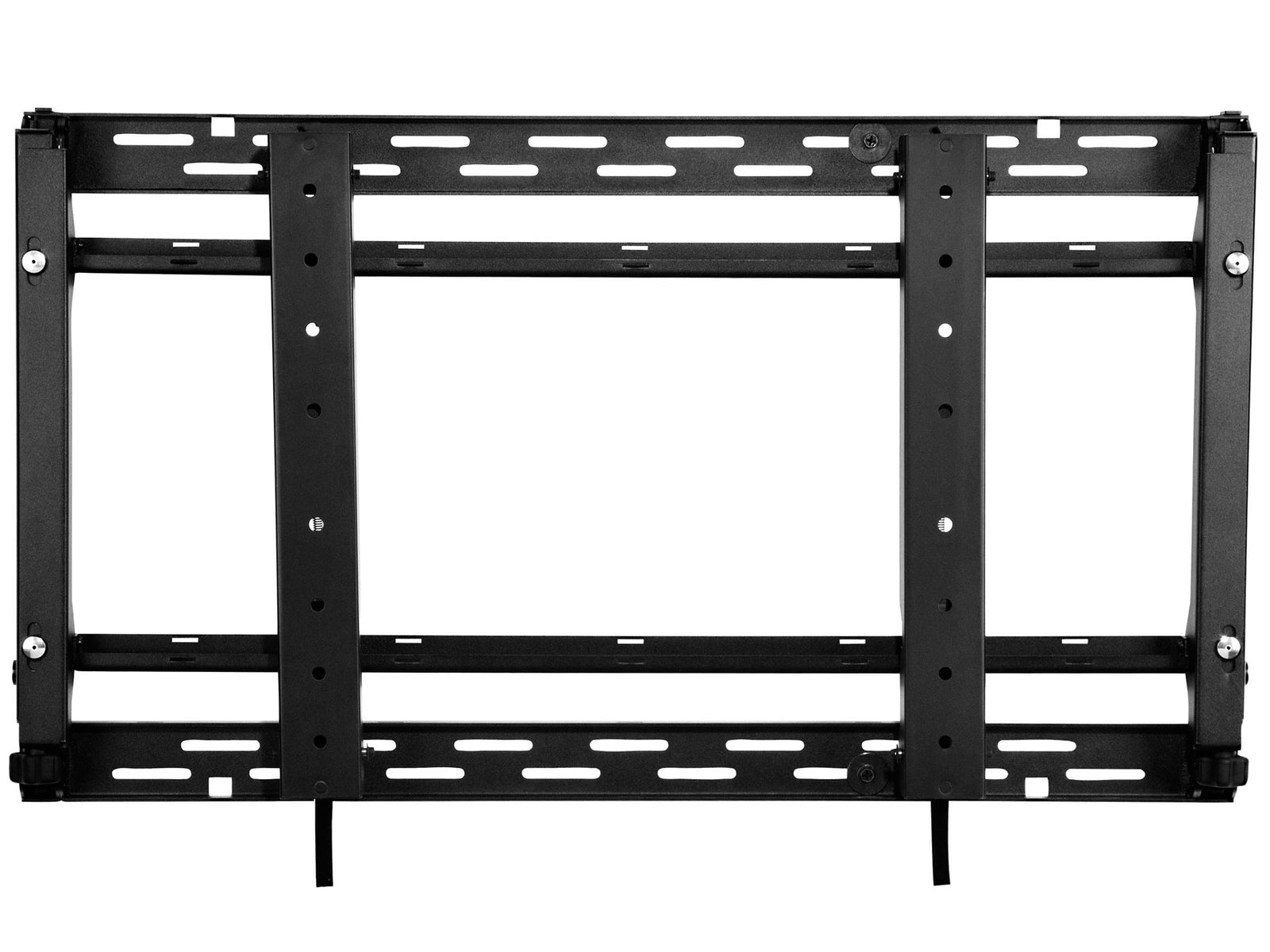

Video walls should be easy to configure, quick to install, and a snap to maintain. No, it’s not a dream, it’s the DS-VW765-LAND Full-Service Video Wall Mount from Peerless-AV. Create any configuration imaginable, but leave the tedious calculations to the custom wall plate spacers. Just install the first mount. Then use the custom wall plate spacers to perfectly place each additional mount on the wall. No measuring, no guessing, no mistakes. It couldn’t be simpler. The innovative design combined with a mount that is ready-to-install right out of the box makes this the fastest installing video wall system ever. Now in a design that is 2% lighter than previous models and loaded with time saving features like no-tool-required micro-adjustments and easy-access to any display for quick serviceability it’s the ultimate video wall mounting solution.
Features
Adjustable VESA mounting hole patterns in 100mm increments, starting at 200 x 200mm up to
700 x 400mm, additional patterns supported with adaptor plates
Modular mount for unlimited video wall display configurations
Displays and mounts sit flush against the wall for a clean side appearance
Integrated cable management tie-backs make display-to-display cabling simple
Included security hardware prevents the mount from extending out from the wall

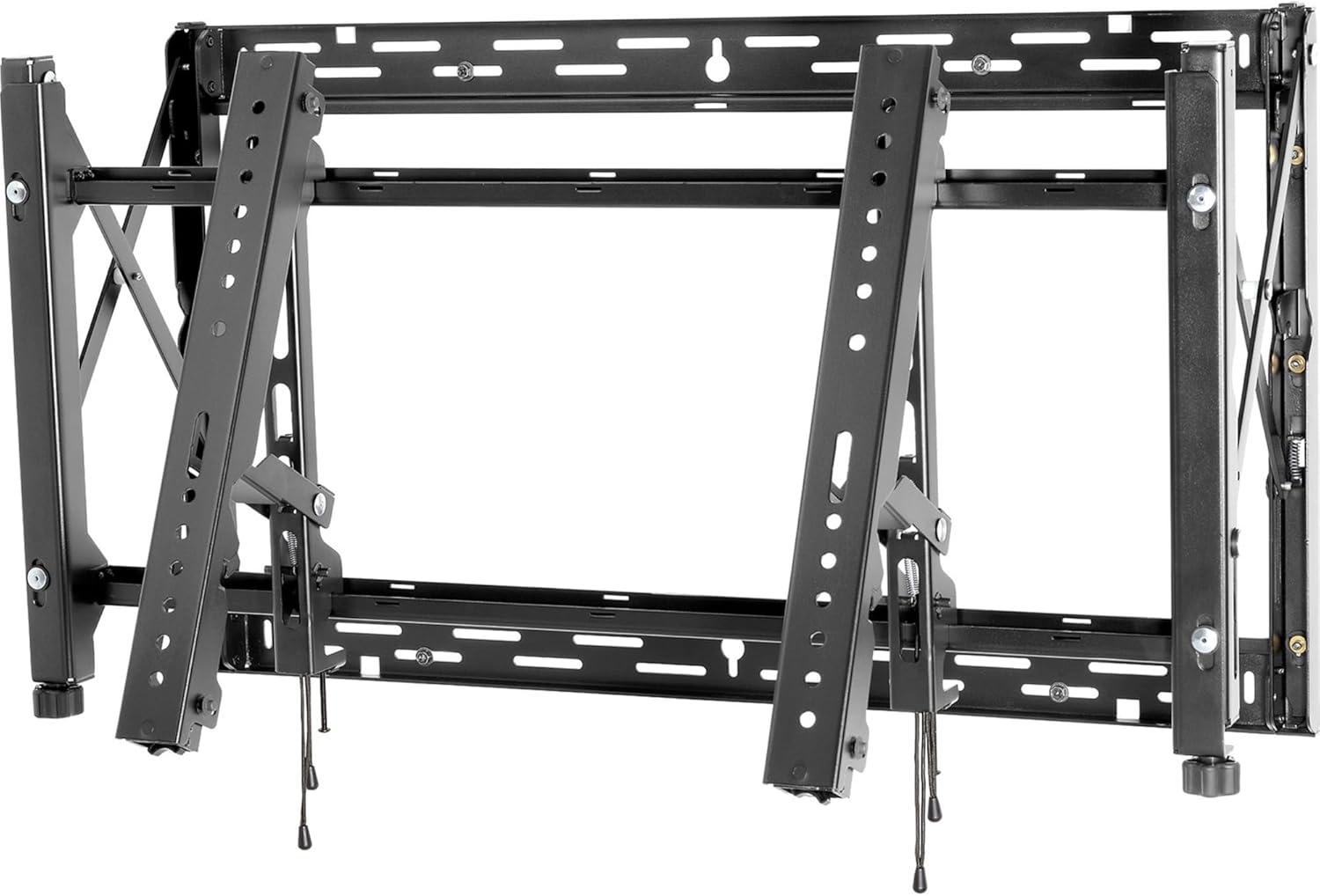

Pull-out/prop-open mechanism provides quick service access
Open wall plate architecture allows for total wall access, increasing electrical and cable management options

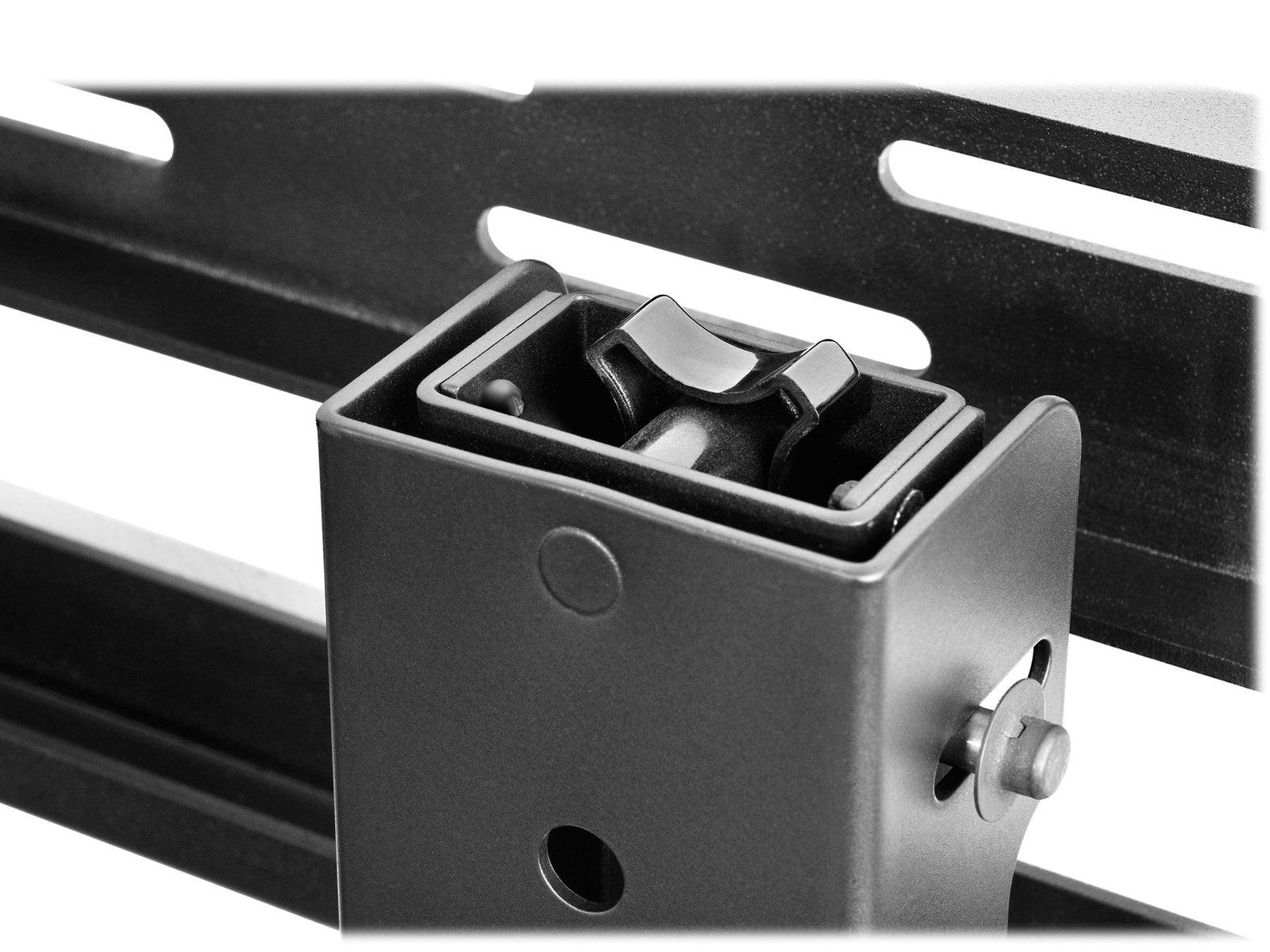

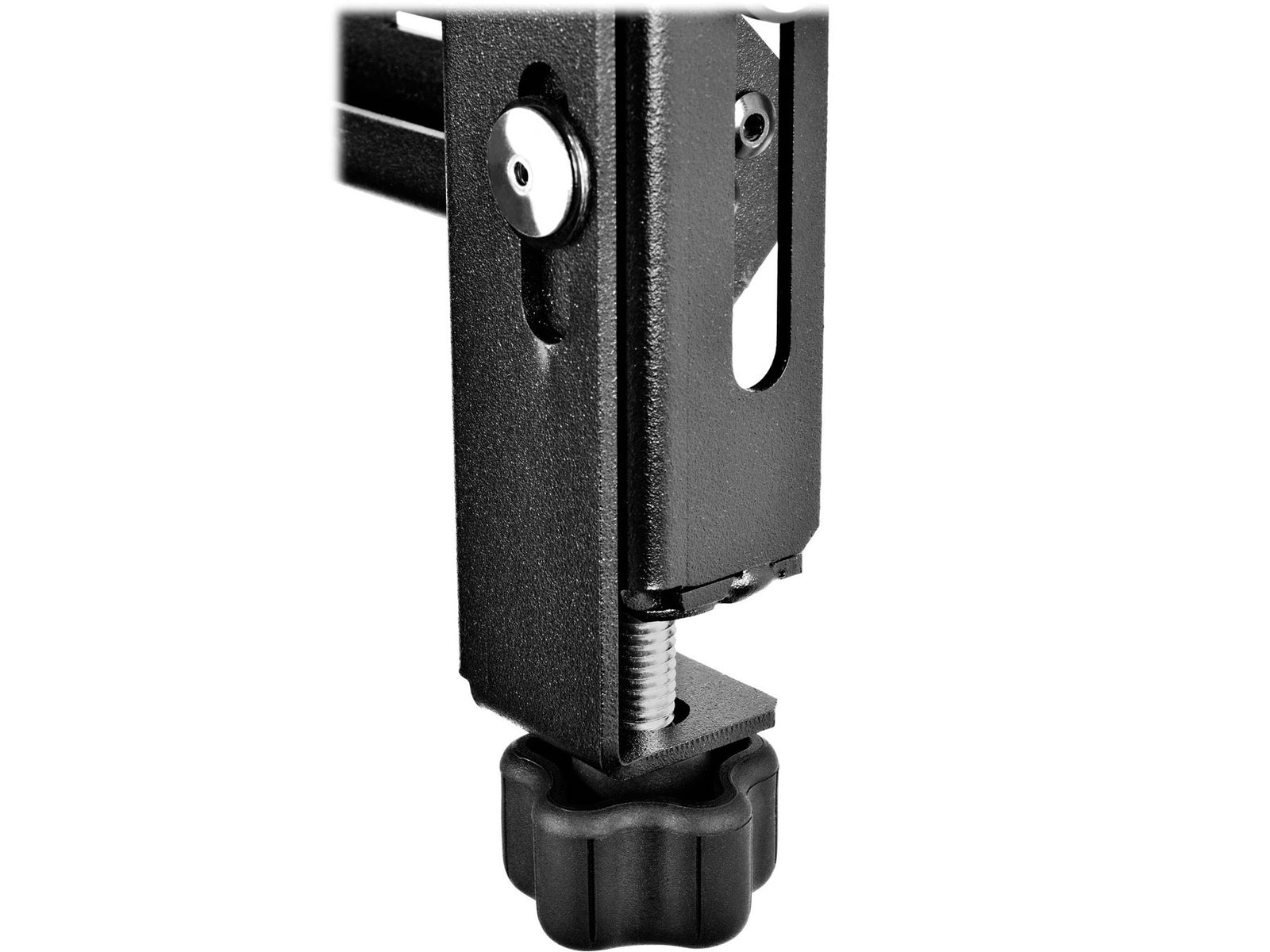

Simple, tool-less micro-adjustments at 8 points seamlessly align the displays
Reusable custom wall spacers eliminate guesswork and on-site install calculations
| Specification | Details |
|---|---|
| Minimum to Maximum Screen Size | 40" to 65" |
| VESA Pattern | 200 x 200 up to 700 x 400 |
| Weight Capacity | 125 lb (56.8 kg) |
| Color | Black |
| Finish | Powder Coat |
| Security Features | Security Hardware |
| Distance from Wall | 3.08 - 3.83" (78 - 97 mm) |
| Product Dimensions | 35.00 x 20 x 3.08 - 3.83" (890 x 508 x 78 - 97 mm) |
| Shipping Weight | 40 lb (18 kg) |
| Ship Dimensions | 22.25 x 4.25 x 37.13" (565.2 x 108.0 x 943.1 mm) |
| UPC Code | 735029278771 |
| Description | Downloads |
|---|---|
| Peerless SmartMount Full-Service Video Wall Mount- Landscape For 40" to 65" Displays | DS-VW765-LAND Instruction Manual | Downloads |
