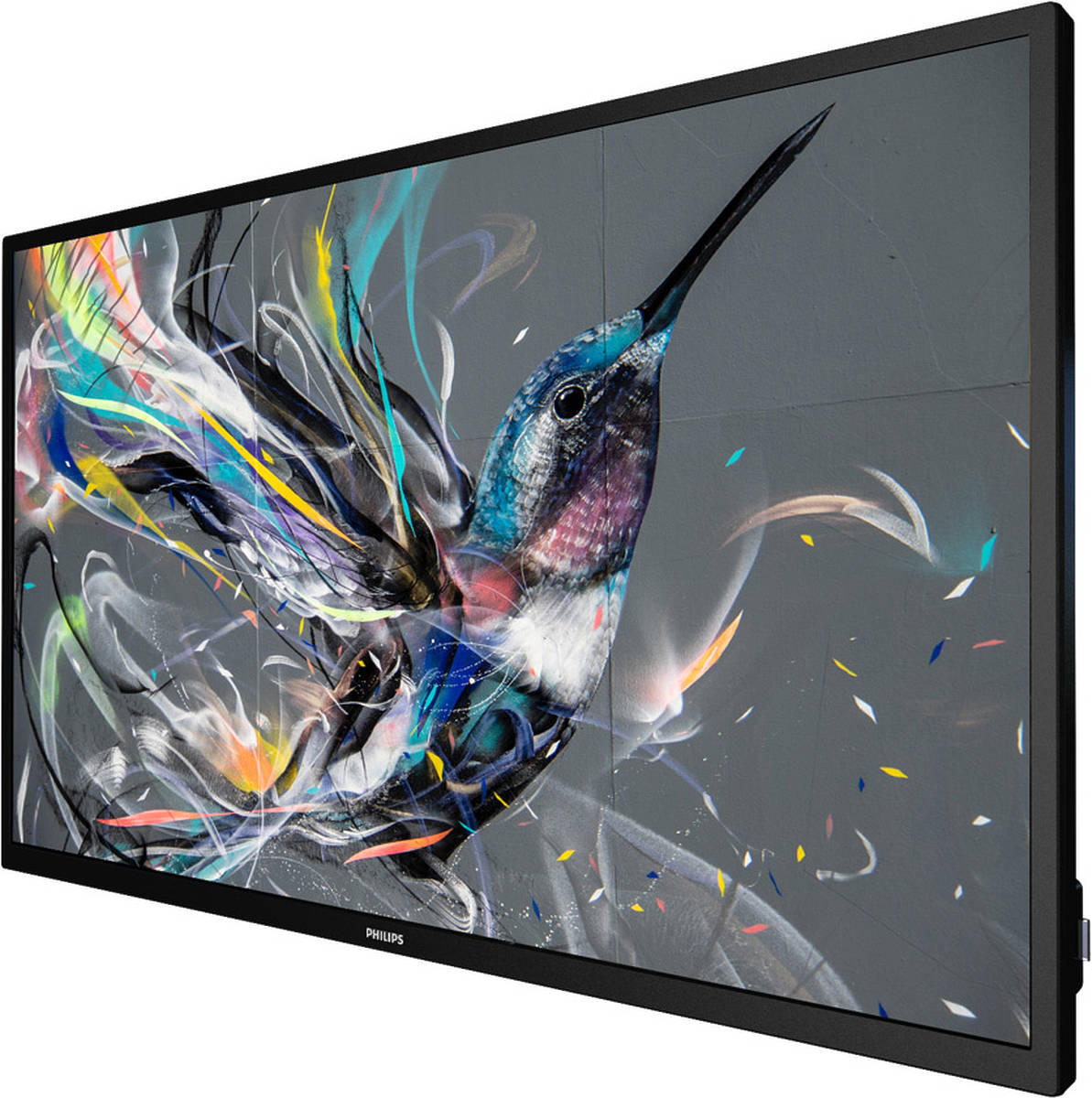

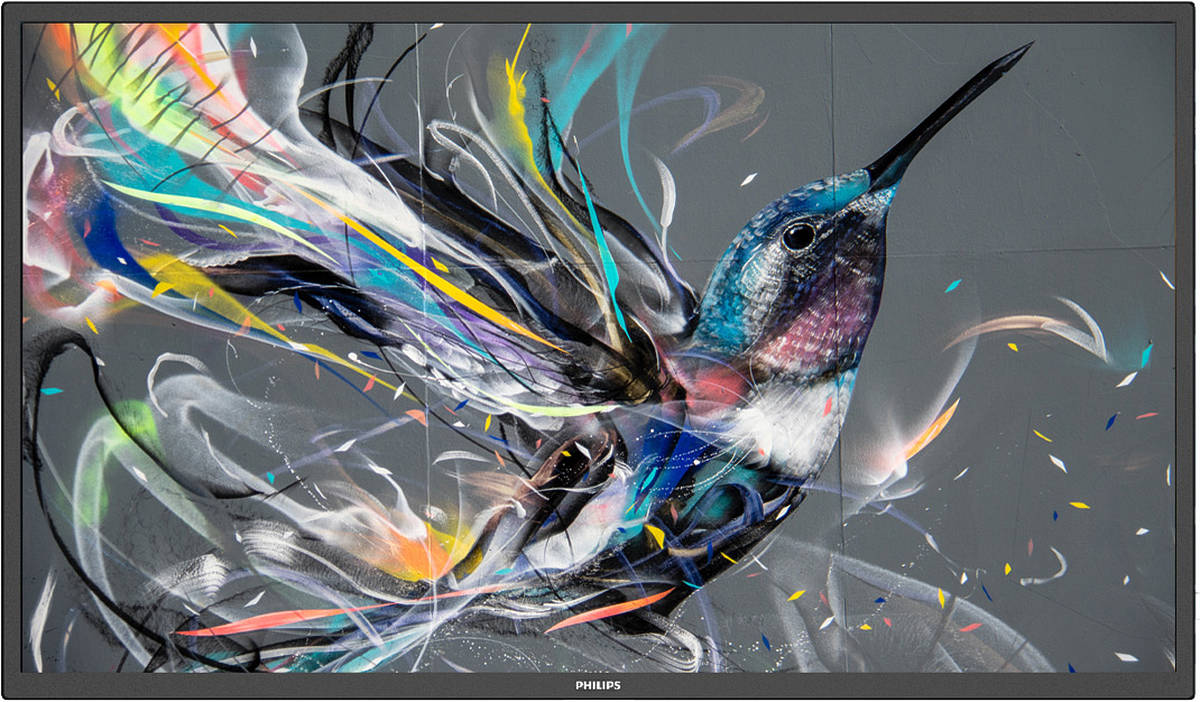

Philips 32BDL3510Q/00

32" Q-Line Digital Signage Display

• Description
• Specifications
• Warranty
• Downloads

• Intensify your signage experience
  Inform and enthral with a Philips Q-Line Professional Full HD Display. This reliable solution can be up and running as quickly as you need.


  Easy-setup 18/7 display.


  Operate, monitor and maintain with CMND and Control
  Run your display network over a local (LAN) connection. CMND and Control allows you to perform vital functions like controlling inputs and monitoring display status. Whether you're in charge of one screen or 100.

  FailOver ensures that content is always playing
  From waiting room to meeting room, never show a blank screen. FailOver lets your Philips Professional Display switch automatically between primary and secondary inputs, ensuring that content keeps playing even if the primary source goes down. Simply set a list of alternative inputs to be sure your business is always on.

  Schedule what you want, when you want with SmartPlayer
  Turn your USB into a true cost-effective digital signage device. Simply save your content (video, audio, pictures) on your USB and plug into your display. Create your playlist and schedule your content via the on-screen menu, and enjoy your own playlists anytime, anywhere.

  Integrated media player. Easily schedule USB content
  Easily schedule content to play from USB. Your Philips Professional Display will wake from standby to play the content you want, and then return to standby once playback has finished.



• Picture/Display
  Diagonal screen size (metric)	80 cm
  Diagonal screen size (inch)	31.5 inch
  Panel resolution	1920 x 1080p
  Optimum resolution	1920 x 1080 @ 60 Hz
  Brightness	350 cd/m²
  Contrast ratio (typical)	4000:1
  Dynamic contrast ratio	500,000:1
  Response time (typical)	6.5 ms
  Aspect ratio	16:9
  Viewing angle (horizontal)	178 degrees
  Viewing angle (vertical)	178 degrees
  Pixel pitch	0.36375 x 0.36375 mm
  Display colours	16.7 Million
  Panel technology	VA
  Picture enhancement	3/2 - 2/2 motion pull down
  	3D Combfilter
  	3D MA deinterlacing
  	Dynamic contrast enhancement
  	Motion compens. deinterlacing
  	Progressive scan
  Clinical image	D-Image preset (dicom part 14 compatible)
  Supported Display Resolution
  Computer formats	Video formats
  1920 x 1080, 60 Hz	720p, 60 Hz
  1680 x 1050, 60 Hz	576p, 50 Hz
  1600 x 1200, 60 Hz	576i, 50 Hz
  1440 x 900, 60 Hz	480p, 60 Hz
  1280 x 1024, 60 Hz	480i, 60 Hz
  1280 x 800, 60 Hz	1080i, 50, 60 Hz
  1280 x 720, 60 Hz	1080p, 50, 60 Hz
  1152 x 870, 75 Hz
  1024 x 768, 60, 70, 75 Hz
  800 x 600, 56, 60, 72, 75 Hz
  720 x 400, 70 Hz
  640 x 480, 60, 67, 72, 75 Hz
  1152 x 864, 75 Hz
  832 x 624, 75 Hz
  Connectivity
  Video input	Audio input
  DVI-I (x 1)	3.5 mm jack
  HDMI 2.0 (x 2)
  USB 2.0 (x 2)	Audio output
  	3.5 mm jack
  External control
  RJ45	Convenience
  RS232C (in/out) 2.5 mm jack	Energy-saving functions
  IR (in/out) 3.5 mm jack	Smart Power
  	Tiled Matrix
  	Up to 15 x 15
  Start-up	Switch on delay
  Switch on status	Switch on source
  Boot on source	Start-up window
  enable/disable Philips logo	Keyboard control
  Lockable	Lockable
  Hidden	Network controllable
  RS232	RS232
  RJ45	Signal loop through
  RS232	IR Loop through
  Placement	Landscape
  	Portrait
  Remote control signal	Lockable
  Dimensions
  Bezel width	11.9 (TLR)/17.2 (B) mm
  Set Width	726.5 mm
  Set Height	425.4 mm
  Set Depth	69.1(D@Handle)/65.1(D@Wall mount) mm
  Set Width (inch)	28.6 inch
  Set Height (inch)	16.75 inch
  Set Depth (inch)	2.72 (D@Handle)/2.56 (D@Wall mount) inch
  Wall Mount	100 mm x 100 mm, 200 mm x 200 mm, M4
  Product weight	5.31 kg
  Product weight (lb)	11.71 lb
  Operating conditions
  Temperature range (operation)	0 ~ 40 °C
  Temperature range (storage)	-20 ~ 60 °C
  MTBF	50,000 hour(s)
  Altitude	0 ~ 3000 m
  Humidity range (operation)[RH]	20~80% RH (No condensation)
  Humidity range (storage) [RH]	5~95% RH (No condensation)
  Power
  Mains power	100-240 V~, 50-60 Hz, 1.5 A
  Standby power consumption	<0.5 W
  Consumption (Max)	65 W
  Consumption (Typical)	40 W
  Power Saving Features	Smart Power
  Energy Label Class	G
  Sound
  Built-in speakers	2 x 10 W RMS
  Multimedia Applications
  USB Playback Video	USB Playback Picture
  MPEG	BMP
  H.264	JPEG
  JPEG	PNG
  WMV3
  USB Playback Audio	Accessories
  AAC	Included accessories
  WMA	AC Power Cord
  HEAAC	RS232 cable
  MPEG	Remote Control
  	Batteries for remote control
  	Quick start guide
  Included Accessories	IR sensor cable (1.8 m) (x 1)
  	RS232 daisy-chain cable
  	USB Cover (x 1)
  	USB Cover and screw (x 2)
  	Stand
  BM02541/BM05911 (optional)	Miscellaneous
  	Warranty
  Warranty	3 year warranty
  On-Screen Display Languages	English
  	French
  	German
  	Italian
  	Polish
  	Turkish
  	Russian
  	Simplified Chinese
  	Spanish
  	Traditional Chinese
  	Arabic
  	Japanese
  Regulatory approvals	CB
  	CE
  	BSMI
  	CU
  	EPA
  	ETL
  	FCC, Class A
  	VCCI
  What's in the box?	Other items in the box
  	AC Power Cord
  	RS232 cable
  	Remote Control
  	Batteries for remote control
  	Quick start guide

• Warranty Period: 36 months

  Philips Monitors
  Dead on Arrival

  Manufacturer's DOA period:7 days from end user

  Contact: Philips Consumer Care
  Tel. No.: 0208 1919 223 (opt 1)
  Fax No.:
  Email:
  Comments: We are sorry you are having issues with your Philips product purchased, In order for us to assist you with your query as soon as possible the below procedure has been provided to ensure a smooth AfterCare experience.

  Philips deal with all your AfterCare requirements for the product you have purchased, they can help with technical queries and offer advice.

  Please contact them direct on 0208 1919 223. You will need the following information to hand

  * Customer Name
  * Email Address
  * Product Model Number
  * Serial Number
  * Details of the fault

  If Philips advise they are unable to fix the fault they will issue a returns authorisation number which looks like MMD---. Once provided Screen Moove will be able to issue a return and provide a replacement if required.

  If you have any questions or would like further advise, please feel free to contact our AfterCare Team (ACE) on 0208 1919 223 / who will be happy to assist.
  In Warranty Support
  Warranty Period SEE WARRANTY NOTES
  Contact: Philips Warranty Line
  Tel. No. 0208 1919 223 (opt 1)
  Fax No.
  Email
  Manufacturers Website http://www.philips.co.uk
  Comments We are sorry you are having issues with your Philips product purchased, In order for us to assist you with your query as soon as possible the below procedure has been provided to ensure a smooth AfterCare experience.

  Philips deal with all your AfterCare requirements for the product you have purchased, they can help with technical queries and offer advice.

  Please contact them direct on 0208 1919 223. You will need the following information to hand

  * Customer Name
  * Email Address
  * Product Model Number
  * Serial Number
  * Details of the fault


  If you have any questions or would like further advise, please feel free to contact our AfterCare Team (ACE) on 0208 1919 223 / who will be happy to assist.

• Manuals and Documentation	Download Link
  User Manual	Downloads
  Quick Start Guide	Downloads
  Leaflet	Downloads
