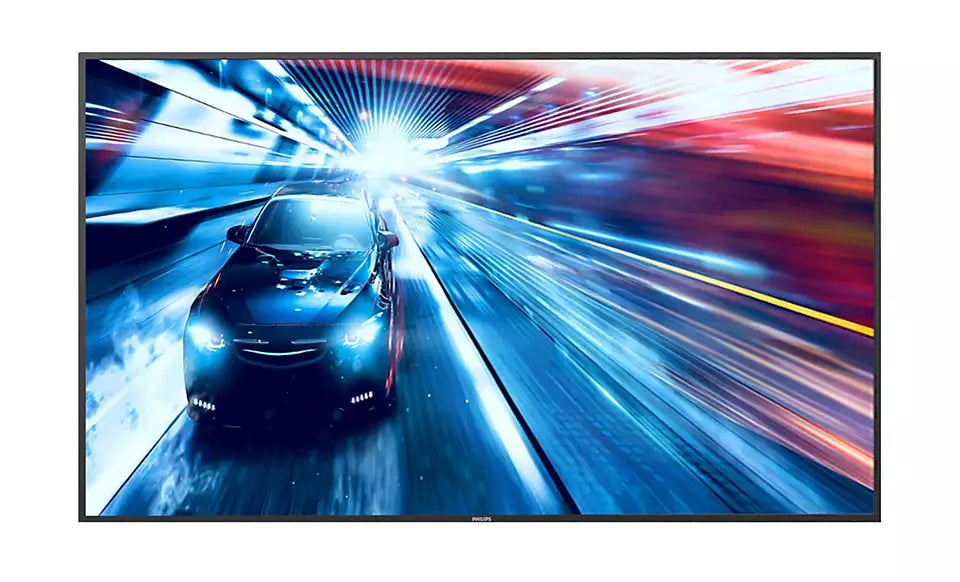

Philips 43BDL3010Q/00

43" Q-Line Digital Signage Display

• Description
• Specifications
• Warranty
• Downloads

• Stand out
  Inform and enthral with a Philips Q-Line Professional Full HD Display. This reliable solution can be up and running as quickly as you need—with no additional hardware.

  Easy-setup 18/7 display.

  Operate, monitor, and maintain with CMND and Control
  Run your display network over a local (LAN) connection. CMND and Control allows you to perform vital functions like controlling inputs and monitoring display status. Whether you're in charge of one screen or 100.

  FailOver ensures that content is always playing
  From the waiting room to the meeting room, never show a blank screen. FailOver lets your Philips Professional Display switch automatically between primary and secondary inputs, ensuring that content keeps playing even if the primary source goes down. Simply set a list of alternative inputs to be sure your business is always on.

  Integrated media player. Easily schedule USB content
  Easily schedule content to play from USB. Your Philips Professional Display will wake from standby to play the content you want, and then return to standby once playback has finished.


• Picture/Display
  Diagonal screen size (metric)	108 cm
  Diagonal screen size (inch)	42.5 inch
  Panel resolution	1920 x 1080p
  Optimum resolution	1920 x 1080 @ 60 Hz
  Brightness	350 cd/m²
  Contrast ratio (typical)	3000:1
  Dynamic contrast ratio	500,000:1
  Response time (typical)	6.5 ms
  Aspect ratio	16:9
  Viewing angle (horizontal)	178 degrees
  Viewing angle (vertical)	178 degrees
  Pixel pitch	0.49 x 0.49 mm
  Display colors	16.7 Million
  Panel technology	VA
  Picture enhancement	3/2 - 2/2 motion pull down
  	3D Combfilter
  	3D MA deinterlacing
  	Dynamic contrast enhancement
  	Motion compens. deinterlacing
  	Progressive scan
  Clinical image	D-Image preset (dicom part 14 compatible)
  Supported Display Resolution
  Computer formats	Video formats
  1920 x 1080, 60 Hz	1080p, 60 Hz
  1680 x 1050, 60 Hz	1080i, 60 Hz
  1600 x 1200, 60 Hz	1080i, 50 Hz
  1440 x 900, 60 Hz	720p, 60 Hz
  1280 x 1024, 60 Hz	576p, 50 Hz
  1280 x 800, 60 Hz	576i, 50 Hz
  1280 x 720, 60 Hz	480p, 60 Hz
  1152 x 870, 75 Hz	480i, 60 Hz
  1024 x 768, 60, 70, 75 Hz
  800 x 600, 56, 60, 72, 75 Hz
  720 x 400, 70 Hz
  640 x 480, 60, 67, 72, 75 Hz
  Connectivity
  Video input	Audio input
  DVI-I (x 1)	3.5 mm jack
  HDMI (x 2)
  USB	Audio output
  VGA (via DVI)	Audio Left/Right (RCA)
  External control	Convenience
  RJ45	Energy-saving functions
  RS232C (in/out) 2.5 mm jack	Smart Power
  IR (in/out) 3.5 mm jack	Tiled Matrix
  	Up to 15 x 15
  	Start-up
  	Switch on delay
  	Switch on status
  	Boot on source
  	Start-up window
  	enable/disable Philips logo
  	Keyboard control
  	Lockable
  	Hidden
  	Network controllable
  	RS232
  	RJ45
  	Signal loop through
  	RS232
  	IR Loop through
  	Placement
  	Landscape
  	Remote control signal
  	Lockable
  Dimensions
  Bezel width	11.9 (TLR)/14.7 (B) mm
  Set Width	968.2 mm
  Set Height	559.4 mm
  Set Depth	60.9 mm
  Set Width (inch)	38.12 inch
  Set Height (inch)	22.02 inch
  Set Depth (inch)	2.39 inch
  Wall Mount	400 mm x 400 mm, M6
  Product weight	8.8 kg
  Product weight (lb)	19.4 lb
  Operating conditions
  Temperature range (operation)	5 ~ 40 °C
  Temperature range (storage)	-20 ~ 60 °C
  MTBF	50,000 hour(s)
  Humidity range (operation)[RH]	20~80% RH (No condensation)
  Humidity range (storage) [RH]	5~95% RH (No condensation)
  Altitude	0 ~ 3000 m
  Power
  Consumption (On mode)	75 W
  Mains power	100–240 V~, 50/60 Hz
  Standby power consumption	<0.5 W
  Consumption (Max)	110 W
  Consumption (Typical)	75 W
  Power Saving Features	Smart Power
  Energy Label Class	G
  Sound
  Built-in speakers	2 x 10 W RMS
  Multimedia Applications
  USB Playback Video	USB Playback Picture
  H.264	BMP
  JPEG	JPEG
  MPEG	PNG
  USB Playback Audio	Accessories
  AAC	Included accessories
  WMA	AC Power Cord
  HEAAC	RS232 cable
  MPEG	Remote Control
  	Batteries for remote control
  	Quick start guide
  Included Accessories	IR sensor cable (1.8 m) (x 1)
  	RS232 daisy-chain cable
  	USB Cover and screw x 1
  	Stand
  BM02542/BM05922 (optional)	Miscellaneous
  	Warranty
  Warranty	3 year warranty
  On-Screen Display Languages	English
  	French
  	German
  	Italian
  	Polish
  	Russian
  	Spanish
  	Turkish
  	Simplified Chinese
  	Traditional Chinese
  	Arabic
  	Japanese
  Regulatory approvals	CE
  	CB
  	FCC, Class B
  What's in the box?	Other items in the box
  	AC Power Cord
  	RS232 cable
  	Remote Control
  	Batteries for remote control
  	Quick start guide
