Stay visible day and night with Philips H Line Full HD Panel. Astonishing clarity and contrast make this a perfect solution for busy areas that are subject to high ambient light. From airports to shopping centres.
Run your display network over a local (LAN) connection. CMND and Control allows you to perform vital functions like controlling inputs and monitoring display status. Whether you're in charge of one screen or 100.
Take control of your content with CMND and Create. A drag-and-drop interface makes it simple to publish your own content, whether it's a daily specials board or branded corporate information. Preloaded templates and integrated widgets ensure that your stills, text and video will be up and running in no time.
From waiting room to meeting room, never show a blank screen. FailOver lets your Philips Professional Display switch automatically between primary and secondary inputs, ensuring that content keeps playing even if the primary source goes down. Simply set a list of alternative inputs to be sure your business is always on.
Integrate a full-power PC or Android-powered CRD50 module directly into your Philips Professional Display. The OPS slot contains all the connections you need to run your slot-in solution, including a power supply.
Embed an Android System-on-Chip (SoC) into your Philips Professional Display. The optional CRD50 module is an OPS device that enables Android processing power without the need for cables. Simply slide into the OPS slot, which contains all the connections needed to run the module (including power supply).
Take control of your Philips Professional Display network. CMND lets you manage, update, maintain and play via one easy-to-use interface. From installation to daily operation.

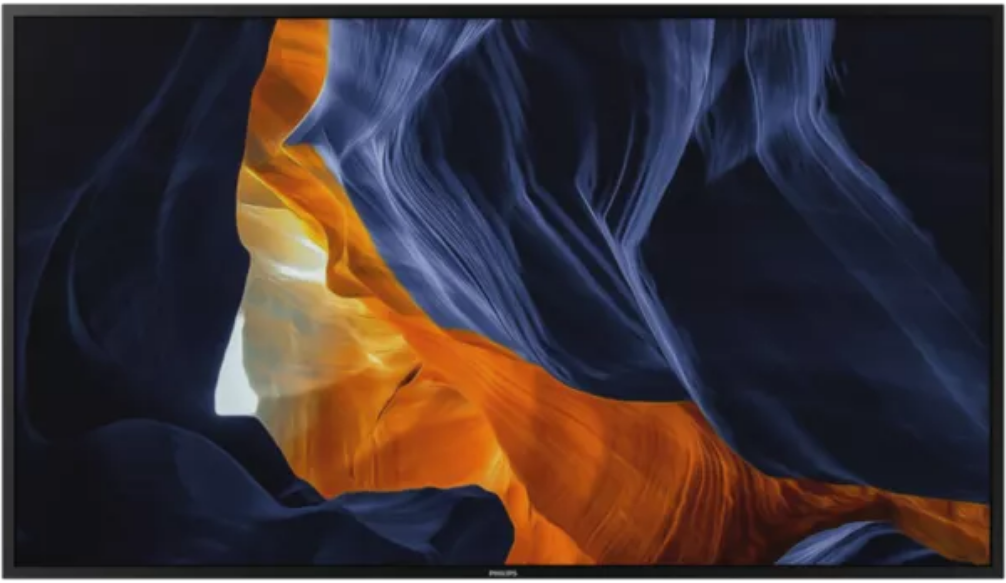

Make a big impact in bright or semi-outdoor locations. This ultra-high-brightness 2500 cd/m2 display is perfect for attracting attention in large, busy areas that are subject to high ambient light.
| Technical Specifications | |
|---|---|
| Diagonal screen size (inch) | 54.6 inch |
| Diagonal screen size (metric) | 138.7 cm |
| Optimum resolution | 1920 x 1080 @ 60 Hz |
| Brightness | 2500 cd/m² |
| Contrast ratio (typical) | 4000:1 |
| Dynamic contrast ratio | 500,000:1 |
| Aspect ratio | 16:9 |
| Response time (typical) | 8 ms |
| Pixel pitch | 0.63 x 0.63 mm |
| Display colours | 1.07 B |
| Viewing angle (horizontal) | 178 degree |
| Viewing angle (vertical) | 178 degree |
| Panel resolution | 1920 x 1080p |
| Video input | Composite (Share component Y), Display Port1.2 (x 1), DVI-D (x 1), HDMI 1.4 (x 2), VGA (Analogue D-Sub) (x 1), Component (BNC x 3) |
| Video output | DisplayPort 1.2 (x 1), DVI-I (x 1) |
| Audio input | 3.5 mm jack, Audio Left/Right (RCA) |
| Audio output | 3.5 mm jack |
| External speaker connector | |
| External control | RS232C (in/out) 2.5 mm jack, RJ45, IR (in/out) 3.5 mm jack, OPS, USB 2.0 (x 1) |
| Bezel width | 13.6 mm (Even bezel) |
| Set Width | 1243.2 mm |
| Set Height | 714 mm |
| Set Depth | 137.7 mm |
| Set Width (inch) | 48.9 inch |
| Set Height (inch) | 28.1 inch |
| Set Depth (inch) | 5.42 inch |
| Wall Mount | 400 x 400 mm, M6 |
| Product weight | 31.84 kg |
| Product weight (lb) | 70.20 lb |
| Smart insert height | 200 mm |
| Smart Insert mount | 100 mm x 100 mm pitch, 6 x M4L6 |
| Placement | Landscape, Portrait |
| Network controllable | RS232, RJ45 |
| Signal loop through | RS232, IR Loop through, DisplayPort, IR, RJ45 |
| Energy-saving functions | Smart Power |
| Remote control signal | Lockable, Keyboard control, Hidden, Lockable |
| Ease of installation | Carrying Handles, Smart Insert |
| Screen-saving functions | Pixel Shift, Low Brightness |
| Advanced colour control | |
| Mains power | 100 ~ 240 VAC, 50 ~ 60 Hz |
| Consumption (Typical) | 295 W |
| Standby power consumption | <0.5 W |
| Consumption (Max) | 420 W |
| Built-in speakers | 2 x 10 W RMS |
| Temperature range (operation) | 0 ~ 40 °C |
| Temperature range (storage) | -20 ~ 60 °C |
| MTBF | 50,000 hour(s) |
| Altitude | 0 ~ 3000 m |
| Humidity range (operation)[RH] | 20~80% RH (No condensation) |
| Humidity range (storage) [RH] | 5~95% RH (No condensation) |
| On-Screen Display Languages | English, French, German, Italian, Polish, Russian, Spanish, Turkish, Simplified Chinese, Traditional Chinese, Arabic, Japanese, Portuguese |
| Regulatory approvals | CB, CE, UL/cUL, EAC, EMF, FCC, Class A, PSB, PSE, VCCI |
| Warranty | 3 year warranty |
| USB Playback Audio | AAC, AIF, AIFF, ASF, M3U, M4A, MP3, MP4, PLS, WAV, WMA |
| USB Playback Picture | BMP, GIF, JPEG, JPG, PNG |
