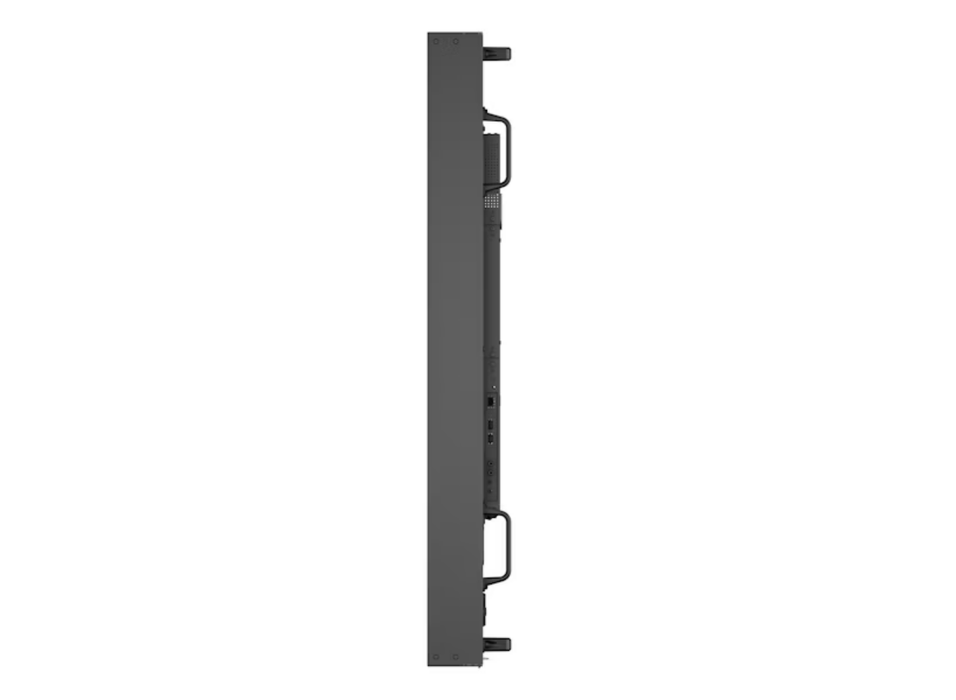

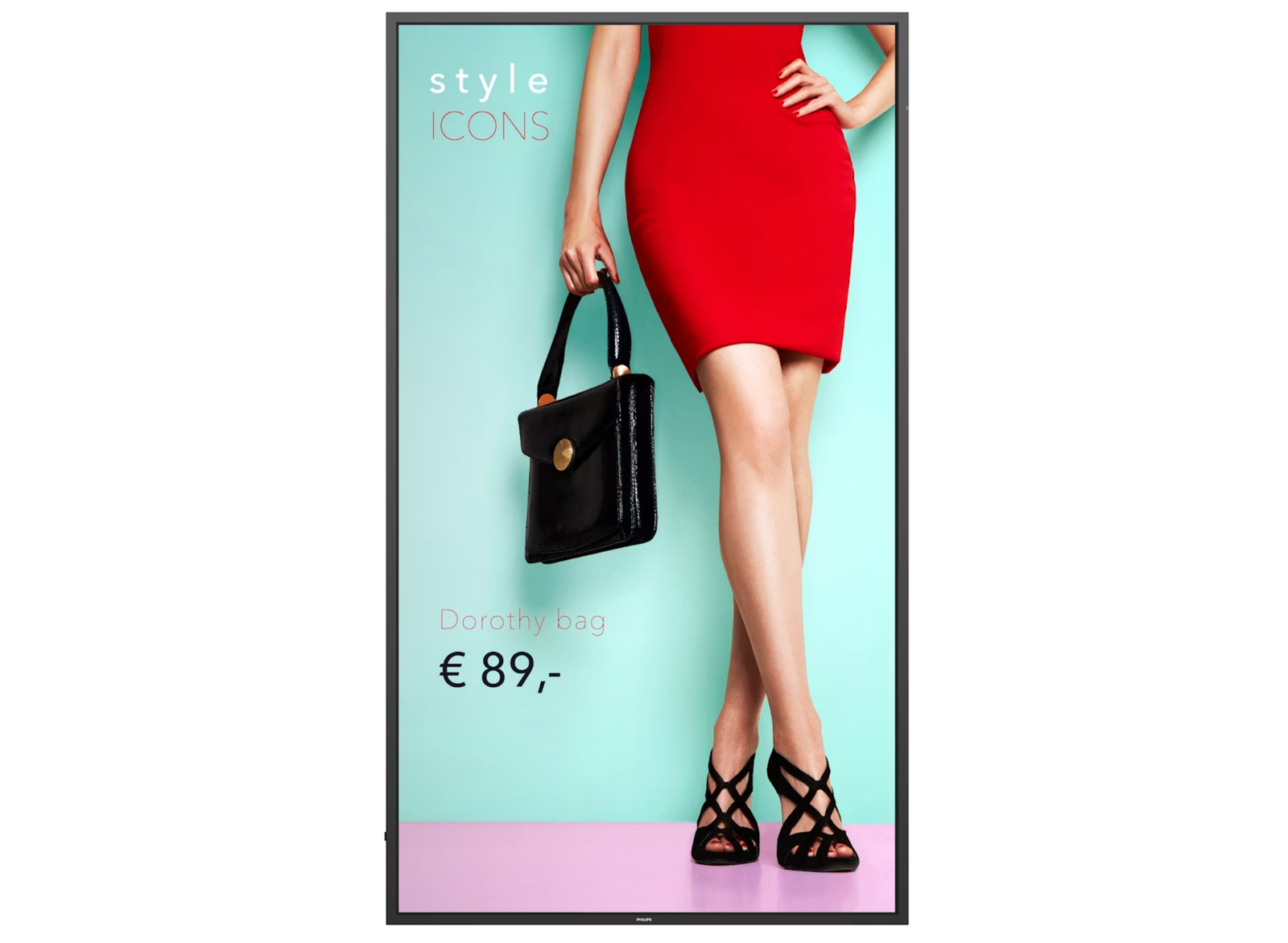

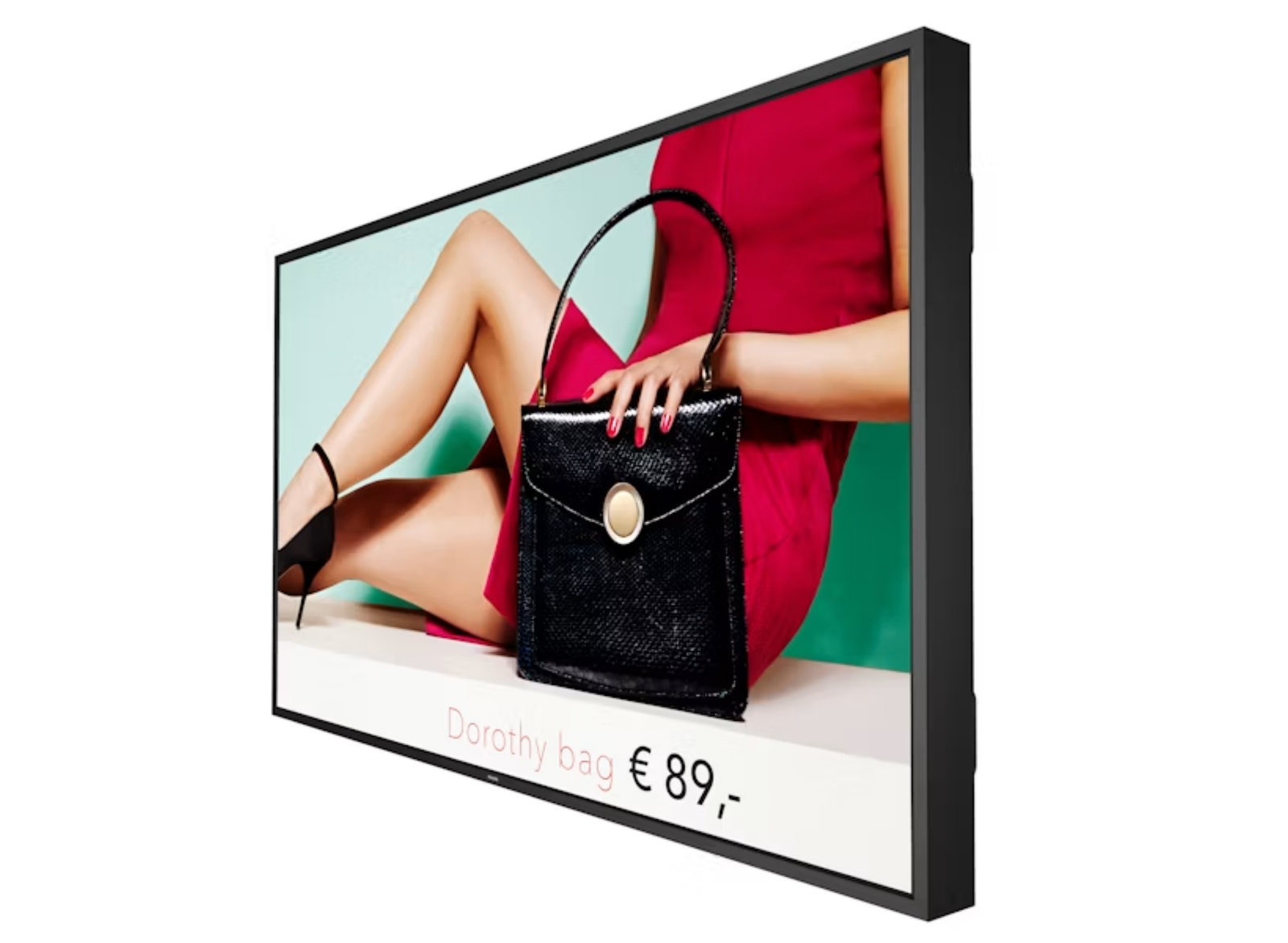

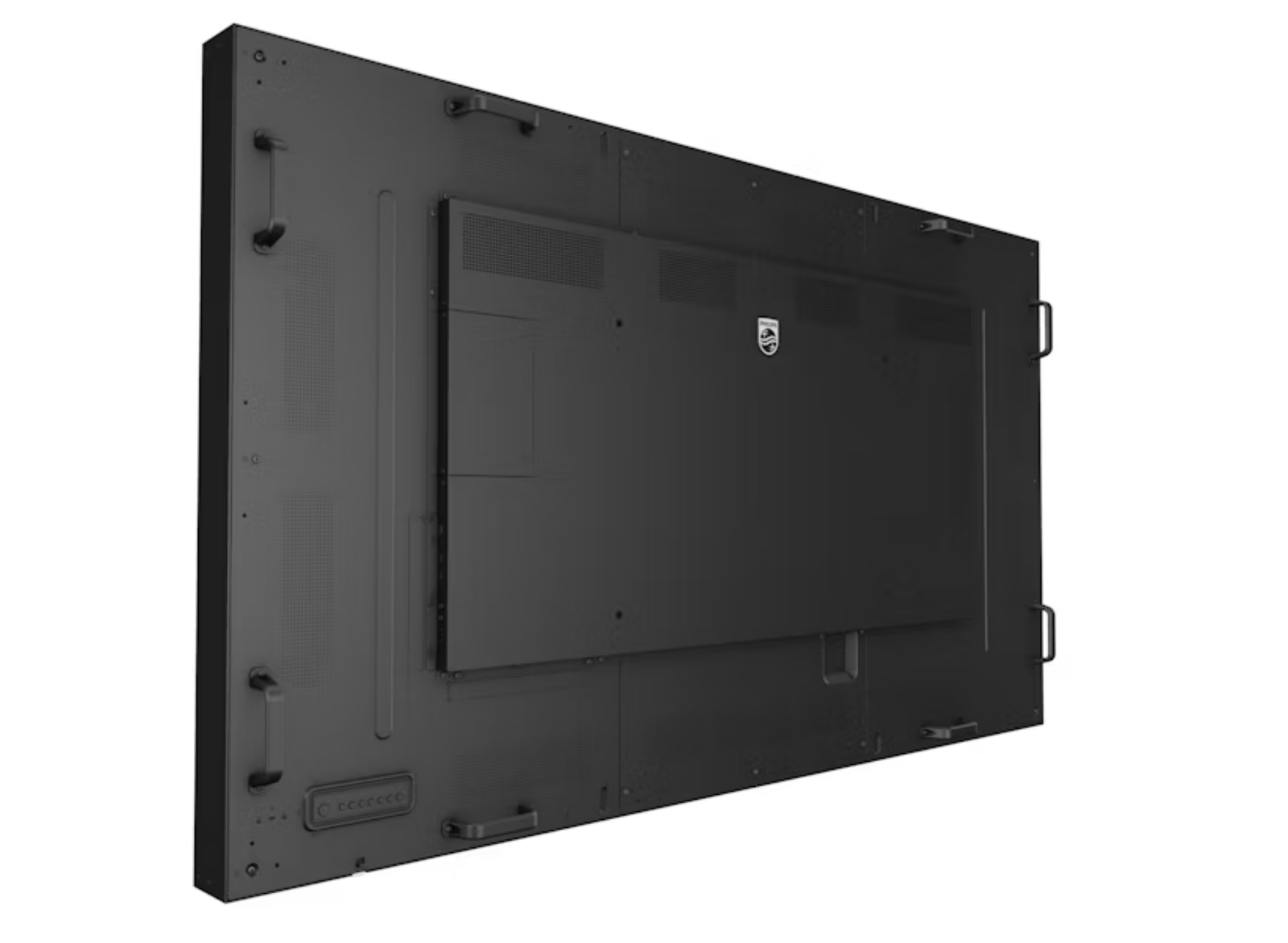

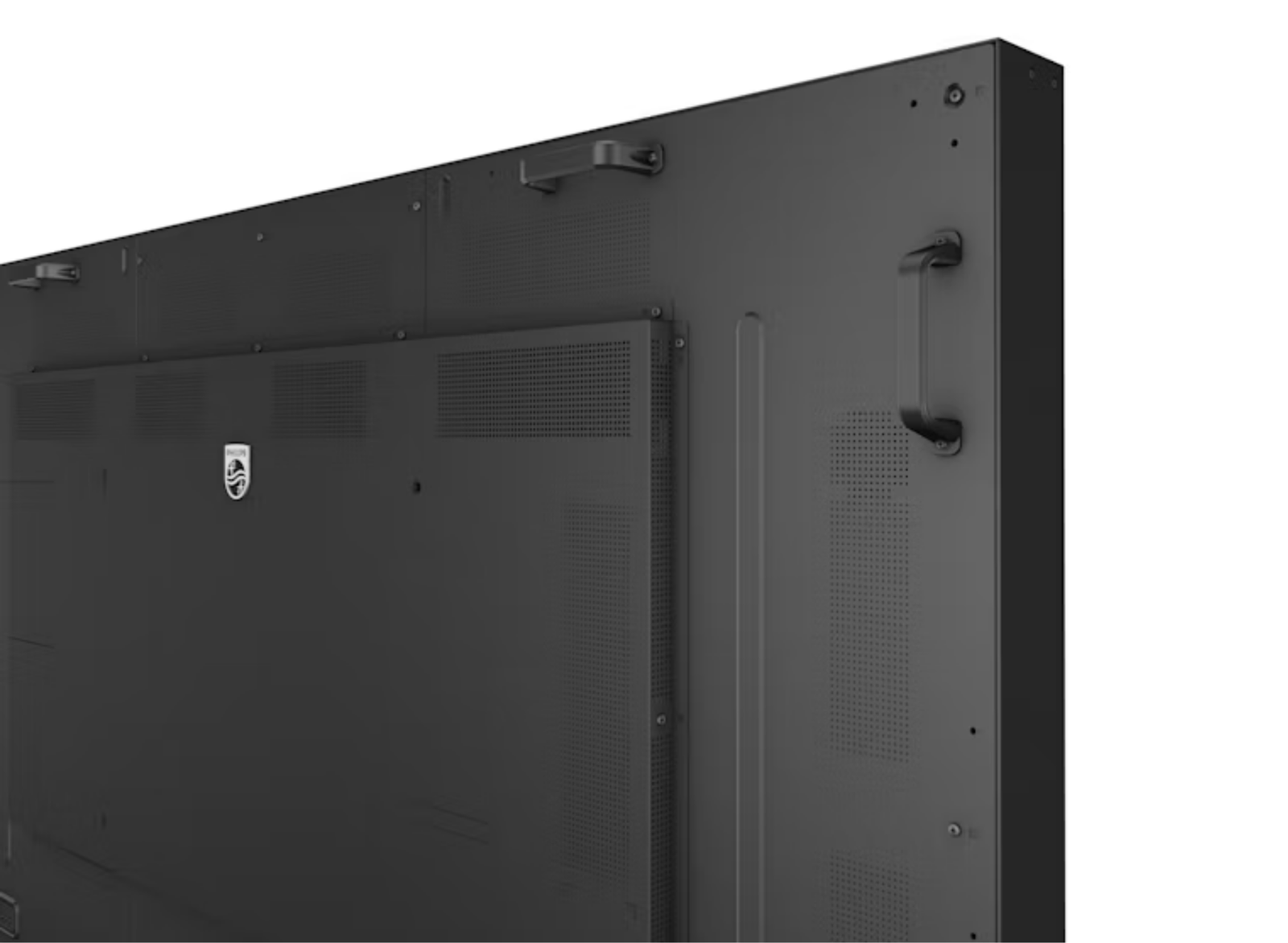

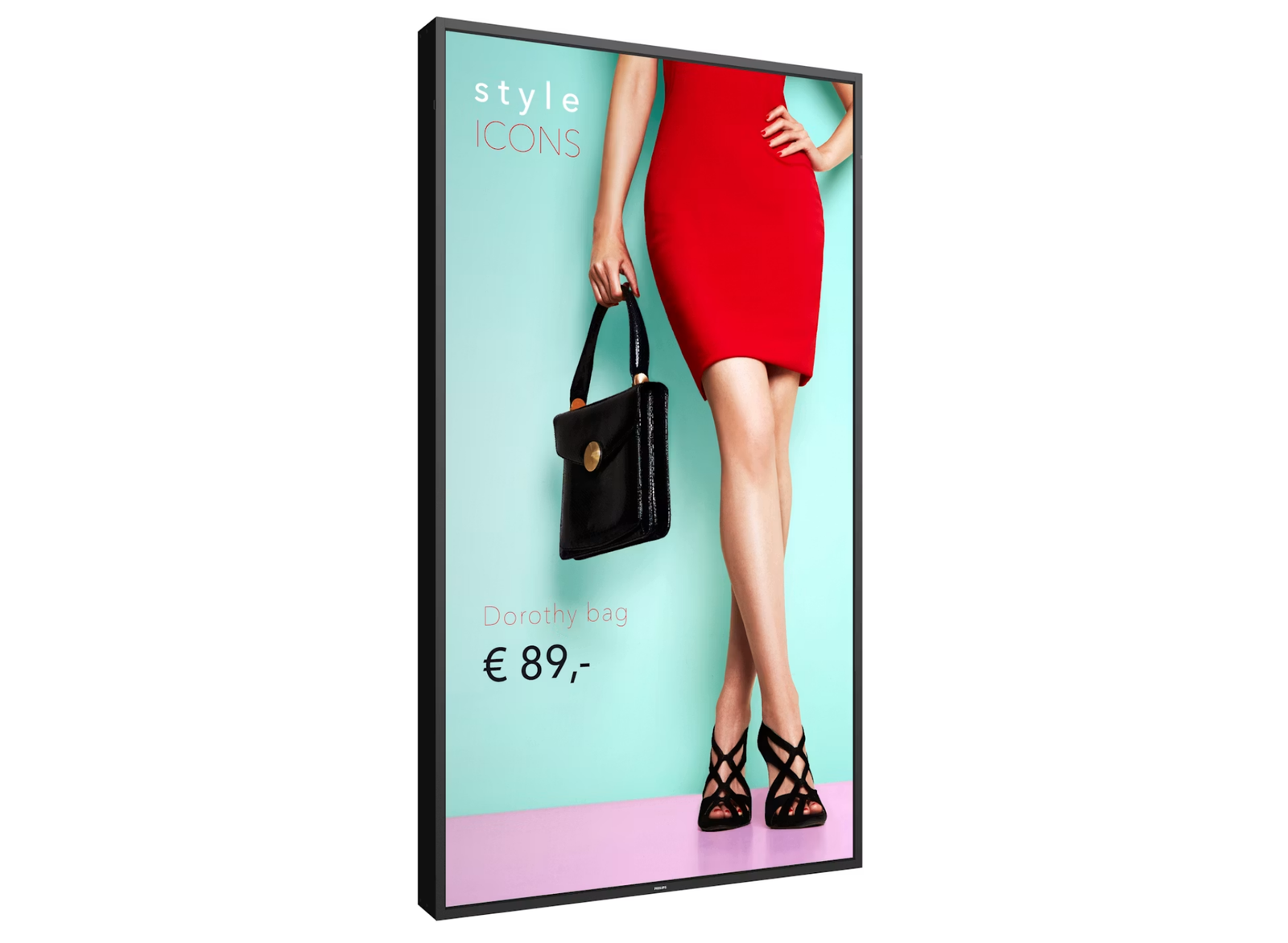

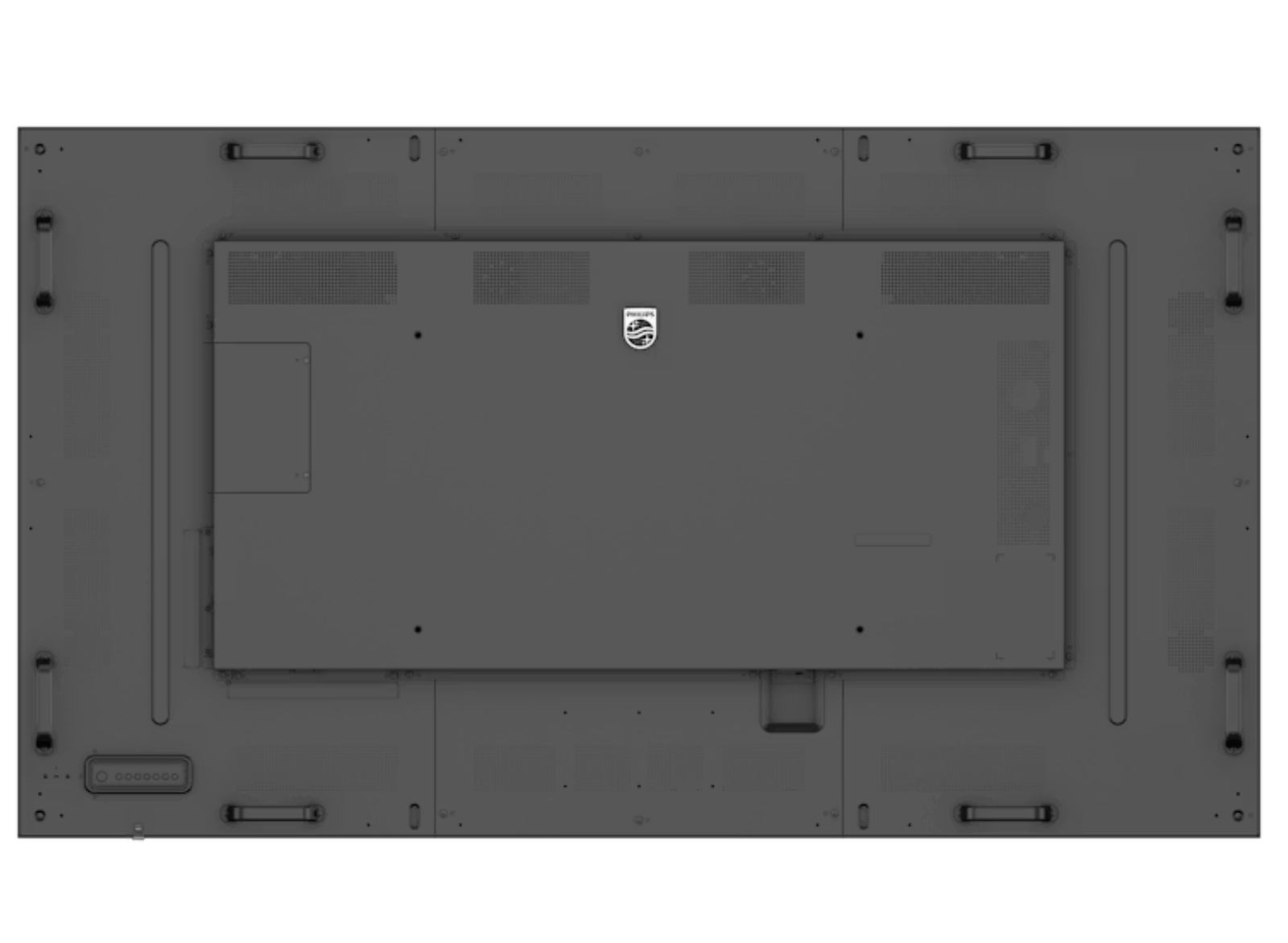

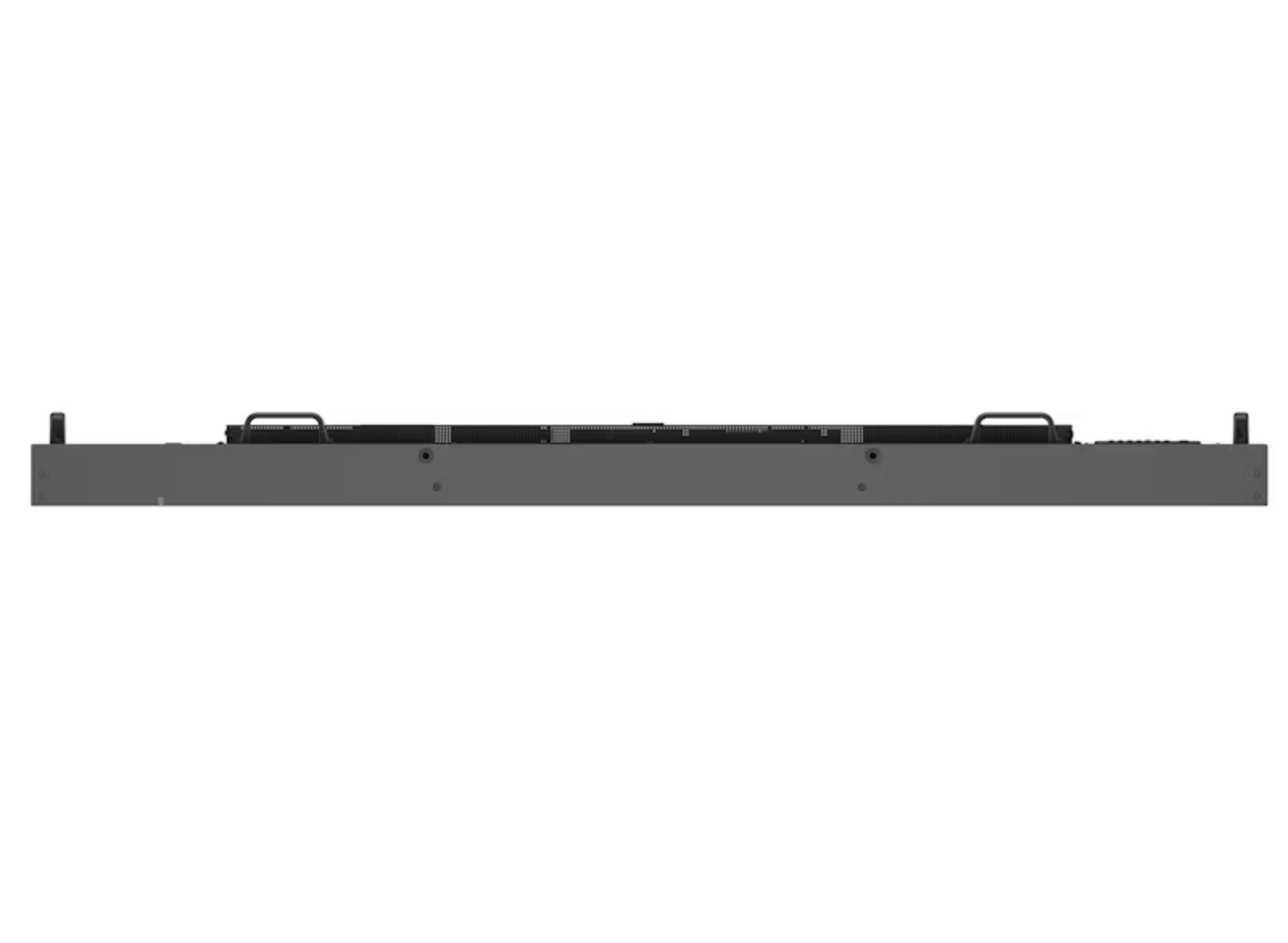

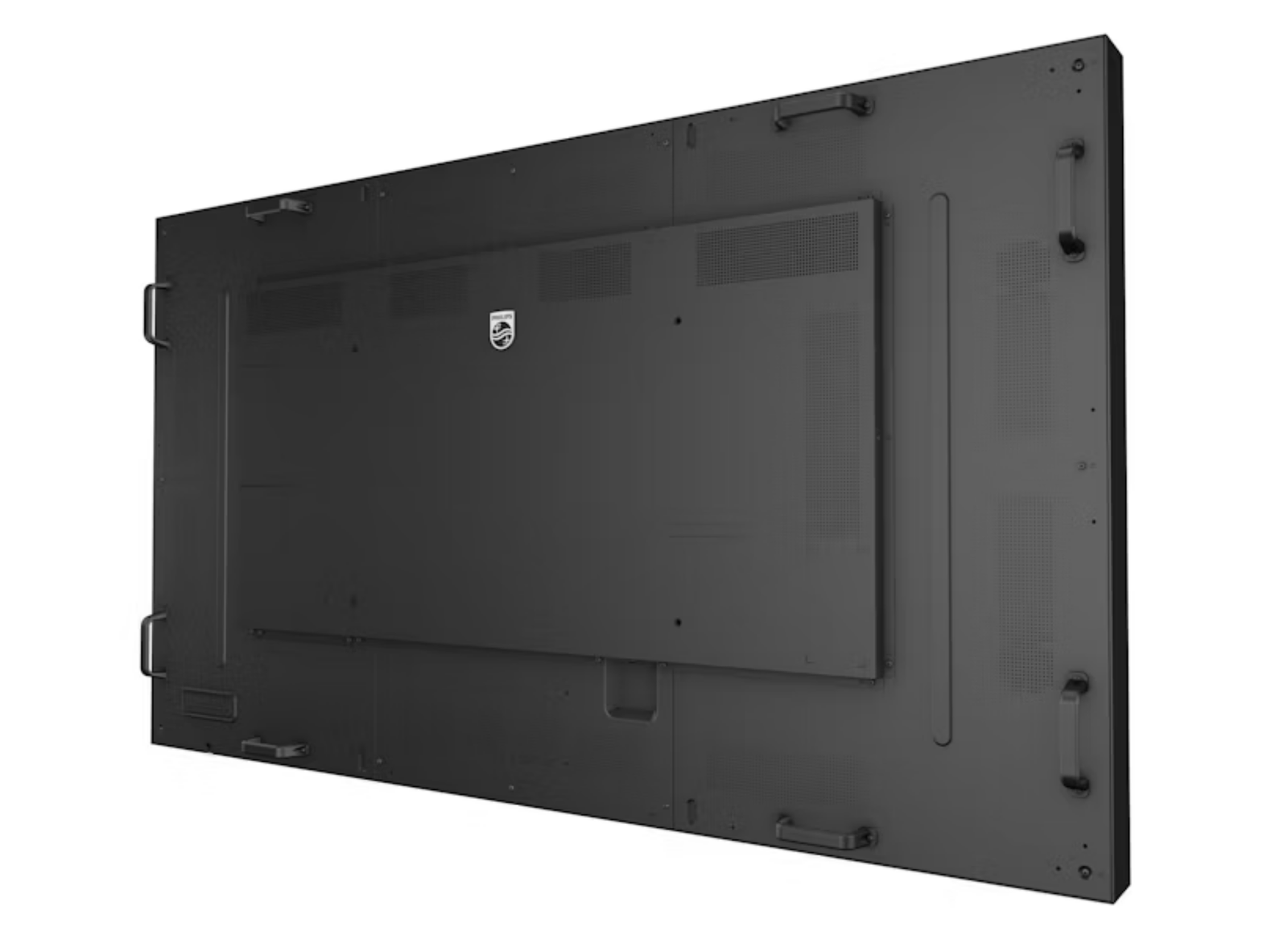

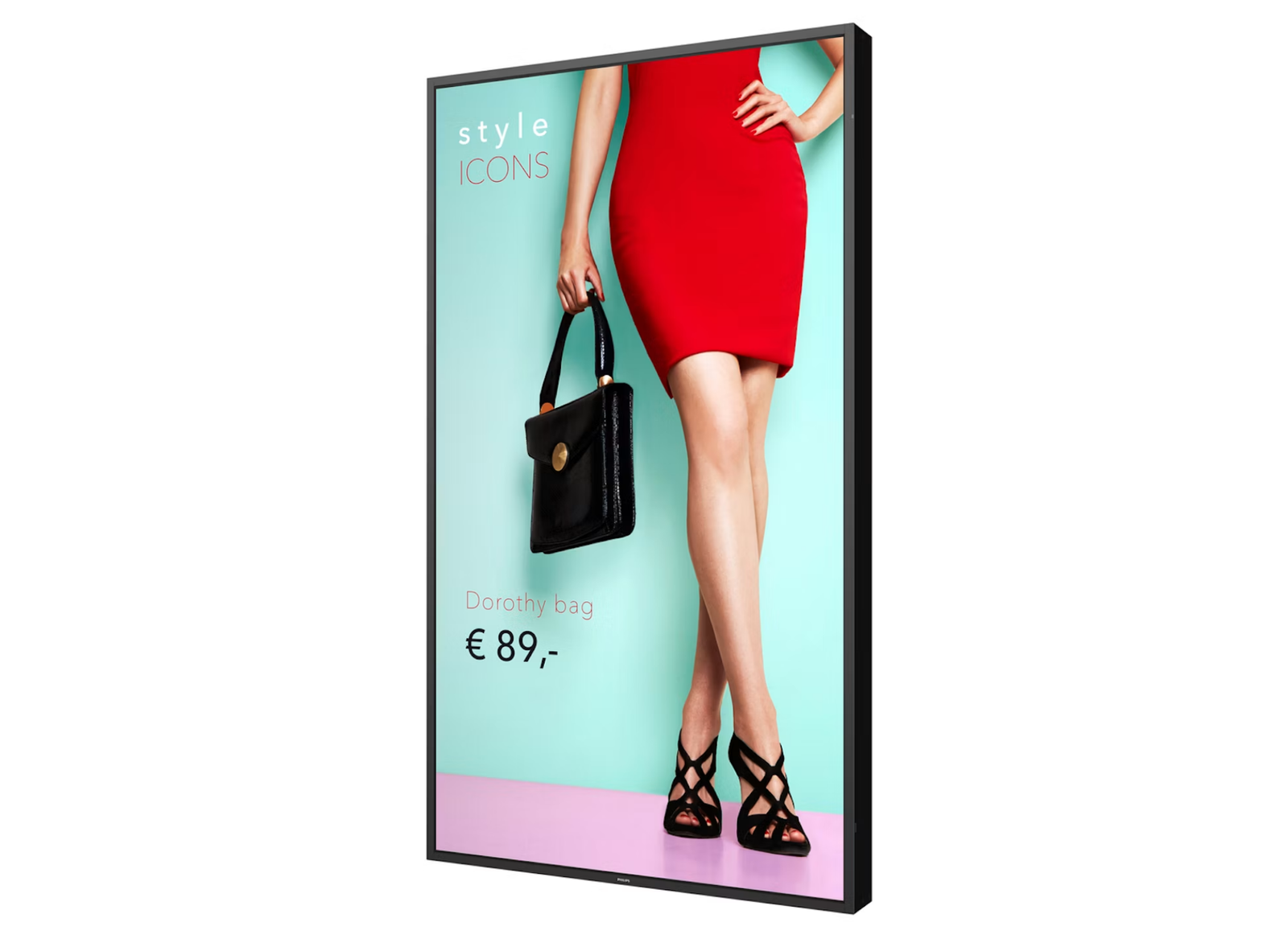

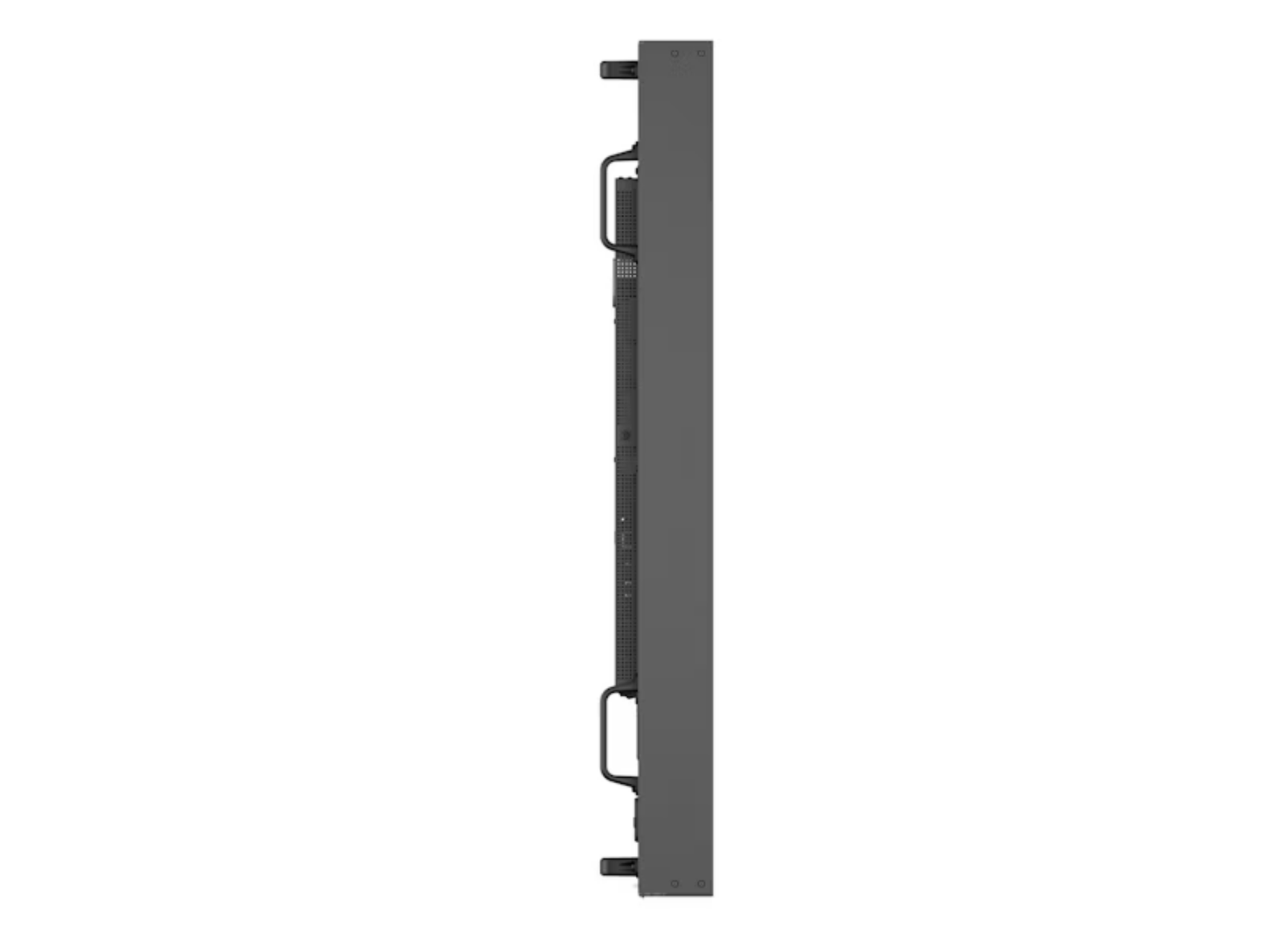

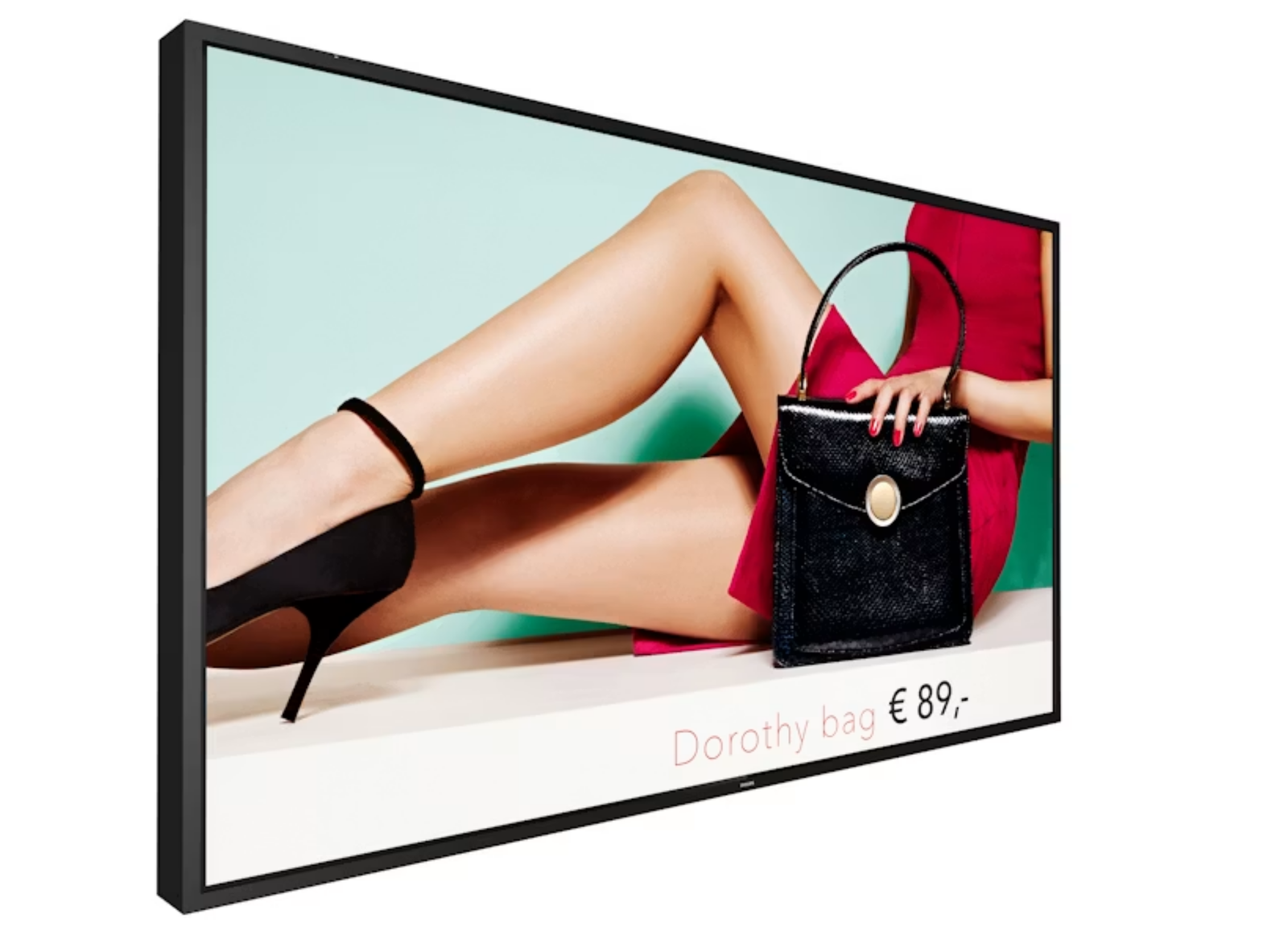

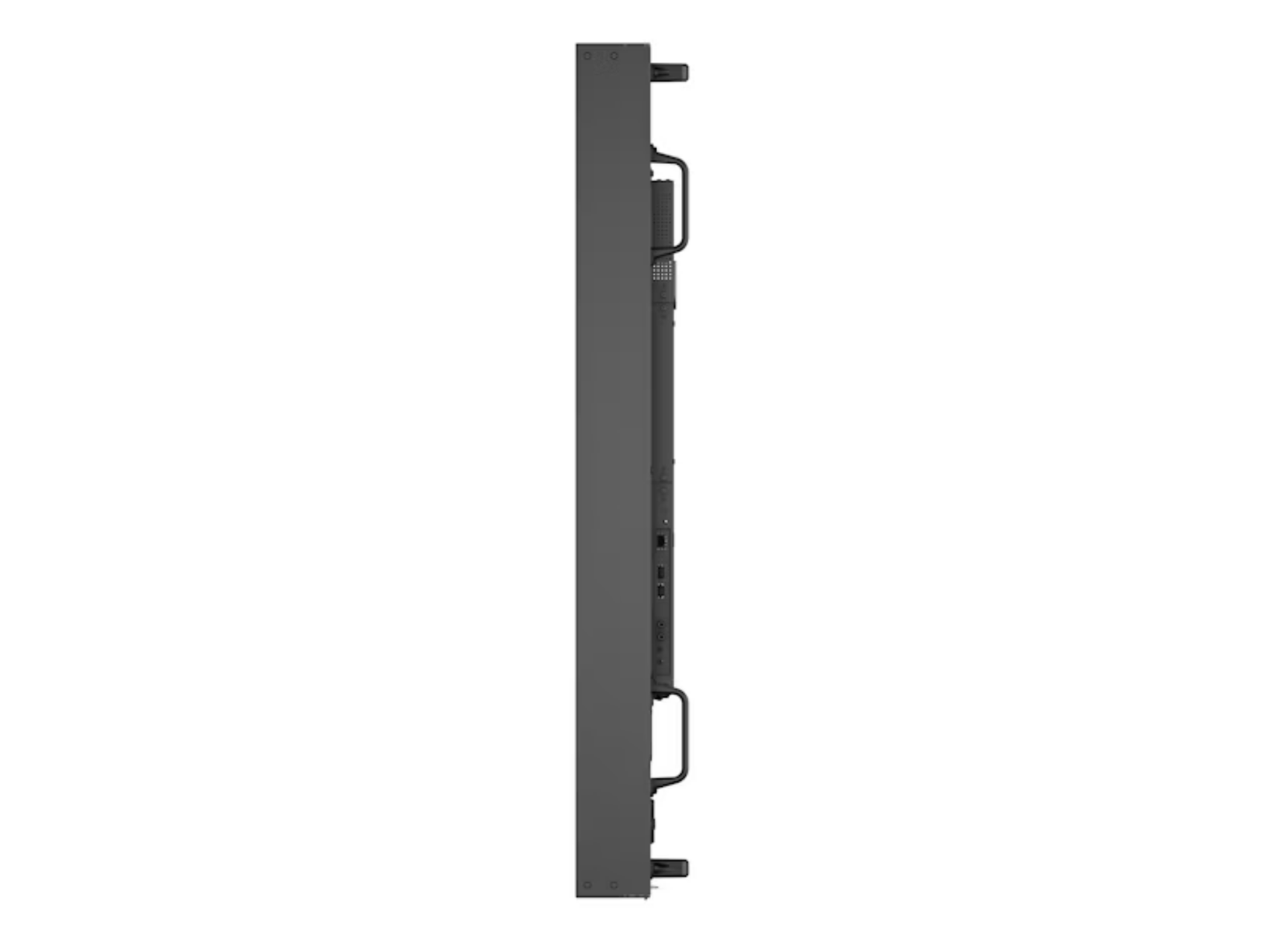

Philips H-Line 75BDL4003H/02 75" 4K UHD High Brightness Large Format Display
SKU: 75BDL4003H/02
£7,000.00 (Excl. VAT)
- Display Size75"
- Operating SystemAndroid
- VESA Patterns600x400
- Panel TypeIPS Panel
- ResolutionUltra HD (4K)
- Screen TypeFlat
- Description
- Specifications
- Downloads
-
Powerful Content Management with CMND & Create
CMND and Create. Develop and launch your own content
Take control of your content with CMND and Create. A drag-and-drop interface makes it simple to publish your own content, whether it's a daily specials board or branded corporate information. Preloaded templates and integrated widgets ensure that your stills, text and video will be up and running in no time.OPS slot allows for PC embedding without cabling
Integrate a full-power PC or Android-powered CRD50 module directly into your Philips Professional Display. The OPS slot contains all the connections you need to run your slot-in solution, including a power supply.FailOver. Ensure your display never goes blank
Critical for demanding commercial applications, FailOver is a revolutionary technology that automatically plays back-up content on screen in the unlikely event of a media player failure. Simply select a primary input connection and a FailOver connection, and you're ready for instant content protection.
Add Android processing power with an optional CRD50 module
Embed an Android System-on-Chip (SoC) into your Philips Professional Display. The optional CRD50 module is an OPS device that enables Android processing power without the need for cables. Simply slide into the OPS slot, which contains all the connections needed to run the module (including power supply).Designed for extreme conditions
Enhanced thermal management, Hight Tni Liquid Crystal panels and built-in thermal sensors to cope with high ambient temperatures. Display brightness up to 2500 cd/m² for high ambient lighting conditions. Display polariser compatible with polarised sunglasses for improved visibility of content.Ultra-high brightness street signage
High-brightness, street-facing digital displays command attention in any lighting condition, boosting shop exposure and attracting customers. Spectacular brightness of up to 3000 cd/m² ensures high visibility and pure image quality, even in extreme ambient light conditions. -
Picture / Display Diagonal Screen Size (Metric) 189.3 cm Diagonal Screen Size (Inch) 74.5 inch Aspect Ratio 16:9 Panel Resolution 3840 x 2160 Pixel Pitch 0.429 x 0.429 mm Optimum Resolution 3840 x 2160 @ 60 Hz Brightness 3000 cd/m² Display Colours 1.07 Billion Contrast Ratio (Typical) 1200:1 Dynamic Contrast Ratio 500,000:1 Response Time (Typical) 8 ms Viewing Angle (Horizontal) 178 degree Viewing Angle (Vertical) 178 degree Panel Technology IPS Picture Enhancement 3/2 - 2/2 motion pull down
Progressive scan
Dynamic contrast enhancementConnectivity Audio Output 3.5 mm jack Audio Input 3.5 mm jack Video Input DisplayPort 1.2
DVI-I (digital + analogue) x 1
HDMI 2.0 x 3Other Connections OPS
USB 2.0 x 2Video Output DisplayPort 1.2 x 1
HDMI 2.0 x 1External Control IR (in/out) 3.5 mm jack
RJ45
RS232C (in/out) 2.5 mm jackConvenience Placement Landscape (24/7)
Portrait (24/7)Screen-Saving Functions Pixel Shift, Low Brightness Keyboard Control Hidden
LockableRemote Control Signal Lockable Signal Loop Through DisplayPort
RS232
HDMI

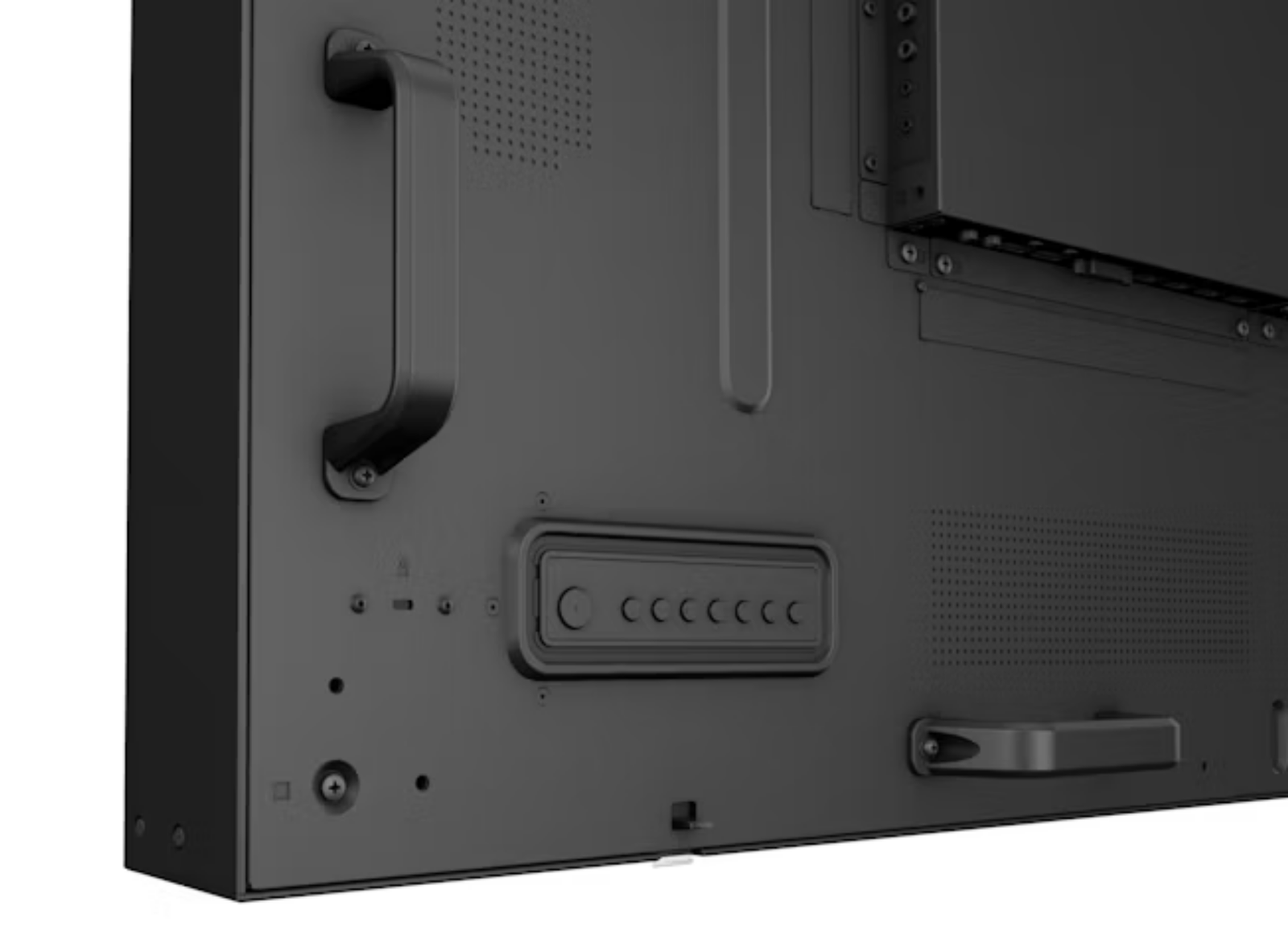

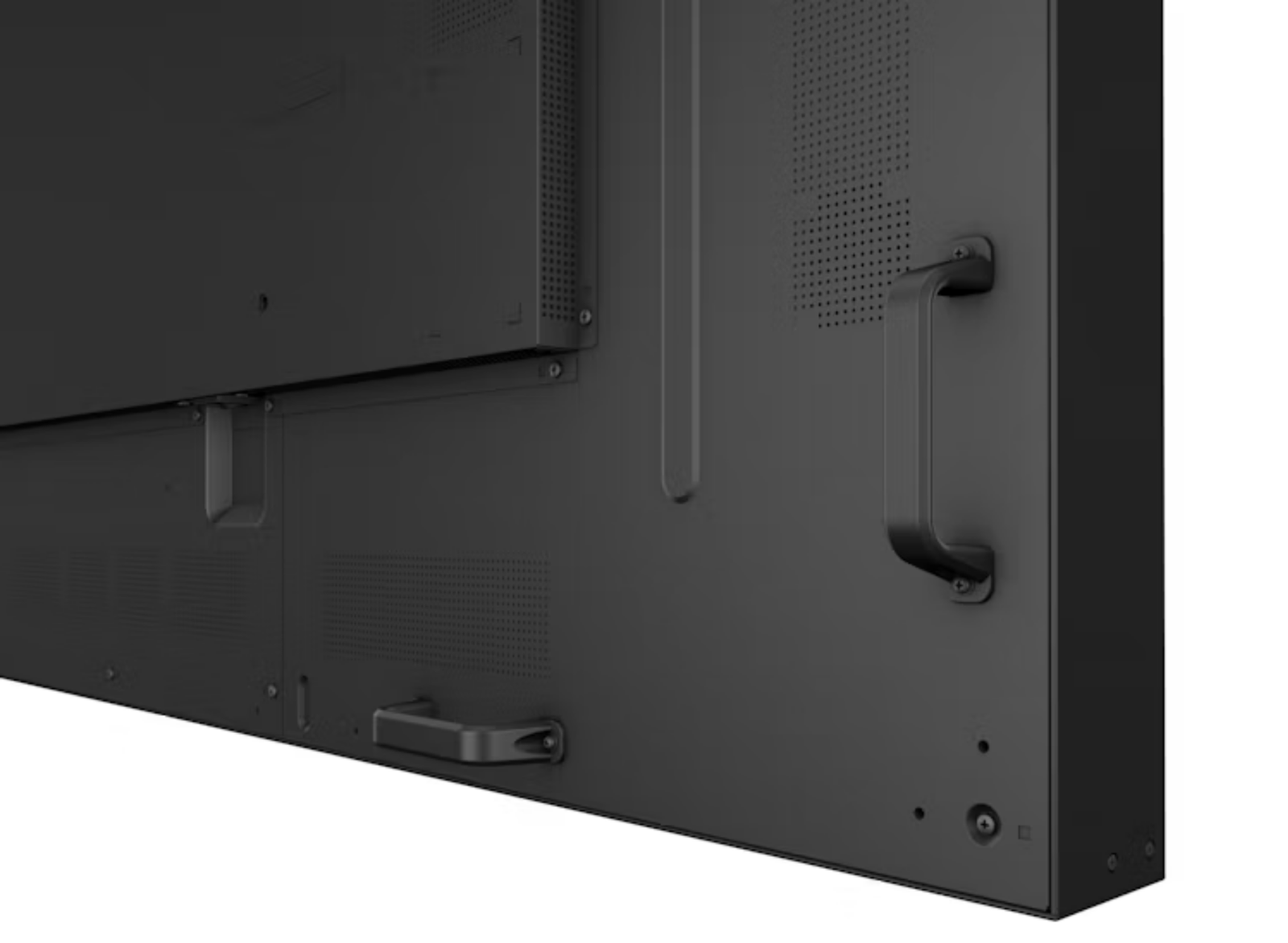

IR Loop throughEase of Installation Carrying Handles
Smart InsertEnergy-Saving Functions Smart Power Network Controllable RS232
LAN (RJ45)Sound Built-In Speakers 2 x 10 W RMS Power Mains Power 100 ~ 240 VAC, 50 ~ 60 Hz Consumption (Typical) 510 W Consumption (Max) 790 W Standby Power Consumption <0.5 W Supported Display Resolution Computer Formats 640 x 480, 60, 67, 72, 75 Hz
720 x 400, 70 Hz
800 x 600, 60, 72, 75 Hz
1024 x 768, 60 Hz
1280 x 768, 60 Hz
1280 x 800, 60 Hz
1280 x 1024, 60 Hz
1360 x 768, 60 Hz
1600 x 1200, 60 Hz
1920 x 1080, 60 Hz
1920 x 1200, 60 Hz
3840 x 2160, 30 Hz
3840 x 2160, 60 HzVideo Formats 480i, 30, 60 Hz
480p, 60 Hz
576p, 50 Hz
576i, 25, 50 Hz
1080i, 25, 30 Hz
1080p, 50, 60 Hz
3840 x 2160, 30 Hz
3840 x 2160, 60 HzDimensions Set Width 1688.2 mm Set Height 966.6 mm Set Depth 111.1 mm Product Weight 54.1 kg Set Width (Inch) 66.46 inch Set Height (Inch) 38.06 inch Set Depth (Inch) 4.37 inch Product Weight (lb) 119.27 lb Wall Mount 600 x 400 mm, M8 Bezel Width 18.8 mm (even bezel) Smart Insert Width 180 mm Smart Insert Height 300 mm Operating Conditions Altitude 0 ~ 3000 m Temperature Range (Operation) 0 ~ 40 °C MTBF 50,000 hours Relative Humidity 20 ~ 80% Temperature Range (Storage) -20 ~ 60 °C Warning Do not operate in direct sunlight without additional protective measures. Multimedia Applications USB Playback Video AVI
MP4
MPEG
MPG
TTS
VOBUSB Playback Picture BMP
JPEG
PNGAccessories Included Accessories Edge Alignment Kit
Philips logo x 1
RS232 daisy-chain cable
Wire Clamper x 3
AC switch cover and screw x 1
USB cover and screws
AC Power Cord
HDMI cable
IR sensor cable, 1.8 m, x 1
Open-frame kit
Quick start guide x 1
Remote control and AAA batteries
RS232 cableMiscellaneous On-Screen Display Languages Arabic
English
French
German
Italian
Japanese
Polish
Portuguese
Russian
Spanish
Simplified Chinese
Turkish
Traditional ChineseWarranty 3 year warranty Regulatory Approvals CE
CB
EAC
UL -
Description Downloads Datasheet Download
