PRIMESUITE
Flexible control

Customisable branding
Philips MediaSuite features a clear, easy-to-navigate user interface (UI) that can be customised with your own branding. Easily add your logo and colours to the search bar to increase the presence of your brand.

MyChoice
MyChoice offers a simple and low-cost way to offer your guests premium TV channels. At the same time it delivers an additional revenue stream which allows you to recover your initial TV investment.

IPTV Channels
Provide channels over IP. Install your own user interface (UI), which can be stored on a central server and sent to the TV over IP. Once the UI is on the TV it can also be stored locally. You'll benefit from flexibility and rapid installation whether you're personalising your Philips professional system TVs or centralizing system management.

CMND & Control
Run your display network over a local (LAN or RF) connection. CMND & Control allows you to perform vital functions like updating software and settings, as well as monitoring display status. Whether you’re in charge of one display or more, CMND & Control makes managing your fleet easy.

CMND & Create
Take control of your content with CMND and Create. A drag-and-drop interface makes it simple to publish your own content, whether it's a daily specials board or branded corporate information. Preloaded templates and integrated widgets ensure that your stills, text and video will be up and running in no time.

Perfectly balanced
Philips PrimeSuite fuses form and function for tailored experiences.

Category	Specifications
Picture/Display	LED Full HD, D-LED
Diagonal screen size (metric)	108
Diagonal screen size (inch)	43
Panel resolution	1920 x 1080p
Brightness	250
Viewing angle	178º (H)/178º (V)
Audio
Sound output Power	16 (2x8)
Speakers	2.0, Down Firing, Bathroom speaker out: 1.5 W Mono 8 ohm
Sound Features	DTS-HD, Dolby Atmos Compatible, Dolby MS12D, AVL, Incredible surround
Design
Colour	Black
Tuner/Reception/Transmission
Digital TV	DVB-T/T2/C
HEVC FHD (up to 1080p60)
Analogue TV	PAL
IP Playback	Multicast, Unicast
Rear Connectivity
Digital Audio out	Optical
Ethernet (LAN)	RJ-45
Antenna	IEC-75
External Control	RJ-48
HDMI 2	HDMI 1.4
USB 2	USB 2.0
Bathroom speaker out	Mini-Jack
Side Connectivity
Common Interface Slot	CI+ 1.3.2
USB1	USB 2.0
HDMI1	HDMI 1.4
Headphone out	Mini-Jack
Connectivity Enhancements
HDMI	MHL 2.0 (HDMI1), ARC (HDMI2)
EasyLink (HDMI CEC)	One-touch play, System Standby, RC pass-through, system audio control
LAN	Wake up on LAN
RJ48	IR-In/Out, Serial Xpress interface
Features
Digital services	8d EPG, Now and Next, MHEG, Teletext, HbbTV, Subtitles
Ease of use	Picture Style, Sound Style, Local control (Joystick)
Hospitality Features	Apps (YouTube), Your brand (Customizable Home Screen, Location Name (Geonames ID), CMND&Create, Customizable Dashboard (HTML), Welcome Logo), CMND&Control (Off-Line Channel Editor, Off-Line Settings Editor, Remote Management over IP/RF, TV Group management, CMND&Check-In (Guest Name, Guest Language)
Languages	Guest language control
Clock	On-screen Clock, Optional External Clock
Timer	Sleep Timer, Wake Up Alarm, Wake Up On Channel, Wake Up Sounds
Remote Control	Low-Battery Detection, RC Battery Door Lock, Glow-in-the-Dark Clock button
Control	JSON API for TV Control-JAPIT, Serial Xpress Protocol
Cloning and Firmware update	Instant Initial Cloning, Via USB/RF/IP
Interactive DRM	VSecure, Playready Smoothstreaming
Power control	Quick Start Mode, Auto Power ON, WoLAN
Switch On control	Channel
Feature	Picture Format, Volume, Picture Style, Revenue generation (MyChoice)
Hotel mode	Joystick Control Lock, Menu lock, Installation Menu Lock, Volume limitation, Prison mode (high-security mode), TXT/MHEG/USB/EPG/Subtitle Lock
Healthcare features	Control (Multi-Remote Control, Healthcare RC compatible, Nurse call system compatible)
Convenience	Headphone out, Independent main speaker mute, Headphone Detection
Safety	Double isolation class II, Flame retardant
Multimedia
Video playback supported	Formats: H.264/MPEG4 AVC, MPEG1, MPEG2, MPEG4, WMV9/VC1, HEVC. Containers: AVI, MKV, VP9
Subtitle formats supported	SRT, SMI, TXT
Music formats supported	MP3, AAC, WAV, WMA (v2 up to v9.2), WMA-PRO (v9 and v10)
Picture formats supported	JPG, PNG, BMP, GIF
Supp. Video Resolution on USB	Up to 1920x1080p@60Hz
Accessories
Included	Edge Stand, Remote Control 22AV1904A/12, 2 x AAA batteries, Power Cord, Warranty Leaflet, Legal and Safety brochure
Optional	Easy RC 22AV1601B/12, Healthcare RC 22AV1604B/12, External Clock 22AV1860A/12, DOCSIS Cable Modem 22AV1970A, Setup RC 22AV9574A/12
Power
Mains power	AC 220-240 V; 50-60 Hz
Energy Label Class	F
EPREL registration number	345137
EU Energy Label power	44
Standby power consumption	<0.3 W
Power Saving Features	Eco mode
Ambient temperature	0 °C to 40 °C
Dimensions
Set Width	970
Set Height	562.5
Set Depth	78/82
Set width (with stand)	970
Set height (with stand)	626
Set depth (with stand)	194
Product weight	7.2
Product weight (+stand)	7.3
Wall-mount compatible	200 x 200 mm, M6

Warranty Period: 36 months

Philips Monitors
Dead on Arrival

Manufacturer's DOA period:7 days from end user

Contact: Philips Consumer Care
Tel. No.: 0208 1919 223 (opt 1)
Fax No.:
Email:
Comments: We are sorry you are having issues with your Philips product purchased, In order for us to assist you with your query as soon as possible the below procedure has been provided to ensure a smooth AfterCare experience.

Philips deal with all your AfterCare requirements for the product you have purchased, they can help with technical queries and offer advice.

Please contact them direct on 0208 1919 223. You will need the following information to hand

* Customer Name
* Email Address
* Product Model Number
* Serial Number
* Details of the fault

If Philips advise they are unable to fix the fault they will issue a returns authorisation number which looks like MMD---. Once provided Screen Moove will be able to issue a return and provide a replacement if required.

If you have any questions or would like further advise, please feel free to contact our AfterCare Team (ACE) on 0208 1919 223 / who will be happy to assist.
In Warranty Support
Warranty Period SEE WARRANTY NOTES
Contact: Philips Warranty Line
Tel. No. 0208 1919 223 (opt 1)
Fax No.
Email
Manufacturers Website http://www.philips.co.uk
Comments We are sorry you are having issues with your Philips product purchased, In order for us to assist you with your query as soon as possible the below procedure has been provided to ensure a smooth AfterCare experience.

Philips deal with all your AfterCare requirements for the product you have purchased, they can help with technical queries and offer advice.

Please contact them direct on 0208 1919 223. You will need the following information to hand

* Customer Name
* Email Address
* Product Model Number
* Serial Number
* Details of the fault

If you have any questions or would like further advise, please feel free to contact our AfterCare Team (ACE) on 0208 1919 223 / who will be happy to assist.
Description Downloads

Leaflet Downloads

Mechanical Drawing Downloads

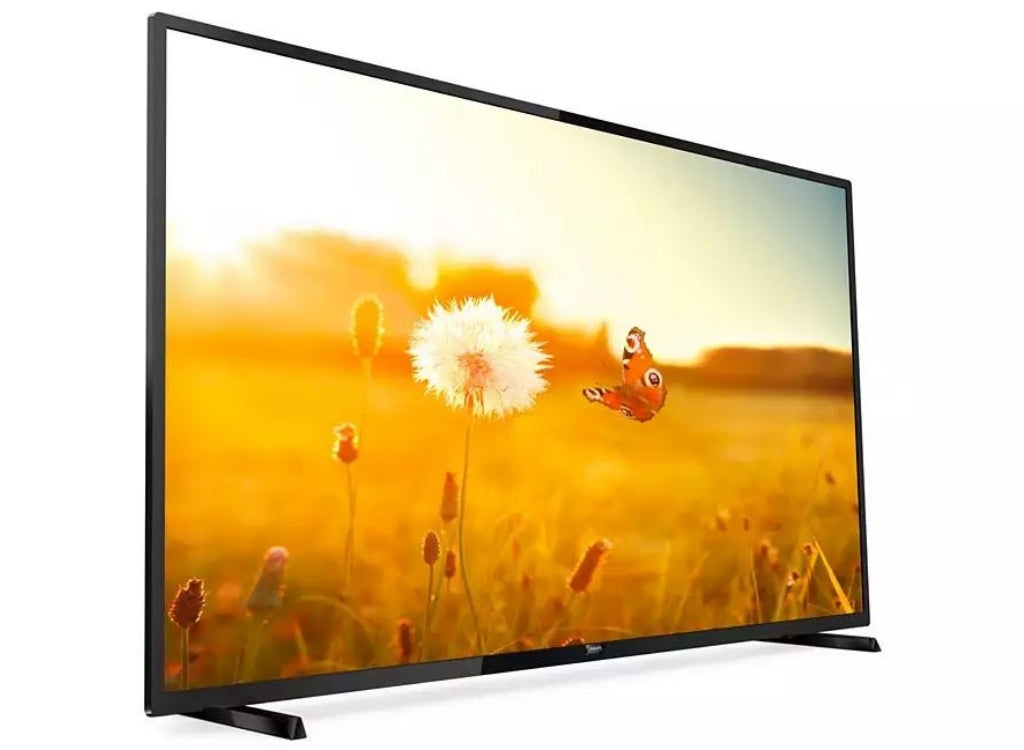

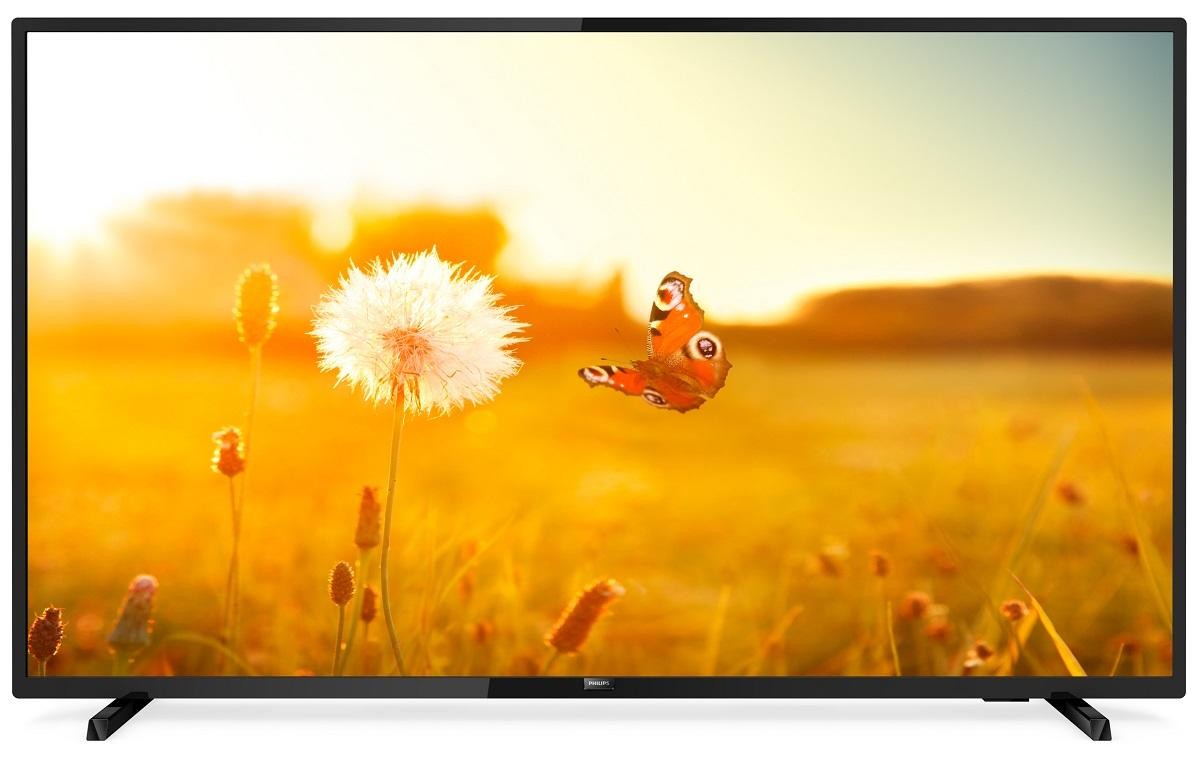

Philips EasySuite | 43HFL3014/12 43" 1080p Commercial TV
