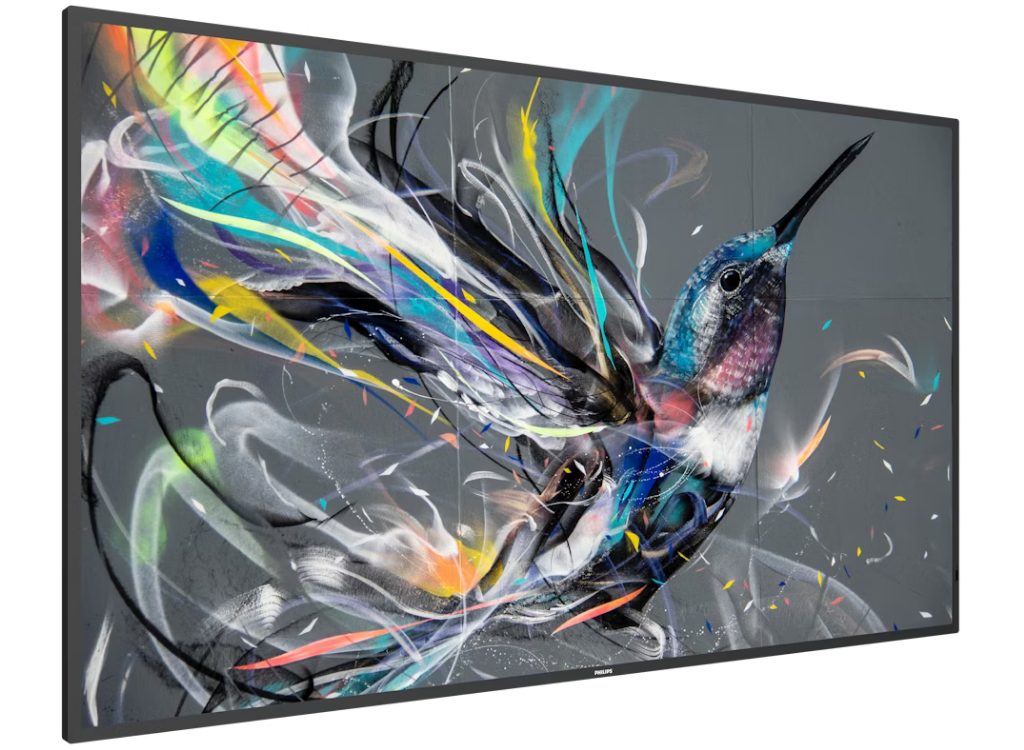

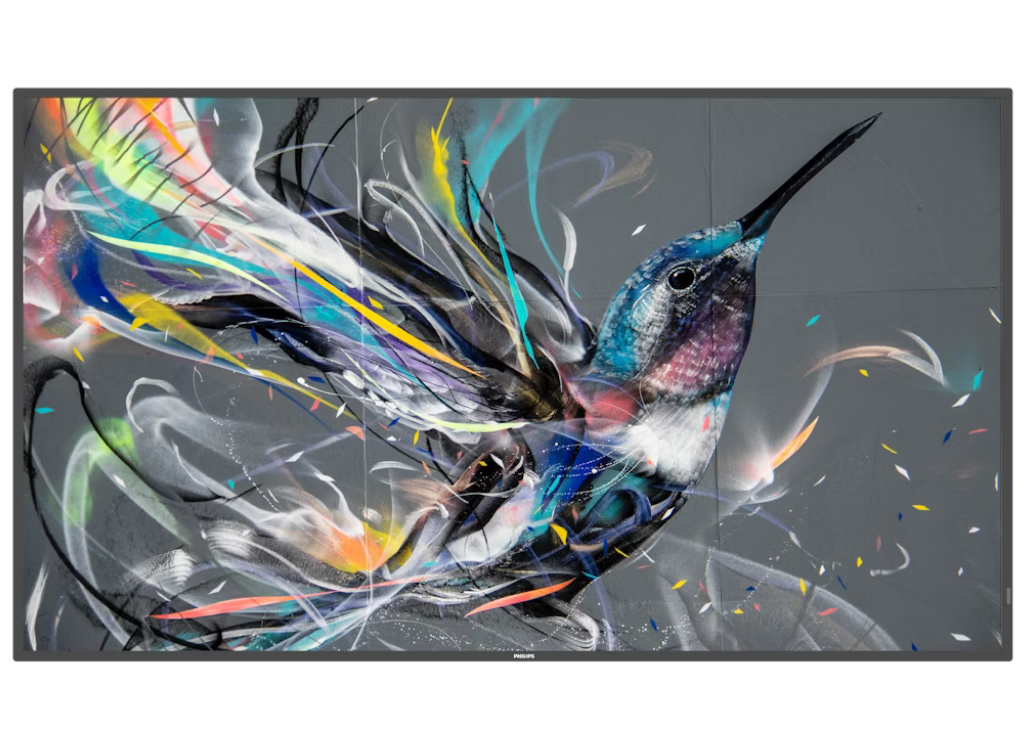

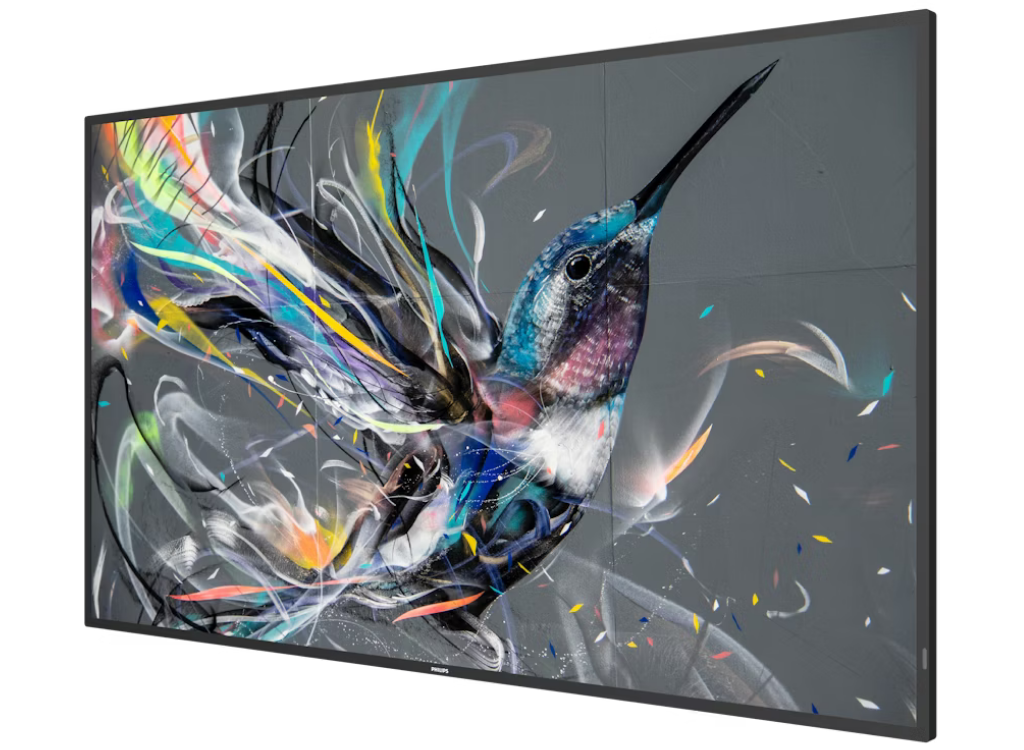

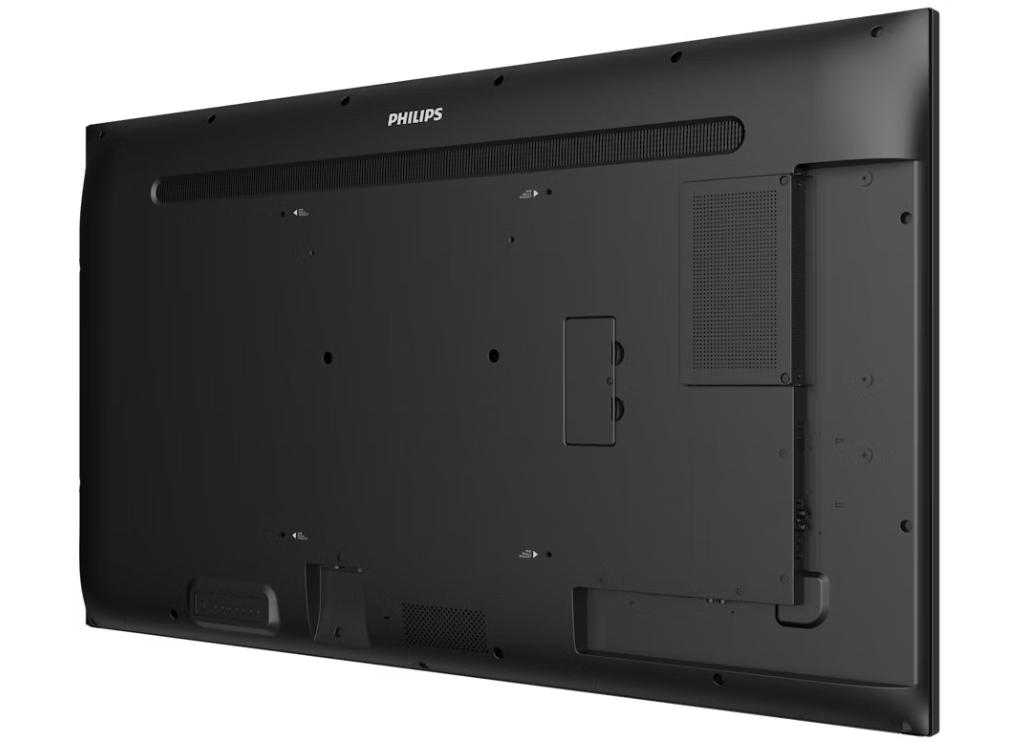

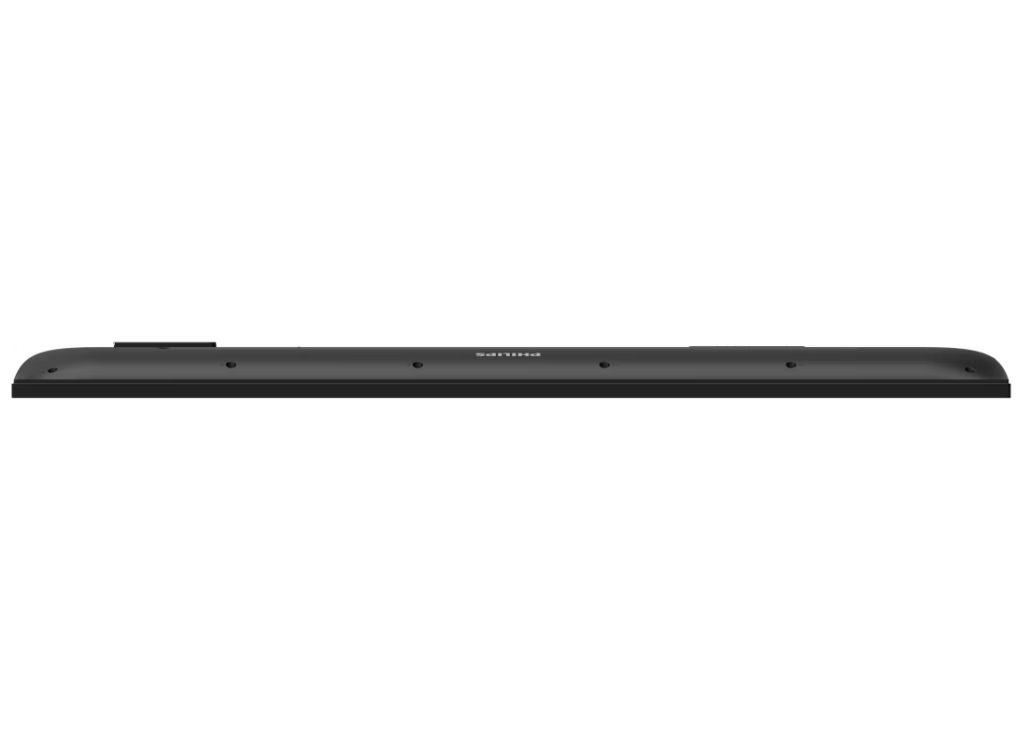

Philips Q-Line | 55BDL3511Q/00 55" 4K Smart Digital Signage Display

Stand out
Inform and enthral with a Philips Q-Line Professional Ultra HD Display. This reliable solution can be up and running as quickly as you need.
Stand out

Easy-setup 18/7 display.

55"

Direct LED Backlight

Ultra HD

Operate, monitor and maintain with CMND and Control

Run your display network over a local (LAN) connection. CMND and Control allows you to perform vital functions like controlling inputs and monitoring display status. Whether you're in charge of one screen or 100.

FailOver ensures that content is always playing

From waiting room to meeting room, never show a blank screen. FailOver lets your Philips Professional Display switch automatically between primary and secondary inputs, ensuring that content keeps playing even if the primary source goes down. Simply set a list of alternative inputs to be sure your business is always on.

Schedule what you want, when you want with SmartPlayer

Turn your USB into a true cost-effective digital signage device. Simply save your content (video, audio, pictures) on your USB and plug into your display. Create your playlist and schedule your content via the on-screen menu, and enjoy your own playlists anytime, anywhere.

Integrated media player. Easily schedule USB content

Easily schedule content to play from USB. Your Philips Professional Display will wake from standby to play the content you want, and then return to standby once playback has finished.

Specification	Value
Diagonal screen size (metric)	138.7 cm
Diagonal screen size (inch)	54.6 inch
Panel resolution	3840 x 2160
Optimum resolution	3840 x 2160 @ 60 Hz
Brightness	400 cd/m²
Dynamic contrast ratio	500,000:1
Response time (typical)	9 ms
Aspect ratio	16:9
Viewing angle (horizontal)	178 degree
Viewing angle (vertical)	178 degree
Pixel pitch	0.315 x 0.315 mm
Display colours	1.07 Billion
Panel technology	IPS
Contrast ratio (typical)	1300:1
Clinical image	D-Image preset (dicom part 14 compatible)
Haze	3%
Supported Display Resolution	See list above
Video input	DVI-I (x 1), HDMI 2.0 (x 2)
USB	2.0 (x 2)
Audio input	3.5 mm jack
Audio output	3.5 mm jack
External control	IR (in/out) 3.5 mm jack, RJ45, RS232C (in/out) 2.5 mm jack
Placement	Landscape (18/7), Portrait (18/7), Tiled Matrix (Up to 10 x 15)
Signal loop through	RS232, IR Loop through
Energy-saving functions	Smart Power
Network controllable	RS232, RJ45, Keyboard control (Hidden, Lockable), Remote control signal (Lockable)
Start-up	Switch on delay, Switch on status, Boot on source, Start-up window enable/disable Philips logo
Temperature range (operation)	0 ~ 40 °C
Temperature range (storage)	-20 ~ 60 °C
Altitude	0 ~ 3000 m
MTBF	50,000 hour(s)
Humidity range (operation)	20~80% RH (No condensation)
Humidity range (storage)	5~95% RH (No condensation)
Consumption (Typical)	140 W
Consumption (Max)	185 W
Standby power consumption	<0.5 W
Mains power	100 ~ 240 VAC
Energy Label Class	G
Built-in speakers	2 x 10 W RMS
Included Accessories	IR sensor cable (1.8 m) (x 1), Philips logo (x 1), AC power cord, AC Switch Cover, Quick start guide (x 1), Remote control and AAA batteries, RS232 daisy chain cable (x 1), USB Cover and screw x 1, Wire Clamper (x 3)
On-Screen Display Languages	Arabic, English, French, German, Italian, Japanese, Polish, Russian, Spanish, Simplified Chinese, Traditional Chinese
Regulatory approvals	CE, FCC Class A, CB, BSMI, EPA, VCCI, CU, ETL, EMF, PSB
Warranty	3 years
USB Playback Video	H.264, JPEG, MPEG, WMV3
USB Playback Picture	BMP, JPEG, PNG
USB Playback Audio	AAC, WMA, MPEG, HEAAC
Set Width	1241.8 mm
Set Height	712.6 mm
Set Depth	63.6 mm
Set Width (inch)	48.89 inch
Set Height (inch)	28.06 inch
Set Depth (inch)	2.50 inch
Bezel width	13.9 mm (Even bezel)

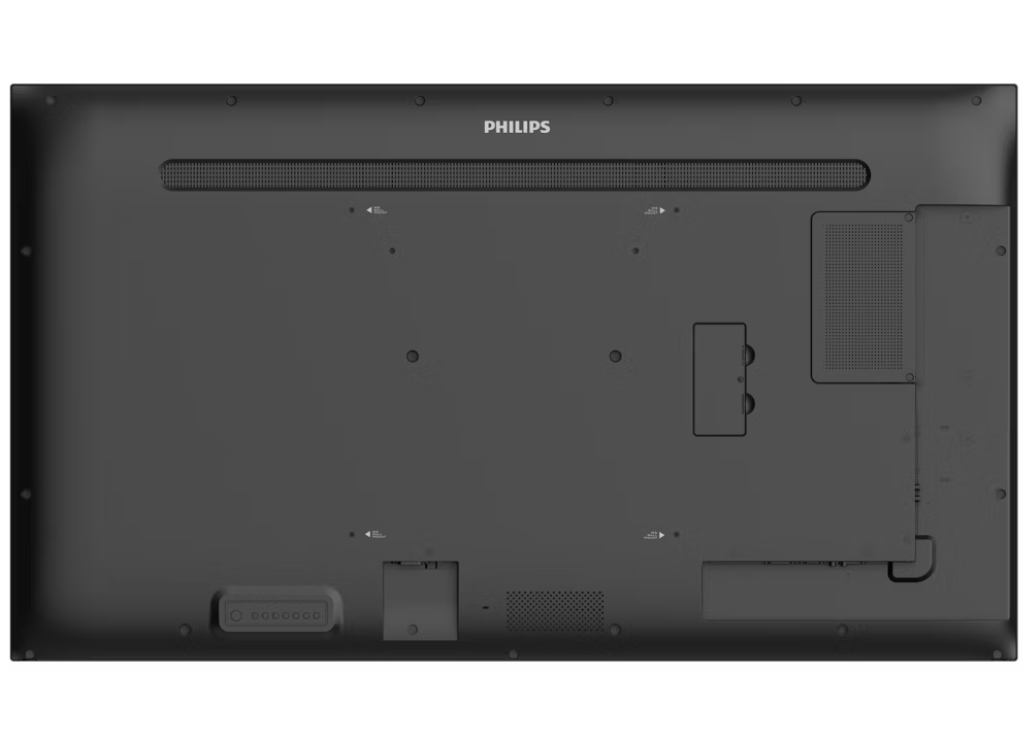

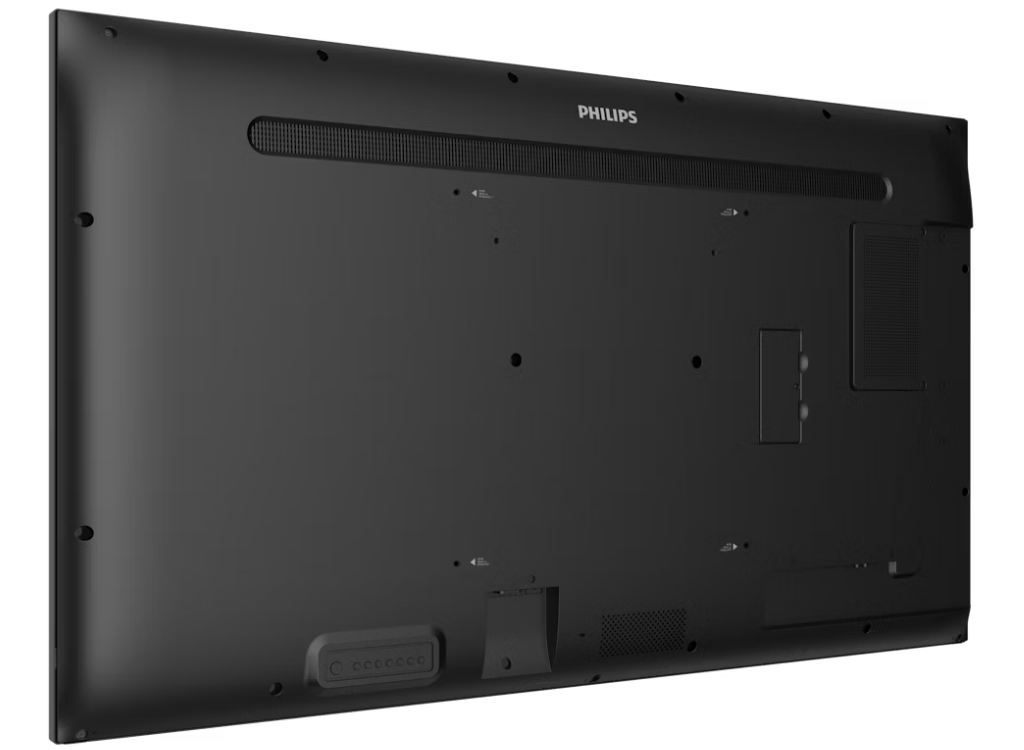

Wall Mount	400 mm x 400 mm, M6
Product weight	16.6 kg
Product weight (lb)	36.60 lb

Warranty Period: 36 months

Philips Monitors
Dead on Arrival

Manufacturer's DOA period:7 days from end user

Contact: Philips Consumer Care
Tel. No.: 0208 1919 223 (opt 1)
Fax No.:
Email:
Comments: We are sorry you are having issues with your Philips product purchased, In order for us to assist you with your query as soon as possible the below procedure has been provided to ensure a smooth AfterCare experience.

Philips deal with all your AfterCare requirements for the product you have purchased, they can help with technical queries and offer advice.

Please contact them direct on 0208 1919 223. You will need the following information to hand

* Customer Name
* Email Address
* Product Model Number
* Serial Number
* Details of the fault

If Philips advise they are unable to fix the fault they will issue a returns authorisation number which looks like MMD---. Once provided Screen Moove will be able to issue a return and provide a replacement if required.

If you have any questions or would like further advise, please feel free to contact our AfterCare Team (ACE) on 0208 1919 223 / who will be happy to assist.
In Warranty Support
Warranty Period SEE WARRANTY NOTES
Contact: Philips Warranty Line
Tel. No. 0208 1919 223 (opt 1)
Fax No.
Email
Manufacturers Website http://www.philips.co.uk
Comments We are sorry you are having issues with your Philips product purchased, In order for us to assist you with your query as soon as possible the below procedure has been provided to ensure a smooth AfterCare experience.

Philips deal with all your AfterCare requirements for the product you have purchased, they can help with technical queries and offer advice.

Please contact them direct on 0208 1919 223. You will need the following information to hand

* Customer Name
* Email Address
* Product Model Number
* Serial Number
* Details of the fault

If you have any questions or would like further advise, please feel free to contact our AfterCare Team (ACE) on 0208 1919 223 / who will be happy to assist.
