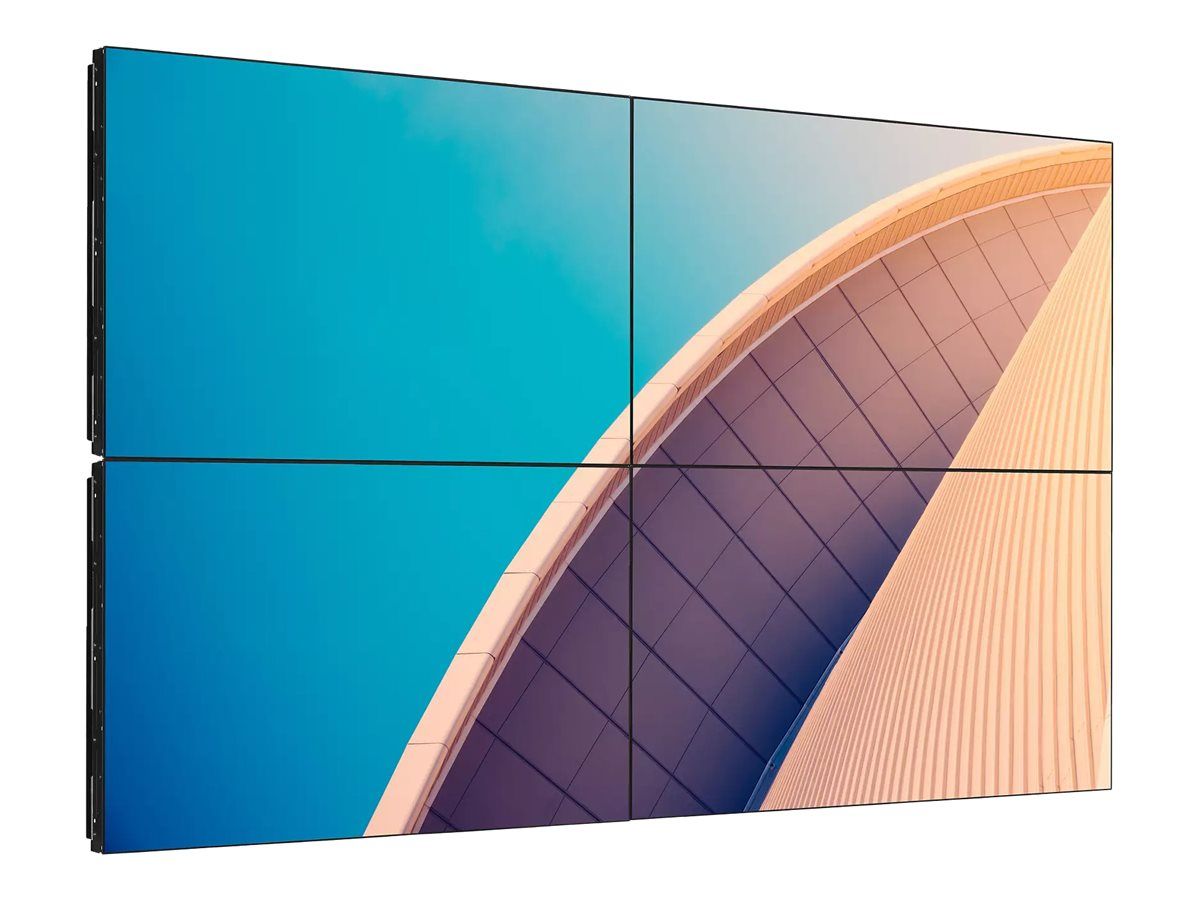

Philips X-Line | 49BDL2005X/00 49" Ultra Slim Video Wall Display
Philips X-Line | 49BDL2005X/00 49" Ultra Slim Video Wall Display
Go big
Command attention with a Philips X-Line Professional Videowall Display. Crisp contrast and narrow bezels enable clear, distraction-free imaging. Whether you're running an airport or hosting a conference.
Go big
Versatile videowall display.
49"
Direct LED Backlight
Full HD
500 cd/m²
Operate, monitor and maintain with CMND and Control
Run your display network over a local (LAN) connection. CMND and Control allows you to perform vital functions like controlling inputs and monitoring display status. Whether you're in charge of one screen or 100.
OPS slot allows for PC embedding without cabling
Integrate a full-power PC or Android-powered CRD50 module directly into your Philips Professional Display. The OPS slot contains all the connections you need to run your slot-in solution, including a power supply.
FailOver ensures that content is always playing
From waiting room to meeting room, never show a blank screen. FailOver lets your Philips Professional Display switch automatically between primary and secondary inputs, ensuring that content keeps playing even if the primary source goes down. Simply set a list of alternative inputs to be sure your business is always on.
Tiling mode. Create tiled 4K videowalls of any size
Connect two or more Philips professional displays to create a tiled videowall without the need for external devices. A single player takes care of content, whether you have four screens or 40. 4K content is fully supported and if you're showing that content on four screens you get the best possible dot-by-dot resolution.
Add Android processing power with an optional CRD50 module
Embed an Android System-on-Chip (SoC) into your Philips Professional Display. The optional CRD50 module is an OPS device that enables Android processing power without the need for cables. Simply slide into the OPS slot, which contains all the connections needed to run the module (including power supply).
-
| Technical Specifications |
Details |
| Picture/Display |
|
| Diagonal screen size (metric) |
123.2 cm |
| Diagonal screen size (inch) |
48.5 inch |
| Panel resolution |
1920 x 1080p |
| Optimum resolution |
1920 x 1080 @ 60 Hz |
| Brightness |
500 cd/m² |
| Contrast ratio (typical) |
1200:1 |
| Dynamic contrast ratio |
500,000:1 |
| Response time (typical) |
8 ms |
| Aspect ratio |
16:9 |
| Viewing angle (horizontal) |
178 degree |
| Viewing angle (vertical) |
178 degree |
| Pixel pitch |
0.559 x 0.559 mm |
| Display colours |
1.07 B |
| Picture enhancement |
3/2 - 2/2 motion pull down |
|
Motion compens. deinterlacing |
|
Progressive scan |
|
Dynamic contrast enhancement |
|
Haze: 3% |
| Supported Display Resolution |
|
| Computer formats |
Various formats listed |
| Video formats |
Various formats listed |
| Connectivity |
|
| Video input |
Various inputs listed |
| Video output |
Various outputs listed |
| Audio input |
3.5 mm jack |
|
Audio Left/Right (RCA) |
| Audio output |
3.5 mm jack |
| External speaker connection |
|
| External control |
Various control interfaces |
| Other connections |
OPS |
| Convenience |
|
| Signal loop through |
RS232 |
|
DisplayPort |
|
DVI Loop through |
|
IR Loop through |
| Ease of installation |
Carrying Handles |
|
Smart Insert |
| Energy-saving functions |
Smart Power |
| Network controllable |
RS232 |
|
RJ45 |
| Placement |
Portrait |
|
Landscape |
| Screen-saving functions |
Pixel Shift, Low Bright |
| Tiled Matrix |
Up to 10 x 10 |
| Control software |
SICP / CMND & Control |
| Dimensions |
|
| Bezel width |
Top/Left: 2.3 mm, Bottom/Right: 1.2 mm |
| Set Width |
1077.6 mm |
| Set Height |
607.8 mm |
| Set Depth |
93.5 mm mm |
| Set Width (inch) |
42.4 inch |
| Set Height (inch) |
23.9 inch |
| Set Depth (inch) |
3.68 inch |
| Wall Mount |
400 x 400 mm, M6 |
| Product weight |
21.0 kg |
| Product weight (lb) |
47.30 lb |
| Smart Insert mount |
100 x 100 mm, 6 x M4 L6 |
| Bezel thickness |
3.5 mm (B-B) |
| Operating conditions |
|
| Temperature range (operation) |
0 ~ 40 °C |
| Temperature range (storage) |
-20 ~ 60 °C |
| Altitude |
0 ~ 3000 m |
| MTBF |
50,000 hour(s) |
| Humidity range (operation)[RH] |
20~80% RH (No condensation) |
| Humidity range (storage) [RH] |
5~95% RH (No condensation) |
| Power |
|
| Standby power consumption |
<0.5 W |
| Consumption (Max) |
220 W |
| Consumption (Typical) |
100 W |
| Sound |
|
| Built-in speakers |
2 x 10 W (RMS) |
| Accessories |
|
| Included Accessories |
Various accessories listed |
| Optional accessories |
Colour calibration kit |
|
CRD41 |
|
Edge finishing kit |
| Multimedia Applications |
|
| USB Playback Audio |
Various formats listed |
| USB Playback Picture |
Various formats listed |
| USB Playback Video |
Various formats listed |
