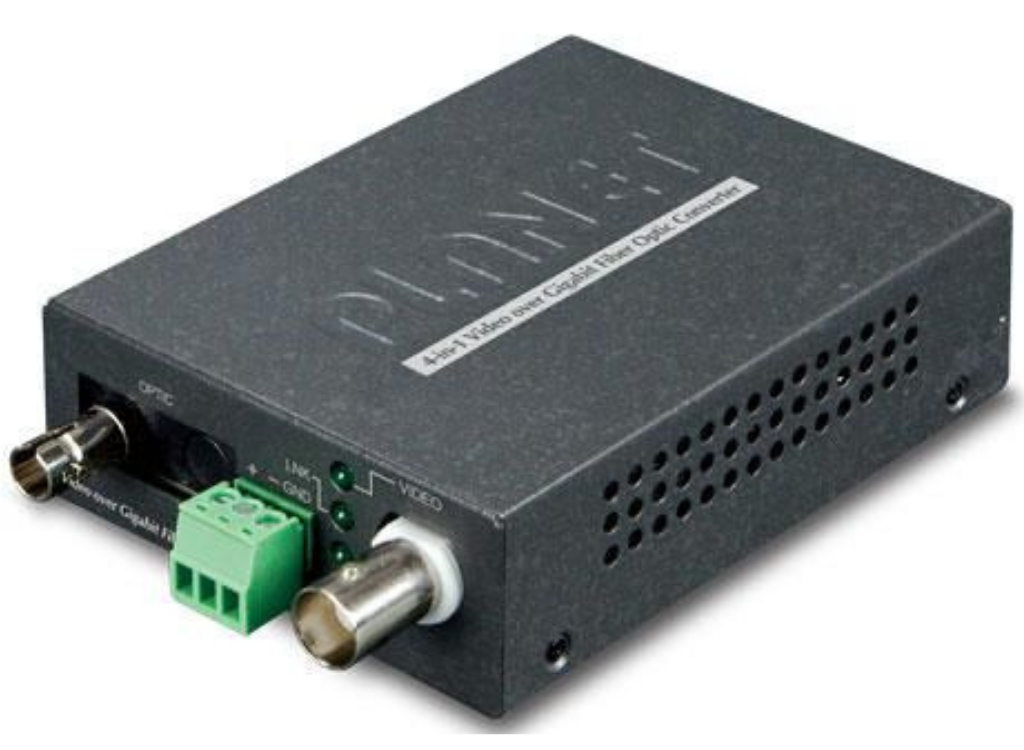

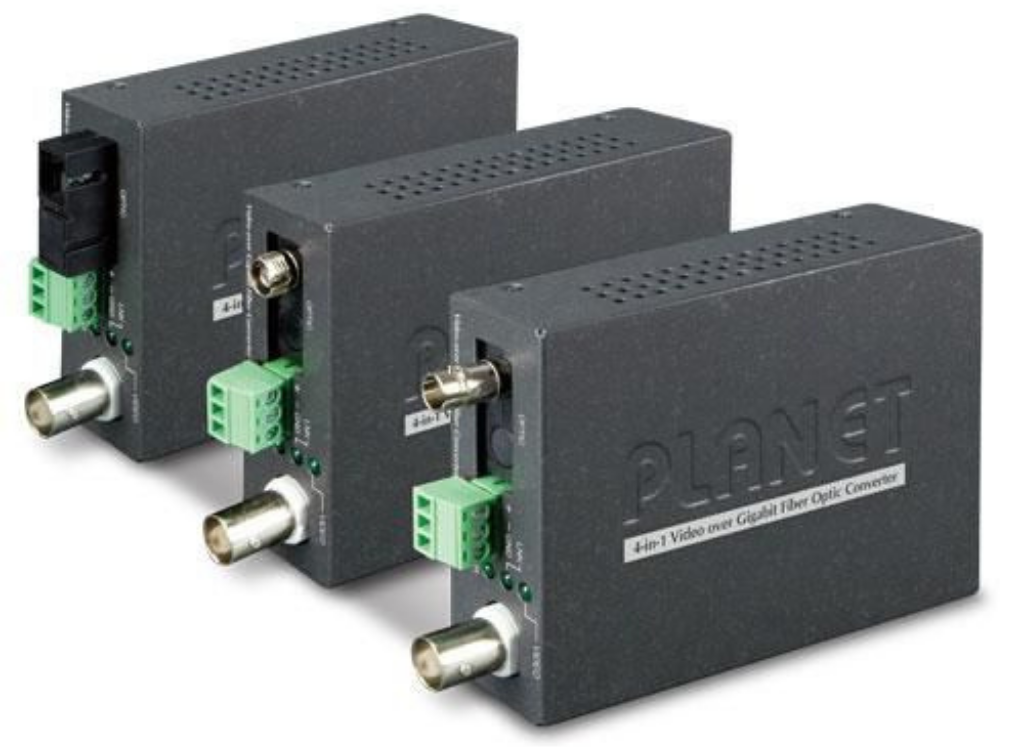

Planet 1-Channel 4-in-1 Video over Gigabit Fiber Bundle Kit (VF-101G-T + VF-101G-R) | VF-101G-KIT
SKU: VF-101G-KIT
£29.89 (Excl. VAT)
- Description
- Specifications
- Downloads
-
Planet 1-Channel 4-in-1 Video over Gigabit Fiber Bundle Kit (VF-101G-T + VF-101G-R) | VF-101G-KIT
Long Distance Analog Surveillance Transmission System
To deploy AHD/CVI/TVI/CVBS analog camera in a remote place efficiently and provide high video quality and reliable signal, PLANET has developed the video over Gigabit fiber media converter kit, VF-101G/102G/106G-KIT, which is ideal for extending the distance and signal conversion by transmitting the AHD/CVI/TVI/CVBS video and data over the fiber-optic cable. Adopting the intelligent encoding/decoding technology and with the compact box, the VF-101G/102G/106G-KIT video over fiber media converter enables videos to be delivered in high quality over a distance of up to 20km long.
-
Category Specification Design Certification FCC, CE LED Indicators Link/Power Product Colour Black Material Metal Wall Mountable Yes Features Analog Signal Format System NTSC/PAL/SECAM Bandwidth 60 MHz Impedance 75 Ω Maximum Transfer Distance 20000 m Signal-to-Noise Ratio (SNR) 67 dB Supported Video Modes 1080p/480p Type AV transmitter & receiver Legal Information UNSPSC Code (Icecat) 43201553 Logistics Data Harmonized System (HS) Code 85176990 Network Cable Types Supported Fiber Operational Conditions Operating Relative Humidity 0 - 95% Operating Temperature -25 - 70 °C Storage Relative Humidity 0 - 95% Storage Temperature -30 - 80 °C Other Features Dimensions (WxDxH) 94 x 70 x 26 mm Package Dimensions Depth (Package, cm) 41 cm Gross Weight (Package, kg) 0.9 kg Height (Package, cm) 28 cm Width (Package, cm) 31 cm Packaging Content AC Adapter Included Yes Manual Yes Ports & Interfaces BNC Input Ports 1 BNC Output Ports 1 Connectivity Technology Wired Fiber Optic Connector ST Power Input Current 2 A Operating Voltage 5 V Power Consumption (Max) 4.8 Watt Product Dimensions Net Weight (Product, kg) 0.37 kg Technical Details Harmonized System (HS) Code 85176990 Vendor Information Brand Name Planet Warranty 3 Year(s) Weight & Dimensions Dimensions (WxDxH) 94 x 70 x 26 mm -
Description Downloads Datasheet Downloads
