Planet 1-Port Long Reach PoE over UTP Extender Kit (LRP-101UH + LRP-101UE) | LRP-101U-KIT

PLANET Long Reach PoE solution is designed to extend IP Ethernet transmission and inject power simultaneously into a remote 802.3af/at PoE compliant powered device (PD) beyond the 100 meters distance limit of Ethernet.

Convenient PoE over UTP Extender in Harsh Environment
The LRP-101U-KIT, a PLANET Long Reach PoE solution, is a Single-port PoE over UTP Extender Kit featuring long range data and power transmission for distance up to 500m (1,640ft.) over UTP/STP cable, and another 100m over Ethernet cable to remote PoE IP camera, PoE wireless AP or access control systems complied with 802.3af/at PoE. The LRP-101U-KIT provides point to point application for easy plug-n-play operation and deployment in climatically demanding environments with wide temperature range from -20 to 70 degrees C. Without the problem of power source, it makes the installation of remote PoE powered devices easier and more efficiently.

Composition of Long Reach PoE over UTP Extender Kit

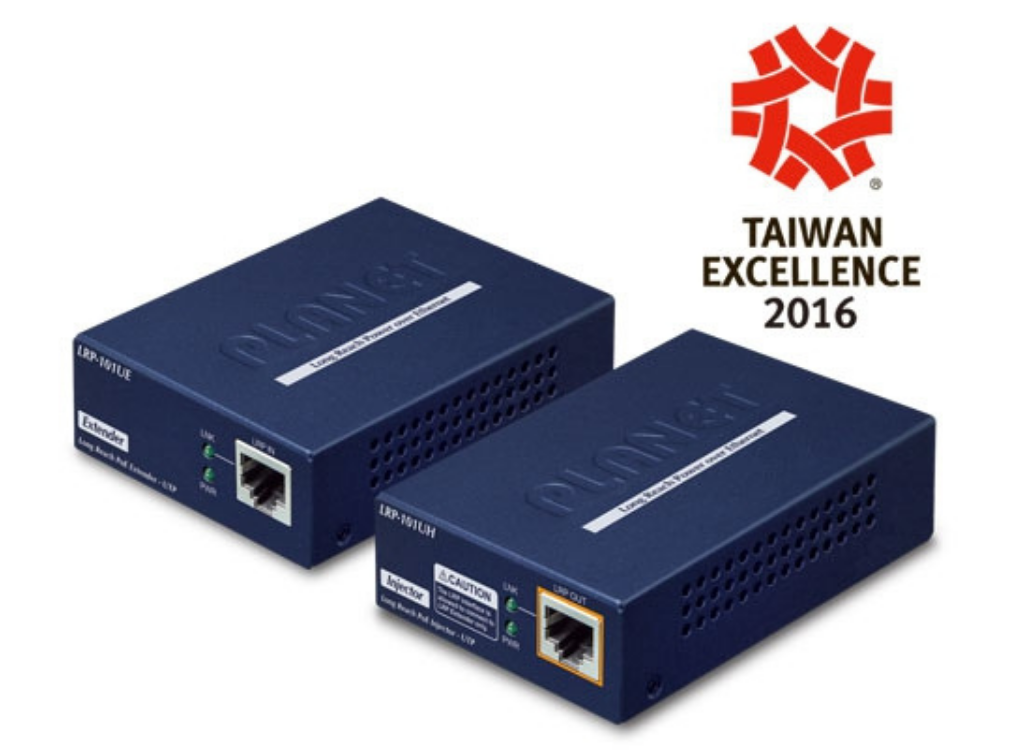

The LRP-101U-KIT consists of a Long Reach PoE injector and a Long Reach PoE extender set which can work in pair anywhere on your network infrastructure. It contains two brand-new products:

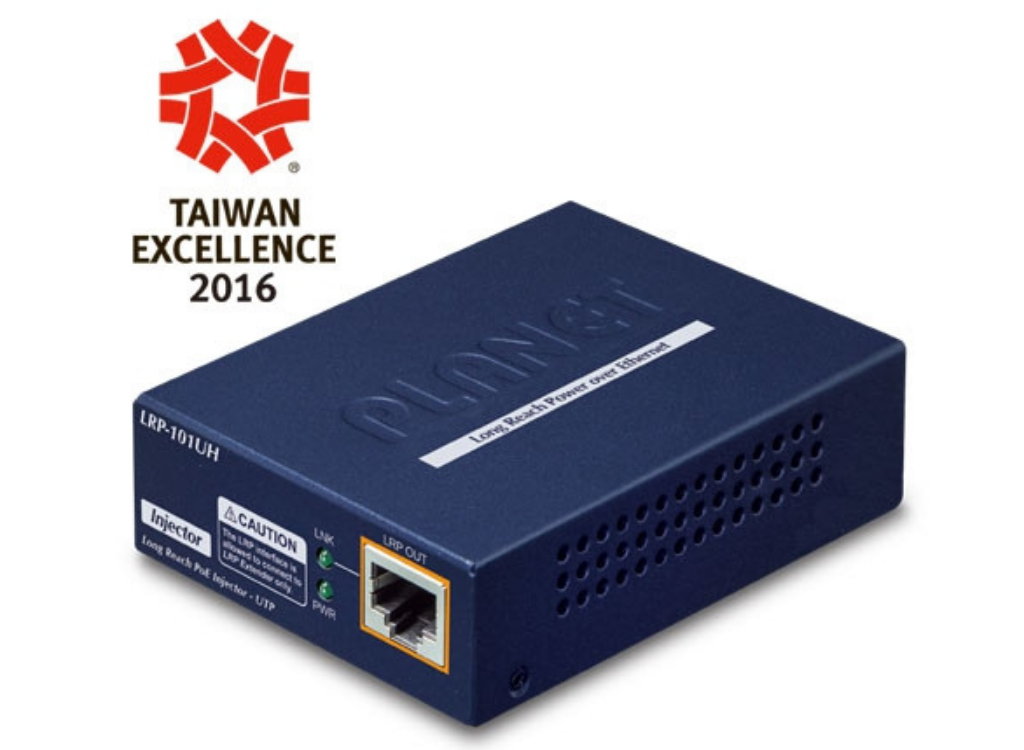

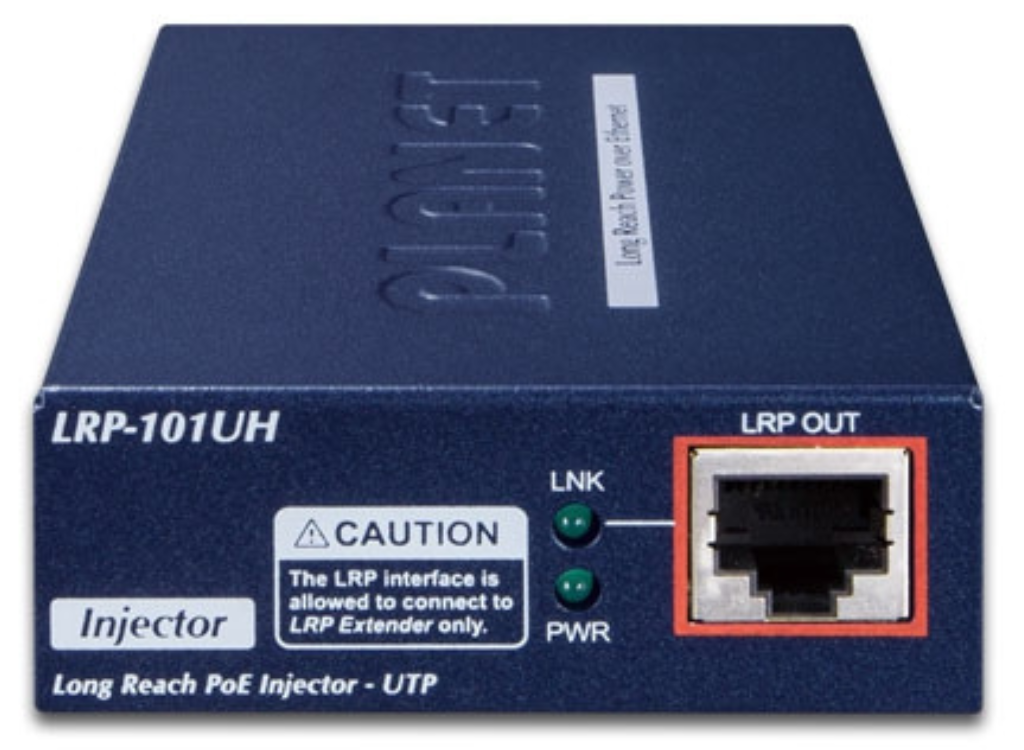

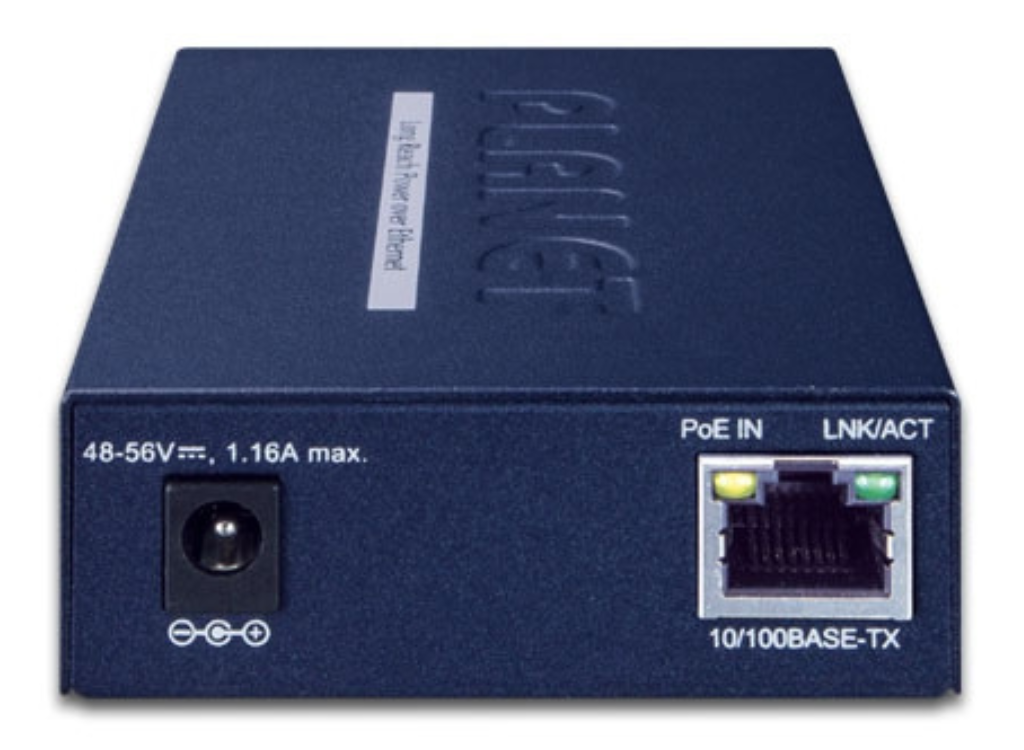

■ LRP-101UH: 1-Port 10/100TX PoE PD + 1-Port UTP Long Reach PoE Injector

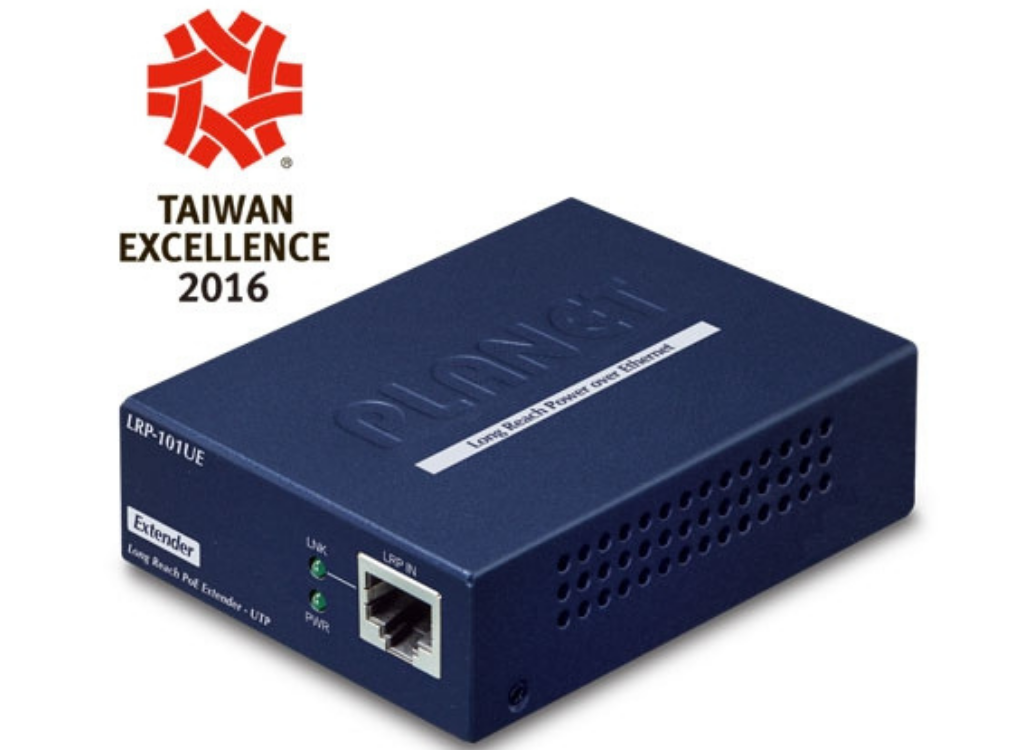

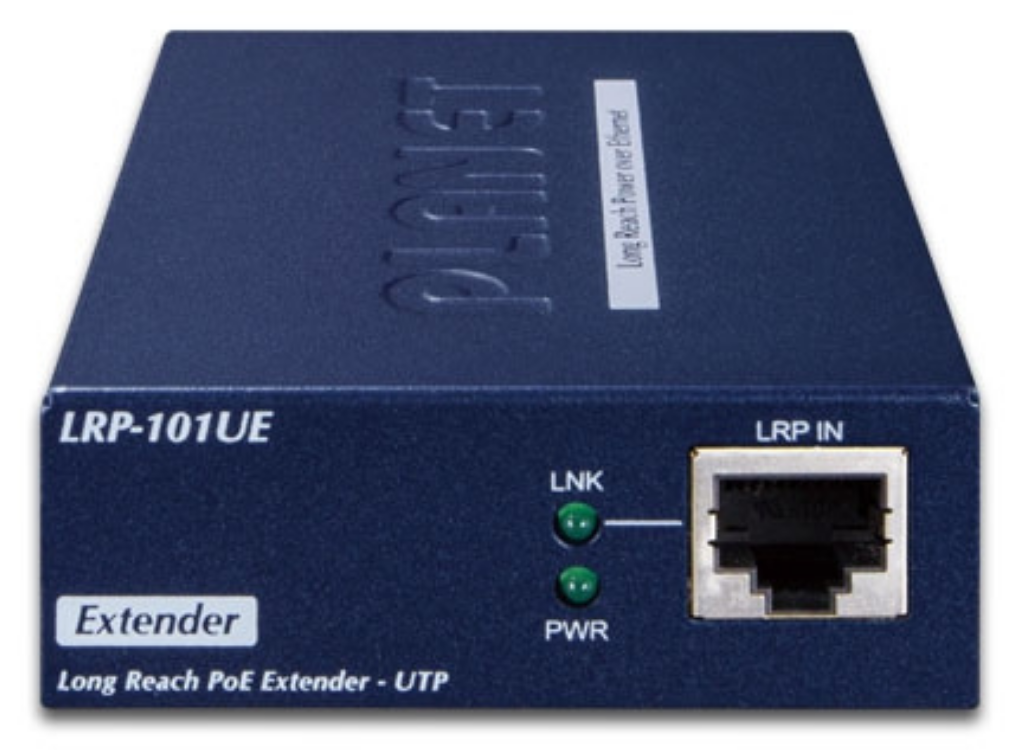

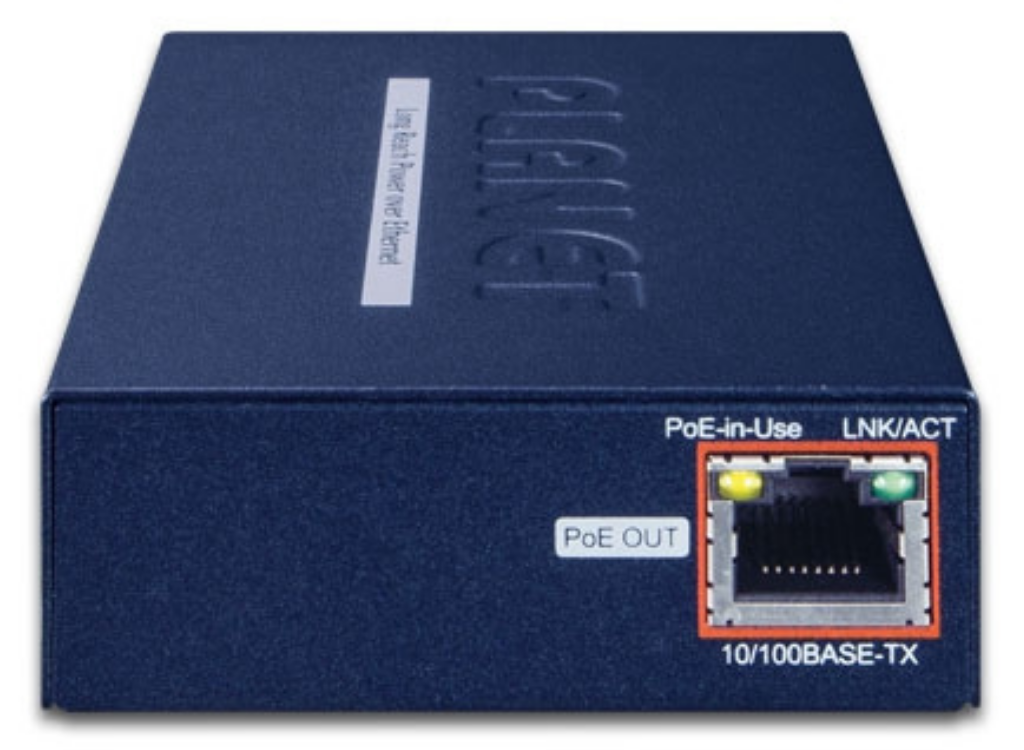

■ LRP-101UE: 1-Port 10/100TX PoE PSE + 1-Port UTP Long Reach PoE Extender

The LRP-101UH transmits data and power over UTP/STP cable to the LRP-101UE, which can be located as far as 500m away. It will then deliver the data and power output with a maximum of up to 25 watts to a PoE PD over Ethernet cable, thus expediting the IP surveillance network or wireless LAN infrastructure in long distance. Both of the two products come in a compact but rugged metal housing. Their wall-mounted design fits easily in any space-limited location.

IP Ethernet and Power over Long UTP or Twisted-pair Cable
A normal UTP cable can only be extended up to 100 meters, but the LRP-101U-KIT can extend PoE networking up to 500 meters (1,640ft.) over long 4-pair UTP cable or up to 300 meters (1,000ft.) over an existing 1-pair twisted-pair cable, such as telephone wire, with stable, high-quality video transmission. It eliminates the need for additional remote site power while allowing a single power source to provide power to both LRP extenders and the PoE IP camera at long range.

Stable Operating Performance under Difficult Environments
PLANET Long Reach PoE Extender Kit is the perfect solution for distance extension for PoE or non-PoE networking for warehouses, parking lots, campuses, casinos, and many more. They can operate stably under temperature ranging from -20 to 70 degrees C to enable the users to conveniently operate the kit in almost any location.

Plug-n-play Installation
With the plug and play feature, PLANET Long Reach PoE Extender Kit can be used immediately without the need of configuration and is also compliant with all kinds of IP network protocols. Moreover, the rich diagnostic LEDs on the front panel show the operating status of the individual port and the whole system, enabling the administrator to efficiently manage the network.

Applications

The LRP-101U-KIT includes two products: The LRP-101UH, an UTP Long Reach PoE Injector (LRP injector), and the LRP-101UE, an UTP Long Reach PoE Extender (LRP extender). Working in pair, the LRP-101UH can be powered by either external DC power adapter or PoE+ Ethernet switch, and from there, the LRP-101UE’s 802.3at standard PoE output goes to PoE Powered Device (PDs). The LRP-101U-KIT can be widely used in Intelligent Transportation Systems (ITS), traffic surveillance, security monitoring, automation control, intelligent residential districts and so on.

The LRP-101U-KIT can function in two different kinds of combinations:

Type 1:　LRP-101UH with PoE power input and LRP-101UE with PoE power output
The LRP-101UH injector is powered by IEEE 802.3at/af PoE source and it transmits data and power over UTP cable to the LRP-101UE extender. An IEEE 802.3at/af compliant PoE PD will then automatically be powered by the LRP-101UE via UTP cabling.

Type 2:　LRP-101UH with 48~56V DC power input and LRP-101UE with PoE power output
The LRP-101UH injector is powered via the DC power adapter and it transmits data and power over UTP cable to the LRP-101UE extender. An IEEE 802.3at/af compliant PoE PD will then automatically be powered by the LRP-101UE via UTP cabling.

Key Features

PoE over Long UTP
Eliminates power cabling with PoE over UTP
Supports Power over Ethernet PSE (PoE Injector)
Power and Ethernet data transmission of 500m over UTP/STP cabling
Complies with IEEE 802.3af / IEEE 802.3at Power over Ethernet PD on RJ45 port
Supports Long Reach PoE power up to 30.8 watts (depending on power source and cable distance)
Supports PoE Power up to 25 watts (depending on power source and cable distance)
Auto detects remote powered device (PD)
Plug and Play; no PC required

Industrial Case and Installation
Supports extensive LED indicators for network diagnostics
Metal case protection
Compact size, DIN-rail and wall-mount design
Supports EFT surge protection of 4KV DC for power line
Supports Ethernet ESD protection of 2kV DC
-20 to 70 degrees C operating temperature
