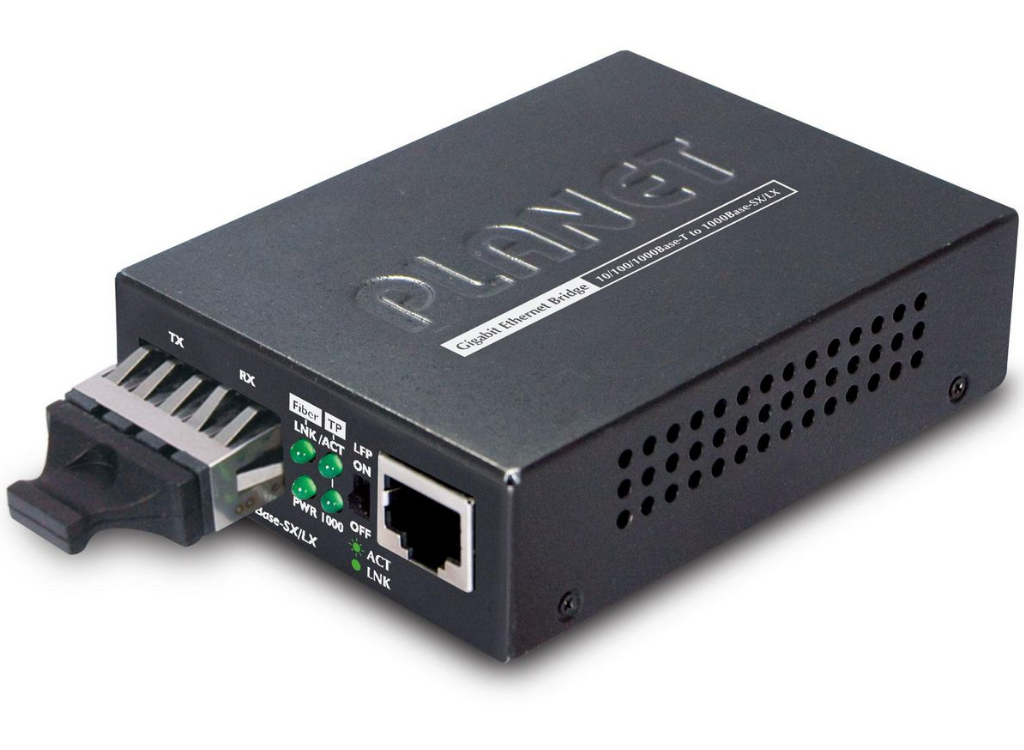

Offering the flexibility with all kinds of 10/100/1000Mbps Ethernet Media on RJ-45 port and performing highly stable Gigabit fiber capability, the PLANET Gigabit media converter series GT-80X (GT-802, GT-802S, GT-805A and GT-806A/B) supports conversion between 10/100/1000Base-T and 1000Base-LX/SX network. The GT-80X series offer three types of connector, SC / SFP / WDM connector, with single-mode or multi-mode media as required so that an Gigabit fiber network can be efficiently constructed through the Ethernet.
Designed in compact size, the GT-80X can be used as a standalone unit or being installed in the media converter chassis such as the PLANET MC-700/MC-1000R/MC-1500 ( 7/10/15-slot Media Converter Chassis to build a centralized fiber-optic network. The media chassis can feed GT-80X power to maintain the fiber-optic network at one location.
As the GT-80X series fully complies with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T and IEEE 802.3z 1000Base-LX/SX, the installation of the Gigabit media conversion is quite quick and easy by simple plug and play. The GT-80x also supports flow control and back pressure in half-duplex to eliminate packets loss. Even when the web UI is not available, the network manager still can remotely control and monitor GT-80X by OAM (TS-1000 and IEEE 802.3ah) terminal function such as remote failure indication, loop back test, port status and performance monitoring and troubleshooting.
| Category | Specification |
|---|---|
| Design | |
| Certification | FCC Class A, CE Class A |
| Internal | No |
| LED Indicators | Yes |
| Product Colour | Black |
| Legal Information | |
| EU ECCN Code | N/A |
| UNSPSC Code (Icecat) | 43201553 |
| US ECCN Code | 5A992 |
| Network | |
| Auto MDI/MDI-X | Yes |
| Converter Input Interface | 1000Base-T |
| Converter Output Interface | 1000Base-SX |
| Duplex System | Full/Half |
| Ethernet Interface Type | Gigabit Ethernet |
| Ethernet LAN Data Rates | 10/100/1000 Mbit/s |
| Maximum Data Transfer Rate | 1000 Mbit/s |
| Networking Standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z |
| Operational Conditions | |
| Operating Humidity (H-H) | 5 - 95 % |
| Operating Temperature (T-T) | 0 - 50 °C |
| Storage Humidity (H-H) | 5 - 95 % |
| Storage Temperature (T-T) | -10 - 70 °C |
| Other Features | |
| Dimensions (WxDxH) | 97 x 69 x 26 mm |
| Operating Temperature (T-T) | 32 - 122 °F |
| Package Dimensions | |
| Depth Verified | 13.9 cm |
| Gross Weight Verified | 0.466 kg |
| Height Verified | 6.9 cm |
| Width Verified | 28.2 cm |
| Performance | |
| Maximum Transfer Distance | 550 m |
| Sensitivity | -13.5 dBmW |
| Tx Power (Max) | -4 dBmW |
| Tx Power (Min) | -9.5 dBmW |
| Wavelength | 850 nm |
| Ports & Interfaces | |
| Connectivity Technology | Wired |
| Ethernet LAN (RJ-45) Ports | 1 |
| Fiber Optic Connector | SC |
| Fiber Ports Quantity | 1 |
| Power | |
| Input Current | 2 A |
| Input Voltage | 5 V |
| Power Consumption (Typical) | 5.6 Watt |
| Product Dimensions | |
| Net Weight | 0.19 kg |
| Product Depth | 9.7 cm |
| Product Height | 2.6 cm |
| Product Width | 7 cm |
| Technical Details | |
| Harmonized System (HS) Code | 85176990 |
| Vendor Information | |
| Brand Name | Planet |
| Warranty | 3 Year(s) |
| Document Type | Availability |
|---|---|
| Datasheet | Downloads |
