Planet 10/100/1000Base-T to 1000Base-SX (SC, SM) Media Converter | GT-802S
SKU: GT-802S
£57.33 (Excl. VAT)
- Description
- Specifications
- Downloads
-

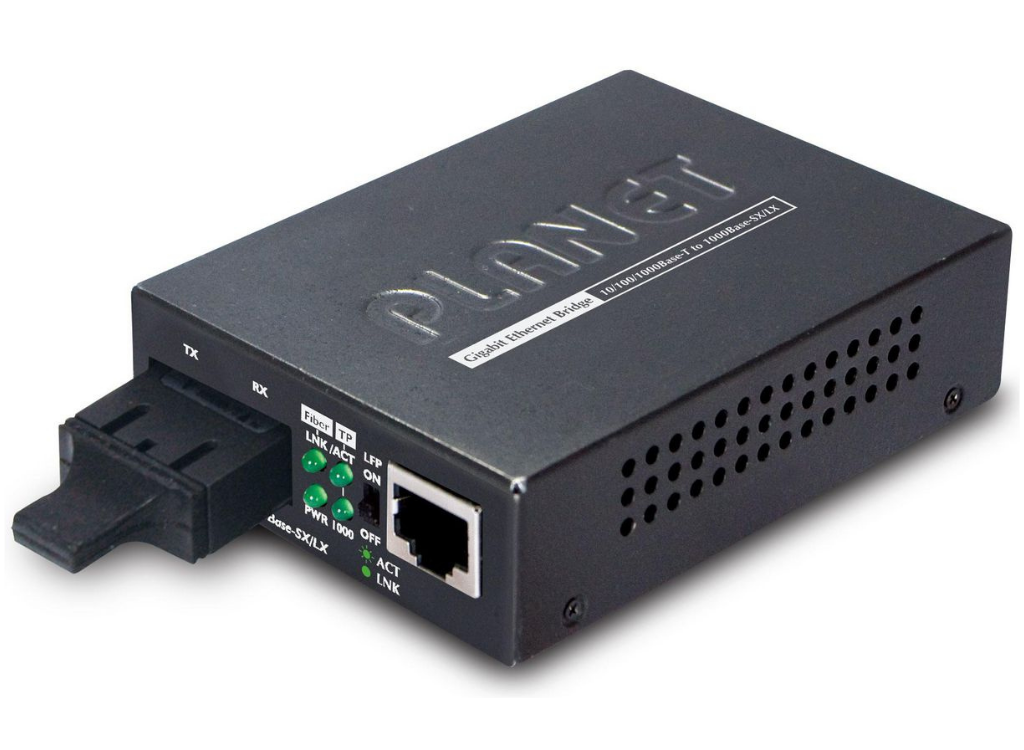

Planet 10/100/1000Base-T to 1000Base-SX (SC, SM) Media Converter | GT-802S
Offering the flexibility with all kinds of 10/100/1000Mbps Ethernet Media on RJ-45 port and performing highly stable Gigabit fiber capability, the PLANET Gigabit media converter series GT-80X (GT-802, GT-802S, GT-805A and GT-806A/B) supports conversion between 10/100/1000Base-T and 1000Base-LX/SX network. The GT-80X series offer three types of connector, SC / SFP / WDM connector, with single-mode or multi-mode media as required so that an Gigabit fiber network can be efficiently constructed through the Ethernet.
Designed in compact size, the GT-80X can be used as a standalone unit or being installed in the media converter chassis such as the PLANET MC-700/MC-1000R/MC-1500 ( 7/10/15-slot Media Converter Chassis to build a centralized fiber-optic network. The media chassis can feed GT-80X power to maintain the fiber-optic network at one location.
As the GT-80X series fully complies with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T and IEEE 802.3z 1000Base-LX/SX, the installation of the Gigabit media conversion is quite quick and easy by simple plug and play. The GT-80x also supports flow control and back pressure in half-duplex to eliminate packets loss. Even when the web UI is not available, the network manager still can remotely control and monitor GT-80X by OAM (TS-1000 and IEEE 802.3ah) terminal function such as remote failure indication, loop back test, port status and performance monitoring and troubleshooting. -
Category Specification Design Certification FCC Class A, CE Class A Internal No LED indicators Yes Product colour Black Legal Information EU ECCN Code N/A UNSPSC Code (Icecat) 43201553 US ECCN Code 5A992 Logistics data HS code 85176990 Network Auto MDI/MDI-X Yes Converter input interface 1000Base-T Converter output interface 1000Base-LX Duplex system Full/Half Ethernet interface type Gigabit Ethernet Ethernet LAN data rates 10/100/1000 Mbit/s Maximum data transfer rate 1000 Mbit/s Networking standards IEEE 802.3/IEEE 802.3ab/IEEE 802.3u/IEEE 802.3z Operational conditions Operating relative humidity (H-H) 5 - 95 % Operating temperature (T-T) 0 - 50 °C Storage relative humidity (H-H) 5 - 95 % Storage temperature (T-T) -10 - 70 °C Other features Dimensions (WxDxH) 97 x 69 x 26 mm Operating temperature (T-T) 32 - 122 °F Package dimensions (verified) Depth Verified 13.9 cm Gross Weight Verified 0.464 kg Height Verified 7.1 cm Width Verified 28.3 cm Performance Maximum transfer distance 100000 m Sensitivity -14.4 dBmW Tx power (max) -3 dBmW Tx power (min) -9.5 dBmW Wavelength 1310 nm Ports & interfaces Connectivity technology Wired Ethernet LAN (RJ-45) ports 1 Fiber optic connector SC Fiber ports quantity 1 Power Input current 2 A Input voltage 5 V Power consumption (typical) 5.6 Watt Product dimensions Net Weight (Product, kg) 0.19 kg Product Depth 9.7 cm Product Height 2.6 cm Product Width 7 cm Technical details HS code 85176990 Vendor information Brand Name Planet Warranty 3 Year(s) -
Description Downloads Datasheet Downloads
