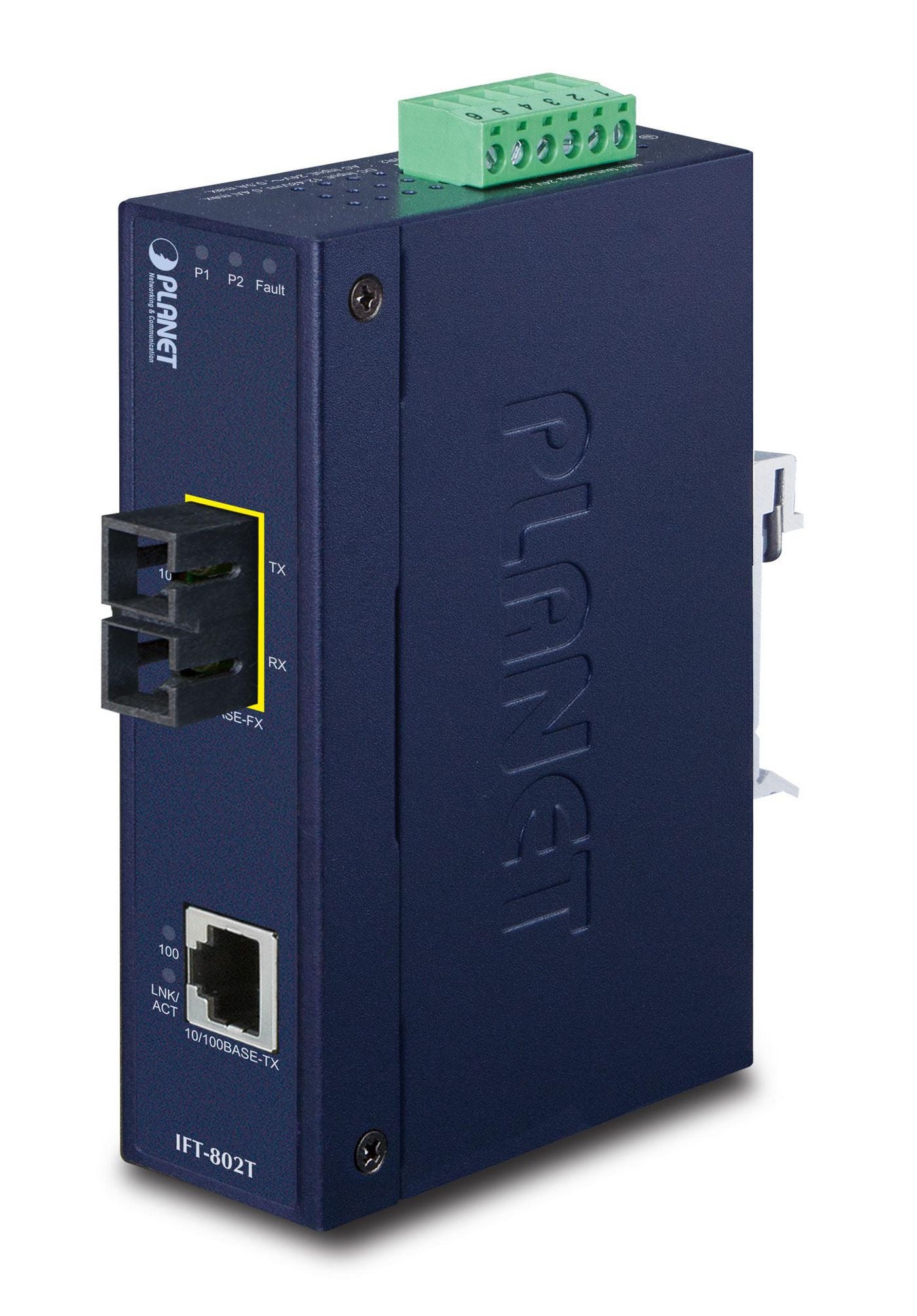

Planet 10/100Base-TX to 100Base-FX Industrial Media Converter | IFT-802T
SKU: IFT-802T
£69.03 (Excl. VAT)
- Description
- Specifications
- Downloads
-

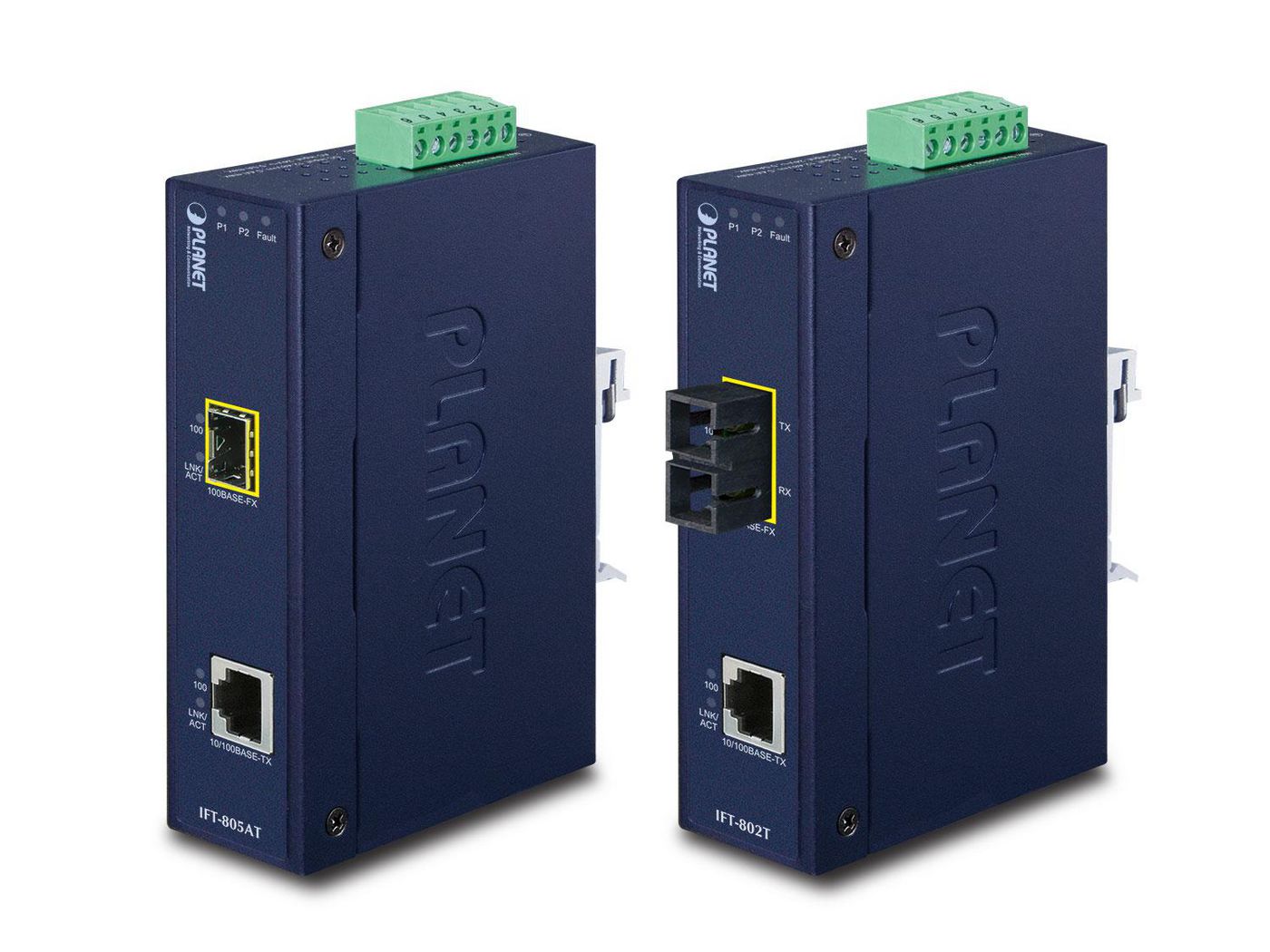

Planet 10/100Base-TX to 100Base-FX Industrial Media Converter
Distance Extension with High Performance and Steady Network Communication
PLANET 10/100Base-TX to 100Base-FX Industrial Media Converter IFT-80xT series extends communication distance with stable performance via fiber optic wire, in which the extended distance could be up to 2km with the IFT-802T, up to 15km with the IFT-802TS15 or up to 20km with the IFT-805AT (depending on SFP module). The IFT-80xT series is specifically equipped with durable components and strong housing case to operate reliably in electrically harsh and climatically demanding environments. The industrial level media converter provides a high level of immunity to electromagnetic interference and heavy electrical surges which are usually found on plant floors or traffic control cabinets on sidewalk. Being able to operate under the temperature range from -40 to 75 degrees C allows the IFT-80xT series to be placed in almost any difficult environment.
Robust Media Converter Performance
PLANET IFT-80xT 10/100Base-TX to 100Base-FX Industrial Media Converter series efficiently converts data between 10/100Base-TX and 100Base-FX network. The IFT-80xT series provides the flexibility to all kinds of 10/100Mbps Ethernet Media on RJ-45 port and performs highly stable fiber performance.
Easy Installation and Wide Range of Power Usages
The IFT-80xT series is packaged in a compact IP-30 case that allows either DIN rail or panel mounting to have efficient usage of cabinet space. It provides an integrated power supply with a wide range of voltages for worldwide operation. It also offers dual-redundant, reversible polarity 12V DC to 48V DC power supply inputs for high availability applications requiring dual or backup power inputs. -
Category Specification Certificates Certification: FCC, CE Compliance: RoHS Design Certification: FCC, CE DIN Rail Mounting: Yes Internal: No IP Code: IP30 LED Indicators: Yes Product Colour: Blue Legal Information EU ECCN Code: N/A US ECCN Code: 5A992 UNSPSC Code: 43201553 Logistics Data HS Code: 85176990 Network Auto MDI/MDI-X: Yes Copper Tech: 100BASE-TX/10BASE-T Data Transfer: 100 Mbit/s Ethernet Type: Fast Ethernet Fiber Tech: 100BASE-FX Max Data Transfer: 200 Mbit/s Networking Std: IEEE 802.3/u/x Operational Conditions Humidity (Op): 5 - 95% Temp (Op): -40 to 75°C Humidity (Stg): 5 - 95% Temp (Stg): -40 to 85°C Package Dimensions Depth: 15.3 cm Gross Weight: 0.57 kg Height: 5.3 cm Width: 20.8 cm Performance Max Distance: 2000 m Wavelength: 1310 nm Ports & Interfaces Connectivity: Wired RJ-45 Ports: 1 Power Input Voltage: 12 - 48 V Power Consumption: 3 Watt Product Dimensions Net Weight: 0.47 kg Depth: 8.5 cm Height: 3.2 cm Width: 13.5 cm Technical Details HS Code: 85176990 Sustainability Certificate: RoHS Vendor Information Brand: Planet Warranty: 5 Year(s) Categories Main: Network Subcategory: Wired Network Subcategory: Media Converters -
Description Downloads Planet 10/100Base-TX to 100Base-FX Industrial Media Converter | IFT-802T DataSheet Downloads
