100/100Mbps Downstream / upstream, high Performance Ethernet over VDSL Solution

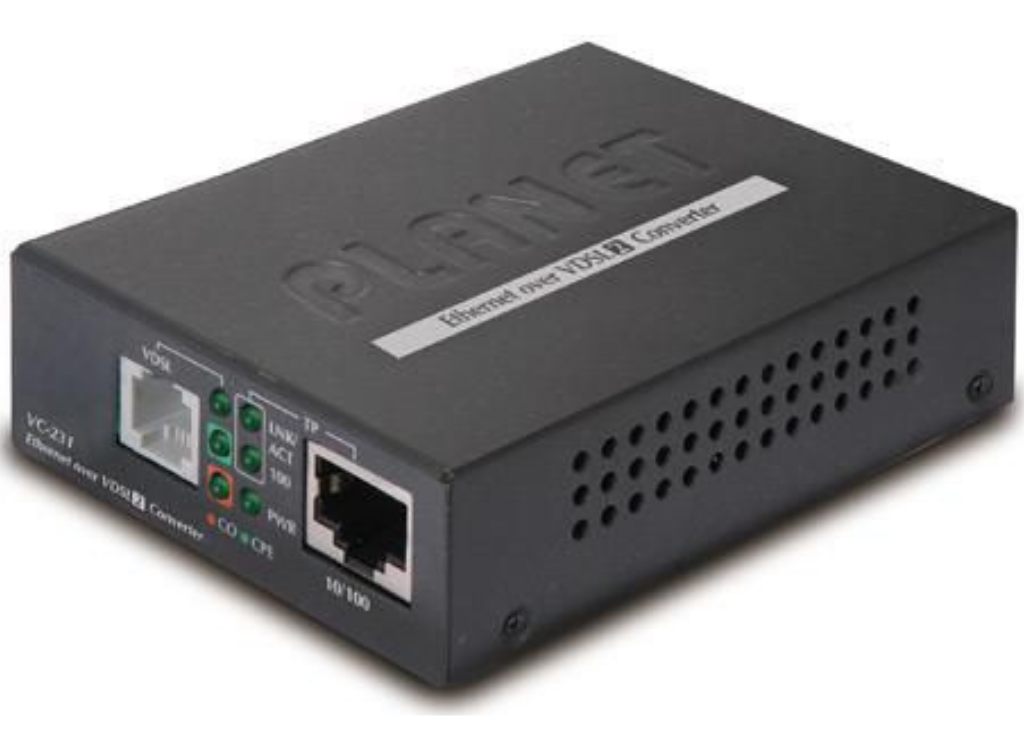

PLANET VC-231 is an Ethernet-over-VDSL2 Converter with high performance. It is designed based on two core networking technology, Ethernet and VDSL2 (Very-high-data-rate Digital Subscriber Line 2). The VDSL2 technology offers absolutely fastest data transmission speed over existing copper telephone lines without the need of rewiring. The VC-231 supports ultra-high performance to the pervasive telephone line network with up to 100/100Mbps symmetric data rate within 300m and 50/2Mbps for 1.4km long range connections.
Implementing with Existing Telephone Copper Wires
The VC-231 is also a Long Reach Ethernet (LRE) converter providing one RJ-45 Ethernet port and one RJ-11 phone jack that is for VDSL2 connection. By using the additional Splitter from package of VC-231, the splitter can provide POTS splitter to share the existing phone line with POTS; therefore it is no need of replacing the existing copper wiring. Just plug the VC-231 with additional splitter into the existing RJ-11 telephone jack and a high-performance VDSL2 network can be connected. The VC-231 is ideal to be used as an Ethernet extender to an existing Ethernet network.
Delivering High-Demand Service Connectivity for ISP / Triple Play Devices
The VC-231 provides excellent bandwidth to satisfy the triple play devices for home entertainment and communication. With the capability of 100/100Mbps symmetric data transmission, the VC-231 enables many multi-media services to work on the local Internet, such as VOD (Video on Demand), Voice over IP, Video phone, IPTV, Internet caching server, distance education, and so on.
Easy & Flexible Installation
The Ethernet-over-VDSL2 Converter comes with a plug-and-play design and is fully compatible with all kinds of network protocols. Moreover, the operating status of each individual port and the whole system can be watched via the rich diagnostic LEDs on the front panel. The VC-231 offers two modes, CPE and CO, for application: CPE mode is used at client side and CO mode is at central side. The CPE or CO mode can be adjusted by using a built-in DIP switch. For point-to-point connection, a CPE mode VC-231 and a CO mode VC-231 must be setup as one pair of converters to perform the connection.
Providing Superior Upstream and Downstream Transmission Performance
The VC-231 also defines symmetric band plan for the transmission of upstream and downstream signals, the band plan performs higher transmission quality in short range for central side (CO) in symmetric mode. In all, when the VC-231 is in profile 17a operation mode, it provides long distance transmit with Ultra-high performance to the pervasive telephone line network, and when the VC-231 is in 30a operation mode, it gives short distance transmits with upstream and downstream transmission giving wire speed performance.
| Category | Specification |
|---|---|
| Design | |
| Certification | FCC Part 15 Class A, CE |
| Internal | No |
| LED indicators | Yes |
| Product colour | Black |
| Legal Information | |
| UNSPSC Code (Icecat) | 43201553 |
| Management features | |
| Plug and Play | Yes |
| Network | |
| Auto MDI/MDI-X | Yes |
| Converter input interface | 100Base-TX |
| Duplex system | Full/Half |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN data rates | 10/100 Mbit/s |
| Maximum data transfer rate | 100 Mbit/s |
| Networking standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage relative humidity (H-H) | 10 - 90 % |
| Storage temperature (T-T) | -10 - 70 °C |
| Package dimensions (verified) | |
| Depth Verified | 14 cm |
| Gross Weight Verified | 0.538 kg |
| Height Verified | 7 cm |
| Width Verified | 28.3 cm |
| Performance | |
| Maximum transfer distance | 1400 m |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| RJ-11 ports quantity | 1 |
| Power | |
| Input current | 2 A |
| Input voltage | 5 V |
| Power consumption (typical) | 6.6 Watt |
| Product dimensions | |
| Net Weight (Product, kg) | 0.19 kg |
| Product Depth | 7 cm |
| Product Height | 2.6 cm |
| Product Width | 9.7 cm |
| Technical details | |
| Harmonized System (HS) code | 85176990 |
| Vendor information | |
| Brand Name | Planet |
| Warranty | 3 Year(s) |
