Flexible and Reliable Network Distance Extension Solution

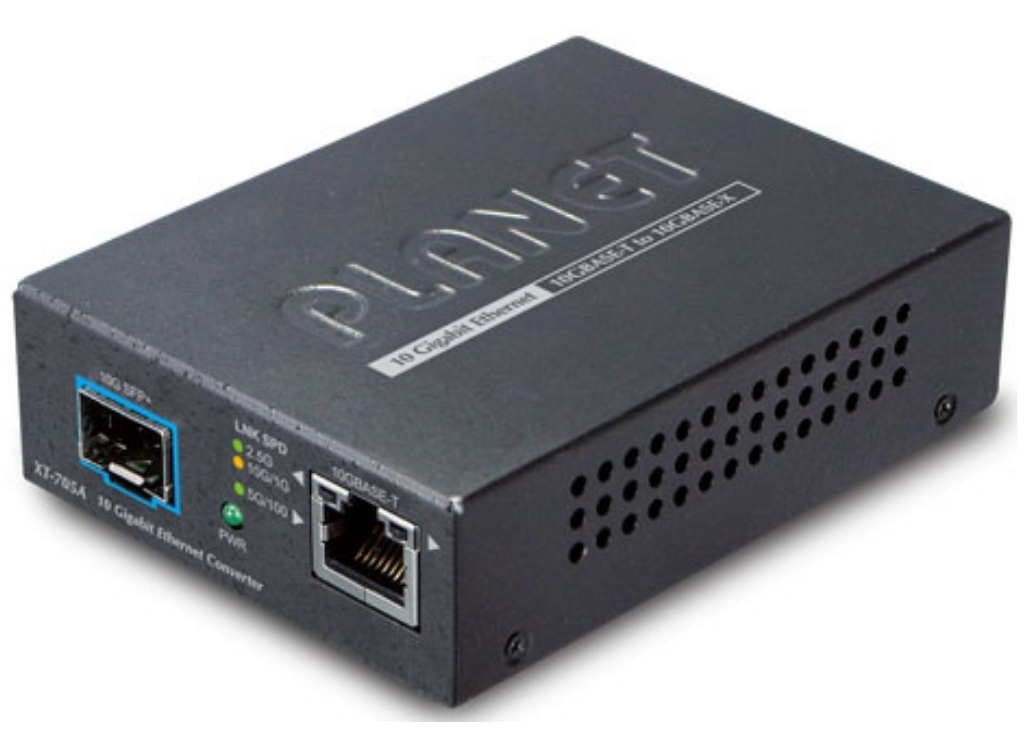

PLANET XT-705A Media Converter is equipped with one 10G/5G/2.5G/1G/100BASE-T auto-negotiation port and one 10GBASE-X SFP+ slot. It supports 10Gigabit Ethernet media conversion from copper 10GBASE-T to fiber multi-mode or single-mode, utilizing 10GBASE-SR or 10GBASE-LR SFP+ transceiver installed in the SFP+ slot to extend distances to servers, switches and patch panels. The deployment distance can be extended from 300 meters (multi-mode) to up to 60 kilometers (single-mode).They are designed for use in network environments where the ultra-high bandwidth provided by 10Gigabit Ethernet is required, for example, data center cloud computing, enterprise backbones, campus networks, and carrier infrastructure.
High Performance 10Gbps Ethernet Capacity
The XT-705A offers wire-speed packets transfer performance without the risk of packet loss. The high data throughput of the device makes it ideal for most Gigabit environments. With a 20Gbps internal fabric,16K jumbo frame feature and auto negotiation support in its 10 Gigabit port, the XT-705A can handle extremely large amounts of data transmission in a secure topology linking to data center cloud computing, enterprise backbones, campus networks, and carrier infrastructure.
Robust Protection
The XT-705A provides contact discharge of ±6KV DC and air discharge of ±8KV DC for Ethernet ESD protection. It also supports ±4KV surge immunity to improve product stability and protects users’ networks from devastating ESD attacks, making sure the flow of operation does not fluctuate.
Low Power Consumption
The XT-705A adopting the advanced chip technology has the power-saving feature like a low power consumption of only 3.75 watts when in full operation.
Easy Chassis Installation
The XT-705A Media Converter can be used as a stand-alone unit or as a slide-in module to the PLANET Media Converter Chassis (MC-700 and MC-1500 chassis series). The media chassis can assist in providing DC power to the XT-705A Media Converter to maintain the fiber-optic network at one centralized location. It can be DIN-rail or wall mounted for efficient use of cabinet space.
Applications
Fiber-optic Linking Capability Enables Extension of Network Deployment
The SFP+ slot of the XT-705A is compatible with 10GBASE-SR or 10GBASE-LR (Small Form Factor Pluggable) fiber-optic transceivers. The fiber optic uplink capability guarantees the throughput to all nodes hooked into the network and the 10 Gigabit Ethernet distance can be extended from 300 meters (multi-mode fiber cable) to 10/40/60 kilometers (single-mode fiber cable). It is ideal for applications within the factory data centers and distributions.
Key Features
Physical Port
One 10G/5G/2.5G/1G/100BASE-T RJ45 interface with auto MDI/MDI-X function
One 10GBASE-X SFP+ slot interface
Layer 2 Features
IEEE 802.3u/802.3ab/802.3bz/802.3ae Ethernet standard compliant
Supports auto-negotiation and 100Mbps half/full duplex and 1/2.5/5/10Gbps full duplex mode
Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
16K jumbo frame size support
Automatic address learning and address aging
Case and Installation

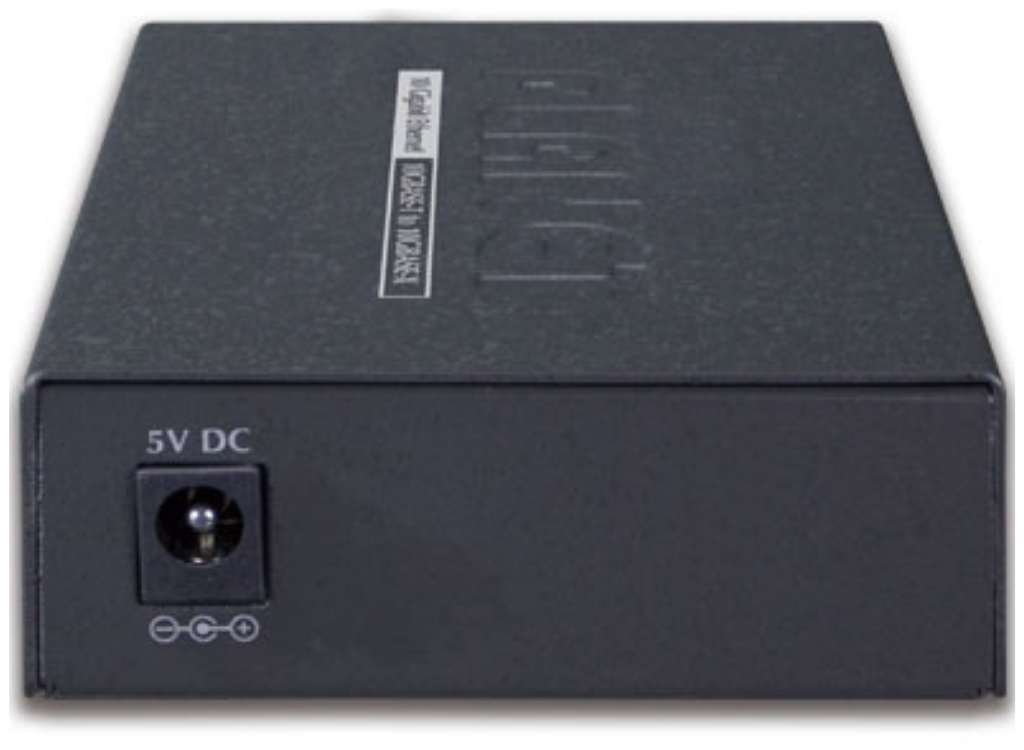

External 5V DC, 2A power supply
DIN-rail and wall-mount design
Supports 6000 VDC Ethernet ESD protection
100 meters over Cat 6A / Cat7 at 10Gbps
0 to 50 degrees C operating temperature
Co-works with PLANET’s 10”/19” Media Converter Chassis
(MC-700/MC-1500/MC-1500R/MC-1500R48)
Plug and Play installation
| Feature | Details |
|---|---|
| Copper Interface | 1 x 10G/5G/2.5G/1G/100BASE-T RJ45, Auto-MDI/MDI-X, auto-negotiation |
| Fiber Optic Interface | 1 x 10GBASE-X R SFP+ interface |

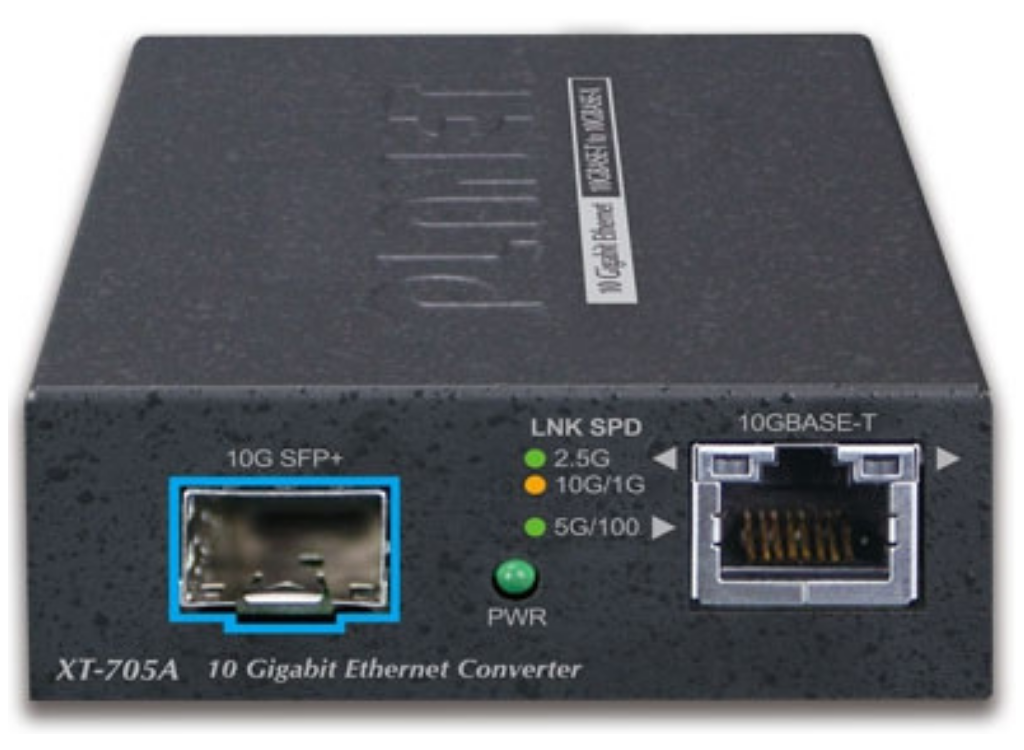

| LED Indicators |
System: PWR (Green) RJ45 Interface: 1G/10G LNK (Orange), 5G/2.5G/100M LNK (Green) |
| Switch Processing Scheme | Store and Forward |
| ESD Protection | 6KV DC |
| Enclosure | Compact-sized metal case |
| Installation | Desktop, wall-mountable, optional DIN-rail kit |
| Dimensions (WxDxH) | 94 x 70.3 x 26.2mm |
| Weight | 180g (device only) |
| Power Requirements | 5V DC, 2A max. |
| Power Consumption | 3.75 watts / 12.8 BTU per hour max. |
| Flow Control | Back pressure for half duplex, IEEE 802.3x pause frame for full duplex |
| Fabric | 20Gbps |
| Address Table | 9K entries, automatic source address learning and aging |
| Jumbo Frame | 16K |
| Network Cables |
10G BASE-T: Cat 6A/Cat 7 5G BASE-T: Cat 6/Cat 6A/Cat 7 1G/2.5G BASE-T: Cat 5e/Cat 6/Cat 6A/ Cat 7 100M BASE-T: Cat 5/Cat 5e/Cat 6/Cat 6A/Cat 7 Fiber Optic Cable: 50/125μm or 62.5/125μm multi-mode (up to 300m) 9/125μm single-mode (up to 60km) |
| Regulatory Compliance | FCC Part 15 Class A, CE |
| Operating Environment | 0 ~ 50°C |
| Storage Environment | -10 ~ 70°C |
| Operating Humidity | 5 ~ 95%, relative humidity (non-condensing) |
| Storage Humidity | 5 ~ 95%, relative humidity (non-condensing) |
| Standards Compliance | IEEE 802.3u, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3an, IEEE 802.3ae, IEEE 802.3x |
| Document Type | Availability |
|---|---|
| Datasheet | Downloads |
| User Manual | Downloads |
