Flexible and Reliable Network Distance Extension Solution

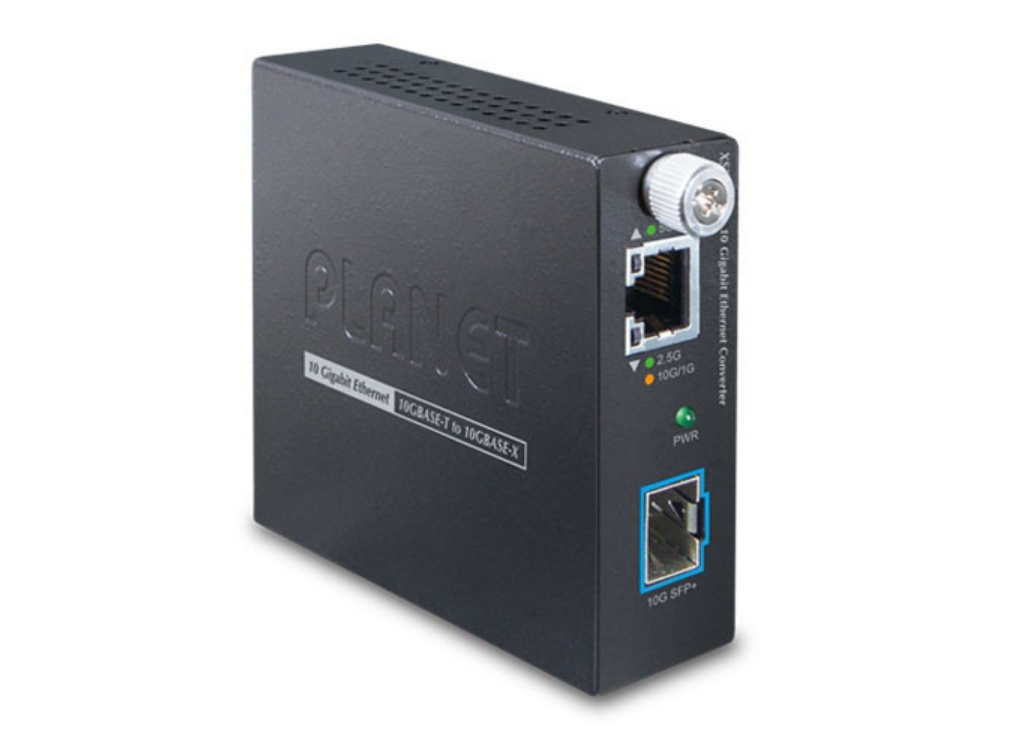

PLANET XST-705A Smart Media Converter is equipped with one 10G/5G/2.5G/1G/100BASE-T auto-negotiation port and one 10GBASE-X SFP+ slot. It supports 10Gigabit Ethernet media conversion from copper 10GBASE-T to fiber multi-mode or single-mode, utilizing 10GBASE-SR or 10GBASE-LR SFP+ transceiver installed in the SFP+ slot to extend distances to servers, switches and patch panels. The deployment distance can be extended from 300 meters (multi-mode) to up to 60 kilometers (single-mode).They are designed for use in network environments where the ultra-high bandwidth provided by 10Gigabit Ethernet is required, for example, data center cloud computing, enterprise backbones, campus networks, and carrier infrastructure.
Diversified Central Management and Easy Chassis Installation

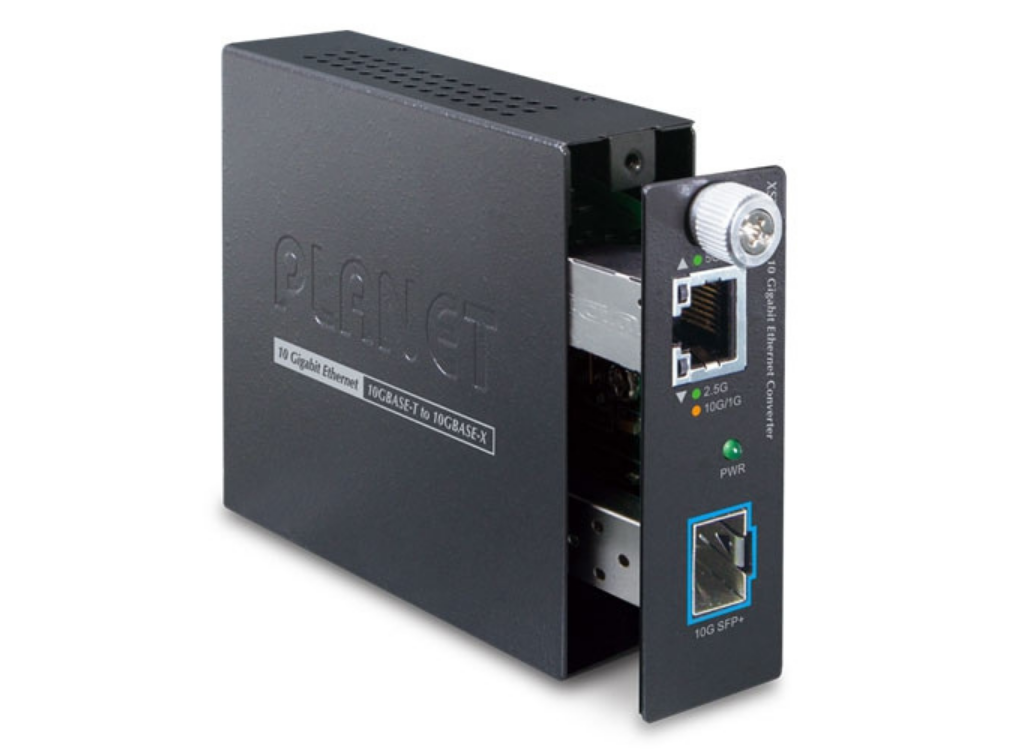

The XST-705A Smart Media Converter can be used as a stand-alone unit or as a slide-in module to the PLANET 19-inch Managed Media Converter Chassis series (MC-1610MR / MC-1610MR48). When working with Managed media converter chassis, the chassis can assist in providing DC power to the XST-705A and can be managed. Its port status such as link on/off can be monitored through the local RS232 console or remote web interface. Installing multiple XST-705As in the MC-1610MR is ideal for telecom and corporate applications where a number of 10Gbps fiber links need to be managed and controlled from a central location.
High Performance 10Gbps Ethernet Capacity
The XST-705A offers wire-speed packets transfer performance without the risk of packet loss. The high data throughput of the device makes it ideal for most Gigabit environments. With a 20Gbps internal fabric and featuring auto negotiation support in its 10 Gigabit port, the XST-705A Smart Media Converter can handle large amounts of data in a secure topology linking to a backbone or high capacity servers.
Fiber-optic Linking Capability Enables Extension of Network Deployment
The SFP+ slot of the XST-705A is compatible with 10GBASE-SR or 10GBASE-LR (Small Form Factor Pluggable) fiber-optic transceivers. The fiber optic uplink capability guarantees the throughput to all nodes hooked into the network and the 10 Gigabit Ethernet distance can be extended from 300 meters (multi-mode fiber cable) to 10/40/60 kilometers (single-mode fiber cable). It is ideal for applications within the data centers and distributions.
Low Power Consumption
The XST-705A adopting the advanced chip technology has the power-saving feature like a low power consumption of only 3.8watts when in full operation.
Applications
Fiber-optic Linking Capability Enables Extension of Network Deployment
The SFP+ slot of the XST-705A is compatible with 10GBASE-SR or 10GBASE-LR (Small Form Factor Pluggable) fiber-optic transceivers. The fiber optic uplink capability guarantees the throughput to all nodes hooked into the network and the 10 Gigabit Ethernet distance can be extended from 300 meters (multi-mode fiber cable) to 10/40/60 kilometers (single-mode fiber cable). It is ideal for applications within the factory data centers and distributions.
Standalone and Centrally-managed Media Converter Installation
PLANET XST-705A adopts advanced media conversion technology to meet the demand for today’s growing networking. It is very flexible for the XST-705A to work as a standalone device or to be installed in the central web smart media converter chassis for centralized management, which supports hot swapping to avoid network downtime. The XST-705A is provides a diverse choice of fiber connecting types to meet different network applications.
Key Features
Physical Port
One 10G/5G/2.5G/1G/100BASE-T RJ45 interface with auto MDI/MDI-X function
One 10GBASE-X SFP+ slot
Layer 2 Features
IEEE 802.3u/802.3ab/802.3bz/802.3ae Ethernet standard compliant
Supports auto-negotiation and 100Mbps half/full duplex and 1/2.5/5/10Gbps full duplex mode
Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
16K jumbo frame size support
Automatic address learning and address aging
Case and Installation

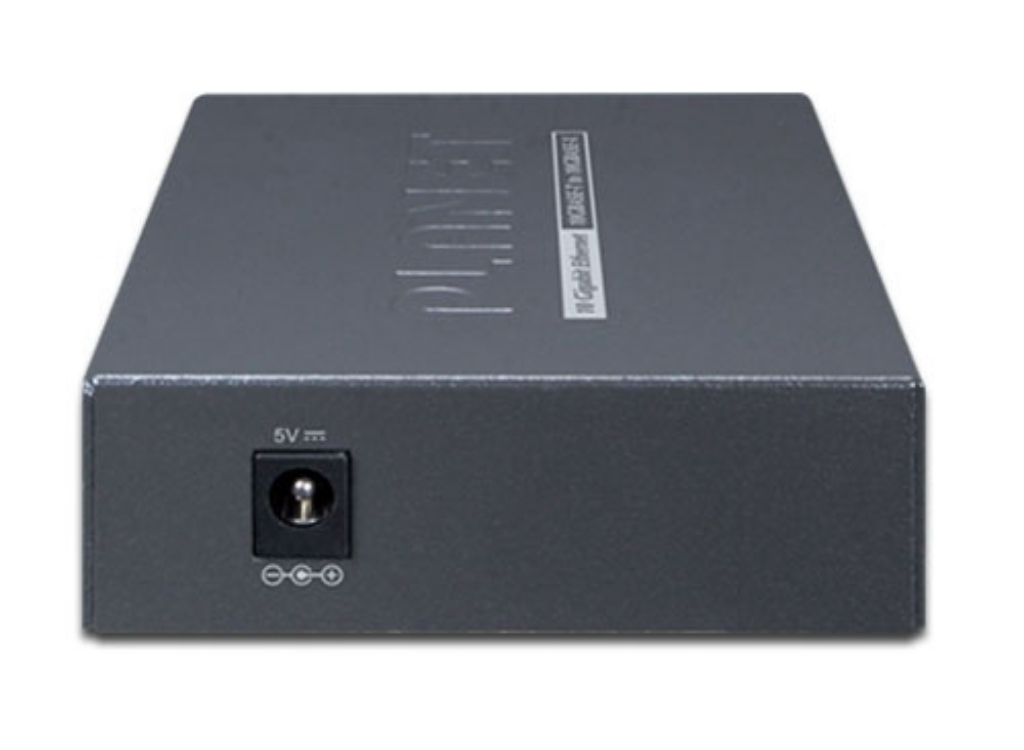

External 5V DC, 2A power supply
Wall-mount design
Supports 6000 VDC Ethernet ESD protection
100 meters over Cat. 6A / Cat. 7 at 10Gbps
0 to 50 degrees C operating temperature
Co-works with PLANET’s 19” Managed Media Converter Chassis series (MC-1610MR / MC-1610MR48)
Plug and Play installation
| Category | Specification |
|---|---|
| Copper Interface | 1 x 10G/5G/2.5G/1G/100BASE-T RJ45, Auto-MDI/MDI-X, auto-negotiation |
| Fiber Optic Interface | 1 x 10GBASE-X SFP+ interface |

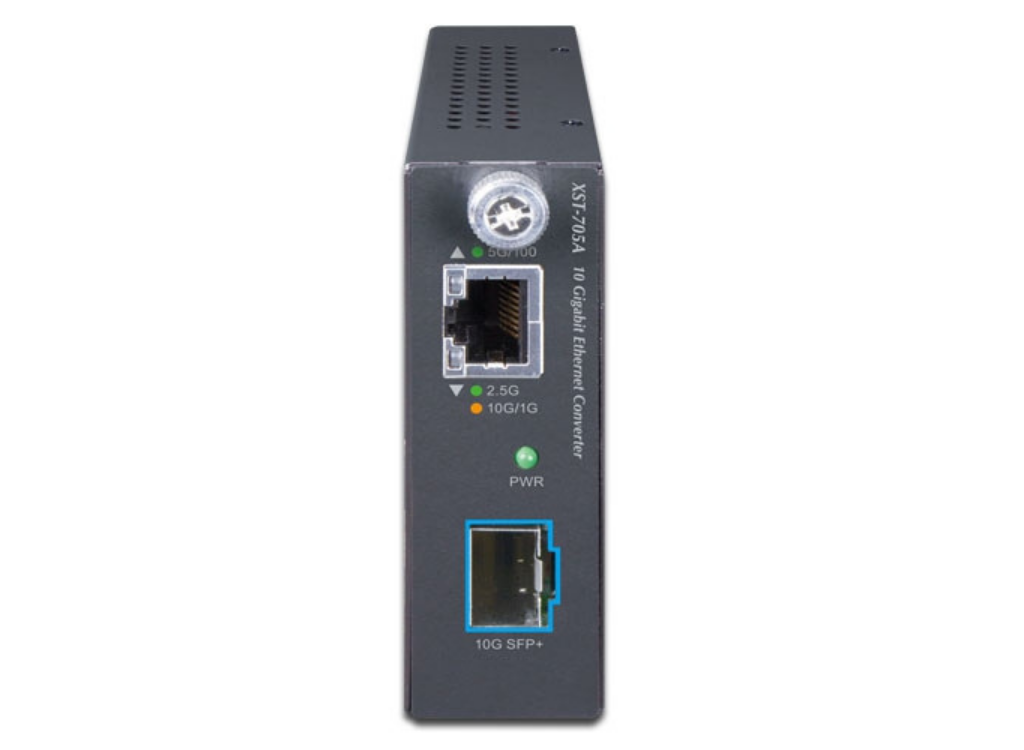

| LED Indicators | System: PWR (Green), 10G/5G/2.5G/1G/100 BASE-T RJ45 Interfaces: 1G/10G LNK (Amber), 5G/2.5G/100M LNK (Green) |
| ESD Protection | 6KV DC |
| Enclosure | Compact-sized metal case |
| Installation | Desktop or wall mounting |
| Dimensions (WxDxH) | 93.8 x 80.75 x 26.4mm |
| Weight | 182g (device only) |
| Power Requirements | 5V DC, 2A max. |
| Power Consumption | 3.8 watts / 13 BTU per hour (max.) |
| Switch Processing Scheme | Store and Forward |
| Flow Control | Copper Interface: Back pressure for half duplex, IEEE 802.3x pause frame for full duplex |
| Fabric | 20Gbps |
| Jumbo Frame | 16K |
| Network Cables | Supports multiple categories, up to 100 meters maximum. For 10GBASE - up to 300m MMF or 60km SMF |
| Regulatory Compliance | FCC Part 15 Class A, CE |
| Operating Environment | 0 ~ 50 degrees C |
| Storage Environment | -10 ~ 70 degrees C |
| Operating Humidity | 5 ~ 95%, relative humidity (non-condensing) |
| Storage Humidity | 5 ~ 95%, relative humidity (non-condensing) |
| Standards Compliance | IEEE 802.3u, 802.3ab, 802.3bz, 802.3an, 802.3ae, 802.3x |
