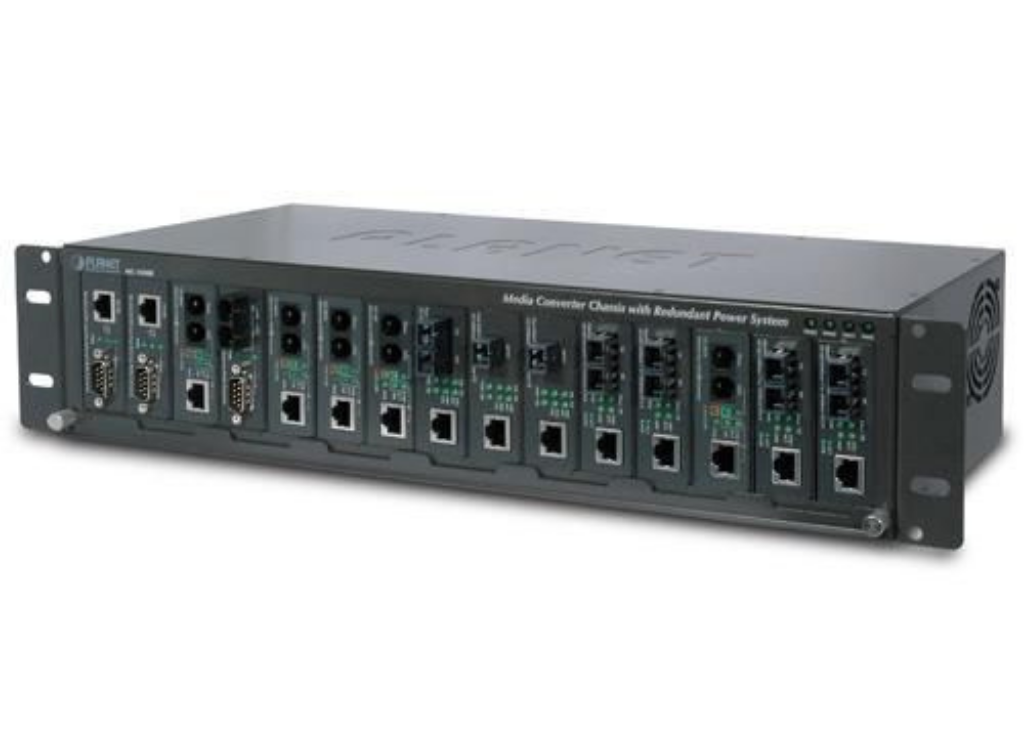

High Density Chassis for multiple converter installation
The MC-1500R provides 15 slots for a wide range of PLANET media converter series. It allows the connectivity of up to 15 PLANET Ethernet, Fast Ethernet, Gigabit Ethernet or VDSL2 Converters in one chassis. The 15 slots in the 19" rack saves more spaces for fiber-optic wiring, simplifies the structure and eases the maintenance of media conversion.
Extremely Reliable Design to ensure continuous operation

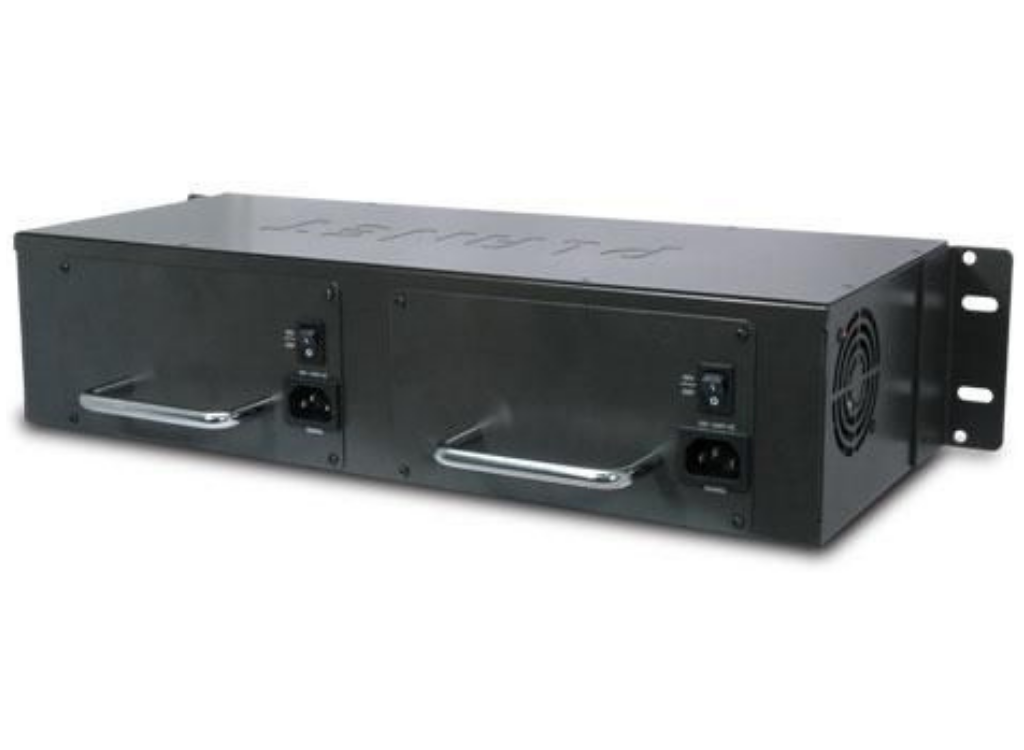

The MC-1500R series supports the optional hot-swappable Redundant Power System (RPS) to ensure continuous operation. Both the MC-1500R and MC-1500R48 are equipped with one 100~240V AC power supply unit and one -48V DC power supply unit, which come in the package, respectively. To enhance the reliability, they each have one spare power supply slot for that optional purpose. The continuous power systems are specifically designed to meet the demands for high tech facilities requiring the highest power integrity available.
Plug and Play / Flexible Installation
The MC-1500R offers flexibility in installation and cost-effective scalable solution. With an independent power supply on each slot of the MC-1500R, any converter is hot-swappable without causing an interruption to other converters. The media converters and power modules can be plugged and played anytime. Each bay of the media converter chassis can be populated with any of PLANET’s media converter series, the FT, GT, VC-20x and ICS, to provide media conversion between fiber optic, phone wire and serial to copper lines.
| Category | Specification |
|---|---|
| Design | |
| Certification | FCC Class A, CE |
| Internal | Yes |
| LED indicators | Yes |
| Product colour | Black |
| Legal Information | |
| EU ECCN Code | N/A |
| UNSPSC Code (Icecat) | 43201553 |
| US ECCN Code | 5A992 |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Management features | |
| Plug and Play | Yes |
| Network | |
| Ethernet interface type | Fast Ethernet/Gigabit Ethernet |
| Ethernet LAN data rates | 100/1000 Mbit/s |
| Operational conditions | |
| Operating relative humidity (H-H) | 5 - 90 % |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage relative humidity (H-H) | 5 - 90 % |
| Storage temperature (T-T) | -20 - 70 °C |
| Other features | |
| Size (imperial) | 19 " |
| Package dimensions (verified) | |
| Depth Verified | 56 cm |
| Gross Weight Verified | 5.6 kg |
| Height Verified | 20 cm |
| Width Verified | 32 cm |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Power | |
| AC input frequency | 50 - 60 Hz |
| Input current | 3.3 A |
| Output current | 1 A |
| Output voltage | 5 V |
| Power consumption (typical) | 80 Watt |
| Product dimensions | |
| Net Weight (Product, kg) | 4.27 kg |
| Product Depth | 20 cm |
| Product Height | 10.3 cm |
| Product Width | 43.8 cm |
| Technical details | |
| Harmonized System (HS) code | 85176990 |
| Vendor information | |
| Brand Name | Planet |
| Warranty | 3 Year(s) |
| Description | Downloads |
|---|---|
| Datasheet | Downloads |
