Cost-effective Gigabit Solution for Enterprise Backbone and Data Center Networking

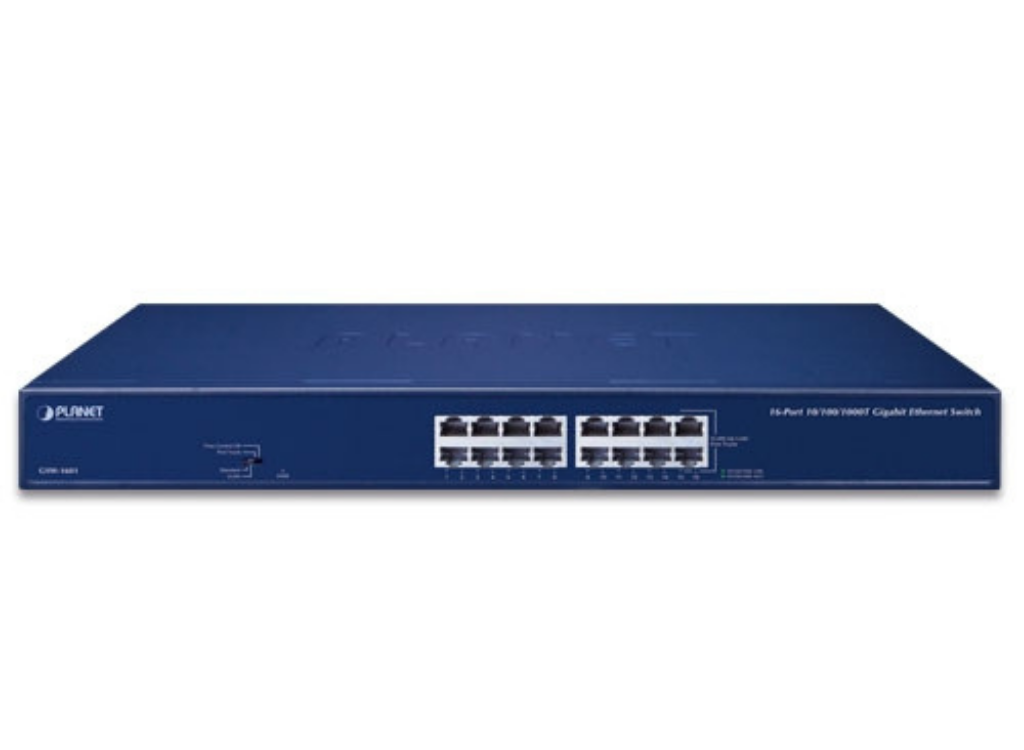

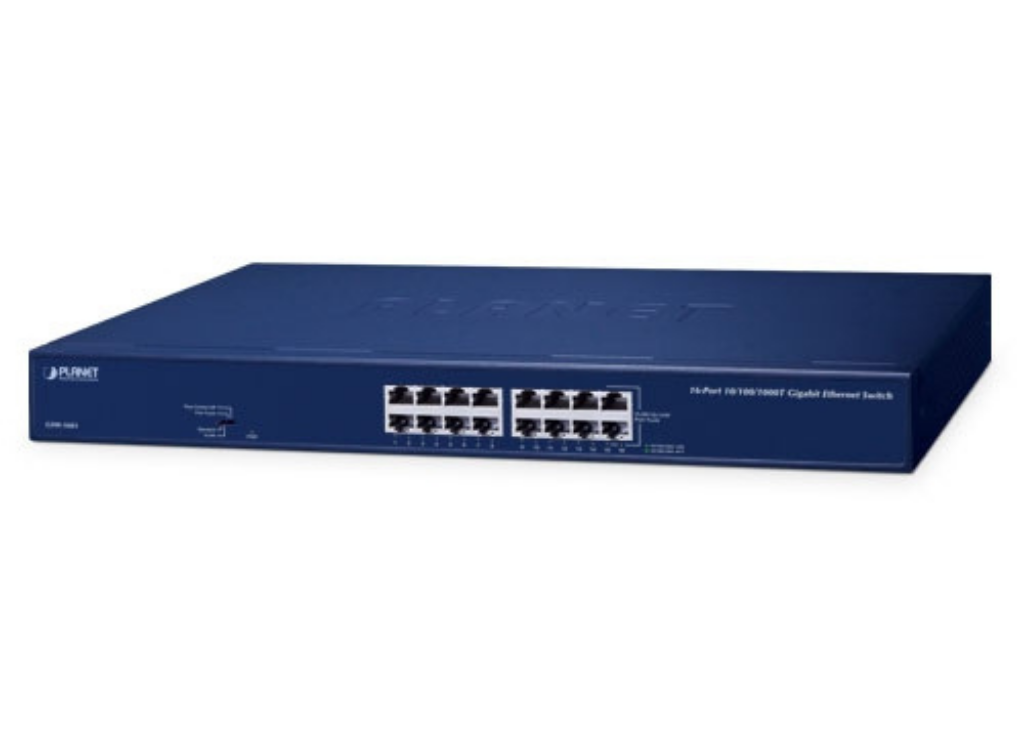

PLANET GSW-1601 Gigabit Ethernet Switch provides 16 RJ45 10/100/1000Mbps ports for high-speed network connectivity. It can automatically identify and determine the correct transmission speed and half/full duplex mode of the attached devices with its 16 Gigabit ports that support 9K jumbo frame feature. Therefore, the GSW-1601 can handle extremely large amounts of data transmission in a secure topology linking to a backbone or high-power servers.
Brand-new Hardware DIP Switch for Functional Operation Modes Selection
The new hardware version of the GSW-1601 offers “Standard”, “VLAN”, “Port Trunk” and “Flow Control Off” modes.
The GSW-1601 operates as a normal Gigabit Ethernet Switch in the "Standard" operation mode. The "VLAN" operation mode features port-based VLAN function that can help to prevent the connected clients’ multicast or broadcast storm from influencing each other.
In the "Port Trunk" operation mode, the GSW-1601 forces aggregated ports 15 and 16 to be a trunk group.
High Performance
The GSW-1601 provides a high-performance switch architecture that is capable of providing the non-blocking switch fabric and wire-speed throughput as high as 32Gbps, which greatly simplifies the tasks of upgrading the LAN for catering to increasing bandwidth demands. Besides, the Flow Control function of the GSW-1601 enables routers and servers to directly connect to the Switch for fast and reliable data transfer.
All the RJ45 copper interfaces of the GSW-1601 support 10/100/1000Mbps auto-negotiation for optimal speed detection through RJ45 Category 6, 5 or 5e cables. It also supports standard for auto-MDI/MDI-X that can detect the type of connection to any Ethernet device without requiring special straight or crossover cables.
Excellent Traffic Transmission
The GSW-1601 supports Store-and-Forward forwarding scheme to ensure low latency and high data integrity, which eliminates unnecessary traffic and relieves congestion on critical network paths. With an intelligent address recognition algorithm, the GSW-1601 recognizes up to 8K different MAC addresses. The high data throughput and 32Gbps internal switching fabric make it ideal for most Gigabit environments, especially when network is upgraded to a Gigabit environment.
Fanless Design
With its good ventilation design, the GSW-1601 is able to operate all along without a fan, thus reducing substantial power consumption and creating a noiseless environment. The GSW-1601 is definitely the best choice for any working environment without affecting its performance.
| Hardware Specifications | Details |
|---|---|
| Hardware Version | 10 |
| 10/100/1000BASE-T MDI/MDIX Ports | 16 |
| Throughput (packet per second) | 23.8Mpps |
| Switch Fabric | 32Gbps |
| Weight | 1.6kg |
| Power Consumption/Dissipation | 7.6 watts/25 BTU |
| Power Requirements | 100~240V AC, 0.15A, 50-60Hz |
| Dimensions (W x D x H) | 440 x 180 x 44mm, 1U height |
| Switch Processing Scheme | Store-and-Forward |
| Address Table | 8K entries |
| Jumbo Packet Size | 9K |
| Flow Control | Back pressure for half duplex, IEEE 802.3x Pause Frame for full duplex |
| DIP Switch | Operation mode selection: Standard, VLAN, Port Trunk, Flow control off |
| Standards Conformance | |
| Regulatory Compliance | FCC Part 15 Class A, CE |
| Standards Compliance | IEEE 802.3 (Ethernet), IEEE 802.3u (Fast Ethernet), IEEE 802.3ab (Gigabit Ethernet), IEEE 802.3x (Full-Duplex Flow Control), IEEE 802.3az (Energy Efficient Ethernet) |
| Environment | |
| Operating | Operating Temperature: 0~50 degrees C, Relative Humidity: 5% to 95% (non-condensing) |
| Storage | Temperature: -10~70 degrees C, Relative Humidity: 5% to 95% (non-condensing) |
