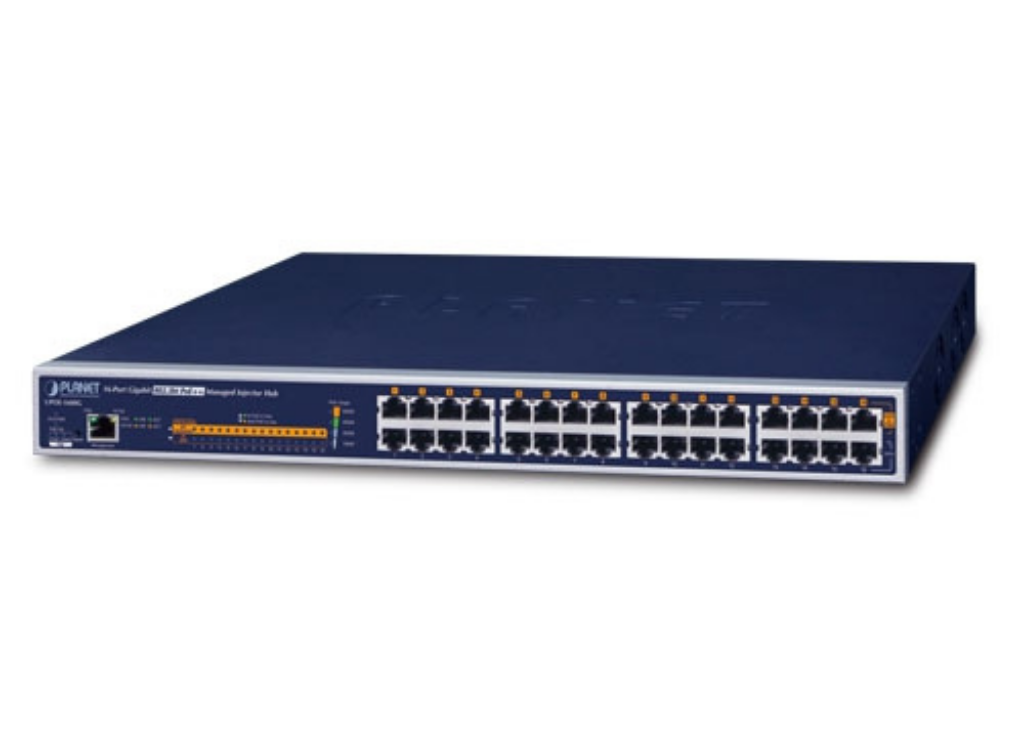

Planet 16-Port Gigabit 802.3bt PoE++ Managed Injector Hub (600 watts) | UPOE-1600G

SKU: UPOE-1600G
Part Number: UPOE-1600G
Condition: Brand New
Purchase Orders Accepted
Save £81.00 Save £81.00
Original price £999.00
Inc. VAT
Original price £999.00 - Original price £999.00
Original price £999.00

£765.00 (Excl. VAT)

Current price - £918.00 Inc. VAT
£918.00 - £918.00
Current price- - £918.00
(Inc. VAT )
Availability:
10 in stock

payment-icons

Bulk Price & Price Match Request

Contact our expert sales team on 020 8191 9223 for best price and dedicated assistance.

Educational & Public Sector Prices Available

For more details, please call us at 020 8191 9223 or email us at info@screenmoove.com

  • Description
  • Specifications
  • Downloads
  • Planet 16-Port Gigabit 802.3bt PoE++ Managed Injector Hub (600 watts) | UPOE-1600G

    Ready to Deploy Next Generation IEEE 802.3bt PoE++ Standard
    PLANET’s newly-improved UPOE-1600G, a high-density, rack-mountable managed 802.3bt PoE++ Managed Injector Hub, features eight 10/100/1000BASE-T 90-watt 802.3bt type-4 PoE++ injector ports and eight 10/100/1000BASE-T 60-watt 802.3bt type-3 PoE++ injector ports with PLANET intelligent PoE functions through web user interface for remote management. With a total PoE budget of 600 watts, it delivers ultra PoE power over Ethernet UTP cables which allow data and power to transmit simultaneously to a remote 802.3bt/at powered device (PD).


    The UPOE-1600G provides a quick, safe and cost-effective 802.3bt PoE++ network solution for small businesses and enterprises. It is designed to perfectly upgrade an existing network infrastructure to 802.3bt PoE++ network system without replacing the existing Ethernet switches. It also enables centralization of the power supply and optimizes the installation and power management of remote network devices.


    802.3bt PoE++ – 60~95-watt Power over 4-pair UTP Solution

    As the UPOE-1600G adopts the IEEE 802.bt PoE++ standard and PoH technology, it is capable to source up to 95 watts of power by using all the four pairs of standard Cat5e/6 Ethernet cabling to deliver power and full-speed data to each remote PoE compliant powered device (PD). It possesses triple amount of power capability than the conventional 802.3at PoE+ and is an ideal solution to satisfy the growing demand for higher power consuming network PDs, such as:

    PoE PTZ speed dome cameras
    Network devices
    Thin clients
    AIO (all-in-one) touch PCs, point of sale (POS) and information kiosks
    Remote digital signage displays
    PoE lightings


    Advanced PoE Power Output Mode Management

    To meet the demand of various powered devices consuming stable PoE power, the UPOE-1600G supports rich PoE operation modes including 90-watt 802.3bt type-4 PoE++ mode, 95-watt PoH (Power over HD-BASE-T) mode and 4-pair force mode to solve the incompatibility of non-standard 4-pair PoE PDs in the field.


    Quick and Easy 802.3bt/at PoE Network Deployment

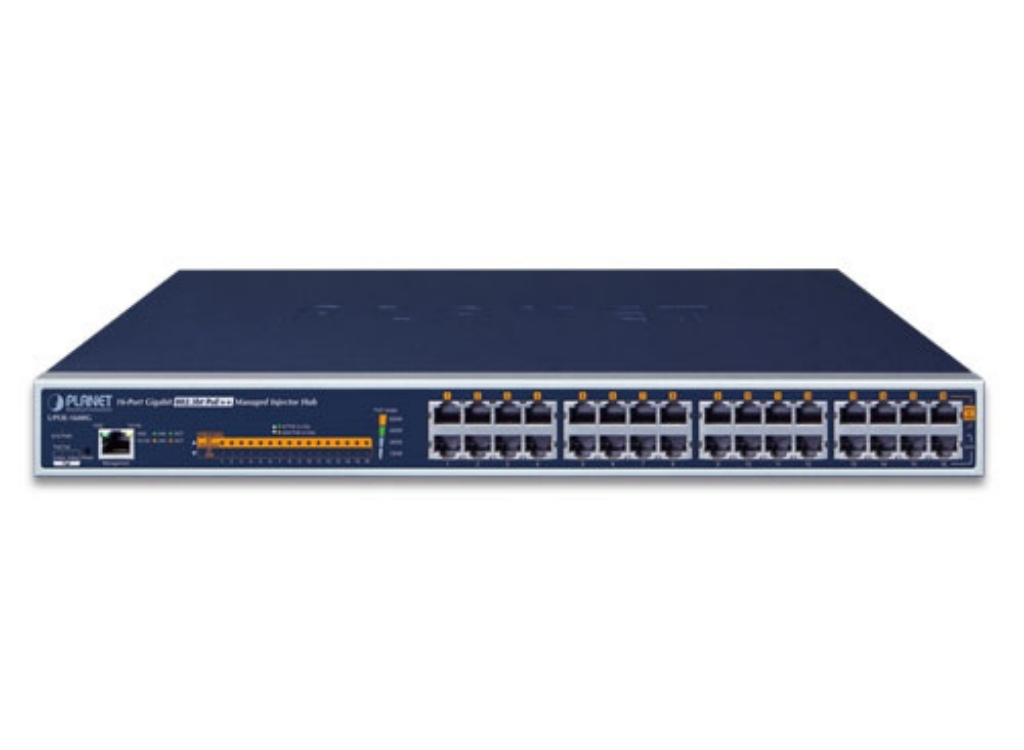

    The UPOE-1600G is installed between a regular Ethernet Switch and the PDs. There are totally 32 RJ45 STP ports on the front panel of the UPOE-1600G, of which the 16 ports are on the lower stack functioned as "Data input" while the other 16 ports are on the upper stack functioned as "PoE (Data and Power) output". Both power and data are transferred simultaneously over the UTP cables to various 802.3bt/at PDs without affecting the existing network performance and functions.


    With data and Power over Ethernet from one unit, the UPOE-1600G can reduce power cable deployment and eliminate the need for dedicated electrical outlets on the wall, ceiling or any unreachable place.

    Friendly Web Management Interface
    To efficiently manage the powered devices, the UPOE-1600G provides remote Web management interface in which administrators can control the system and PoE functions for powered devices. It can automatically detect the power status of each port and show messages on its Web management interface. These features also provide users with a cost-effective way to manage the device via Internet whenever they are at work or at home.


    Built-in Unique PoE Functions for Powered Device Management
    As it is the managed PoE++ Injector Hub for VoIP, wireless and surveillance networks, the UPOE-1600G features the following special PoE management functions:

    PoE schedule
    PD alive check
    Scheduled power recycling
    BT, UPOE, end-span, mid-span or force mode selectable in PoE Power Output Mode
    PoE usage monitoring
    Over temperature protection

    Intelligent Powered Device Alive Check
    PLANET’s Managed PoE products adopt not only Power over Ethernet technology, but also automated PD monitoring and real-time PoE status. The UPOE-1600G can be configured to monitor connected PD’s status in real time via ping action through the uplinked Ethernet switch. Once the PD stops working and responding, the UPOE-1600G will recycle the PoE port power and bring the PD back to work. It also will greatly enhance the network reliability in that the PoE port will reset the PD power, thus reducing administrator’s management burden.


    PoE Schedule for Energy Savings

    Under the trend of energy saving worldwide and contributing to environmental protection on the Earth, the UPOE-1600G can effectively control the power supply besides its capability of giving high watts power. The built-in “PoE schedule” function helps you to enable or disable PoE power feeding for each PoE port during specified time intervals and it is a powerful function to help SMBs or enterprises save power and money. It also increases security by powering off PDs that should not be in use during non-business hours.


    Scheduled Power Recycling

    The UPOE-1600G allows each of the connected PoE IP cameras or PoE wireless access points to reboot at a specific time each week. Therefore, it will reduce the chance of IP camera or AP crash resulting from buffer overflow.


    Intelligent LED Indicator for Real-time PoE Usage

    The UPOE-1600G helps users to monitor the current status of PoE power usage easily and efficiently by its advanced LED indication. Called “PoE Power Usage”, the front panel of the UPOE-1600G has four green LEDs indicating 150W, 300W, 450W and 600W of PoE power usage.


    PoE Usage Monitoring

    Via the power usage chart in the web management interface, the UPOE-1600G enables the administrator to monitor the status of the power usage of the connected PDs in real time.

    High Power Budget for PoE Extension
    With up to 95-watt PoE output capability, the UPOE-1600G can extend much longer distance by using PLANET PoE Extender for powering up the PoE PD which can be installed over more than 100 meters away. By daisy-chaining multiple PLANET PoE Extenders, it offers the great flexibility of doubling, tripling or quadrupling the distance of PoE network.

    Smart Fan Design for Silent Operation
    The UPOE-1600G features a low noise design and an effective ventilation system. It supports the smart fan technology that automatically controls the speed of the built-in fan to reduce noise and maintain the temperature of the 802.3bt PoE++ Managed Injector Hub for optimal power output capability. The UPOE-1600G is able to operate reliably, stably and quietly in any environment without affecting its performance.

  • Category Specification
    Hardware
    Interface “Data” Input Ports: 16 x RJ45
    “Data + Power” Output Ports: 16 x RJ45
    Management Port: 1 x RJ45; 10/100/1000BASE-T, auto-negotiation, auto-MDI/MDIX
    Data Rate 10/100/1000Mbps
    LED System:
    SYS PWR x 1 (Green)
    PoE Failure x 1 (Red)
    Fan Failure x 2 (Red)
    Management port x 2:
    1000 (Green)
    10/100 (Orange)
    Per PoE Port:
    802.3bt/UPoE PoE-in-use x 1 (Green)
    802.3at PoE-in-use x 1 (Orange)
    PoE Power Usage LED x4 (Green)
    Power Requirements 100-240V AC, 50/60 Hz, 8A
    Power Consumption 800 watts (max.) / 2729BTU
    Ventilation Fan x 3
    Dimensions (W x D x H) 440 x 300 x 44.5 mm, 1U height
    Enclosure Metal
    Weight 4.8kg
    Power over Ethernet
    PoE Standard 802.3bt PoE++ PSE
    Backward compatible with IEEE 802.3at PoE PSE
    PoE Power Supply Type 802.3bt
    UPoE
    End-span
    Mid-span
    Force
    PoE Power Output Per port 52V DC
    802.3bt mode, Port-1 to Port-8: maximum 90 watts
    802.3bt mode, Port-9 to Port-16: maximum 60 watts
    UPoE mode, Port-1 to Port-8: maximum 95 watts
    UPoE-mode, Port-9 to Port-16: maximum 72 watts
    End-span mode: maximum 36 watts
    Mid-span mode: maximum 36 watts
    Power Pin Assignment 802.3bt: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
    UPoE: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
    End-span: 1/2(-), 3/6(+)
    Mid-span: 4/5(+), 7/8(-)
    PoE Power Budget 600 watts (max.)
    Number of 90W 802.3bt Type-4 PDs 6
    Number of 60W 802.3bt Type-3 PDs 10
    Number of 802.3at PDs 16
    Management
    Management Interface Web, PLANET Smart Discovery Lite
    Management Feature Setup of system/management functions
    Web firmware upgrade
    SNMP trap for alarm notification of events
    PoE Management Power limit by consumption
    PoE admin mode
    Per port power schedule
    Per port power enable/disable
    Per Port PoE operation mode selection
    Power feeding priority
    Over temperature protection
    Current per port usage and status
    Total power consumption
    PD alive check
    Scheduled power recycling
    Standards Conformance
    Regulatory Compliance FCC Part 15 Class A, CE
    Standards Compliance IEEE 802.3 10BASE-T Ethernet
    IEEE 802.3u 100BASE-TX Fast Ethernet
    IEEE 802.3ab 1000BASE-T Gigabit Ethernet
    IEEE 802.3af Power over Ethernet
    IEEE 802.3at Power over Ethernet Plus
    IEEE 802.3bt Power over Ethernet Plus Plus
    RFC 768: UDP
    RFC 791: IP
    RFC 2068 HTTP
    RFC 1157: SNMP v1
    RFC 1902: SNMP v2c
    RFC 2273: SNMPv3
    RFC 5424: Syslog
    Network Cable 10BASE-T: 4-pair UTP Cat5 up to 100m (328ft)
    100BASE-TX: 4-pair UTP Cat5 up to 100m (328ft)
    1000BASE-T: 4-pair UTP Cat5e/6 up to 100m (328ft)
    EIA/TIA- 568 100-ohm STP (100m)
    Environments
    Operating Temperature: 0 ~ 50 degrees C
    Relative Humidity: 5 ~ 90% (non-condensing)
    Storage Temperature: -10 ~ 70 degrees C
    Relative Humidity: 5 ~ 90% (non-condensing)
