Planet 24-Port 10/100/1000BASE-T Gigabit Ethernet Switch | GSW-2401
Cost-effective Gigabit Solution for Enterprise Backbone and Data Center Networking

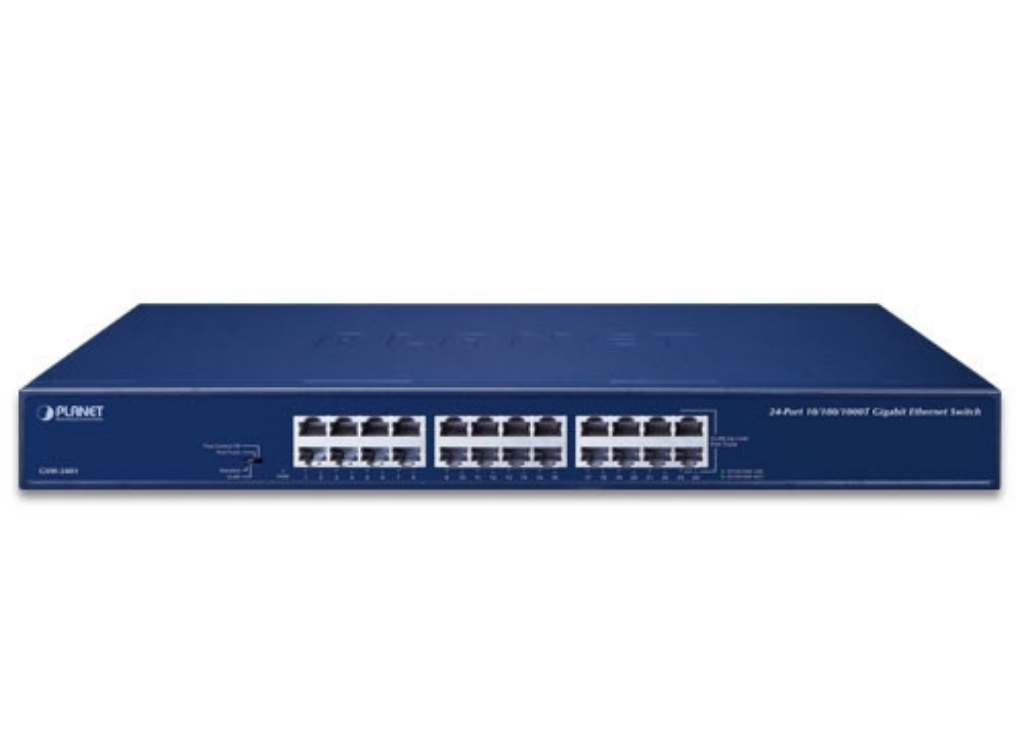

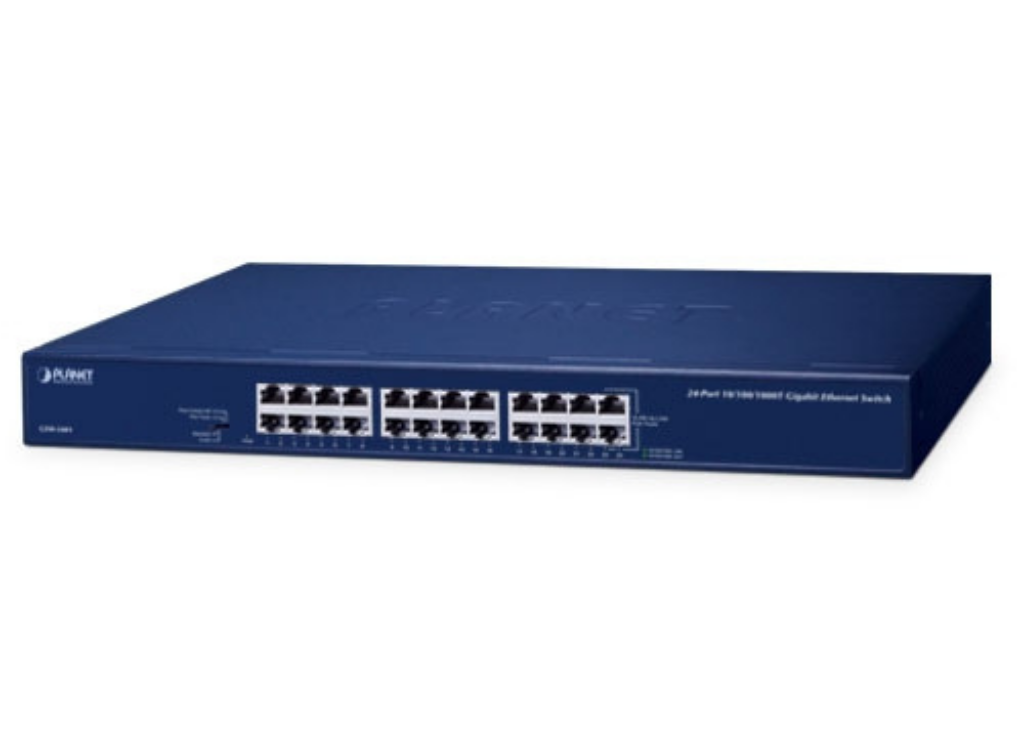

PLANET GSW-2401 Gigabit Ethernet Switch provides 24 RJ45 10/100/1000Mbps ports for high-speed network connectivity. It can automatically identify and determine the correct transmission speed and half/full duplex mode of the attached devices with its 24 Gigabit ports that support 9K jumbo frame feature. Therefore, the GSW-2401 can handle extremely large amounts of data transmission in a secure topology linking to a backbone or high-power servers.
DIP Switch for Operation Mode Selection
The new GSW-2401 offers “Standard”, “VLAN”, “Port Trunk” and “Flow Control Off” modes. The GSW-2401 operates as a normal Gigabit Ethernet Switch in the "Standard" operation mode.
The "VLAN" operation mode features port-based VLAN function that can help to prevent the connected clients’ multicast or broadcast storm from influencing each other.
In the "Port Trunk" operation mode, the GSW-2401 forces aggregated ports 23 and 24 to be a trunk group.
High Performance
The GSW-2401 provides a high-performance switch architecture that is capable of providing the non-blocking switch fabric and wire-speed throughput as high as 48Gbps, which greatly simplifies the tasks of upgrading the LAN for catering to increasing bandwidth demands. Besides, the Flow Control function of the GSW-2401 enables routers and servers to directly connect to the Switch for fast and reliable data transfer.
All the RJ45 copper interfaces of the GSW-2401 support 10/100/1000Mbps auto-negotiation for optimal speed detection through RJ45 Category 6, 5 or 5e cables. It also supports standard for auto-MDI/MDI-X that can detect the type of connection to any Ethernet device without requiring special straight or crossover cables.
Excellent Traffic Transmission
The GSW-2401 supports Store-and-Forward forwarding scheme to ensure low latency and high data integrity, which eliminates unnecessary traffic and relieves congestion on critical network paths. With an intelligent address recognition algorithm, the GSW-2401 recognizes up to 8K different MAC addresses. The high data throughput and 48Gbps internal switching fabric make it ideal for most Gigabit environments, especially when network is upgraded to a Gigabit environment.
Fanless Design
With its good ventilation design, the GSW-2401 is able to operate all along without a fan, thus reducing substantial power consumption and creating a noiseless environment. The GSW-2401 is definitely the best choice for any working environment without affecting its performance.
-
Category |
Specification |
Hardware Specifications |
|
Hardware Version |
10 |
10/100/1000BASE-T MDI/MDIX Ports |
24 |
DIP Switch |
Operation mode selection |
|
Standard |
|
VLAN |
|
Port Trunk |
|
Flow control off |
Weight |
1.7kg |
Power Consumption/Dissipation |
10.8 watts/36 BTU |
Power Requirements |
100~240V AC, 0.22A, 50-60Hz |
Dimensions (W x D x H) |
440 x 180 x 44mm, 1U height |
Switching |
|
Switch Processing Scheme |
Store-and-Forward |
Throughput (packet per second) |
35.7Mpps |
Switch Fabric |
48Gbps |
Address Table |
8K entries |
Jumbo Packet Size |
9K |
Flow Control |
Back pressure for half duplex |
|
IEEE 802.3x Pause frame for full duplex |
Standards Conformance |
|
Regulatory Compliance |
FCC Part 15 Class A, CE |
Standards Compliance |
IEEE 802.3 (Ethernet) |
|
IEEE 802.3u (Fast Ethernet) |
|
IEEE 802.3ab (Gigabit Ethernet) |
|
IEEE 802.3x (Full-Duplex Flow Control) |
|
IEEE 802.3az Energy Efficient Ethernet (EEE) |
Environment |
|
Operating |
Operating Temperature: 0~50 degrees C |
|
Relative Humidity: 5% to 95% (non-condensing) |
Storage |
Temperature: -10~70 degrees C |
|
Relative Humidity: 5% to 95% (non-condensing) |
-
