Planet 24-Port 10/100/1000T + 2-Port 100/1000X SFP Managed Switch | GS-4210-24T2S

Cost-optimized Managed Switch with Advanced L2/L4 Switching and Security
PLANET GS-4210-24T2S is an ideal Gigabit Switch which provides cost-effective advantage to local area network and is widely accepted in the SMB office network. It offers intelligent Layer 2 data packet switching and management functions, friendly web user interface and stable operation. Besides the popular IPv6/IPv4 management and abundant L2/L4 switching functions, the GS-4210-24T2S comes with fanless feature and green technology to provide a quiet, energy-saving, high-speed and reliable office network environment.

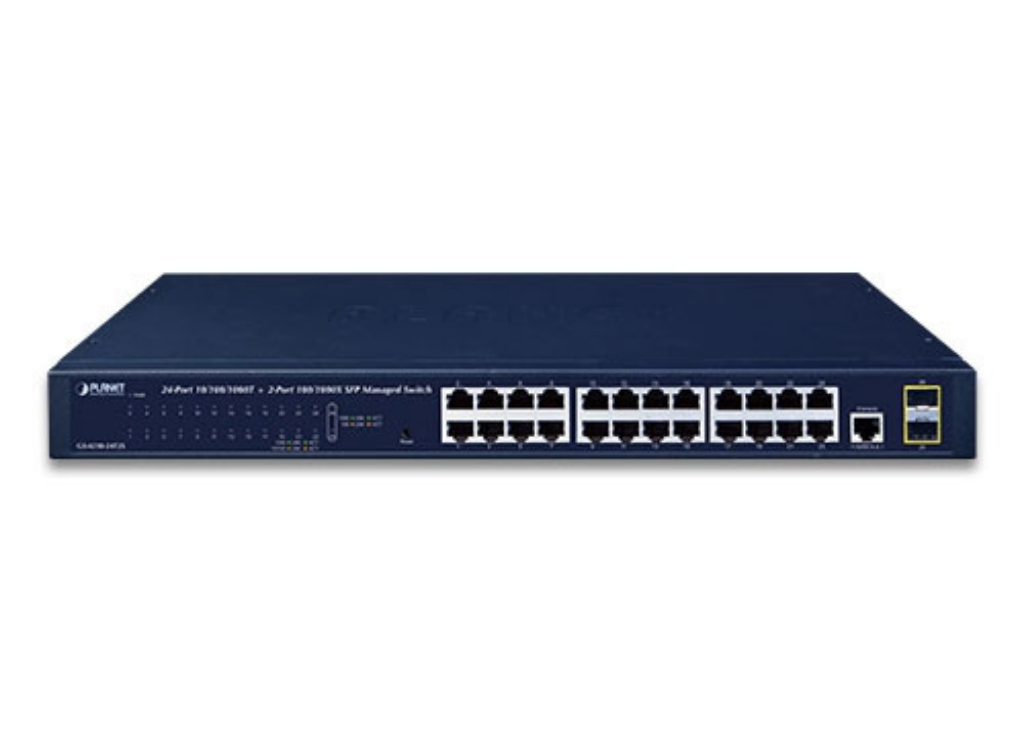

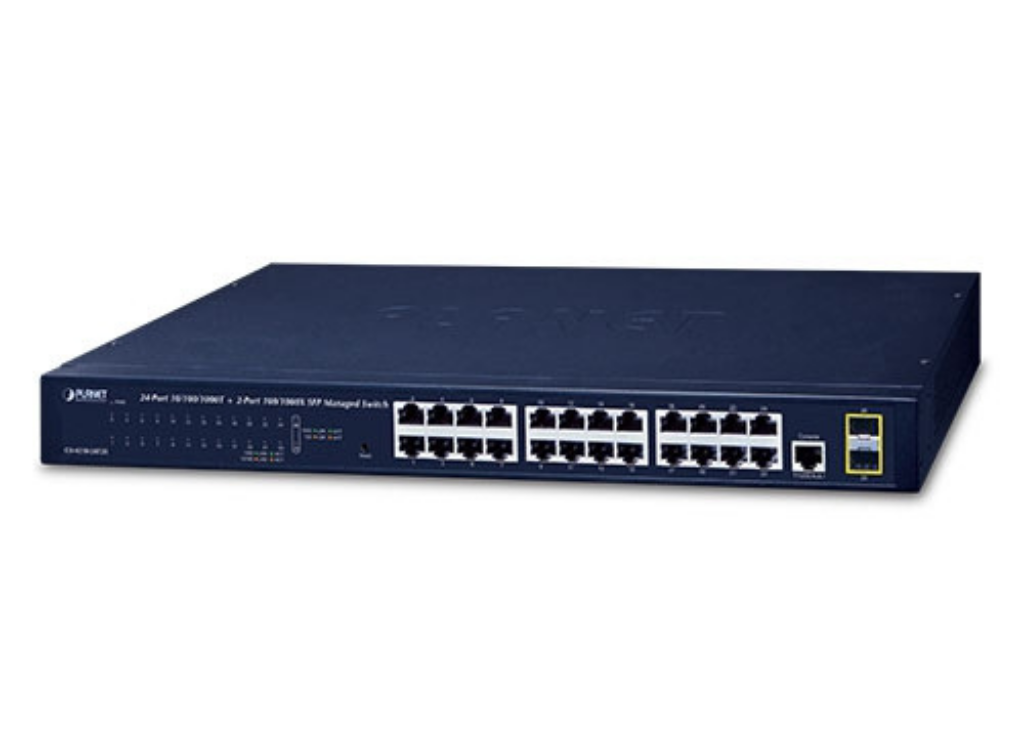

The GS-4210-24T2S is equipped with 24 10/100/1000BASE-T Gigabit Ethernet ports and 2 additional 100/1000BASE-X SFP interfaces with inner power system. It offers a rack-mountable, affordable, safe and reliable Gigabit network switch solution for SMBs deploying networks, or requiring enhanced data security and network traffic management.

Cybersecurity Network Solution to Minimize Security Risks
The GS-4210-24T2S supports SSHv2 and TLS protocols to provide strong protection against advanced threats. It includes a range of cybersecurity features such as DHCP Snooping, IP Source Guard, dynamic ARP Inspection Protection, 802.1x port-based network access control, RADIUS and TACACS+ user accounts management, SNMPv3 authentication, and so on to complement it as an all-security solution.

Redundant Ring, Fast Recovery for Critical Network Applications
The GS-4210-24T2S supports redundant ring technology and features strong, rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology, Spanning Tree Protocol (802.1s MSTP) into customer’s network to enhance system reliability and uptime in various environments.

IPv6/IPv4 Dual Stack Management
Supporting both IPv6 and IPv4 protocols, the GS-4210-24T2S helps the SMBs to step in the IPv6 era with the lowest investment as its network facilities need not be replaced or overhauled if the IPv6 FTTx edge network is set up.

Robust Layer 2 Features
The GS-4210-24T2S  can be programmed for advanced switch management functions such as dynamic port link aggregation, 802.1Q VLAN and Q-in-Q VLAN, Multiple Spanning Tree Protocol (MSTP), loop and BPDU guard, IGMP snooping, and MLD snooping. Via the link aggregation, the GS-4210-24T2S allows the operation of a high-speed trunk to combine with multiple ports such as a 16Gbps fat pipe, and supports fail-over as well.  Also, the Link Layer Discovery Protocol (LLDP) is the Layer 2 protocol included to help discover basic information about neighboring devices on the local broadcast domain.

Efficient Traffic Control
The GS-4210-24T2S is loaded with robust QoS features and powerful traffic management to enhance services to business-class data, voice, and video solutions. The functionality includes broadcast/multicast/unicast storm control, per port bandwidth control, 802.1p/CoS/IP DSCP QoS priority and remarking. It guarantees the best performance at VoIP and video stream transmission, and empowers the enterprises to take full advantage of the limited network resources.

Powerful Security
PLANET GS-4210-24T2S offers comprehensive IPv4/IPv6 Layer 2 to Layer 4 Access Control List (ACL) for enforcing security to the edge. It can be used to restrict network access by denying packets based on source and destination IP address, TCP/UDP ports or defined typical network applications. Its protection mechanism also comprises 802.1X port-based authentication, which can be deployed with RADIUS to ensure the port level security and block illegal users. With the protected port function, communication between edge ports can be prevented to guarantee user privacy. Furthermore, port security function allows limiting the number of network devices on a given port. The network administrators can now construct highly-secure corporate networks with considerably less time and effort than before.

Friendly and Secure Management
For efficient management, the GS-4210-24T2S is equipped with Command line, Web and SNMP management interfaces.

With the built-in Web-based management interface, the GS-4210-24T2S offers an easy-to-use, platform-independent management and configuration facility.
For text-based management, it can be accessed via Telnet and the console port.
By supporting the standard SNMP protocol, the switch can be managed via any SNMP-based management software.
Moreover, the GS-4210-24T2S offers secure remote management by supporting SSHv2, TLSv1.2 and SNMPv3 connections which encrypt the packet content at each session.

Flexible Extension Solution
The two mini-GBIC slots built in the GS-4210-24T2S are compatible with the 100BASE-FX/1000BASE-SX/LX SFP (Small Form-factor Pluggable) fiber transceiver to uplink to backbone switch and monitor center in long distance. The distance can be extended from 550 meters to 2 kilometers (multi-mode fiber) and to 10/20/40/60/80/120 kilometers (single-mode fiber or WDM fiber). They are well suited for applications within the enterprise data centers and distributions.

Fanless Design

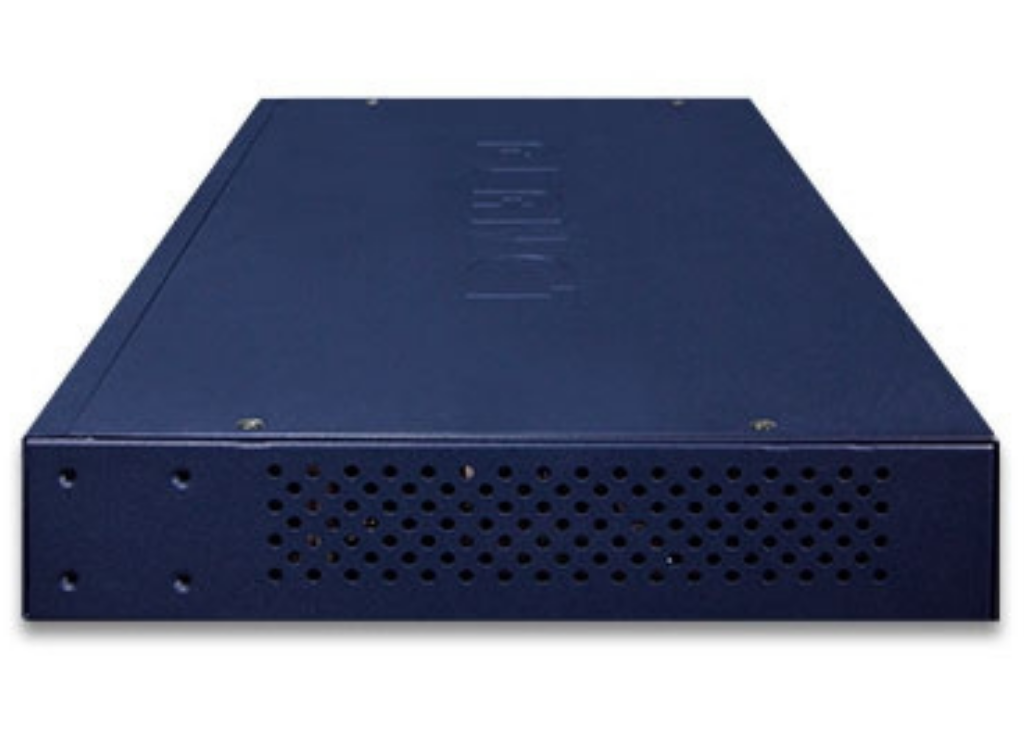

Adopting the latest chip process and green technology, the GS-4210-24T2S successfully reduces substantial power consumption with the fanless and noiseless design collocating with the effective cooler. Therefore, the GS-4210-24T2S is able to operate stably and quietly in any environment without affecting its performance.

Applications

Department/Edge Security and QoS Switch
The GS-4210-24T2S connects up to 24 high-speed workstations in the Ethernet environment, in which its two SFP mini-GBIC interfaces provide an uplink to a department backbone. Moreover, the Switch provides 52Gbps switch fabric and high bandwidth for backbone connection. The GS-4210-24T2S improves the network efficiency and safeguards the network clients with its powerful features:

IPv6/IPv4 management
Layer 2 to Layer 4 security
QoS
802.1x port-based and MAC-based network access authentication security
Multicast IGMP snooping
The advanced functionality of the GS-4210-24T2S eliminates traditional issues associated with the use of Ethernet. Users can be separated with advanced VLAN functionality to enhance security. It makes the GS-4210-24T2S one of the best and most cost-effective switch solutions for SMBs.

High-performance Backbone/Server Farm Switch
Gigabit Ethernet supported equipment has become the fundamental unit of enterprises and network servers. With up to 52Gbps non-blocking switch fabric, the GS-4210-24T2S can easily provide a local high bandwidth Gigabit Ethernet network for backbone of enterprises or telecoms. With its port trunking function, a 16 GB fat pipe is provided to connect to the backbone if required. It is ideal to be used as a server farm switch connecting to servers. The GS-4210-24T2S can offer the uplink to the edge network through Gigabit Ethernet LX/SX SFP modules with the two SFP ports.

FTTX/MAN Application
The GS-4210-24T2S applies the double tag VLAN (Q-in-Q) technology to providing low cost and easy operation for service providers carrying traffic for multiple customers across their networks. It features SNMP v3 and RMON Groups. The SNMPv3 security structure consists of security models, with each model having its own security levels. With two dual-speed SFP slots built in, the deployment distance of the GS-4210-24T2S can be extended up to 120 kilometers (single-mode fiber), which provides a high-performance edge service for FTTx solutions.

To build a network solution of FTTH (Fiber to the Home) or FTTC (Fiber to the Curb) for ISPs, and FTTB (Fiber to the Building) for enterprises, the various distances of SFP and Bidi (WDM) transceivers are optional for customers’ choices. For security and various applications, the 24 Gigabit ports of the GS-4210-24T2S can be configured with VLAN settings and connected to different units, offices, floors, houses and departments.

Key Features

Physical Port
24-port 10/100/1000BASE-T Gigabit RJ45 copper
2 100/1000BASE-X mini-GBIC/SFP slots
RJ45 console interface for switch basic management and setup
Reset button for system factory default

Switching
Hardware-based 10/100Mbps, half/full duplex and 1000Mbps full duplex mode, flow control and auto-negotiation, and auto MDI/MDI-X
Features Store-and-Forward mode with wire-speed filtering and forwarding rates
IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation
9K jumbo frame
Automatic address learning and address aging
Supports CSMA/CD protocol

Layer 2 Features
Supports VLAN
IEEE 802.1Q tagged VLAN
Provider Bridging (VLAN Q-in-Q) support (IEEE 802.1ad)
Protocol VLAN
Voice VLAN
Private VLAN (Protected port)
Management VLAN
GVRP
Supports Spanning Tree Protocol
STP (Spanning Tree Protocol)
RSTP (Rapid Spanning Tree Protocol)
MSTP (Multiple Spanning Tree Protocol)
STP BPDU Guard, BPDU Filtering and BPDU Forwarding
Supports Link Aggregation
IEEE 802.3ad Link Aggregation Control Protocol (LACP)
Cisco ether-channel (static trunk)
Maximum 8 trunk groups, up to 8 ports per trunk group
Provides port mirror (many-to-1)
Loop protection to avoid broadcast loops
Supports ERPS (Ethernet Ring Protection Switching)

Quality of Service
Ingress/Egress Rate Limit per port bandwidth control
Storm Control support
Broadcast/unknown unicast/unknown multicast
Traffic classification
IEEE 802.1p CoS
TOS/DSCP/IP precedence of IPv4/IPv6 packets
Strict priority and Weighted Round Robin (WRR) CoS policies

Multicast
Supports IPv4 IGMP snooping v2 and v3
Supports IPv6 MLD snooping v1, v2
IGMP querier mode support
IGMP snooping port filtering
MLD snooping port filtering

Security
Authentication
IEEE 802.1X port-based network access authentication
Built-in RADIUS client to cooperate with the RADIUS servers
DHCP Option 82
RADIUS/TACACS+ login user access authentication
Access Control List
IPv4/IPv6 IP-based ACL
IPv4/IPv6 IP-based ACE
MAC-based ACL
MAC-based ACE
MAC Security
Static MAC
MAC filtering
Port security for source MAC address entries filtering
DHCP snooping to filter distrusted DHCP messages
Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding
IP source guard prevents IP spoofing attacks
DoS attack prevention

Management
IPv4 and IPv6 dual stack management
Switch management interface
Web switch management
Console/Telnet Command Line Interface
SNMP v1 and v2c switch management
SSHv2, TLSv1.2 and SNMPv3 secure access
User privilege levels control
Built-in Trivial File Transfer Protocol (TFTP) client
BOOTP and DHCP for IP address assignment
System maintenance
Firmware upload/download via HTTP/TFTP
Configuration upload/download through web interface
Dual images
Hardware reset button for system reboot or reset to factory default
SNTP Network Time Protocol
Cable diagnostics
Link Layer Discovery Protocol (LLDP) and LLDP-MED
SNMP trap for interface link up and link down notification
Event message logging to remote Syslog server
Four RMON groups (history, statistics, alarms and events)
PLANET Smart Discovery Utility for deployment management
PLANET NMS system and CloudViewer for  deployment management
