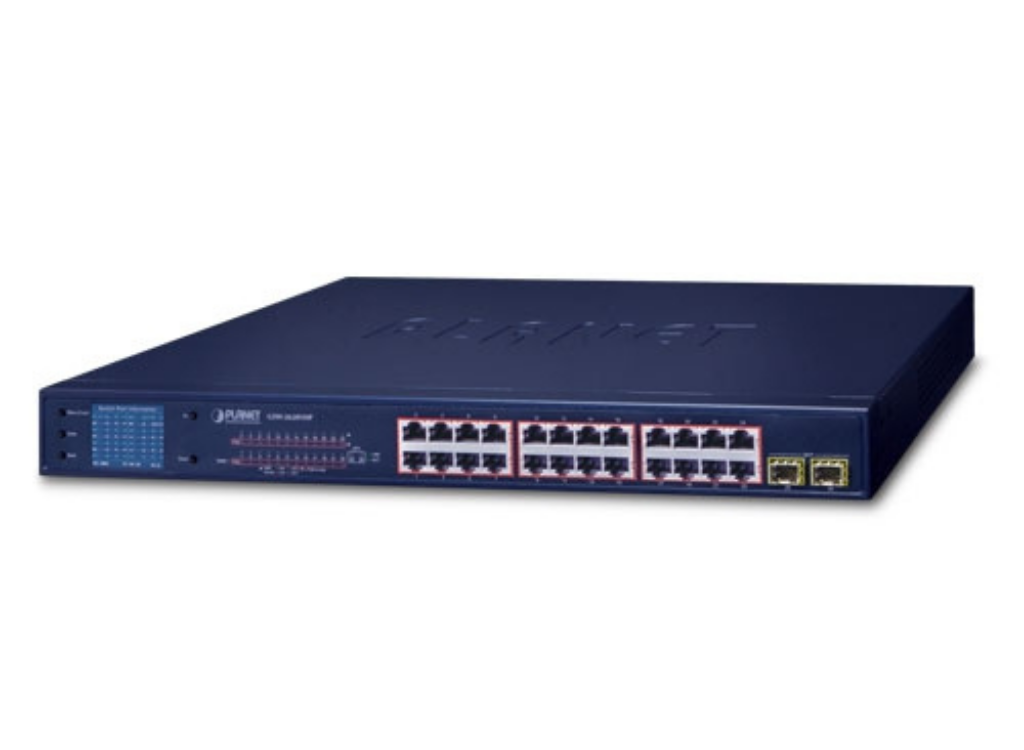

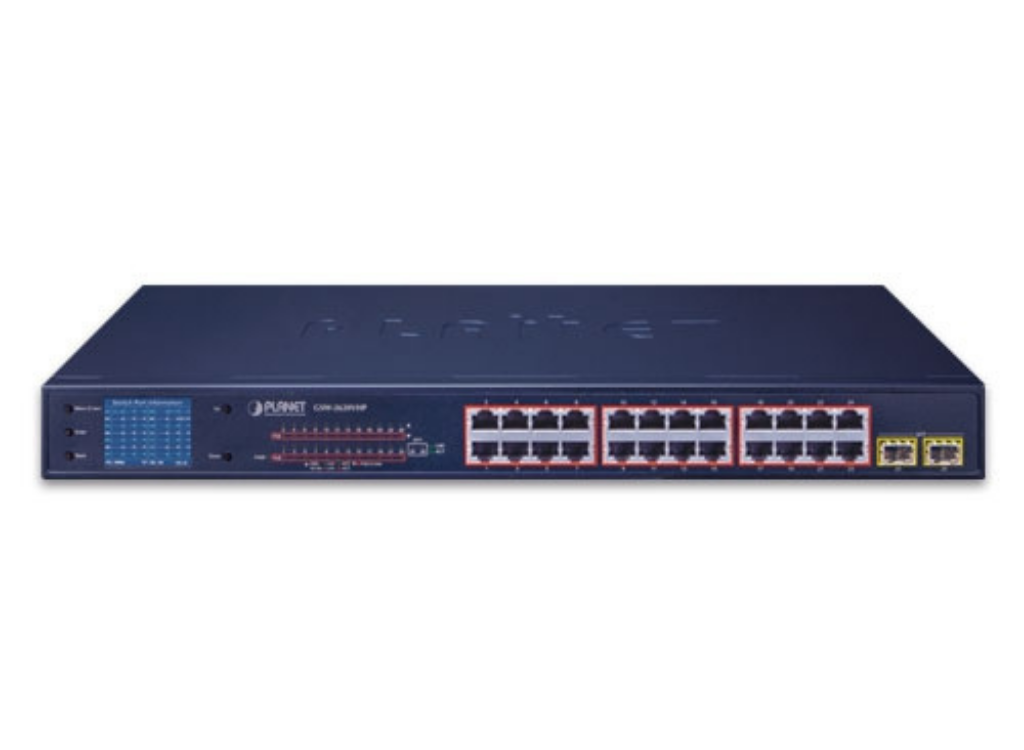

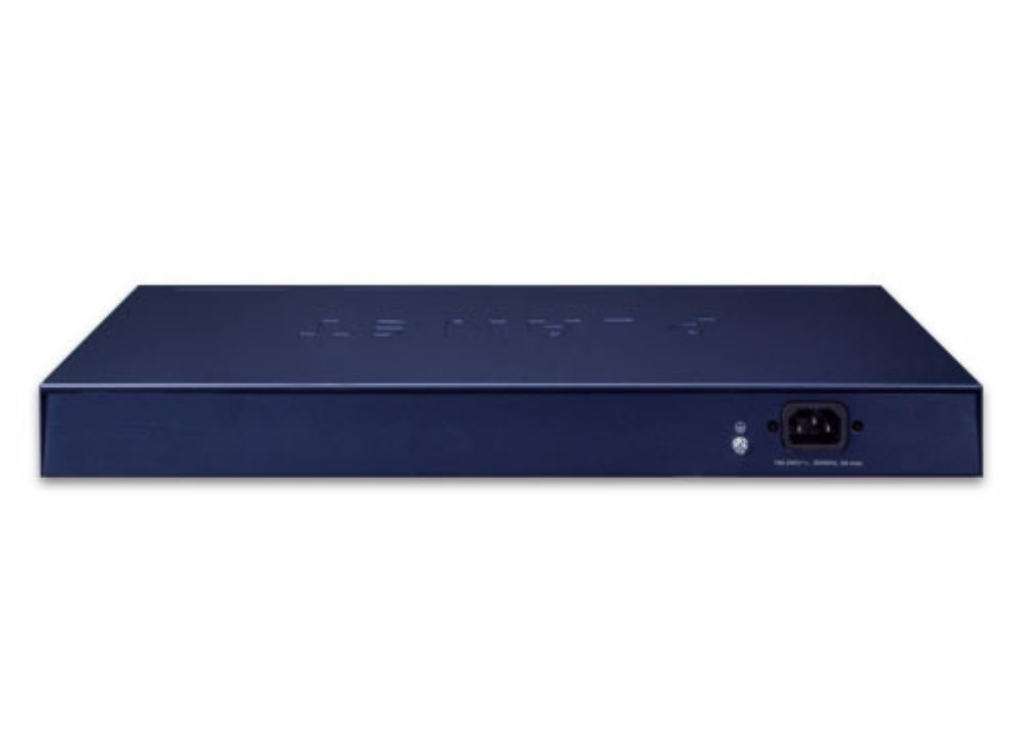

Planet 24-Port 10/100/1000T 802.3at PoE + 2-Port Gigabit SFP Ethernet Switch | GSW-2620VHP

SKU: GSW-2620VHP
Part Number: GSW-2620VHP
Condition: Brand New
Purchase Orders Accepted
Save £63.79 Save £63.79
Original price £486.80
Inc. VAT
Original price £486.80 - Original price £486.80
Original price £486.80

£352.51 (Excl. VAT)

Current price - £423.01 Inc. VAT
£423.01 - £423.01
Current price- - £423.01
(Inc. VAT )
Availability:
Only 4 left at this price!

payment-icons

Bulk Price & Price Match Request

Contact our expert sales team on 020 8191 9223 for best price and dedicated assistance.

Educational & Public Sector Prices Available

For more details, please call us at 020 8191 9223 or email us at info@screenmoove.com

  • Description
  • Specifications
  • Downloads
  • Planet 24-Port 10/100/1000T 802.3at PoE + 2-Port Gigabit SFP Ethernet Switch | GSW-2620VHP

    Just “Plug and Watch” for a Quick Solution
    PLANET GSW-2620VHP is an ideal Plug and Watch Power over Ethernet solution which provides quick installation, real-time PoE work status monitoring and immediate troubleshooting through its unique LCD display to improve work efficiency and quality without any PC or software required.


    The GSW-2620VHP is equipped with 24 10/100/1000BASE-T ports featuring 30-watt 802.3at Power over Ethernet Plus (PoE+) copper interfaces and 2 extra 1000BASE-X SFP slots with inner power system. With a total PoE power budget of up to 300 watts and non-blocking data switching performance, the GSW-2620VHP fulfills the demand of sufficient PoE power for HD IP surveillance. It offers a desktop-sized, reliable and visible power solution for small businesses and system integrators deploying Power over Ethernet networks.


    Smart and Intuitive LCD Control

    The GSW-2620VHP provides an intuitive color panel on its front panel that facilitates the Ethernet management and PoE PD management. They greatly promote management efficiency in large-scale network, such as enterprises, hotels, shopping malls, government buildings, and other public areas, and feature the following special management and status functions:

    PoE management and status
    Port management and status
    Switch mode: Standard, VLAN, Extend
    Budget and bandwidth control
    PD alive check
    Maintenance: Screen saver, fan control, factory default and save configuration


    Standard, VLAN and Extend Operation Modes Offered

    The GSW-2620VHP provides Standard, VLAN and Extend operation modes. The GSW-2620VHP operates as a normal IEEE 802.3af/at PoE Switch in the Standard operation mode. The VLAN operation mode features the port-based VLAN function that can help to prevent the IP camera’s multicast or broadcast storm from influencing each other.


    In the Extend operation mode, the GSW-2620VHP operates on a per-port basis at 10Mbps duplex operation but can support 20-watt PoE power output over a distance of up to 250 meters overcoming the 100m limit on Ethernet UTP cable. With this brand-new feature, the GSW-2620VHP provides an additional solution for 802.3af/at PoE distance extension, thus saving the cost of Ethernet cable installation. Its VLAN isolation function isolates ports so as to prevent broadcast storm and defend DHCP spoofing in the Extend operation mode.


    Flexible Extension Solution

    The two mini-GBIC slots built in the GSW-2620VHP are compatible with the 1000BASE-SX/LX SFP (Small Form-factor Pluggable) fiber transceiver, uplinked to the backbone switch and monitoring center in long distance. The distance can be extended from 550 meters (multi-mode fiber) to 10/20/30/40/50/60/70/120 kilometers (single-mode fiber or WDM fiber). They are well suited for applications within the enterprise data centers and distributions.

    Robust Protection
    The GSW-2620VHP provides contact discharge of ±6KV DC and air discharge of ±8KV DC for Ethernet ESD protection. It also supports ±6KV surge immunity to improve product stability and protects users’ networks from devastating ESD attacks, making sure the flow of operation does not fluctuate.

    Easy Installation and Cable Connection
    As data and power are transmitted over one cable, the GSW-2620VHP does not need a second cable and electrical outlets on the wall, ceiling or any unreachable place. Thus, it helps to lower the installation costs and simplify the installation effort. All the RJ45 copper interfaces of the GSW-2620VHP support 10/100/1000Mbps auto-negotiation for optimal speed detection through RJ45 Category 6, 5 or 5e cable. It also supports standard auto-MDI/MDI-X that can detect the type of connection to any Ethernet device without requiring special straight-through or crossover cables.

  • Category Specification
    Hardware Specifications
    802.3af/802.3at PoE Injector Port 24
    10/100/1000BASE-T MDI/MDIX Ports 24
    1000BASE-X SFP/mini-GBIC Slots 2
    Switch Architecture Store-and-Forward
    Switch Fabric 52Gbps/non-blocking
    Switch Throughput@64 bytes 38.7Mpps@64 bytes
    MAC Address Table 8K entries
    Maximum Frame Size 9216 bytes
    Flow Control IEEE 802.3x pause frame for full-duplex; back pressure for half-duplex
    LED Indicators
    System Power (Green)
    10/100/1000BASE-T RJ45 Interfaces 10/100Mbps LNK/ACT (Red), 1000Mbps LNK/ACT (Green), PoE-in-Use (Amber)
    1000BASE-X SFP Interfaces LNK/ACT (Green)
    LCD Monitor (W x D) 40.6 x 30.5 mm, 2-inch
    Button Menu, Enter, Back, Up and Down
    Dimensions (W x D x H) 440 x 233 x 44 mm (1U height)
    Enclosure Metal
    Weight 3.5kg
    Power Requirements 100~240V AC, 50/60Hz, 5A max.
    Power Consumption/Dissipation Max. 330 watts/1132 BTU
    Thermal Fan 3
    ESD Protection Contact discharge of ±6KV DC, Air discharge of ±8KV DC
    Surge Protection ±6KV
    Power over Ethernet
    PoE Standard IEEE 802.3af Power over Ethernet/PSE, IEEE 802.3at Power over Ethernet Plus/PSE
    PoE Power Supply Type End-span
    PoE Power Output Per port 53V-54V DC, 300mA. max. 15.4 watts (IEEE 802.3af), Per port 53V-54V DC, 600mA. max. 30 watts (IEEE 802.3at)
    Power Pin Assignment 1/2 (+), 3/6 (-)
    PoE Power Budget 300 watts
    Max. Number of Class 2 PDs 24
    Max. Number of Class 3 PDs 23
    Max. Number of Class 4 PDs 11
    Standards Conformance
    Regulatory Compliance FCC Part 15 Class A, CE
    Standards Compliance IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab Gigabit 1000BASE-T, IEEE 802.3z Gigabit SX/LX, IEEE 802.3x Flow control and back pressure, IEEE 802.3af Power over Ethernet, IEEE 802.3at Power over Ethernet Plus, IEEE 802.3az Energy Efficient Ethernet (EEE)
    Environment
    Operating Temperature: -10 ~ 60 degrees C, Relative Humidity: 10 ~ 90% (non-condensing), *Temperature: < 40 degrees C; Humidity: < 90%, Temperature: > 40 degrees C; Humidity: < 50%
    Storage Temperature: -10 ~ 70 degrees C, Relative Humidity: 5 ~ 90% (non-condensing)
