Planet 2x2 MIMO 2.4GHz 14dBi Flat-Panel Dual Polarization Direction Antenna | ANT-FP14D
SKU: ANT-FP14D
£59.00 (Excl. VAT)
- Description
- Specifications
- Downloads
-
Planet 2x2 MIMO 2.4GHz 14dBi Flat-Panel Dual Polarization Direction Antenna | ANT-FP14D

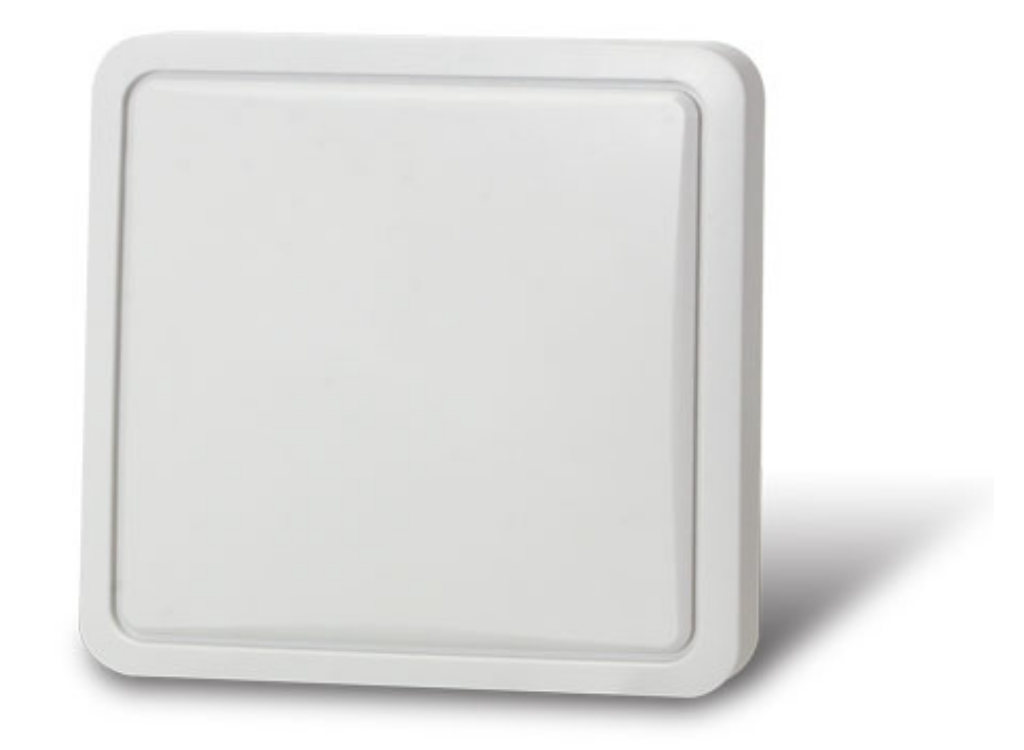

PLANET ANT-FP14D is a 2.4GHz 14dBi Flat Panel Dual Polarization Directional Antenna equipped with two N-Type Female connectors. The ANT-FP14D can increase wireless signal coverage and improve signal strength and quality for the current wireless environment. As the ANT-FP14D can effectively enhance the performance and coverage of the 802.11b/g/n 2.4GHz facilities, it is quite suitable for outdoor wireless LAN applications such as point-to-point connection between the warehouses.
The ANT-FP14D Dual Polarization Directional Antenna can operate in both vertical and horizontal polarization. The dual-polarized antennas are perfectly helpful for 802.11n devices in multithreaded communications. This enables the wireless device to transmit data on one polarization and receive data on the other polarization simultaneously. Obviously, all the networking equipment in the wireless network must be multithreading complaint. It thus brings users the advantage that multithreaded communications can be achieved with use of only one antenna instead of two independent (and opposite polarized) antennas.

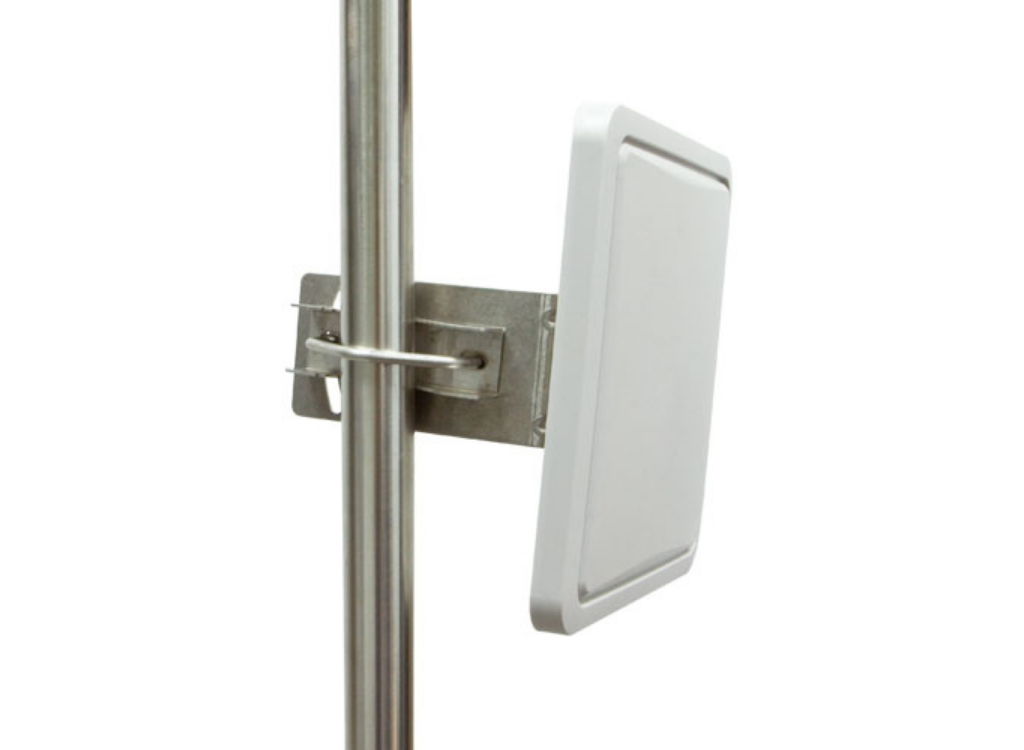

ApplicationsPLANET ANT-FP14D 2.4GHz 14dBi Flat Panel Dual Polarization Directional Antenna, with its compact housing and lightning protection system design, can be flexibly installed in any outdoor wireless environment to meet today’s wireless LAN requirements, such as wide wireless signal coverage and improved signal strength and quality.
Key Features
Designed to extend wireless coverage of 802.11b/g/n devices at frequency of 2.4GHz
Intergrating two polarities into one antenna helps to reduce cost of deployment
14dBi high-gain antenna
IP55-rated case
Compact-sized housing and lightning protection system design

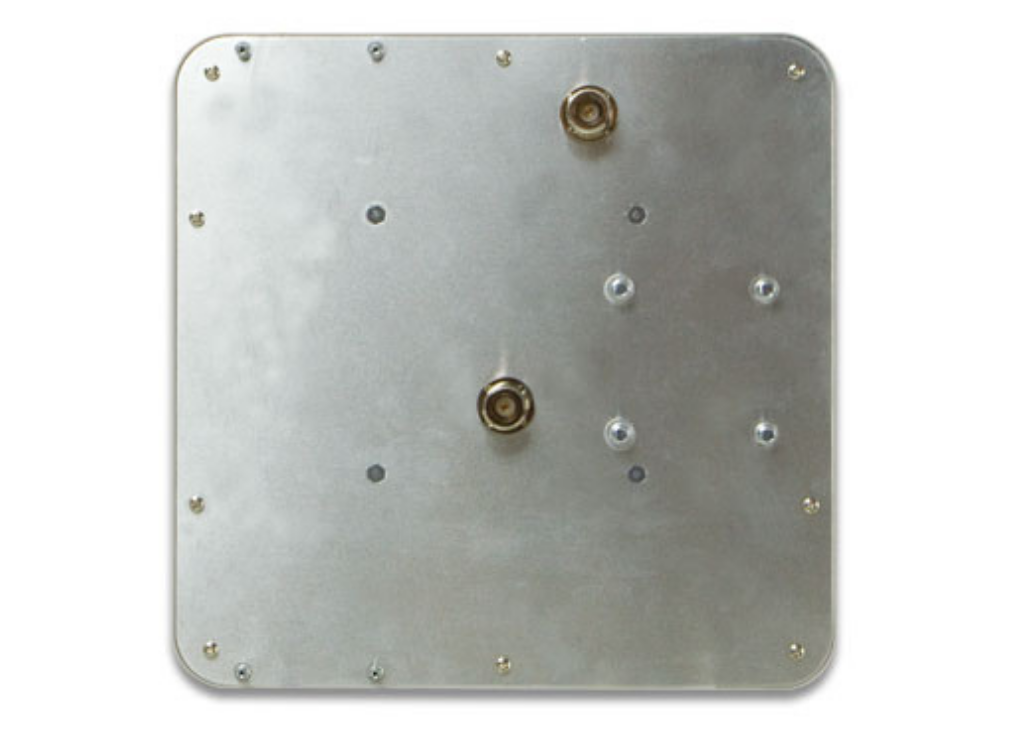

Built-in two N-Type female connectors
Easily-extended, point-to-point wireless coverage -
Category Specifications Frequency Range 2.4 ~ 2.5GHz Max. Gain 14dBi Antenna Type Uni-directional, flat panel V.S.W.R. <1.5 Polarization Horizontal and vertical (dual polarization) HPBW/Horizontal 30 degrees HPBW/Vertical 30 degrees Input Impedance 50Ω Connector N-Type (female) x 2 Survival Wind Speed Greater than 150mph Temperature -40 ~ 70 degrees C Humidity 95% @ 55 degrees C Radome Color Grayish-white Radome Material ABS, UV-resistant Dimensions (W x D x H) 228 x 15 x 228 mm (connector excluded) Weight 562g Waterproof Rating IP55 Mount Type Pole Mount -
Description Downloads Datasheet Downloads
