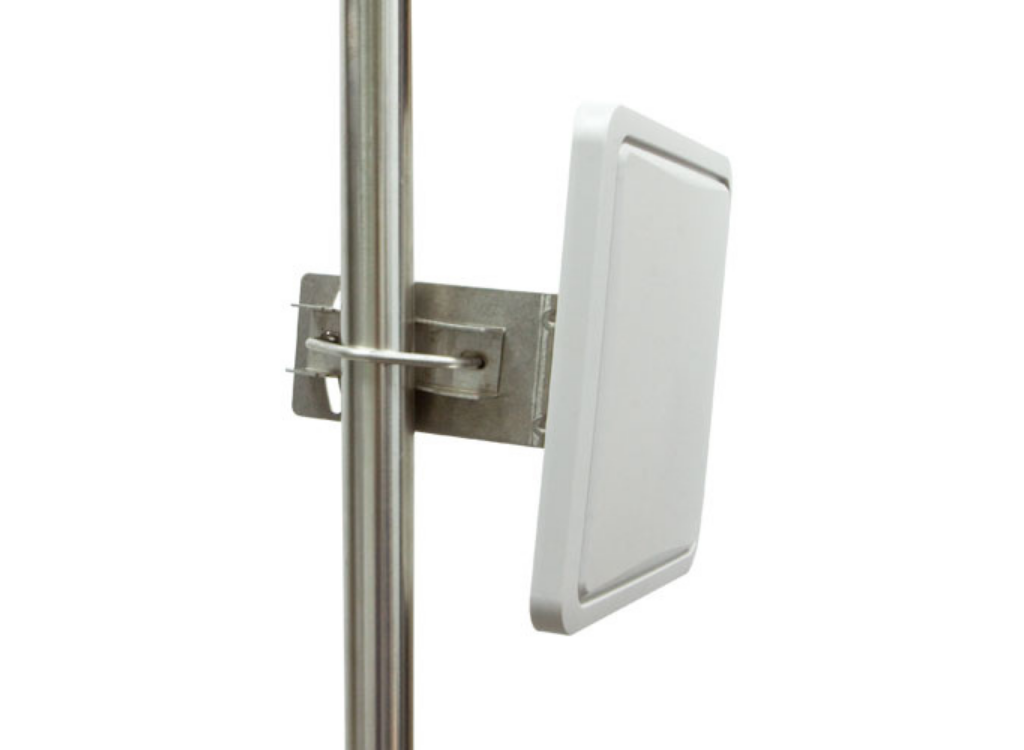

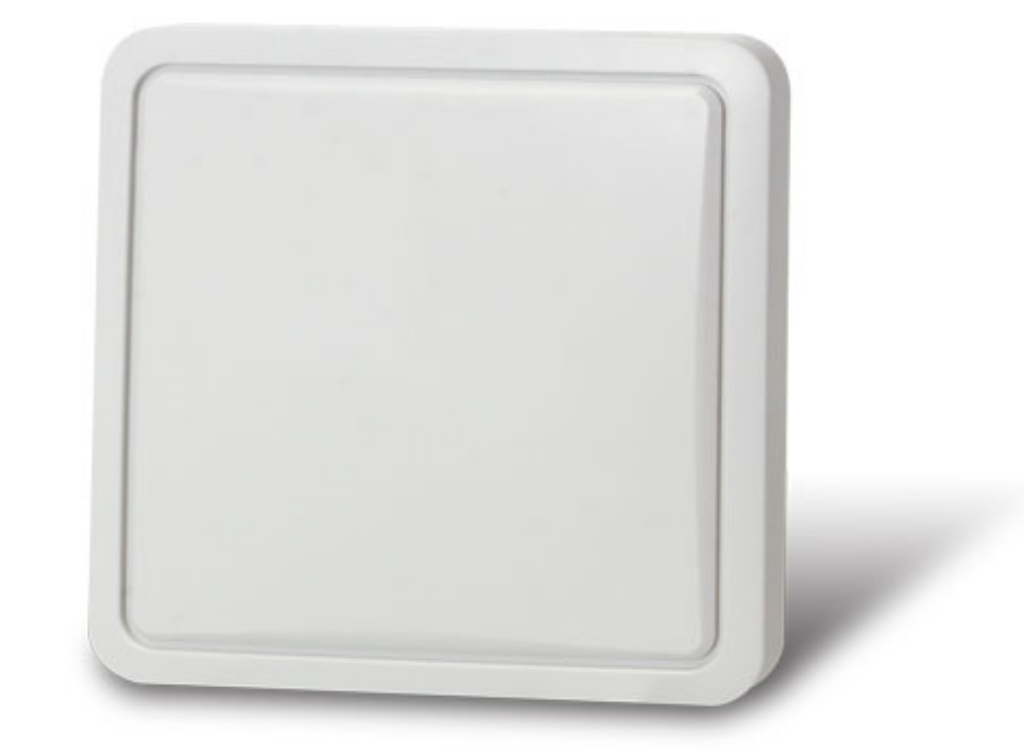

PLANET ANT-FP14AD is a 5GHz 14dBi Flat Panel Dual Polarization Directional Antenna equipped with two N-Type Female connectors. The ANT-FP14AD can increase wireless signal coverage and improve signal strength and quality for the current wireless environment. As the ANT-FP14AD can effectively enhance the performance and coverage of the 802.11a/n 5GHz facilities, it is quite suitable for outdoor wireless LAN applications, such as point-to-point connection between the warehouses.
The ANT-FP14AD Dual Polarization Directional Antenna can operate in both vertical and horizontal polarization. The dual-polarized antennas are perfectly helpful for 802.11n devices in multithreaded communications. This enables the wireless device to transmit data on one polarization and receive data on the other polarization simultaneously. Obviously, all the networking equipment in the wireless network must be multithreading complaint. It thus brings users the advantage that multithreaded communications can be achieved with use of only one antenna instead of two independent (and opposite polarized) antennas.
Applications
PLANET ANT-FP14AD 5GHz 14dBi Flat Panel Dual Polarization Directional Antenna, with its compact housing and lightning protection system design, can be flexibly installed in any outdoor wireless environment to meet today’s wireless LAN requirements, such as wide wireless signal coverage and improved signal strength and quality.
Key Features
Designed to extend wireless coverage of 802.11a/n devices at frequency of 5GHz
Intergrating two polarities into one antenna helps to reduce cost of deployment
14dBi high-gain antenna
IP55-rated case
Compact-sized housing and lightning protection system design

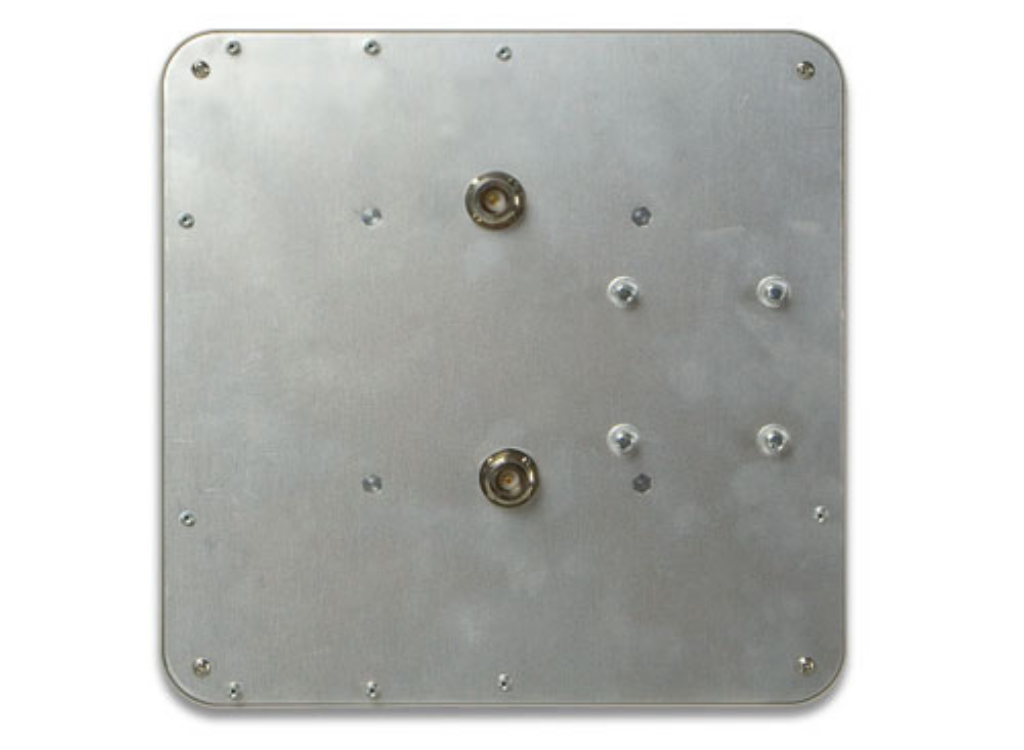

Built-in two N-Type female connectors
Easily-extended, point-to-point wireless coverage
| Category | Specifications |
|---|---|
| Frequency Range | 5.15 ~ 5.85GHz |
| Max. Gain | 14dBi |
| Antenna Type | Uni-directional, flat panel |
| V.S.W.R. | <1.5 |
| Polarization | Horizontal and vertical (dual polarization) |
| HPBW/Horizontal | 30 degrees |
| HPBW/Vertical | 30 degrees |
| Input Impedance | 50Ω |
| Connector | N-Type (female) x 2 |
| Survival Wind Speed | Greater than 150mph |
| Temperature | -40 ~ 70 degrees C |
| Humidity | 95% @ 55 degrees C |
| Radome Color | Grayish-white |
| Radome Material | ABS, UV-resistant |
| Dimensions (W x D x H) | 228 x 15 x 228 mm (connector excluded) |
| Weight | 550g |
| Waterproof Rating | IP55 |
| Mount Type | Pole Mount |
| Description | Downloads |
|---|---|
| Datasheet | Downloads |
