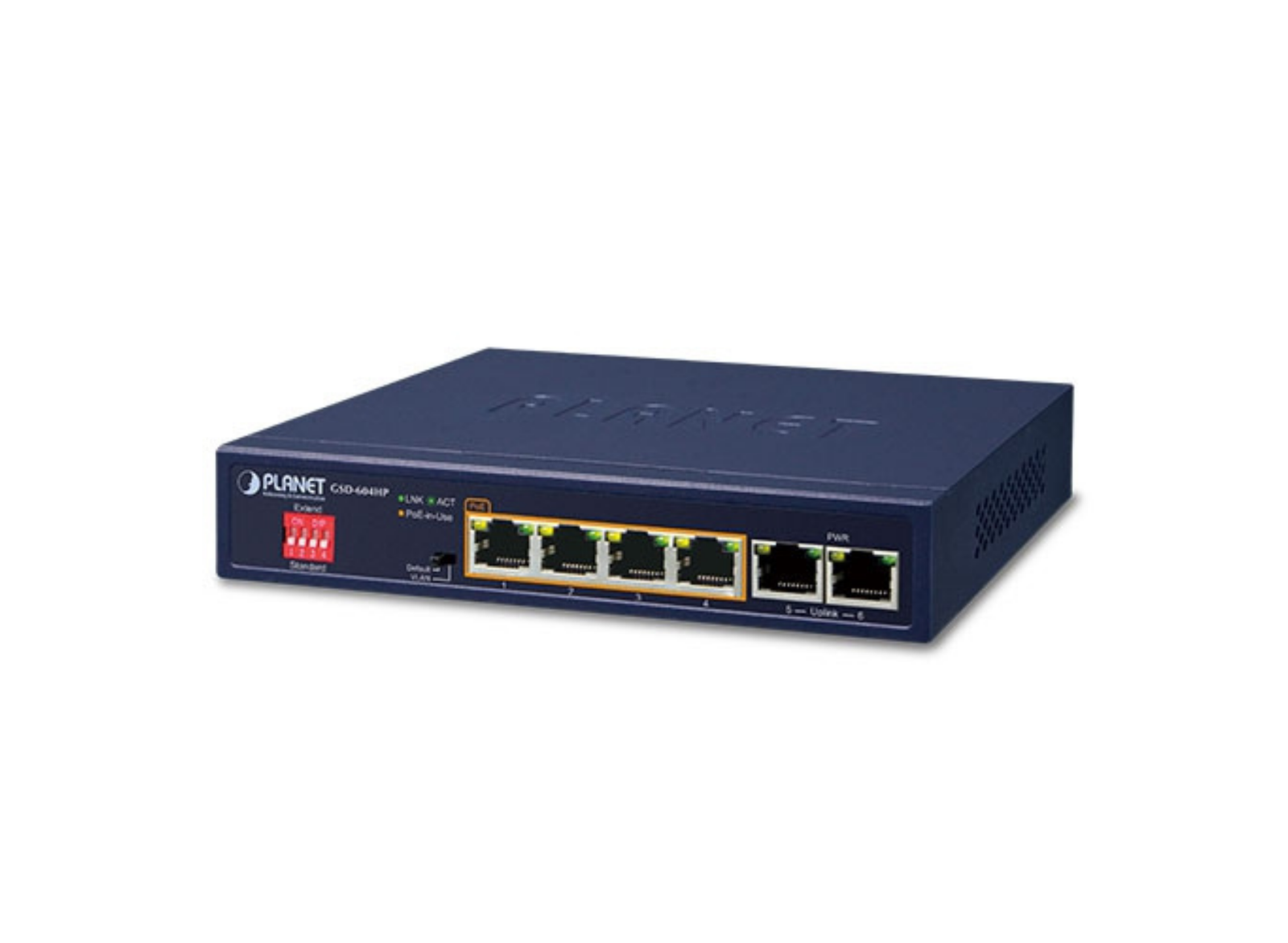

Planet 4-Port 10/100/1000T 802.3at PoE + 2-Port 10/100/1000T Desktop Switch | GSD-604HP

SKU: GSD-604HP
Part Number: GSD-604HP
Condition: Brand New
Purchase Orders Accepted
Save £11.80 Save £11.80
Original price £96.90
Inc. VAT
Original price £96.90 - Original price £96.90
Original price £96.90

£70.92 (Excl. VAT)

Current price - £85.10 Inc. VAT
£85.10 - £85.10
Current price- - £85.10
(Inc. VAT )
Availability:
9 in stock

payment-icons

Bulk Price & Price Match Request

Contact our expert sales team on 020 8191 9223 for best price and dedicated assistance.

Educational & Public Sector Prices Available

For more details, please call us at 020 8191 9223 or email us at info@screenmoove.com

  • Description
  • Specifications
  • Downloads
  • Planet 4-Port 10/100/1000T 802.3at PoE + 2-Port 10/100/1000T Desktop Switch | GSD-604HP

    Cost-effective IP Surveillance System Solution
    PLANET’s new GSD-604HP provides four 802.3at PoE+ ports for catering to small-scale IP surveillance or home networks at a lower total cost. With Dual 10/100/1000BASE-T uplink ports, the recorded HD video streams from the 4 PoE IP cameras can be powered by the GSD-604HP and saved in the 4-channel NVR systems or surveillance software to perform comprehensive security monitoring and manage the surveillance system in the LAN or the remote site via Internet.

    The GSD-604HP’s advanced features are as follows:

    Four  PoE+ port with a total budget of 65 watts
    Two 10/100/1000Mbps uplink ports
    Port-based VLAN
    Compact size, fanless design
    Extended mode


    Two Gigabit Uplink Ports

    The GSD-604HP comes with two uplink ports with 1000Mbps transfer rate to ensure high-speed data and video transmission, and reliable assurance for connection between the surveillance system and outside network where the four PoE+ ports can be used to their full potential.

    Innovative Port-based VLAN

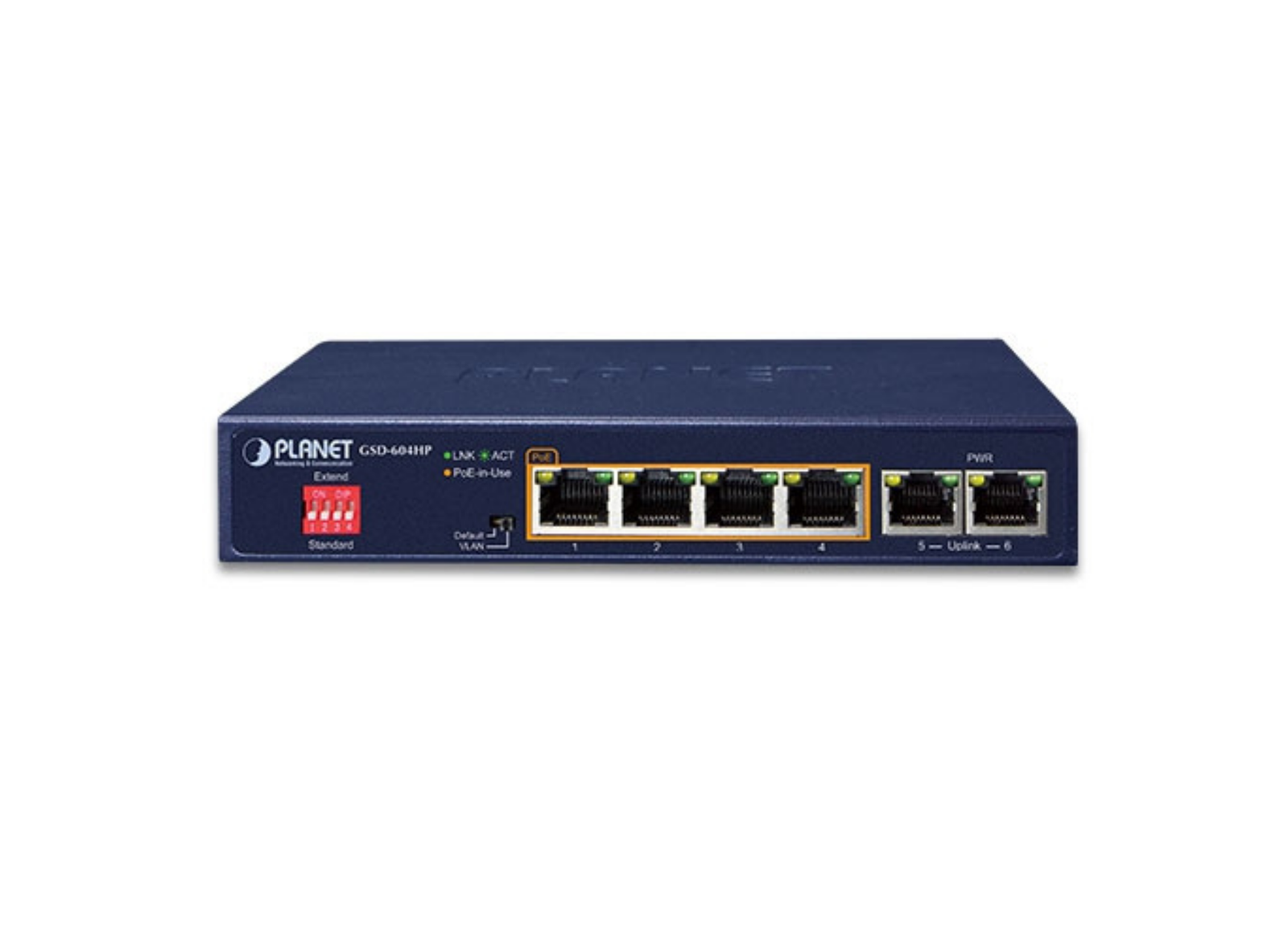

    The GSD-604HP features “Port-based VLAN” whose ports can be isolated from each other via one DIP switch.  This can help to prevent the IP camera’s multicast or broadcast storm from influencing each other, thus fully meeting the requirements of the IP surveillance systems and Ethernet projects.


    Standard, VLAN and Extend Operation Modes

    The GSD-604HP provides Standard, VLAN and Extend operation modes. The GSD-604HP operates as a normal IEEE 802.3at/af PoE switch in the standard operation mode.


    The VLAN operation mode features the port-based VLAN function that can help to prevent the IP camera’s multicast or broadcast storm from influencing each other.


    In the Extend operation mode, the GSD-604HP operates on a per-port basis at 10Mbps duplex operation but can support 20-watt PoE power output over a distance of up to 250 meters overcoming the 100m limit on Ethernet UTP cable. With this brand-new feature, the GSD-604HP provides an additional solution for 802.3at/af PoE distance extension, thus saving the cost of Ethernet cable installation. Its VLAN isolation function isolates ports so as to prevent broadcast storm and defend DHCP spoofing in the extend operation mode.


    Environment-friendly, Fanless Design for Silent Operation

    The GSD-604HP comes with a desktop-sized, compact metal housing, making the placement of the unit convenient. It features a ventilated construction in which a cooling fan is not necessary, thereby making its operation noiseless. Moreover, the GSD-604HP is able to operate reliably and stably in any environment without affecting its performance. The deployment of PoE PDs with constant power feeding can be easily and quickly done.

    Robust Protection
    The GSD-604HP protects against the ESD 6kV surge to improve product stability and also protects users’ networks from devastating ESD attacks, making sure the flow of operation does not fluctuate.

    Ideal Solution for SOHO Having Secure IP Surveillance Infrastructure
    Targeting the growing popular IP surveillance applications, the GSD-604HP PoE+ Switch is also positioned as a Surveillance Switch for a quick and easy PoE IP camera deployment with power feeding. The GSD-604HP supports both 802.3at and 802.3af PoE standards along with 4 10/100/1000BASE-T ports featuring up to 30 watts per RJ45 copper interface, and 2 extra Gigabit Ethernet TP interfaces supporting high-speed transmission of surveillance images and videos.

  • Category Specification
    Network Connector 6 10/100/1000BASE-T RJ45 auto MDI/MDIX ports
    PoE Inject Port 4 ports with 802.3at/af PoE injector function (Ports 1 to 4)
    LED Display System: Power (Orange), Per PoE port: PoE (Orange, port 1 to port 4), Ethernet port: LNK (Green)
    Thermal Fan Fanless design
    Switch Architecture Store and Forward
    MAC Address Table 4K MAC address table with auto learning function
    Switch Fabric 12Gbps
    Switch Throughput 8.92Mpps @64 bytes
    Jumbo Packet 9K bytes
    Flow Control Back pressure for half duplex. IEEE 802.3x pause frame for full duplex

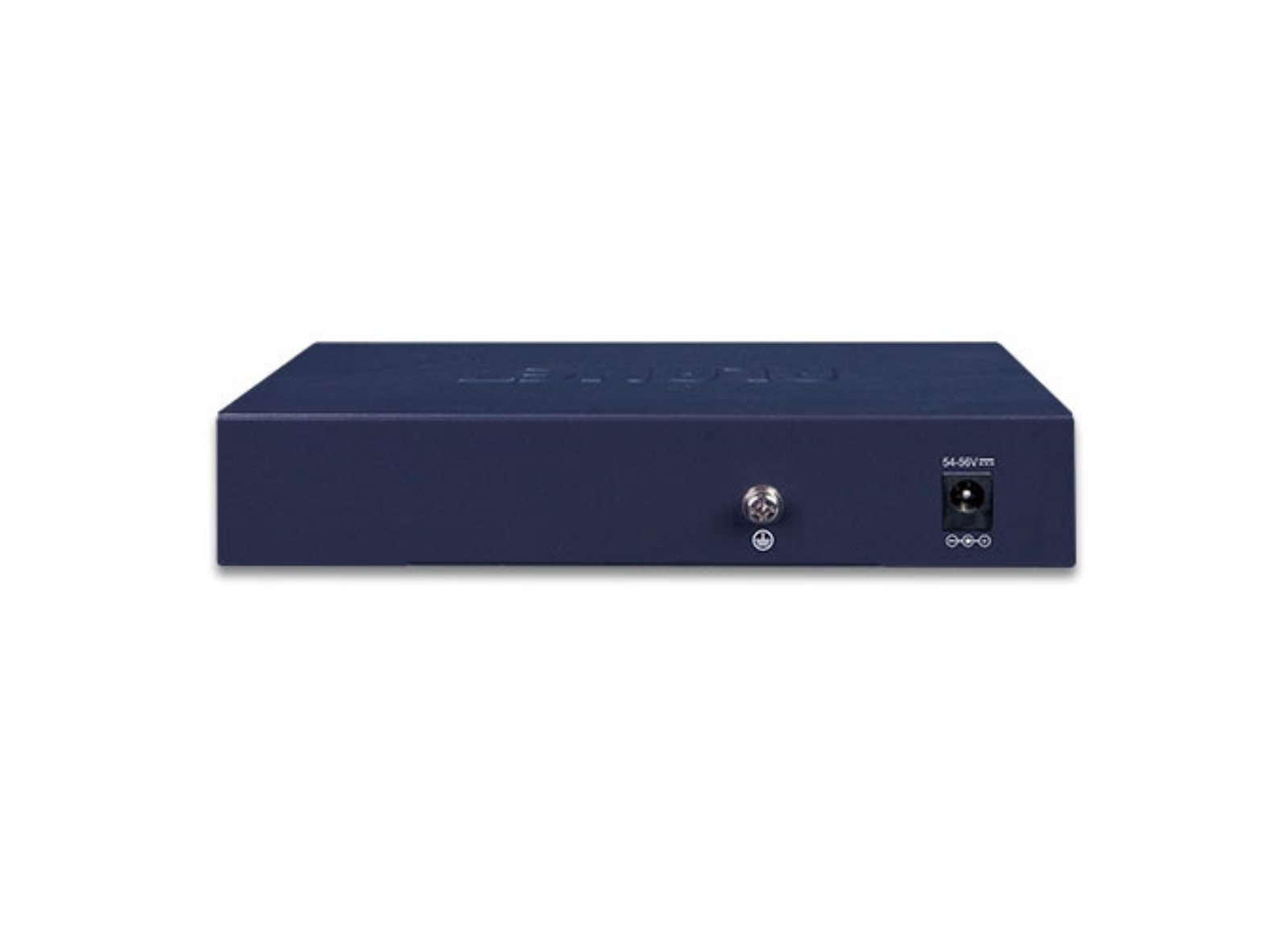

    Power Requirements 54V DC, 1.3A
    ESD Protection 6KV DC
    Power Consumption Max. 66.69 watts, 227.5 BTU
    Dimensions (W x D x H) 168 x 93 x 32mm
    Weight 374g
    PoE Standard IEEE 802.3af Power over Ethernet/PSE, IEEE 802.3at Power over Ethernet Plus/PSE
    PoE Power Supply Type End-span
    Power Pin Assignment 1/2(+), 3/6(-)
    PoE Power Output Per Port 54V DC, 300mA. max. 15.4 watts (IEEE 802.3af), Per Port 54V DC, 600mA. max. 30 watts (IEEE 802.3at)
    PoE Power Budget 65 watts
    Standard Conformance
    EMI Safety FCC Part 15 Class A, CE
    Standard Compliance IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab Gigabit 1000BASE-T, IEEE 802.3x Flow Control and Back Pressure, IEEE 802.3af Power over Ethernet, IEEE 802.3at Power over Ethernet Plus, IEEE 802.3az Energy Efficient Ethernet (EEE)
    Operating Environment 0 ~ 50 degrees C
    Storage Environment -10 ~ 70 degrees C
    Operating Humidity 5 ~ 95%, relative humidity, non-condensing
    Storage Humidity 5 ~ 95%, relative humidity, non-condensing
