Planet 4-Port 10/100Base-TX + 1-Port 100Base-FX Industrial Fast Ethernet Switch | ISW-511

4-Port Industrial Fast Ethernet Switch with 1 FX Fiber Uplink

New slim type with more practicability and convenience

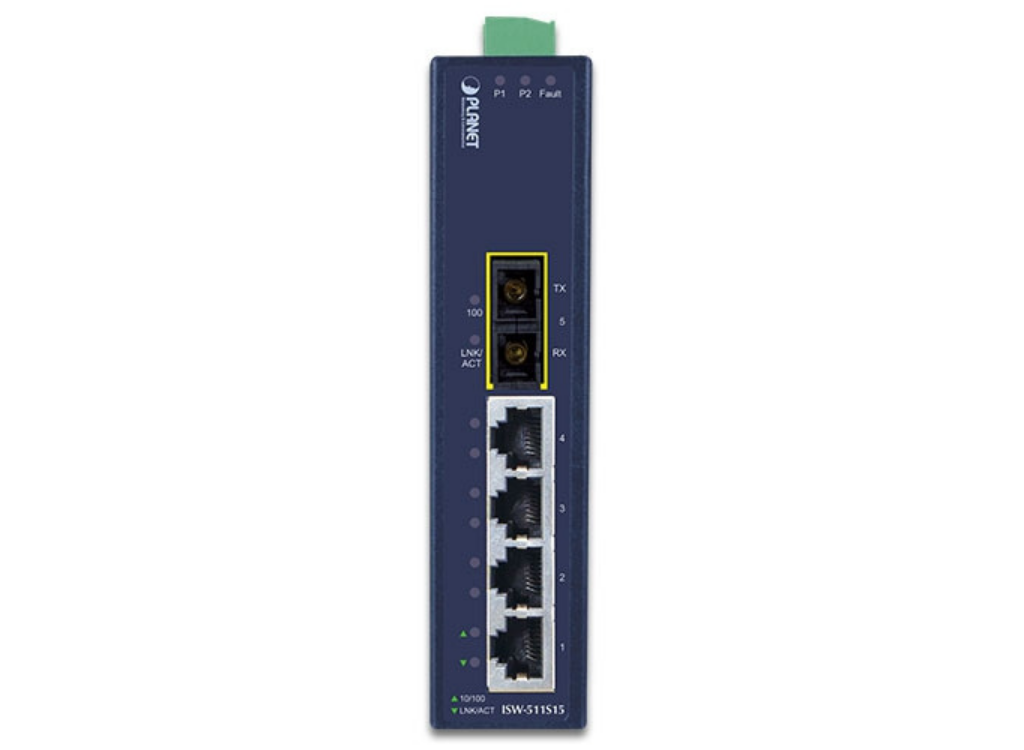

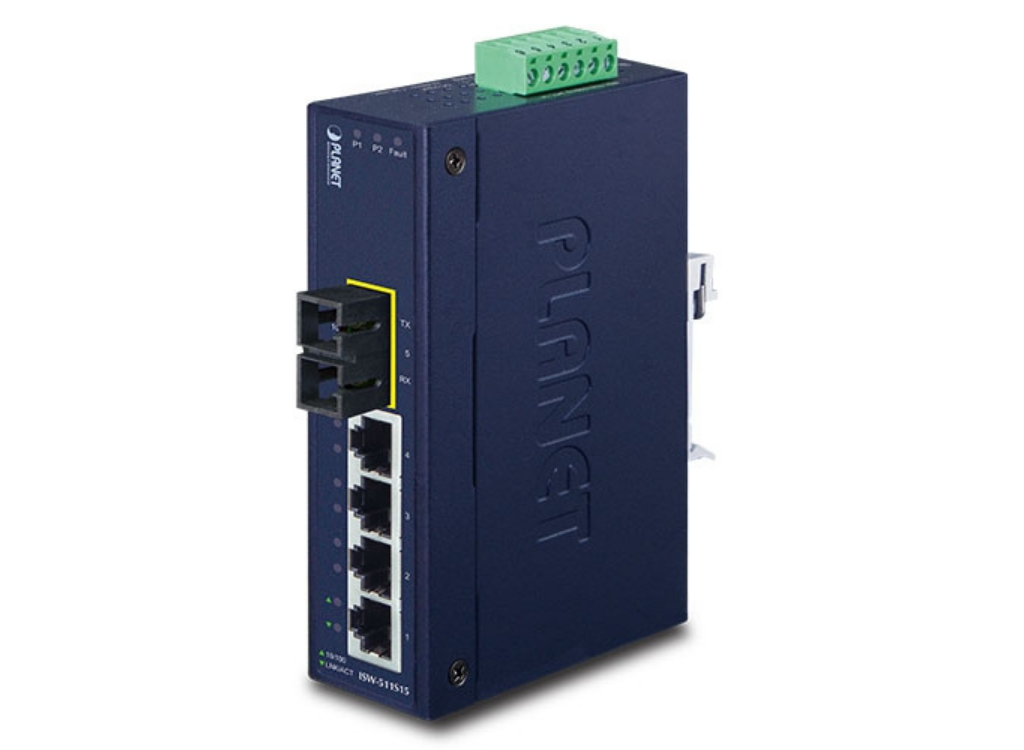

PLANET has released the ISW-511 / ISW-511S15, an advanced industrial hardened Ethernet Switch with new slim type, IP-30 metal case. They each are equipped with 4 10/100Base-TX auto-negotiation ports. The ISW-511 has one 100Base-FX multi-mode SC interface for transmission distance up to 2km, and the ISW-511S15 has one 100Base-FX single-mode SC interface for transmission distance up to 15km. Both of them operate reliably in Heavy Industrial demanding environments. The compact, IP-30 standard metal case allows either DIN rail or wall mounting for efficient use of cabinet space.

Stable Operating Performance under Difficult Environments
The ISW-511 / ISW-511S15 provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curb side traffic control cabinets. Being able to operate under the temperature range from -10 to 60 degrees C, the ISW-511 / ISW-511S15 can be placed in almost any difficult environment. The ISW-511 / ISW-511S15 also possesses an integrated power supply source with wide range of voltages (12 to 48V DC) for worldwide high availability applications requiring dual or backup power inputs.

Robust Switch performance
The ISW-511 / ISW-511S15 each provides four 10/100Base-TX Ethernet ports and one 100Base-FX optic-fiber SC interface, and boasts a high performance switch architecture that is capable of providing non-blocking switch fabric and wire-speed throughput as high as 1Gbps. With 2K MAC address table, they offer wire-speed packets transfer performance without risk of packet loss. The Flow Control function allows the ISW-511 / ISW-511S15 for fast and reliable data transfer.

All of the RJ-45 copper interfaces in the ISW-511 / ISW-511S15 support 10/100Mbps auto negotiation for optimal speed detection through RJ-45 Category 3, 4 or 5 cables. The standard auto-MDI/MDI-X support can detect the type of connection to any Ethernet device without requiring special straight or crossover cables.

Applications

Industrial Area Switch for Data Collect and Forward
The ISW-511/ ISW-511S15 is equipped with four 10/100Mbps ports that offers auto MDI / MDIX feature, one 100Base-FX optic-fiber SC interface, 1Gps non-blocking switch fabric, and the 2K MAC address table so that they can perform wire-speed packets transfer without risk of packet loss. The ISW-511 / ISW-511S15 in the slim type IP 30 metal shape is ideal for most Heavy Industrial demanding environments.

Key Features

Physical Port
4-port 10/100Base-TX RJ-45 with auto MDI/MDI-X function
1-port 100Base-FX interface for up to 2km (Multi-mode fiber 50µm/125µm) on ISW-511
1-port 100Base-FX interface for up to 15km (Single-mode fiber 9µm/125µm) on ISW-511S15

Layer 2 Features
Complies with IEEE 802.3, IEEE 802.3u 10/100Base-TX, 100Base-FX Ethernet standard
Supports auto negotiation and 10/100Mbps half / full duplex mode for each copper port
High performance Store and Forward architecture
Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
Backplane (Switching Fabric): 1Gbps
Integrated address look-up engine, support 2K absolute MAC addresses
1 Mbit on-chip frame buffer
Automatic address learning and address aging
CSMA/CD Protocol

Industrial Case / Installation
IP-30 metal case / protection
DIN rail and wall mount design

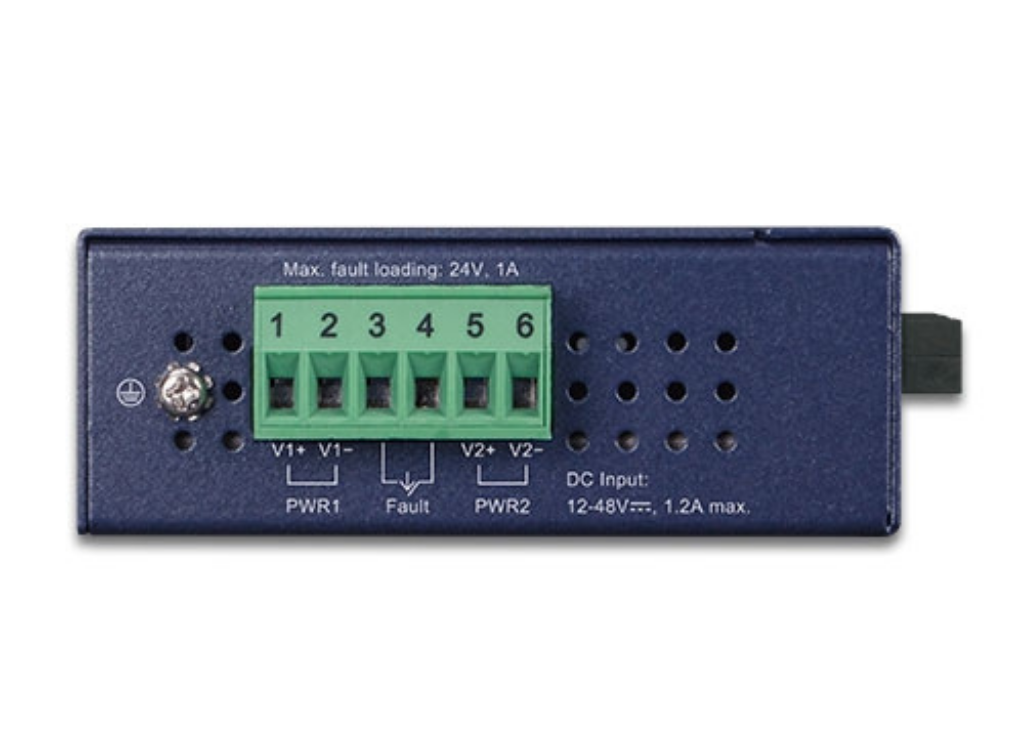

12 to 48V DC, redundant power with polarity reverse protect function and connective removable terminal block for master and slave power
Supports EFT protection 6000 VDC for power line
Supports 6000 VDC Ethernet ESD protection
-10 to 60 degrees C operating temperature
