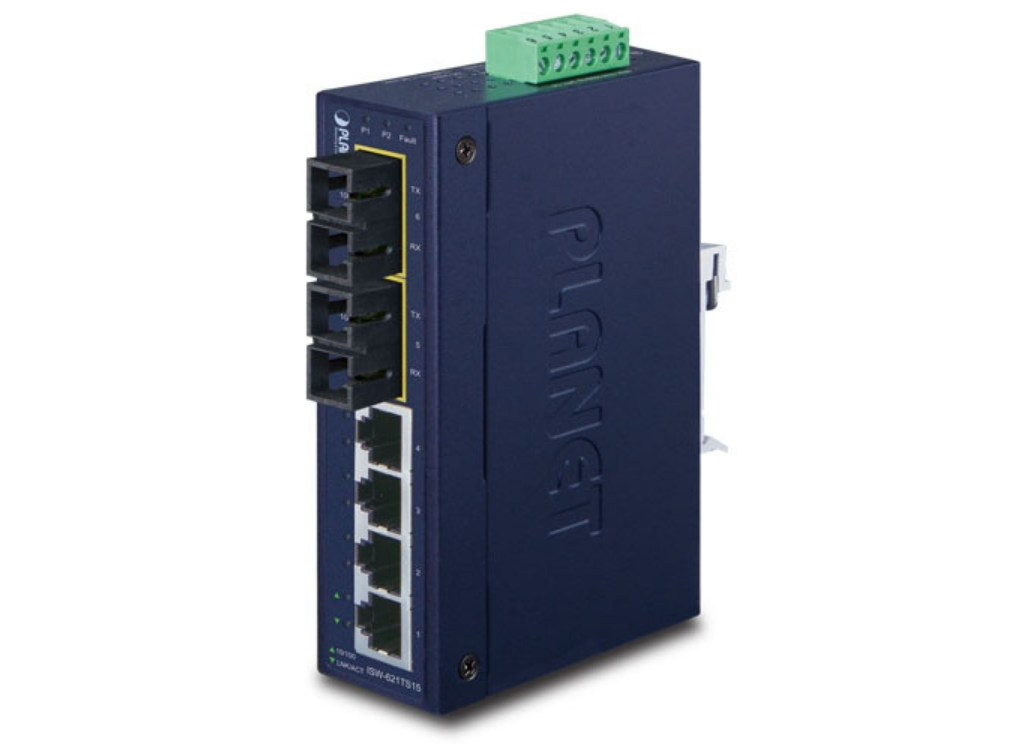

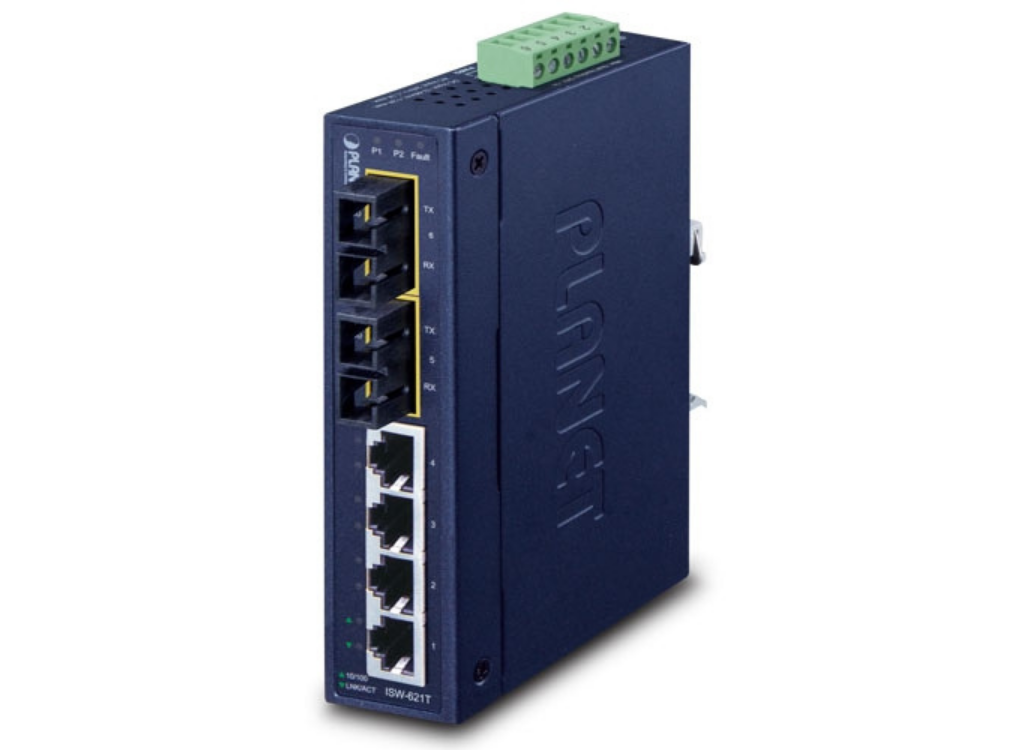

Planet 4-Port 10/100Base-TX + 2-Port 100Base-FX Industrial Ethernet Switch with Wide Operating Temperature (-40~75 degrees C)

Highly Convenient and Feasible Industrial Robust Switch
PLANET has upgraded two models named ISW-621T and ISW-621TS15 for use in environments with wide operating temperature. The capital ‘T’ (ISW-621T and ISW-621TS15) shown in the model names means that they can support and operate under WIDE-TEMPERATURE environment ranging from -40 up to 75 degrees C. As we know the temperature in many places and countries of the world are lower than -10 degrees C, these two new models, ISW-621T and ISW-621TS15, will be the right products for Transportation, Manufacturing, Security and Surveillance network deployments in those harsh environments. The ISW-621T / ISW-621TS15 also provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curb side traffic control cabinets.

Flexibly Extendable Distance
They(the ISW-621T and ISW-621TS15) each include four 10/100Base-TX auto-negotiation ports and two 100Base-FX ports. The ISW-621T is equipped with 100Base-FX multi-mode SC interfaces for transmission distance up to 2km while the ISW-621TS15 is equipped with 100Base-FX single-mode SC interfaces for transmission distance up to 20km. The two 100Base-FX ports provide more flexibility for Transportation, Manufacturing, Security and Surveillance with distance extension without any limitation, making the ISW-621T / ISW-621TS15 suitable either for long distance (ISW-621TS15) or short distance (ISW-621T) network deployment.

Easy Installation and Wide Range of Power Usages
The ISW-621T and ISW-621TS15 are designed with a compact case that allows either DIN rail or panel mounting for the efficient usage of cabinet space. It provides an integrated power supply with a wide range of voltages for worldwide operation. It also offers dual-redundant, reversible polarity 12V DC to 48V DC power supply inputs for high availability applications requiring dual or backup power inputs.

Applications

Industrial Switch for High Performance Data Collection and Forwarding
The ISW-621T and ISW-621TS15 are equipped with four 10/100Mbps ports offering auto MDI / MDIX feature, and two 100Base-FX optic-fiber SC interfaces providing 1.2Gps non-blocking switch fabric and the 2K MAC address table so that they can perform wire-speed packets transfer without risk of packet loss. The ISW-621T / ISW-621TS15, which come in the slim type IP30 metal case, is ideal for the most Heavy Industrial demanding environments.

Key Features

Physical Port

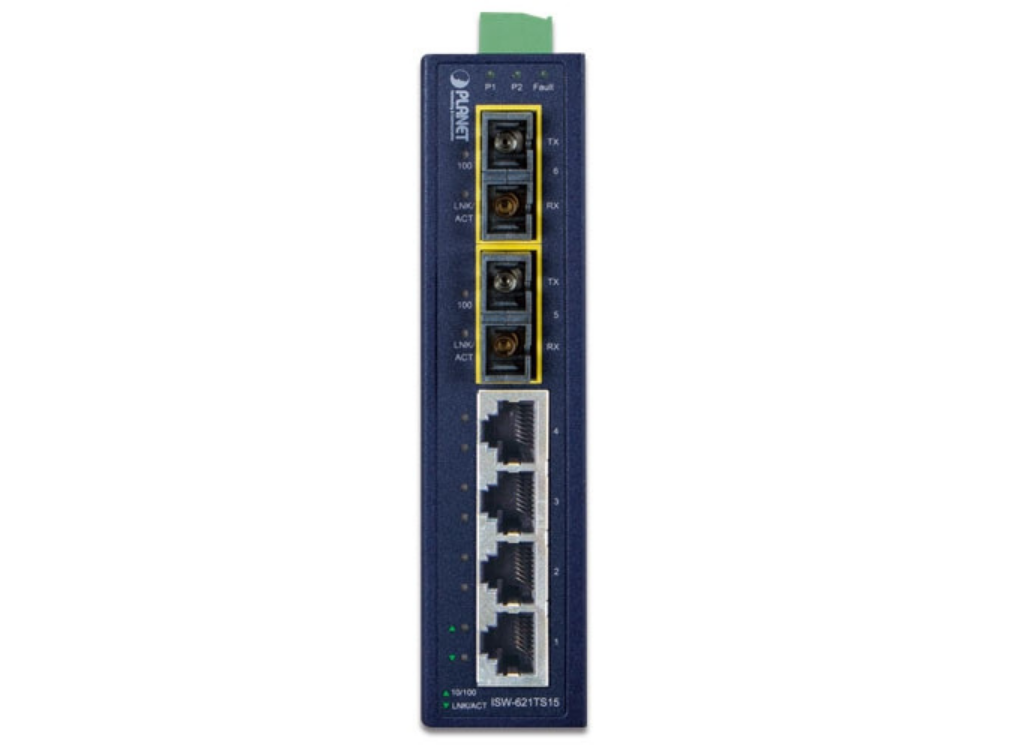

4-port 10/100BASE-TX RJ-45 with auto MDI/MDI-X function for ISW-621T series
Two 100BASE-FX interfaces on ISW-621T for up to 2km (multi-mode fiber 62.5/125μm, 50/125µm) transmission distance
Two 100BASE-FX interfaces on ISW-621TS15 for up to 20km (single-mode fiber 9/125µm) transmission distance

Layer 2 Features
Complies with IEEE 802.3, IEEE 802.3u 10/100BASE-TX, 100BASE-FX Ethernet standard
Supports auto negotiation and 10/100Mbps half / full duplex mode for each copper port
High performance Store and Forward architecture, broadcast storm control, and runt/CRC filtering to eliminate erroneous packets to optimize the network bandwidth
Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
Backplane (Switching Fabric): 1.2Gbps
Integrated address look-up engine, supporting 2K absolute MAC addresses
1Mbit on-chip frame buffer
Automatic address learning and address aging
CSMA/CD Protocol

Industrial Case and Installation
IP30 metal case protection
DIN-rail and wall mount designs

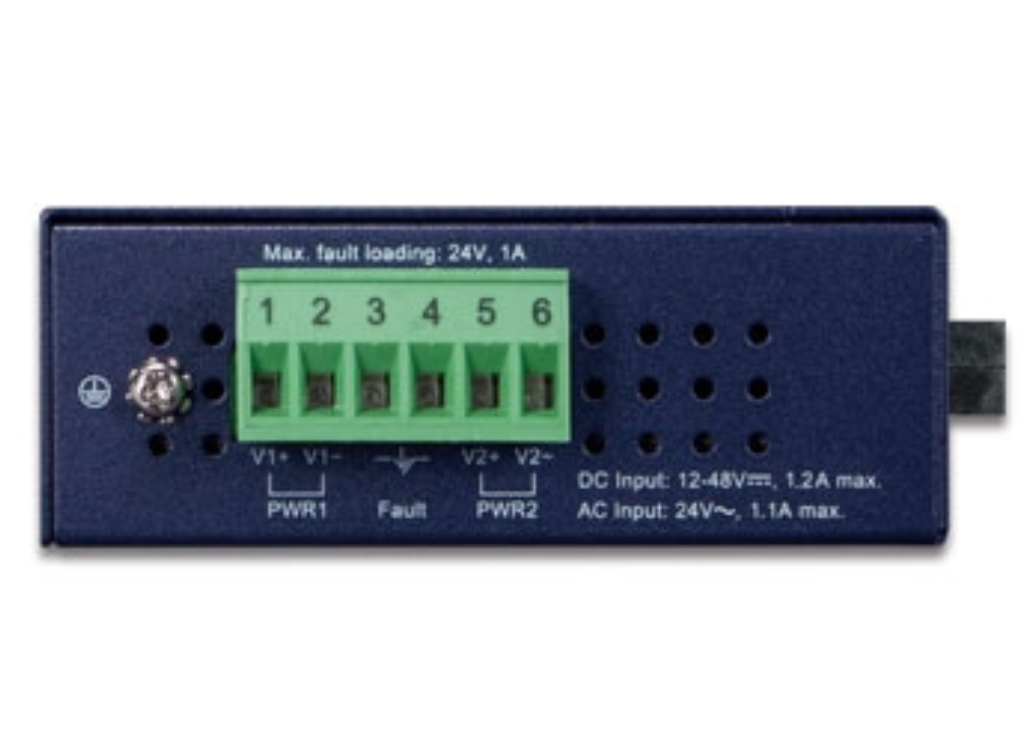

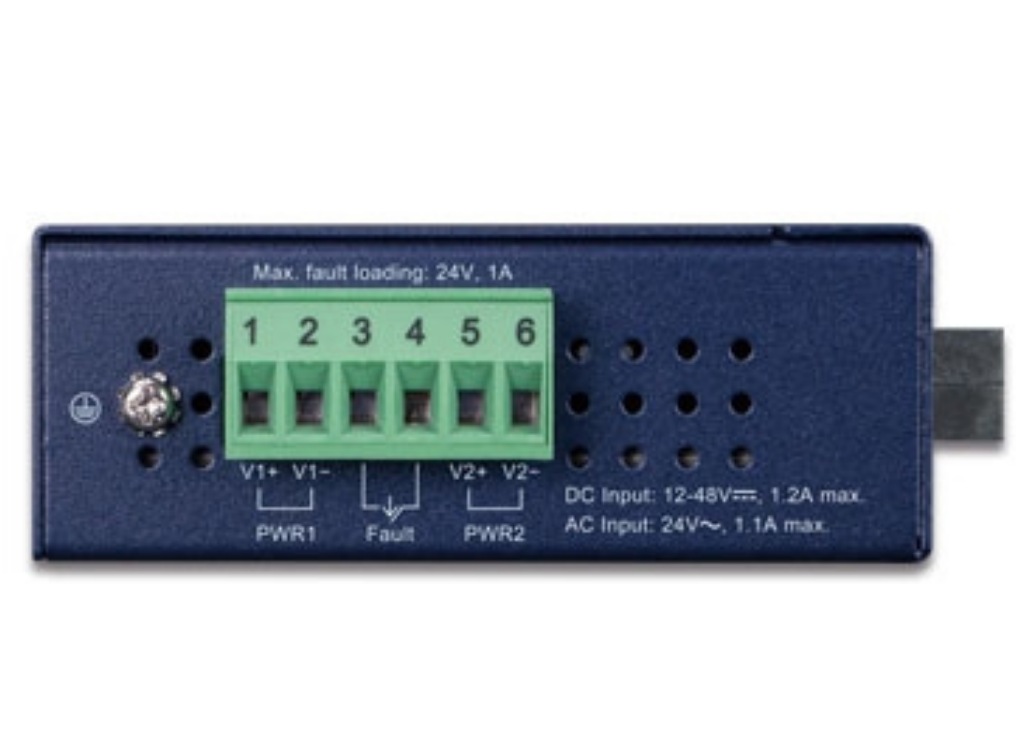

12 to 48V DC, redundant power with reverse polarity protection
Connective removable terminal block for master and slave power
Supports EFT 6KV DC protection for power line
Supports 6KV DC Ethernet ESD protection
-40 to 75 degrees C wide operating temperature
