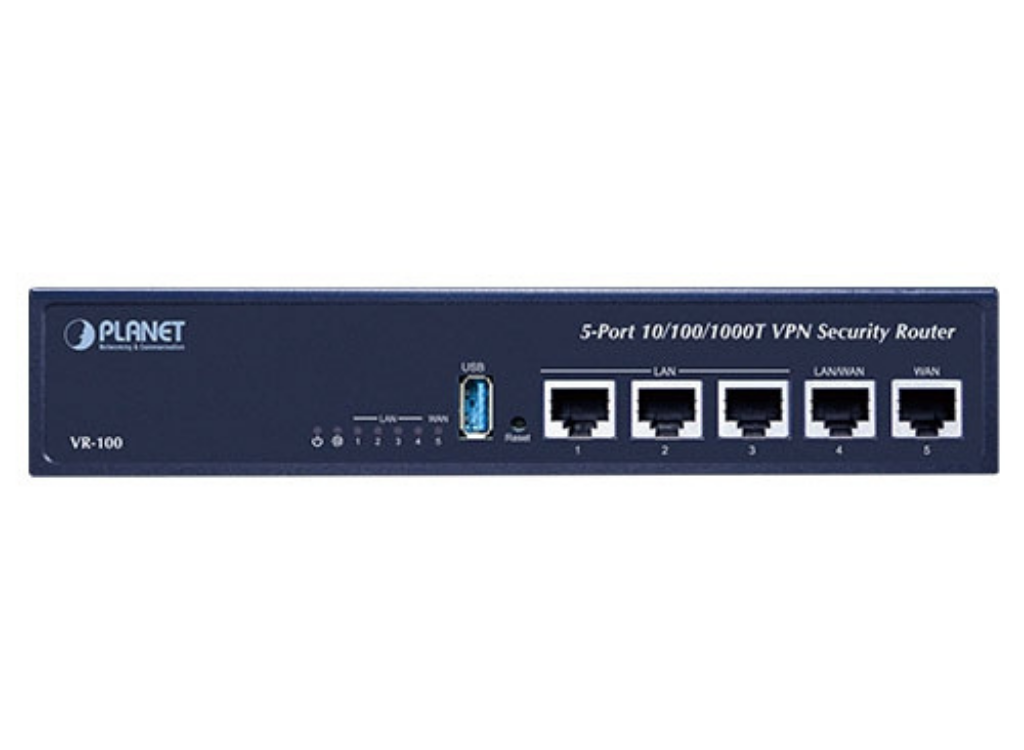

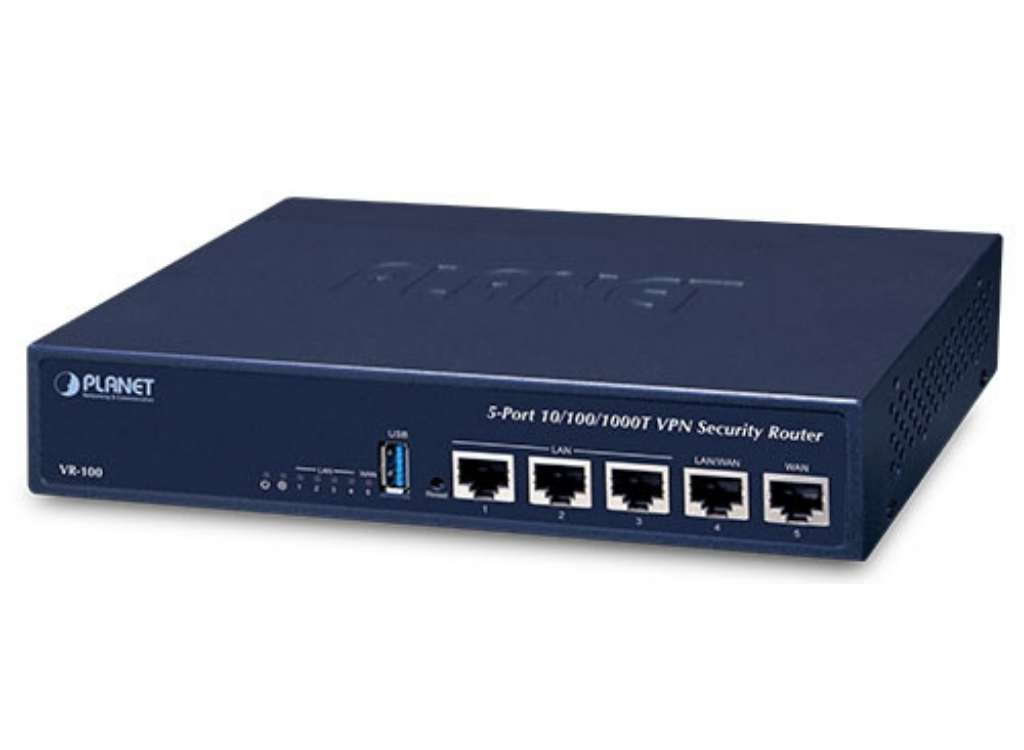

Planet 5-Port 10/100/1000T VPN Security Router | VR-100

Powerful Network  Security Solution
The innovation of the Internet has created tremendous worldwide opportunities for e-business and information sharing. It has become essential for businesses to focus more on network security issues. The demand for information security has become the primary concern for the enterprises. To fulfill this demand, PLANET has launched the VR-100 VPN Security Router, an all-in-one appliance that carries several main categories across your network security deployments: Cybersecurity, SPI firewall security protection, policy auditing (Content Filtering, VPN Tunnel and MAC/IP Filtering), captive portal, RADIUS and easy management (Setup Wizard, DHCP Server and Dashboard). Furthermore, its Dual-WAN Failover and Outbound Load Balance features can improve the network efficiency while the web-based interface provides friendly and consistent user experience.

Authentication with Simplified Management
The VR-100 provides a built-in captive portal, RADIUS and a DHCP server to facilitate small and medium businesses to deploy secure employee and guest access services without any additional server. The VR-100 can offer a secure network with easy installation for your business.

Excellent Ability in Threat Defense
The VR-100 built-in SPI (stateful packet inspection) firewall and anti-DoS/DDoS protection provide high efficiency and extensive protection for your network. Virtual server and DMZ functions can let you setup servers in the Intranet and still provide services to the Internet users.

Ideal VPN Security Router Solution for SMBs
The VR-100 provides complete data security and privacy for accessing and exchanging the most sensitive data, built-in IPSec VPN function with DES/3DES/AES encryption and MD5/SHA-1/SHA-256/SHA-384/SHA-512 authentication, and GRE, SSL, PPTP and L2TP server mechanism. The full VPN capability in the VR-100 makes the connection solid secure, more flexible, and more capable.

The VR-100 supports many popular security features including content filterring to block specific URL, MAC/IP filtering, outbound load-balancing and more. Furthermore, it provides higher performance with all Gigabit Ethernet interfaces which offer faster speeds for your network applications. The Gigabit user-defined interfaces flexibly fulfill the network requirement nowadays, and the Dual-WAN interfaces enable the VR-100 to support outbound load balancing and WAN fail-over features.

Cybersecurity Network Solution to Minimize Security Risks
The cybersecurity feature included to protect the switch management in a mission-critical network virtually needs no effort and cost to install. For efficient management, the VR-100 is equipped with HTTPS web and SNMP management interfaces. With the built-in web-based management interface, the VR-100 offers an easy-to-use, platform independent management and configuration facility. The VR-100 supports SNMP and it can be managed via any management software based on the standard SNMP protocol.

Improving Network Efficiency
The VR-100 has link redundancy, content filtering and many more functions to make the entire network system better. It is applicable to the small-scale sector (from 10 to 50 people), using a 9-inch desktop design, with five Gigabit ports (WAN/LAN). The VR-100’s economical price with complete cable management features make it an inevitable choice for the next-generation office network load balancer.

The VR-100’s built-in content filtering feature can automatically resolve the IP address corresponding to all. Users’ network can be easily managed by just typing the URL of the websites  like Facebook, YouTube and Yahoo.

The VR-100 can connect dual WANs with up to two different ISPs. It creates a stable and qualified VPN connection for many important applications such as VoIP, video conferencing and data transmission.

Applications

Ideal VPN Security Router
PLANET VR-100 VPN security router has an SPI firewall with DoS detection.  Through the content filtering function, it can easily block the websites like Facebook, YouTube, Gmail, etc. With IPSec/GRE/PPTP/L2TP/SSL VPN solutions, the VR-100 provides secured data communication for branches, vendors, and mobile workers with a flexible way to connect back to the headquarters.

The VR-100 connects dual WANs with up to two different ISPs. It creates a stable and qualified VPN connection for many important applications such as VoIP, video conferencing and data transmission.

Key Features

Hardware
5 10/100/1000BASE-T RJ45 ports
1 undefined Ethernet port (LAN/WAN)
Dual-WAN function
1 USB 3.0 port for system configuration backup and restore
Reset button
Desktop installation or rack mounting (optional)
Fanless design

IP Routing Feature
Static route
Dynamic route
OSPF

Firewall Security
Cybersecurity
Stateful packet inspection (SPI) firewall
Blocks DoS/DDoS attack
Content filtering
MAC filtering and IP filtering
NAT ALGs (Application Layer Gateway)
Blocks SYN/ICMP flooding

VPN Features
IPSec/Remote server (Net-to-Net, Host-to-Net), GRE, PPTP server, L2TP server, SSL server/client (Open VPN)
Max. Connection Tunnel Entries: 60 VPN tunnels,
Encryption methods: DES, 3DES, AES, AES-128/192/256
Authentication methods: MD5, SHA-1, SHA-256, SHA-384, SHA-512

Networking
Outbound load balancing
Failover for dual-WAN
Captive portal
RADIUS server/client
Static IP/PPPoE/DHCP client for WAN
DHCP server/NTP client for LAN
Protocols: TCP/IP, UDP, ARP, IPv4, IPv6
Port forwarding, QoS, DMZ, IGMP, UPnP, SNMPv1,v2c, v3
VLAN
Multi-Subnet
MAC address clone
DDNS: PLANET DDNS, Easy DDNS, DynDNS and No-IP

Others
Setup wizard
Dashboard for real-time system overview
Supported access by HTTP or HTTPS
Auto reboot
PLANET Smart Discovery utility/UNI-NMS supported
