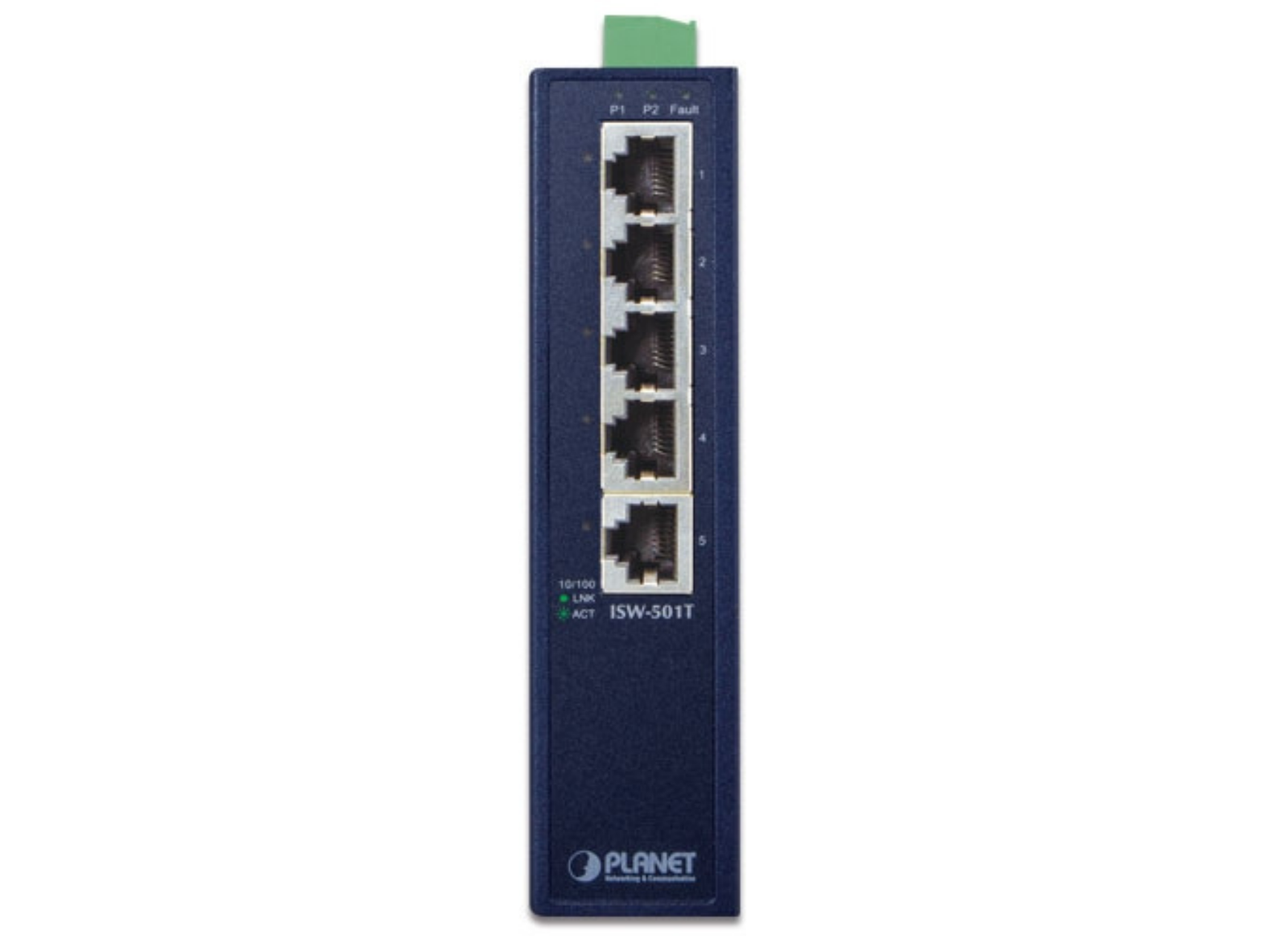

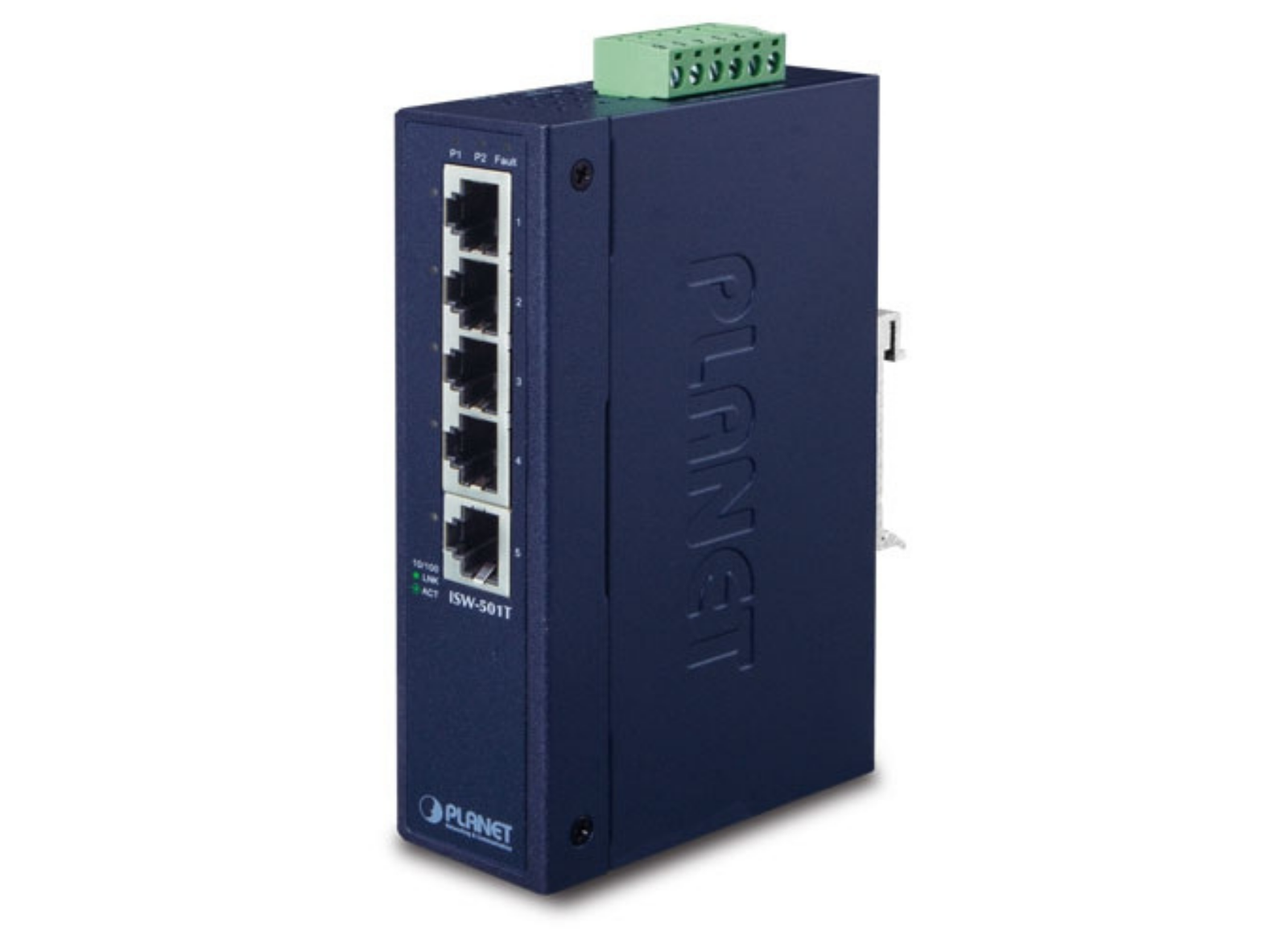

Planet 5-Port 10/100TX Industrial Fast Ethernet Switch | ISW-501T

SKU: ISW-501T
Part Number: ISW-501T
Condition: Brand New
Purchase Orders Accepted
Save £10.20 Save £10.20
Original price £99.90
Inc. VAT
Original price £99.90 - Original price £99.90
Original price £99.90

£74.75 (Excl. VAT)

Current price - £89.70 Inc. VAT
£89.70 - £89.70
Current price- - £89.70
(Inc. VAT )
Availability:
16 in stock

payment-icons

Bulk Price & Price Match Request

Contact our expert sales team on 020 8191 9223 for best price and dedicated assistance.

Educational & Public Sector Prices Available

For more details, please call us at 020 8191 9223 or email us at info@screenmoove.com

  • Description
  • Specifications
  • Downloads
  • Planet 5-Port 10/100TX Industrial Fast Ethernet Switch | ISW-501T

    Slim Type with more Practicability and Convenience
    PLANET ISW-501T, an Industrial 5-port Fast Ethernet Switch, provides non-blocking wire-speed performance in harsh industrial environment. It also provides 5-port 10/100BASE-TX RJ45 copper interfaces delivered in an IP30 rugged, strong case with redundant power system. Its slim case is suitable for such applications as surveillance system deployments, control management and wireless service in climatically demanding environments with wide temperature range from -40 to 75 degrees C.

    Energy Saving with Lower Power Consumption
    The ISW-501T, adopting the advanced green networking technology, provides the IEEE 802.3az protocol based power saving. This feature makes the ISW-501T consume very low power in full load operation mode, which helps conserve energy effectively but maintains high performance efficiently.

    Stable Performance under Difficult Environments
    The ISW-501T provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curb-side traffic control cabinets. Being able to operate under the temperature range from -40 to 75 degrees C, the ISW-501T can be placed in almost any difficult environment. The ISW-501T also possesses an integrated power supply source with wide range of voltages (12 to 48V DC, 24V AC) for worldwide high availability applications requiring dual or backup power inputs.


    Robust Switch Performance

    Built in a high-performance switch architecture, the ISW-501T comes with five 10/100Mbps Fast Ethernet ports providing non-blocking switch fabric and wire-speed throughput as high as 1Gbps, and the 1K MAC address. Thus, the ISW-501T can transfer wire-speed packets without the risk of packet loss. The flow control function enables the ISW-501T to provide fast and reliable data transfer.

    All of the RJ45 copper interfaces in the ISW-501T support 10/100Mbps auto negotiation for optimal speed detection through RJ45 Category 5 or 5e cables. The standard auto-MDI/MDI-X support can detect the type of connection to any Ethernet device without requiring special straight-through or crossover cables.

  • Category Specification
    10/100BASE-TX Auto MDI/MDIX Ports 5
    LED Indicators 3 x LED for System and Power:
    ■ Green: DC Power 1
    ■ Green: DC Power 2
    ■ Green: Power Fault
    1 x LED for each Copper Port
    ■ Green: 10/100 LNK/ACT
    Enclosure IP30-rated metal case
    Dimensions (W x D x H) 135 x 87 x 32 mm
    Weight 400g
    ESD Protection 6KV DC
    EFT Protection 6KV DC
    Power Requirements 12~48V DC, redundant power with polarity reverse protection function, 24V AC power support
    Power Consumption/Dissipation 1.6 watts/5.4BTU
    Installation DIN rail kit and wall-mount ear
    Alarm Provides one relay output for power failure, Alarm relay current carry ability: 3A @ DC 30V

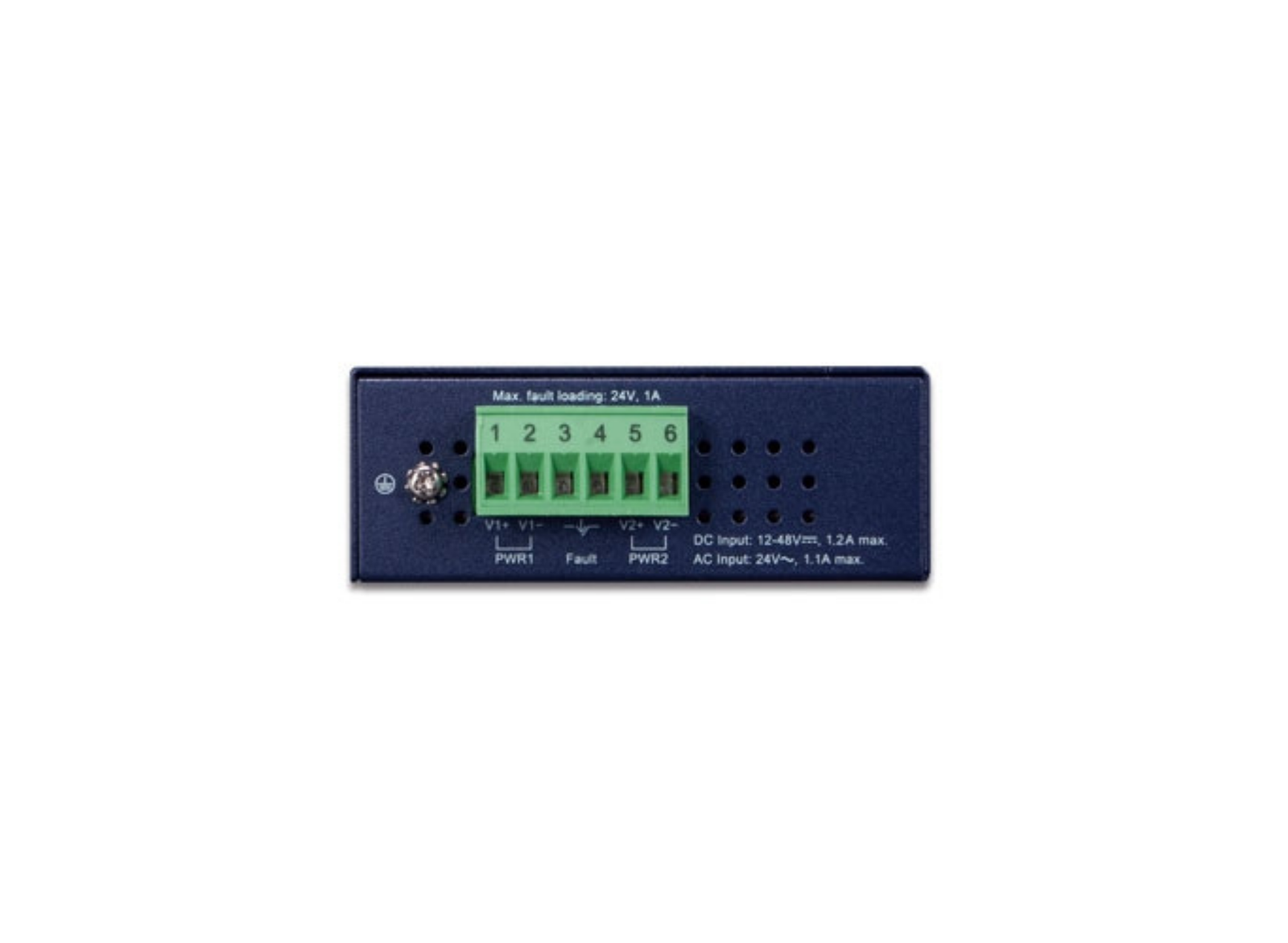

    Connector Removable 6-pin terminal block
    Pin 1/2 for Power 1; Pin 3/4 for fault alarm; Pin 5/6 for Power 2
    Switch Processing Scheme Store-and-Forward
    Address Table 1K
    Buffer Memory Embedded 448K bits packet buffer
    Flow Control Back pressure for half duplex, IEEE 802.3x pause frame for full duplex
    Switch Fabric 1Gbps
    Throughput (packet per second) 0.74Mpps
    Network Cables 10BASE-T: 2-pair UTP Cat. 3, 4, 5, up to 100 meters
    100BASE-TX: 2-pair UTP Cat. 5, 5e up to 100 meters
    Standards Compliance IEEE 802.3 Ethernet
    IEEE 802.3u Fast Ethernet
    IEEE 802.3x Full Duplex Flow Control
    IEEE 802.3az Energy Efficient Ethernet
    Temperature Operating: -40~75 degrees C
    Storage: -40~75 degrees C
    Humidity Operating: 5% to 95%, Storage: 5% to 95% (non-condensing)
    Regulatory Compliance FCC Part 15 Class A, CE
    Stability Testing IEC60068-2-32 (free fall)
    IEC60068-2-27 (shock-proof)
    IEC60068-2-6 (vibration-proof)
  • Description Downloads
    Datasheet Downloads
